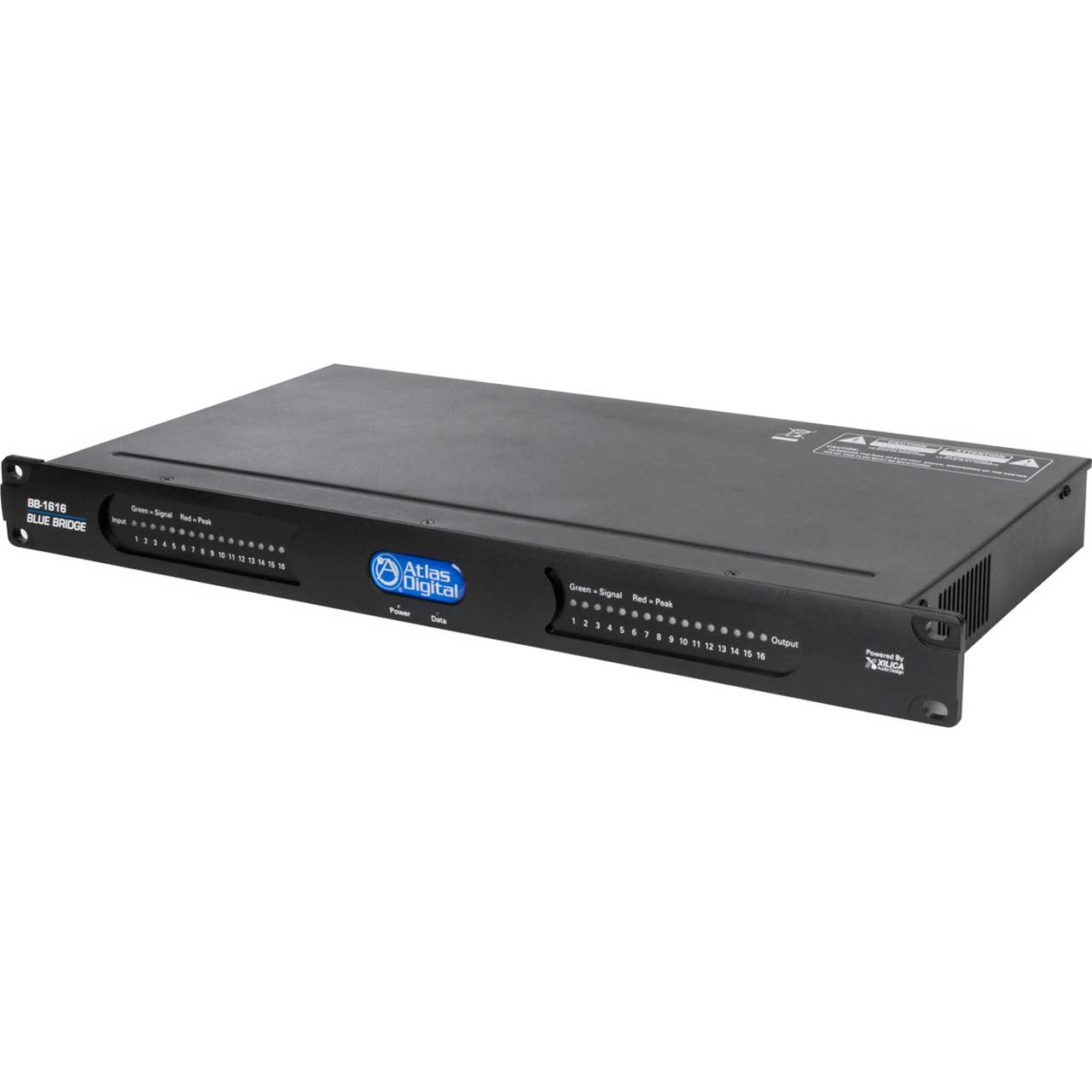

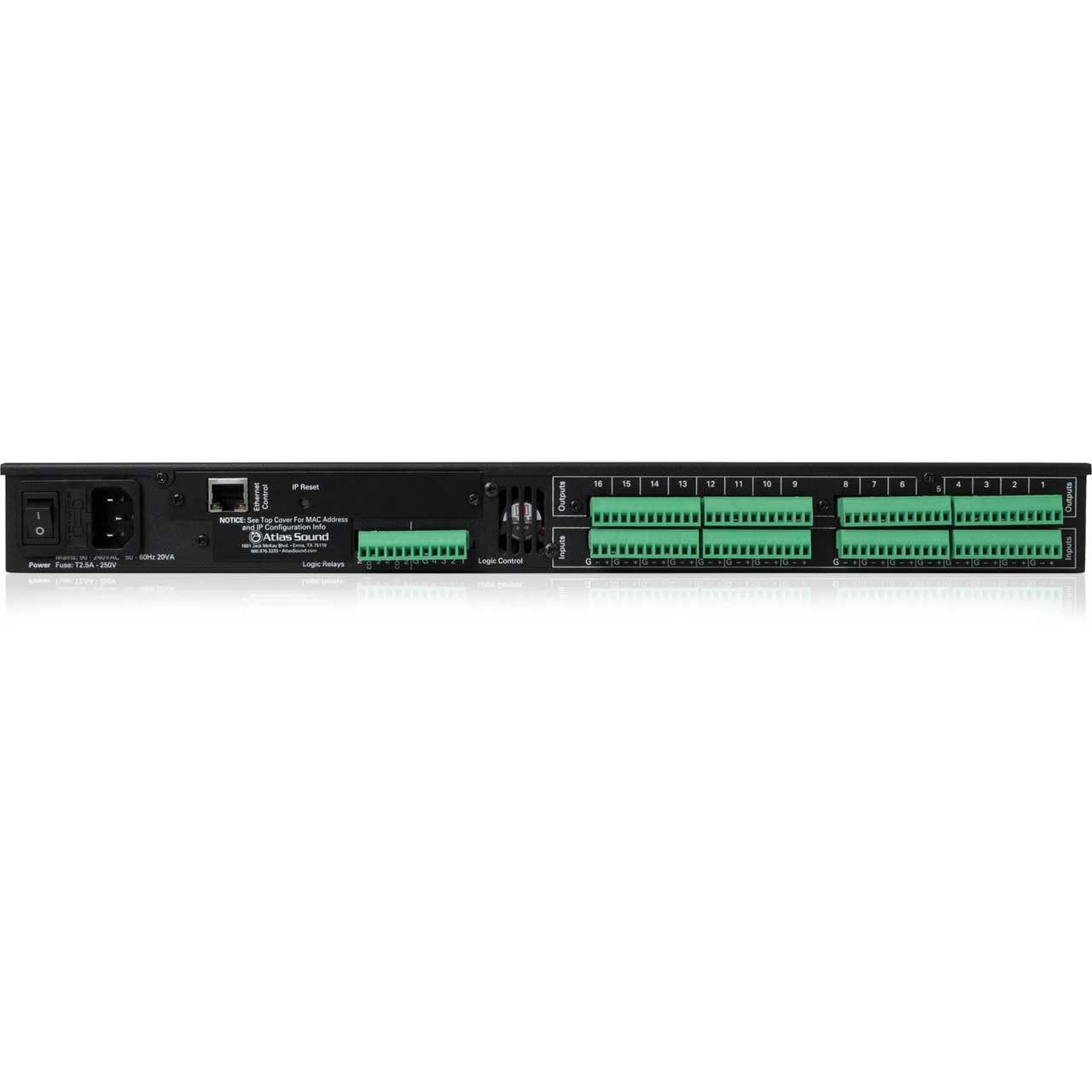

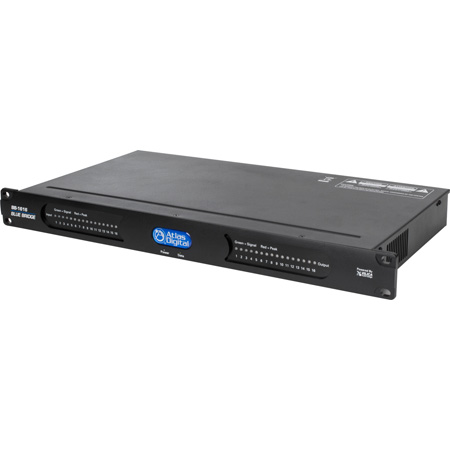

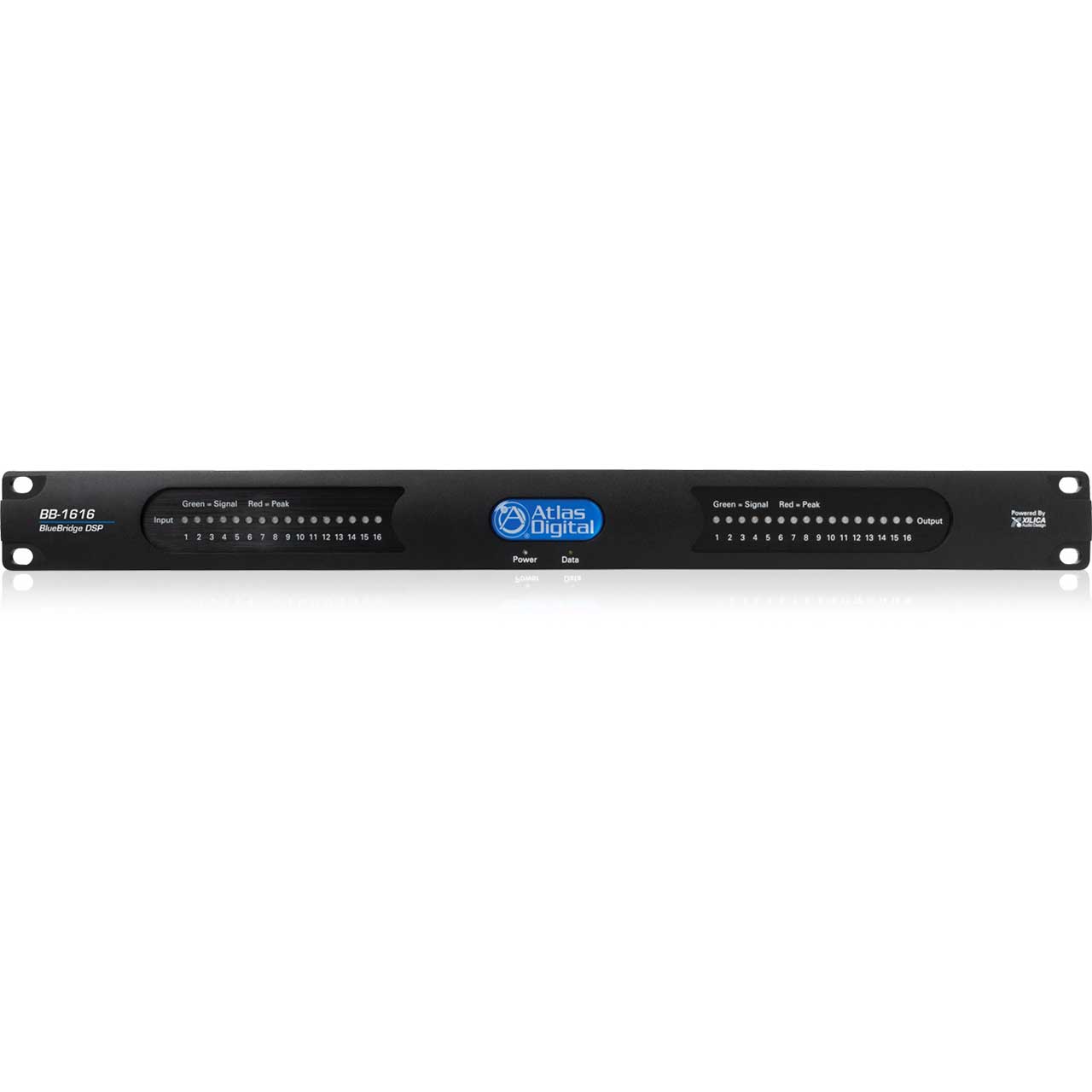

Atlas BB-1616 BlueBridge 16 Input x 16 Output DSP Audio Processor

ITEM #: ATL-BB-1616 MFG #: BB-1616

Primary Image
  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
Free Shipping with $49 Minimum Order

List Price:

$5,765.99

Our Price:

$4,613.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    BB-1616 - Overview

    The BlueBridge 16 Input / 16 Ouput DSP Audio Processor from Atlas Sound is a platform designed for sound reinforcement and AV applications. The DSP Processor can provide audio and Ethernet connectivity for TCP/IP third party control and programmability. Using microphone preamps and 24-bit converters, this processor obtains a low noise floor. The 40-bit floating point DSP engine is designed to prevent digital clipping and to obtain maximum speed and power to process advanced algorithms in complex system designs. The unit can operate on any network, and when connected, the processor will be recognized and controllable. The processor provides standard mixers, gain sharing auto-mixers, delays, equalizers, level controls, duckers, filters, as well as many other processing capabilities. This processor is UL rated and intended for use in houses of worship, restaurants, presentation and conference rooms, courtrooms, and other areas in need of sound reinforcement and AV applications.

    • Features:

      • Open architecture programmability
      • Ethernet network connectivity
      • TCP/IP third party control capability
      • Low noise floor
      • Four logic inputs/outputs
      • 48 kHz, 40-bit floating DSP engine
      • EQ modules include parametric, graphic, and anti-feedback
      • Crossover modules include Butterworth, Linkwitz Riley, and Bessel
        with slopes from 6 to 48 dB per octave
      • Filter modules include high shelf, low shelf, and all pass
      • Mixer modules includes a gain sharing auto-mixer, a gating auto-mixer,
        a matrix mixer, a standard mixer, a LR mixer, and a LCR mixer
      • Generator modules come in sine tone, sign sweep, white, and pink
      • Dynamic modules include a compressor, expander, limiter, and ducker
      • Output peak and signal indicator LEDs

    • Specifications:

      • Dimensions: L x W x D: 1.8 x 19.0 x 9.0" (4.4 x 48.2 x 22.9 cm)
      • Input Type: Microphone or Line, Software Selectable
      • Input Gain: -40 to +15 dB in 0.25 dB Steps
      • Phantom Power: 48 V, Software Enabled
      • Output Type: Line
      • Output Gain: -40 to +15 dB in 0.25 dB steps
      • Output Impedance: 50 ohms
      • Processor: 40-bit Floating Point
      • Sampling Rate: 48 kHz
      • Power Requirements: 90 - 240 VAC (50-60 Hz)
      • Digital to Analog Converter: High Performance 24-bit
