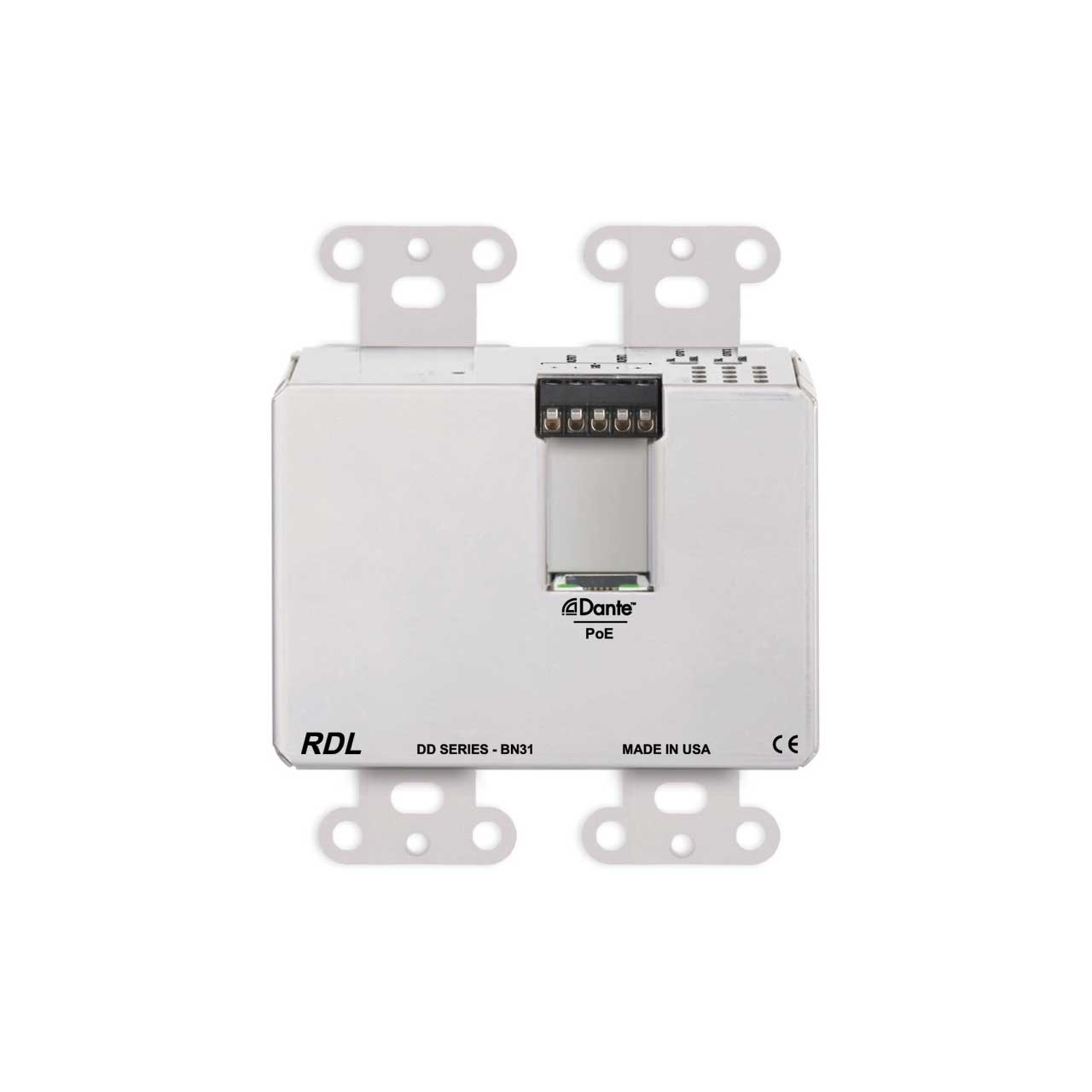

RDL DDS-BN31 Wall-Mounted Bi-Directional Mic/Line Dante Interface 4 x 4
  • RDL DDS-BN31 Wall-Mounted Bi-Directional Mic/Line Dante Interface 4 x 4
  • RDL DDS-BN31 Wall-Mounted Bi-Directional Mic/Line Dante Interface 4 x 4
  • RDL DDS-BN31 Wall-Mounted Bi-Directional Mic/Line Dante Interface 4 x 4

Questions? Ask a Markertek Expert:
800-522-2025 Email

RDL DDS-BN31 Wall-Mounted Bi-Directional Mic/Line Dante Interface 4 x 4

Manufacturer: Radio Design Labs

Item #: RDL-DDS-BN31   •   MFG #: DDS-BN31



List Price:$845.58
Our Price:$642.51

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov

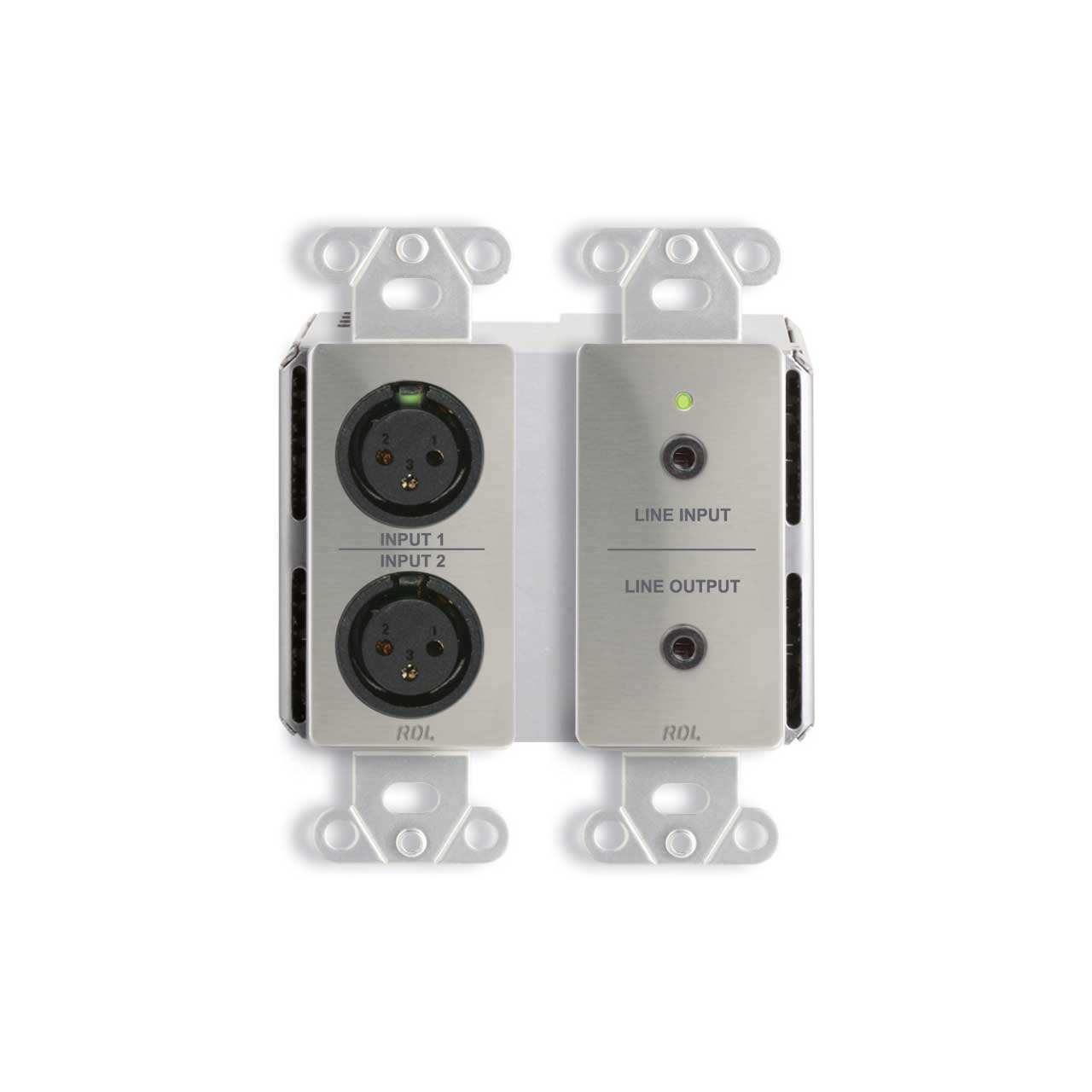

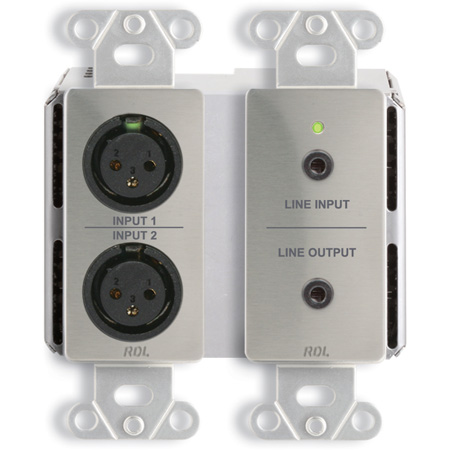

    The DDS-BN31 is a complete wall-mounted Dante audio network interface. It features two XLR mic or line inputs, one stereo Mini-jack line input and one stereo Mini-jack line output on the front panels, plus two line outputs on a rear-panel detachable terminal block. Special software is not required to configure the DDS-BN31.

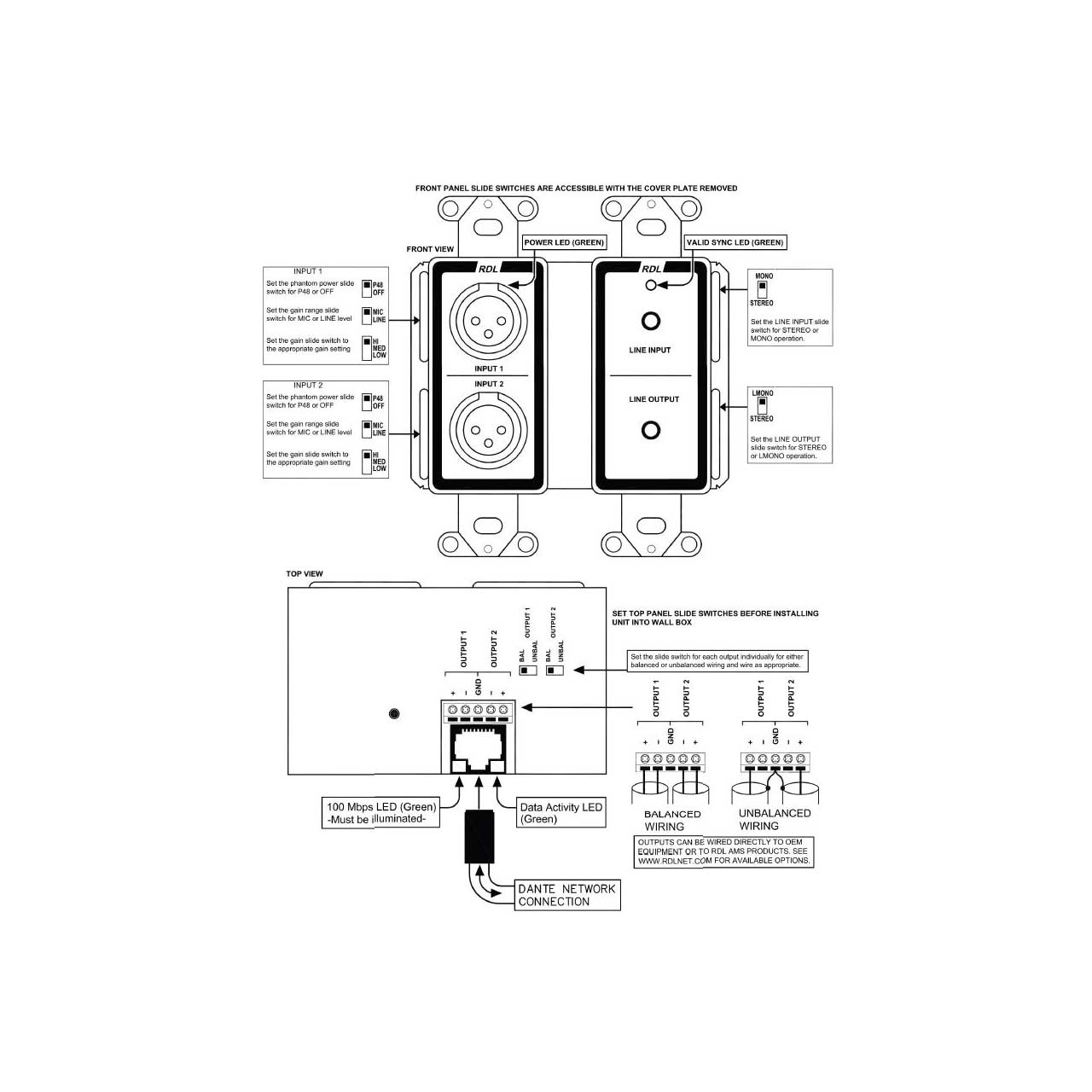

    Each XLR input provides three switches that may be set from the front of the unit when the cover plate is not installed. One switch enables or disables P48 phantom for that input; the second switch selects the mic or line gain range; the third switch sets the gain. The Mini-jack input provides a switch to configure the input for stereo or summed mono.

    The Mini-jack output provides a switch to configure the output for stereo or left-channel mono. Each rear-panel output provides a switch to set the output to balanced professional or unbalanced consumer level. The DDS-BN31 fits a standard US dual-gang electrical box or an RDL WB-2 back box for installations in thinner European or equivalent walls. The DDS-BN31 is PoE powered, and is available in multiple finishes with optional customized graphics.

    The Mini-jack left and right inputs are each converted to a separate Dante network transmit channel. Each input provides a network digital audio level of -18 dBFS for an unbalanced -10 dBV input. The input is equipped with a selector to sum the left and right Mini-jack inputs. The summed signal feeds both Dante transmit channels.

    Two Dante audio channels are converted to unbalanced line level to feed the front-panel Mini-jack. Each channel provides -10 dBV unbalanced for a network digital audio level of -18 dBFS. The left and right Mini-jack channels are normally fed from Dante receive channels 3 and 4 (stereo).

    Two Dante audio channels are converted to balanced line level on the rear-panel detachable terminal block. Each output provides +4 dBu balanced for a network digital audio level of -18 dBFS. Each output is equipped with a selector to unbalance the audio and attenuate the level to -10 dBV.

    The rear-panel outputs are intended for connection to RDL AMS connectors mounted in Decora-style plates that match the DDS-BN31. AMS audio connectors include RCA, Mini and XLR jacks. The output plate may be located together with the DDS-BN31 in a triple gang box or may be mounted remotely in a single box. Valid PoE power.

    The DDS-BN31 is a professional grade product with discrete mic preamplifiers for studio quality fidelity and low noise performance.


    • Features

      • Dante Network Interface for Four Audio Inputs and Four Audio Outputs
      • One Mini-jack and Two XLR Front-Panel Inputs
      • One Mini-jack Front-Panel Output; Two Outputs on Rear-Panel Terminal Block
      • Converts Two Standard XLR Mic or Line Audio Sources to Dante Network Channels
      • Each XLR Input is Switch Selectable for Mic or Line
      • Switch-Selectable 48 V Mic Phantom (P48) Switch-Selectable Line
      • Converts Four Dante Network Audio Signals to Line Level
      • Rear Panel Outputs Switch Selectable Balanced or Unbalanced
      • Special Software Not Required for Module Setup
      • Studio Quality, Low-Noise Performance
      • High Resolution 24 Bit Analog to Digital and Digital to Analog Conversion
      • Legendary RDL Analog Filtering Enhances Superb Audio Performance

    • Specifications

      • Network Connector: RJ45 with Link and Speed indicators
      • Digital Audio Ethernet Protocol: Dante
      • Transmission Rate: 100 Mbps
      • Sample Rates Supported: 44.1 kHz, 48 kHz (default)
      • Bit Depth Supported: 24 bits
      • Audio Operating Level: -20 dBFS = +4 dBu
      • Reference Level: 0 dBFS = +24 dBu

        Mic/Line Inputs to Network Interface
      • Inputs (2): XLR (female)
      • Gain: Mic: 40 dB (LO), 48 dB (MED), 62 dB (HI) / Line: Unity (LO), 8 dB (MED), 19 dB (HI)
      • Input Level (for +4 dBu/-20 dBFS): Mic: -36 dBu (LO), -44 dBu (MED), -58 dBu (HI) / Line: +4 dBu (LO), -8 dBu (MED), -15 dBu (HI)
      • Input Level (maximum): Mic: -16 dBu (LO), -24 dBu (MED), -38 dBu (HI) / Line: +24 dBu (LO), +12 dBu (MED), +5 dBu (HI)
      • Input Impedance: > 2.5 kΩ (MIC); > 5 kΩ (LINE)
      • Phantom Power: P48, 48 Vdc, switch-selectable
      • Standard for Phantom: IEC 61938: 2013
      • Selectors per input (3): Phantom, Mic/Line, Gain
      • Frequency Response: 20 Hz to 20 kHz (± 0.5 dB)
      • Equivalent Input Noise: -130 dBu (62 dB gain); -132 dBu A-Weighted
      • Noise below -20 dBFS (20 to 20 kHz): Mic: < -72 dB (LO), < -72 dB (MED), < -68 dB (HI);  / Line: < -72 dB (LO), < -72 dB (MED), < -70 dB (HI)
      • THD+N: < 0.1% (20 Hz to 20 kHz, +4 dBu/-20 dBFS); 0.015% at 1 kHz (typ)
      • CMRR: > 65 dB (50 Hz to 120 Hz)
      • Crosstalk: Below Noise Floor (20 Hz to 20 kHz at operating level, any input to any input, max. mic gain)
      • Headroom: 20 dB

        Line Inputs to Network Interface
      • Inputs (2): Mini-jack Stereo (2, L and R)
      • Input Level (for +4 dBu/-20 dBFS): -10 dBV nominal
      • Input Level (maximum): +10 dBV~Input Impedance: > 50 kΩ
      • Selectors: Stereo (L and R)/Mono (summed)
      • Frequency Response: 20 Hz to 20 kHz (± 0.2 dB)
      • Noise below -20 dBFS (20 to 20 kHz): < -85 dB
      • Crosstalk: < -85 dB (1 kHz); < -65 dB (L into R, R into L, 20 Hz to 20 kHz)
      • THD+N: < 0.05% (20 Hz to 20 kHz, +4 dBu/-20 dBFS); 0.01% at 1 kHz (typ)
      • Headroom: 20 dB

      • Network to Line Outputs
      • Outputs (4): Balanced, detachable terminal block (2); Unbalanced, Mini-jack (2, L and R)
      • Output Level (operating): +4 dBu (nominal) balanced; -10 dBV unbalanced
      • Output Level (maximum): +24 dBu balanced; +10 dBV unbalanced
      • Output Impedance: 150 Ω balanced; 500 Ω unbalanced
      • Frequency Response: 20 Hz to 20 kHz (± 0.5 dB)
      • THD+N: < 0.1%
      • THD: < .01% (1 kHz)
      • Noise: < -78 dB (bal., below +4 dBu); < -98 (bal., below +24 dBu); < -75 dB (unbal., below -10 dBV)
      • Crosstalk: Below Noise Floor (1 kHz); < -60 dB (bal., 20 Hz to 20 kHz); < -80 dB (unbal., 1 kHz), < -70 dB (unbal., 20 Hz to 20 kHz)
      • Headroom above +4 dBu or -10 dBV: 20 dB
      • Indicators (4): Ethernet Link and Speed (2, rear panel); Sync and Power (2, front panel)
      • Ambient Operating Environment: 0° C to 40° C; 30° C maximum recommended

        General
      • Power Requirement: PoE Class 0, IEEE 802.3af
      • Specification Conditions: Gain/Level: ± 1 dB; Source termination: 150 Ω; A to D values measured in digital domain
      • Dimensions: 3.52" (8.94 cm) W; 4.11" (10.44 cm) H; 2.09" (5.31 cm) D
      • Package Type: Cardboard Box
      • Package Dimensions: 3.625 x 4.625 x 2.125 in.
      • Shipping Weight: 1.045 lbs.
      • WEEE weight: 0.89 lbs.
      • Tariff code: 8517.18.0050

    • GTIN:

      0813721016881
