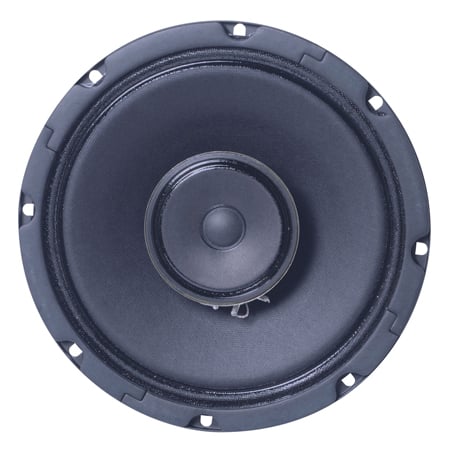

The AtlasIED C803AT87-HC is a high-quality 16-watt loud speaker with a factory-installed 70.7V 8W linematching transformer.
Model C803AT87-HC utilizes a postmounted tweeter which adds strength to the assembly and provides an attractive appearance. This coaxial speaker features a 70Hz - 15.5kHz, frequency response and a broad, uniform dispersion pattern of 120°. Such provisions allow for highly intelligible sound reproduction and better distribution for high-quality sound systems.
The C803A combines a full-size 8" (203mm) dia. low-frequency reproducer and a 3" (76mm) high-frequency reproducer. The two sections are coupled via a built-in crossover network. The woofer has a 10 oz. (260g) ceramic magnet; the tweeter has a 2.35oz (67g) ceramic magnet and the unit has a peak sensitivity of 98dB (at 1W, 1m).
Model C803A mounts a wide variety of AtlasIED baffles and enclosures, with the optimum sealed enclosure size being 0.36 cu. ft.
