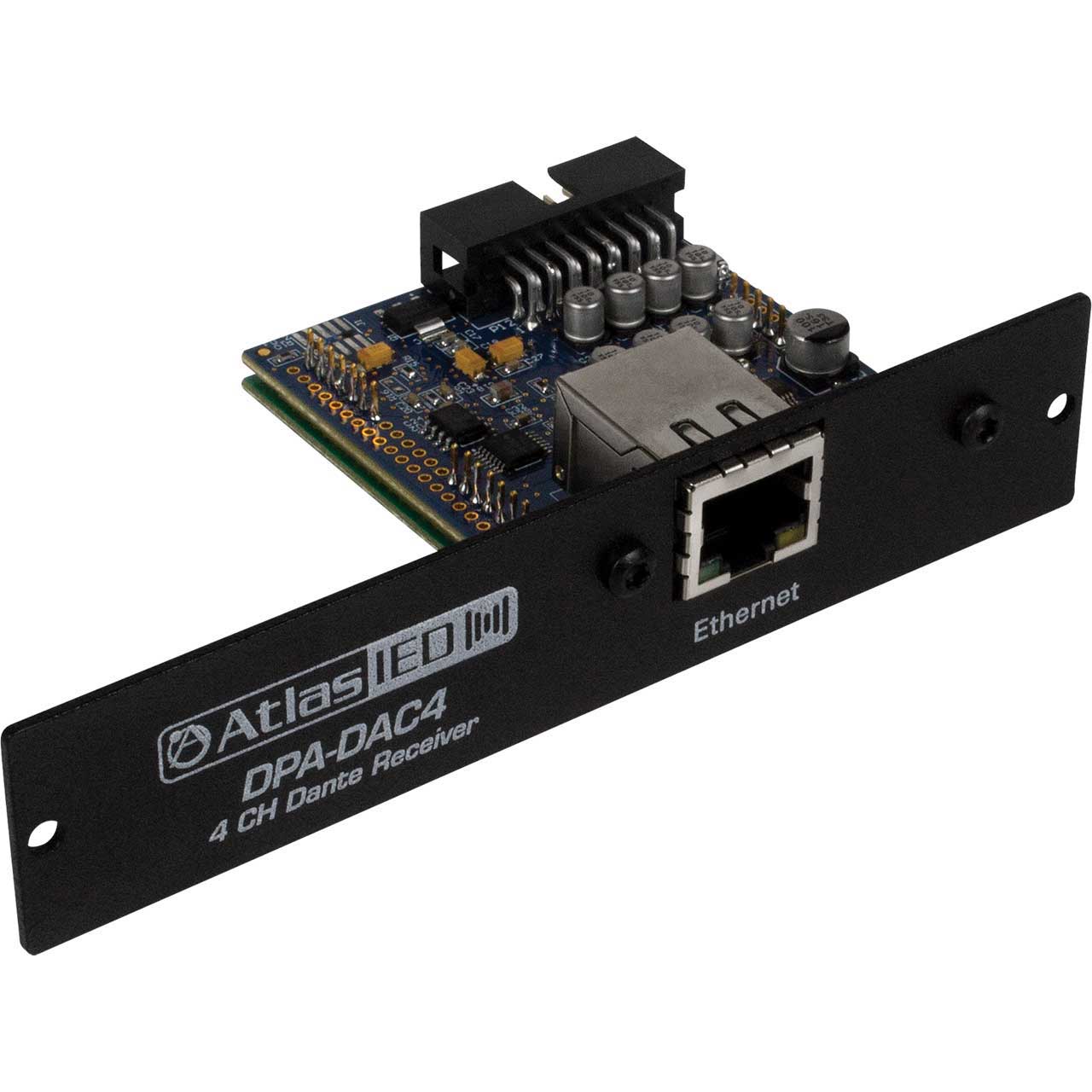

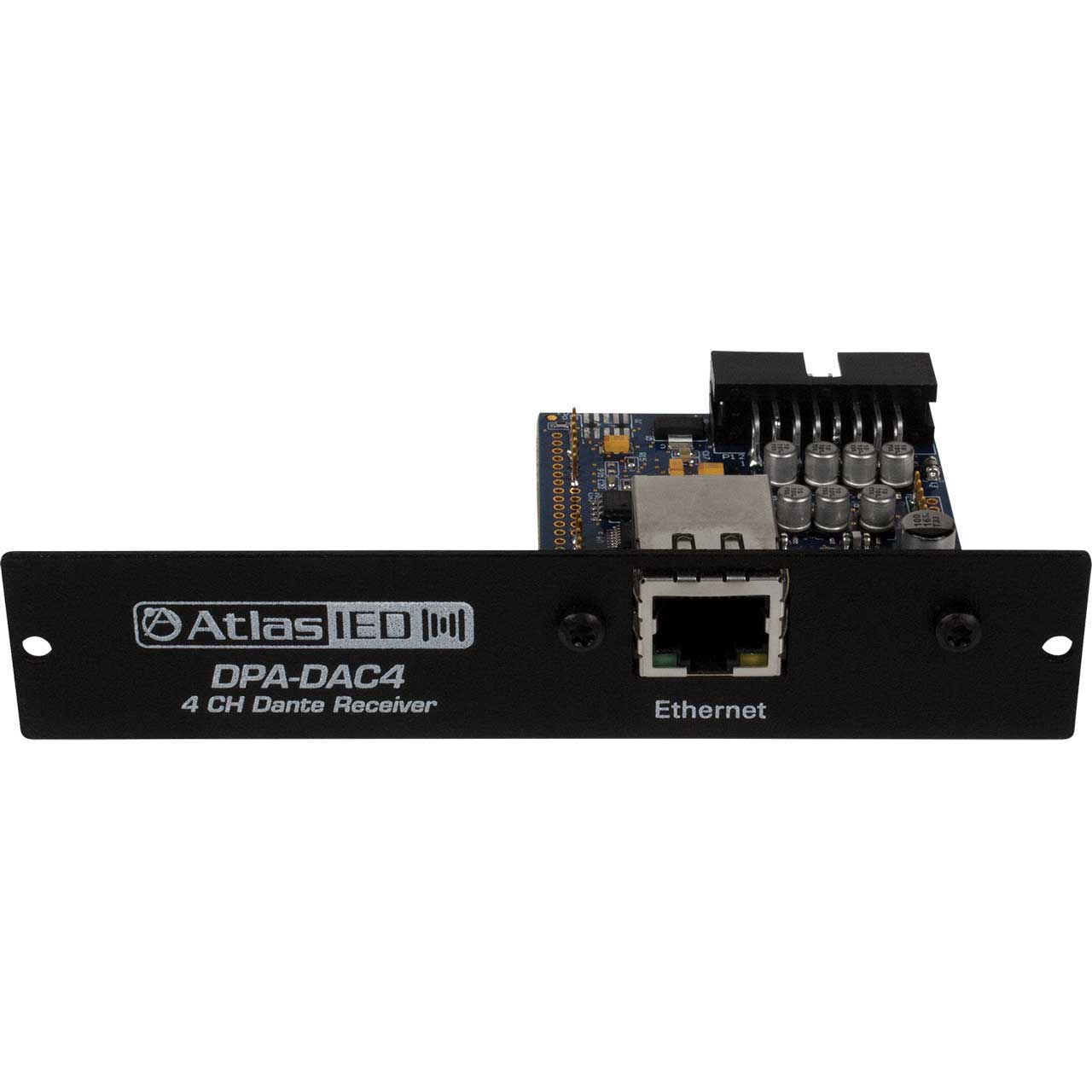

AtlasIED DPA-DAC4 Dante 4-Channel Receiver Accessory Card for DPA Series Amplifiers

ITEM #: ATL-DPA-DAC4 MFG #: DPA-DAC4

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$681.99

Our Price:

$548.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    DPA-DAC4 - Overview

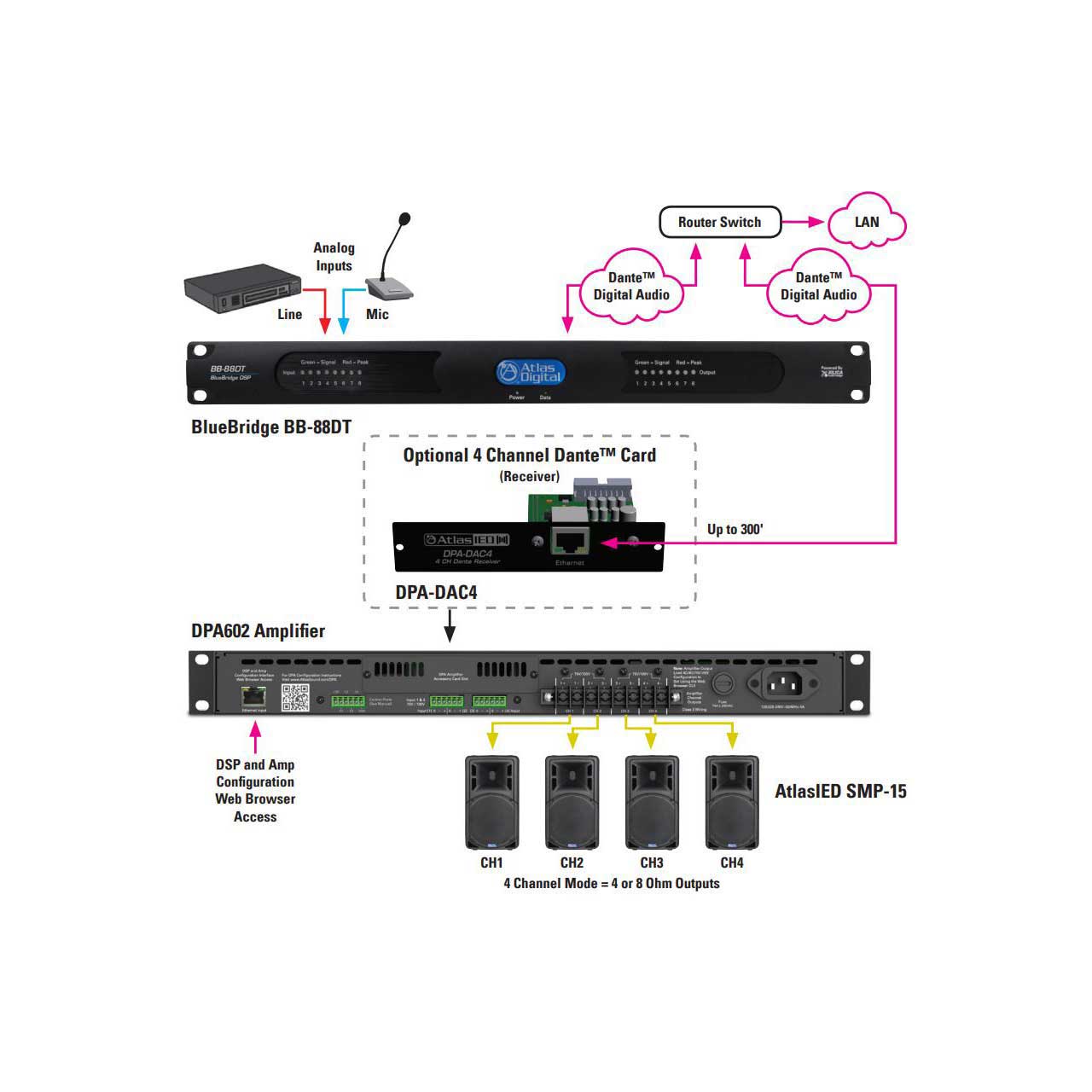

    The AtlasIED DPA-DAC4 accessory card is designed to work in conjunction with DPA Series amplifiers. The DPA-DAC4 is a 4-input Dante™ receiver that features digital audio transportation over standard IP networks. The DPA Series 4-channel amplifiers come standard with four balanced line inputs and an accessory card slot to add an additional 4-inputs, giving the amplifiers a total of 8-inputs.

    All inputs can be mixed and routed to any of the four amplifier channels. All four amplifier channels have an assortment of DSP tools including level controls, EQ's, limiters, high & low pass filters, and delay to provide flexibility for a range of applications.

    • Features:

      • Dante™ Network Audio Enabled
      • 4-Channel Receiver
      • Integrates with 4-Channel DPA Series Amplifiers

    • Specifications:

      • Connector Type: RJ-45
      • Gain Controls: 0dBFS = 20dBu & 0dBFS = 10dBu PCB shunt selectable
      • Frequency Response: 20Hz - 20KHz +/- 1dB
      • THD: .06% @ 1KHz
      • Maximum Output Level: 7dBu
      • Height: 0.97" (2.46cm)
      • Width: 4.70" (11.94cm)
      • Depth: 2.5" (6.3cm)
      • Weight: 2.6oz (0.07kg)

    • Item Includes:

      • 1x AtlasIED DPA-DAC4 Dante 4-Channel Receiver Accessory Card for DPA Series Amplifiers
