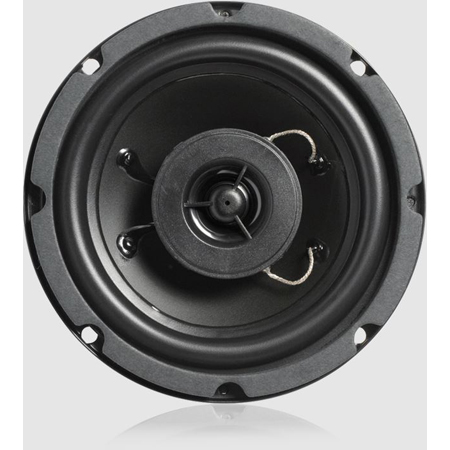

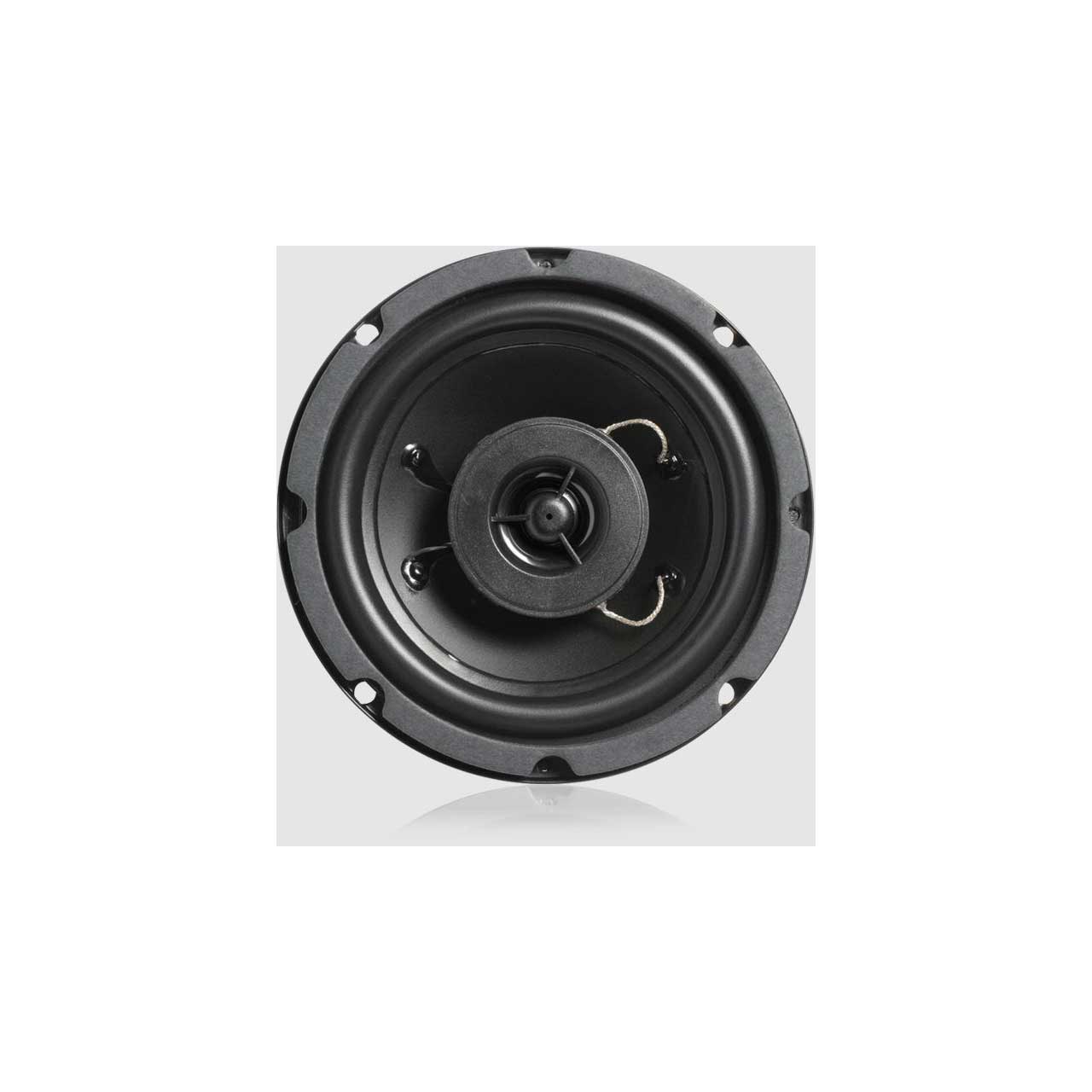

Atlas FA134T87 4-Inch Coaxial In-Ceiling Speaker with 8-Watt 70V Transformer

ITEM #: ATL-FA134T87 MFG #: FA134T87

Primary Image
Free Shipping with $49 Minimum Order

List Price:

$92.99

Our Price:

$76.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    FA134T87 - Overview

    The Atlas FA134T87 is a UL listed coaxial 4" (127mm) speaker that handles 25-watts with smooth extended frequency response. The unit's 130° dispersion angle effectively reduces the number of speakers necessary to achieve total coverage in distributed systems with low ceilings.

    Model FA134T87 has been engineered as a system with 8-watt high performance 70.7V transformer, optional high performance matched enclosure and choice of attractive grilles (sold seperately). Speakers front-load into the enclosure or may be ceiling or wall mounted into areas with minimum depth by using plaster ring Model FAPR-4 instead of an enclosure.

    • Features:

      • 25-Watt, UL Listed, 4" Coaxial Loudspeaker Offers Superb Wide-Range Frequency Response
      • Wide-Angle Dispersion for Excellent Sound Coverage in Rooms With Low Ceilings
      • Patented System Design Provides Easy Installation
      • Front Loads Into Acoustically-Matched System Enclosure, Plaster or Trim Ring
      • Offers choice of system components including: Transformers, acoustic enclosure, tile bridge, plaster ring, trim ring, and hardware-free grilles

    • Specifications:

      • Size: 4" (127mm)
      • Power Handling*: 25 Watts Peak, 15 Watts RMS
      • Sensitivity (1W/1M)*: 92dB Peak, 88dB Average
      • Impedance: 8&Omega Nominal, 6&Omega Minimum
      • Frequency Response* 110Hz - 20kHz (±5dB)
      • Dispersion*: 130° (2kHz Octave Band, -6dB Points)
      • Diameter: 5" (127mm)
      • Depth: 4.79" (122mm)
      • Bolt Circle: 4.69" (119mm)
      • Cone Material: Treated Paper
      • Surround Material & Damping: SBR (Silicon Based Rubber)
      • Flux Density: 11,300 Gauss, 1.13 Tesla
      • Crossover: 8000Hz
      • Magnet Weight: Nominal, 0.62lbs (260g)
      • Basket Material: Painted Stamped 20-gauge CRS
      • VC Diameter: 1" (25mm)
      • VC Material: High Temperature Copper
      • VC Former Material: Black Anodized Aluminum
      • VC Winding Width: 0.210"
      • Top Plate Thickness: 0.180"
      • Weight: 1.75lb (795g)
      • (*Measured in FA97-4 Enclosure)

        THIELE-SMALL PARAMETERS
      • PE: 15 watts
      • Qes: 0.33
      • Sd: 9.3in²
      • FS: 80Hz
      • Qms: 3.8
      • LE @ 1 kHz: 0.18mH
      • Xmax: 0.05"
      • BL: 7.1 N/A
      • Mms: 2oz
      • Resistance: 5.7Ω
      • Efficiency: 0.56%
      • Cms: 0.13in/lb
      • Qts: 0.30
      • Vas: 0.13 ft³

    • Item Includes:

      • 1x Strategy Series FA138T87 - 8" Coaxial Loudspeaker with 70.7V-8W Transformer

    • Warranty:

      • Limited 3-Year Warranty

    • GTIN:

      0612079129744
