AtlasIED FC-8ST IsoFlare 8-Inch Full bandwidth 360 Watt Ceiling Subwoofer - Blind Mount

ITEM #: ATL-FC-8ST MFG #: FC-8ST

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
AtlasIED
Free Shipping with $49 Minimum Order

List Price:

$529.00

Our Price:

$423.00

Add to Wish ListLeasing Options
Availability: Preorder
iAvailability Description Popup
    Report Lower PriceLarge Quantity Quote

    FC-8ST - Overview

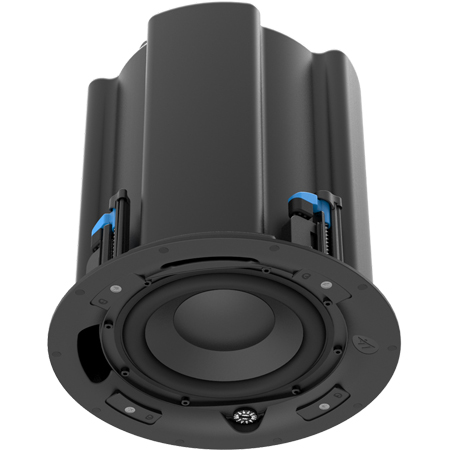

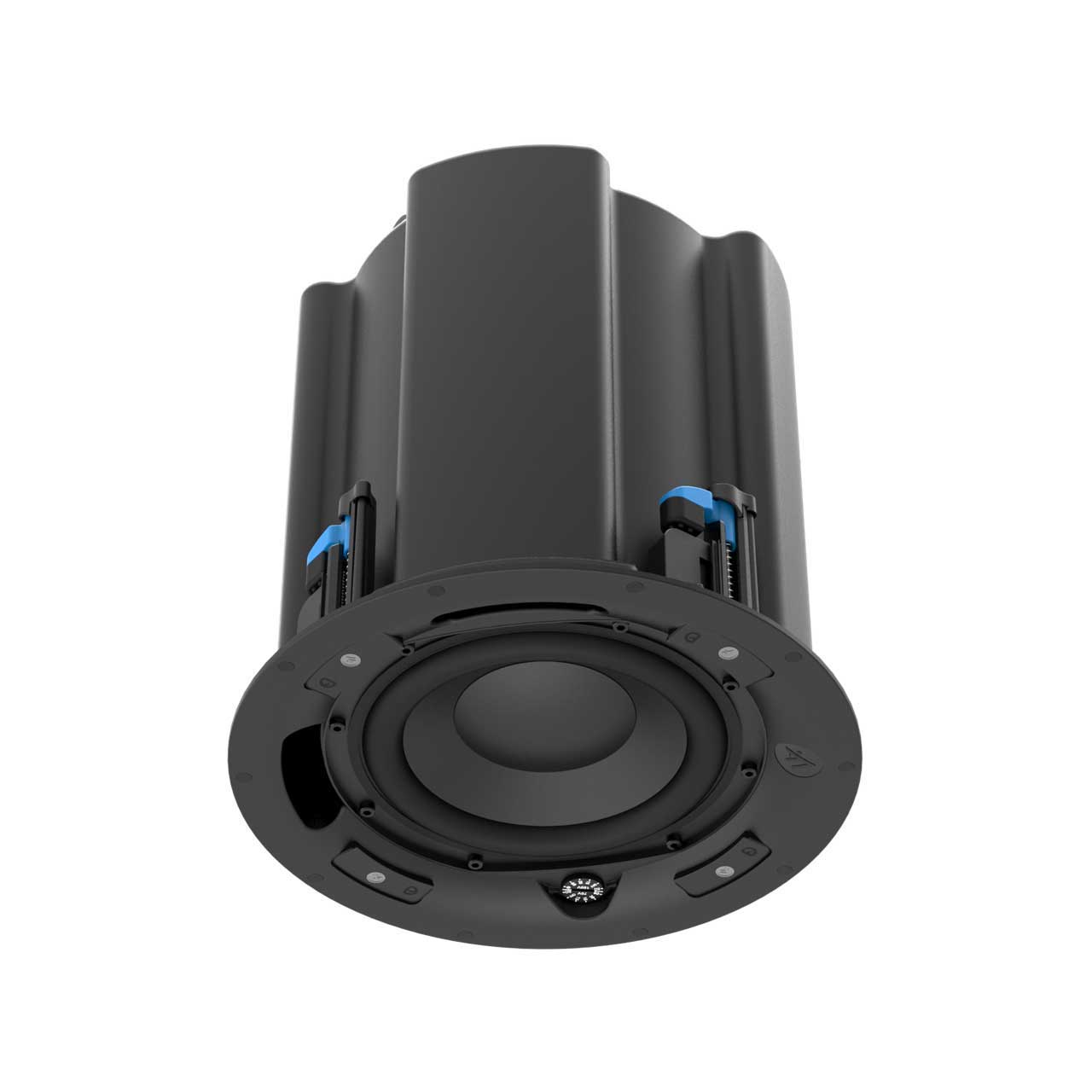

    The AtlasIED FC-8ST ceiling subwoofer is specifically designed to complement the full range of IsoFlare FC ceiling speakers, both in performance an aesthetics.

    The FC-8ST will deliver rich, impactful low-end performance in applications requiring premium sonic quality and additional headroom with exceptional reliability; all in an architect/designer/installer friendly package.

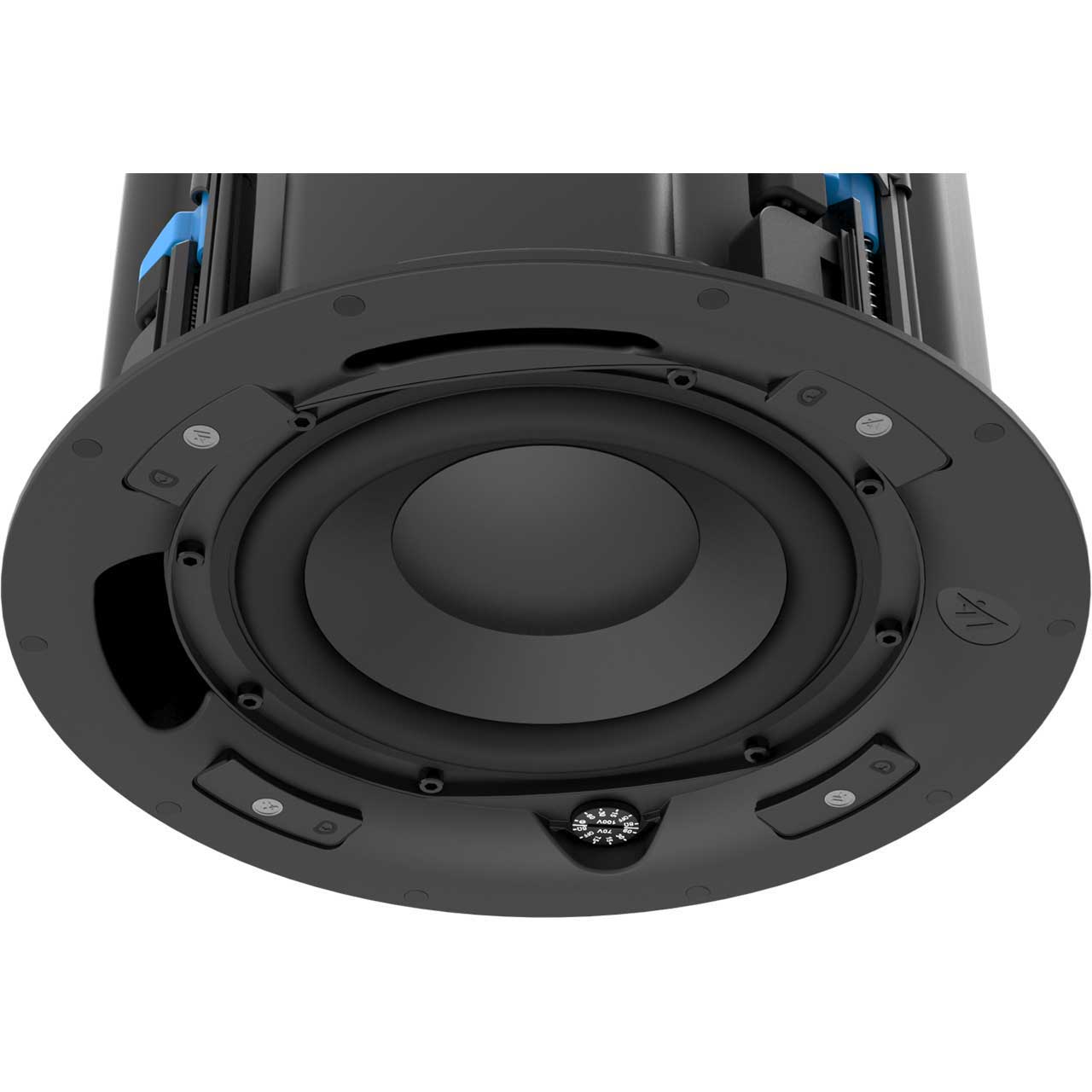

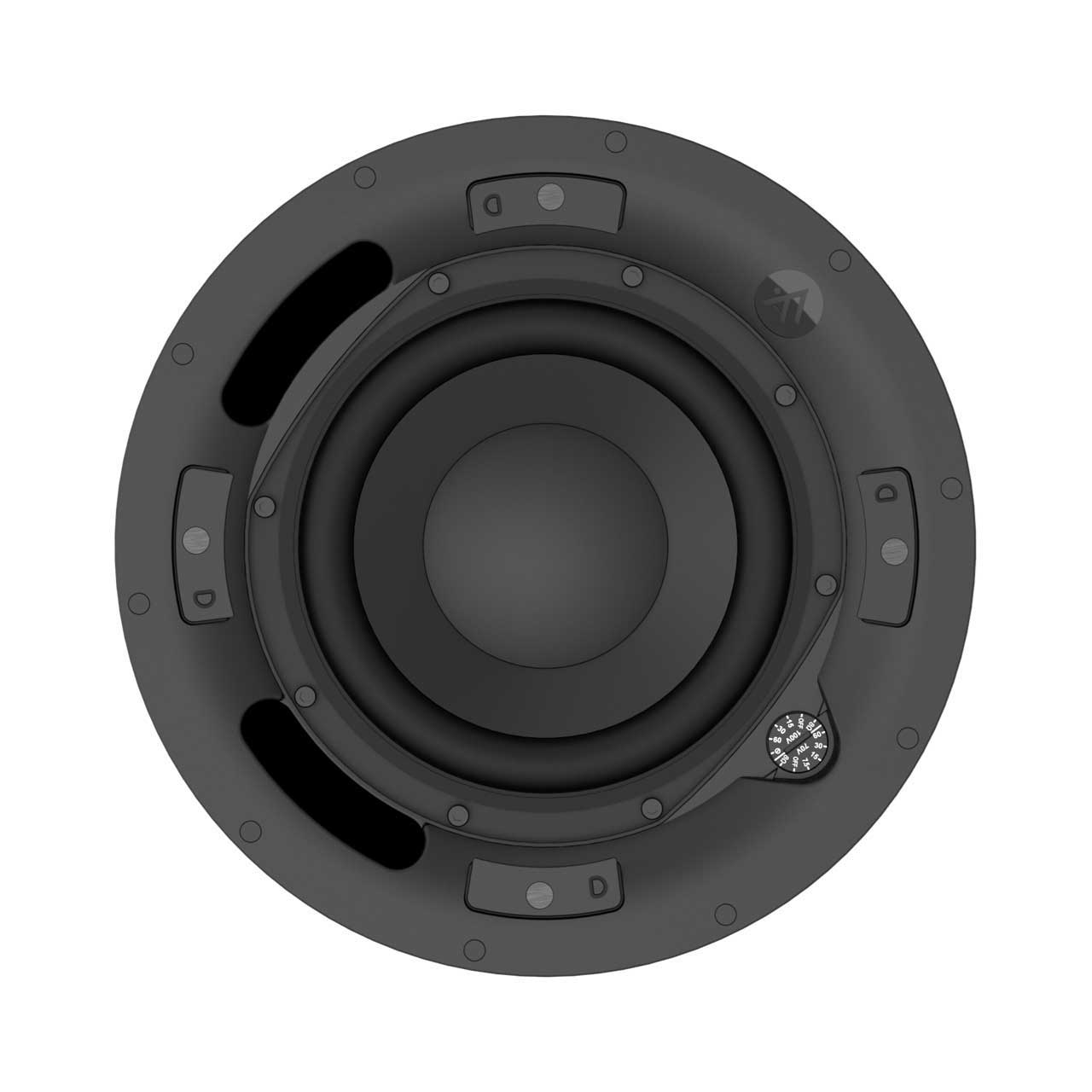

    The 200mm (8.00") high excursion driver with weatherized multi fiber paper pulp cone, butyl rubber surround, and 2nd order 140Hz passive low pass filter are mounted in an optimally tuned, injection molded, front baffle manufactured from UV/weather resistant UL94V-0 ABS material.

    Integration with FC ceiling speakers can be further enhanced via the AtlasIED Atmosphere DSP platform.

    The FC-8ST is supplied with C-Ring and Tile Bridges

    • Features:

      • Patented toolless high travel secure-clamp mechanism for fast and trouble-free installation.
      • Bezel-less grille - magnetically secured - removable logo. Allows for a single step painting process if necessary. No requirement for adaptors to accommodate optional square grilles.
      • Weather treated multi fiber cone.
      • Full bandwidth exceptionally low insertion loss 60W 70/100V transformer.
      • Easy Access Tap Rotary Selector Switch.
      • Enhanced voicing presets available via AtlasIED Atmosphere platform.


    • Specifications:

      • General Specifications
      • Type: Direct Radiating Ceiling Subwoofer (Blind Mount)
      • Frequency Range (-10dB): 40Hz - 200Hz
      • Frequency Response (+/- 3dB): 47Hz - 140Hz (passive low pss filter)
      • System Sensitivity (1W @ 1m): 92dB
      • Nominal Coverage Angle (-6dB): 180°

        Power Handling
      • Average: 90W
      • Programme: 180W
      • Peak: 360W
      • Recommended Amplifier Power: 180W @ 8 ohms
      • Nominal Impedance: 8 Ohms
      • Transformer Taps - Via Rotary Selector Switch: 60W, 30W, 15W, 7.5W (3.8W70V) & Low Z operation

        Rated Maximum SPL
      • Average: 112dB
      • Peak: 118dB
      • With Max. Transformer Tap - Average: 110dB

        Transducers
      • Low Frequency: 8" (200mm) long throw woofer


    • Item Includes:

      • 1x AtlasIED FC-8ST 8-Inch Premium Ceiling Subwoofer - Blind Mount
      • 1x C-Ring

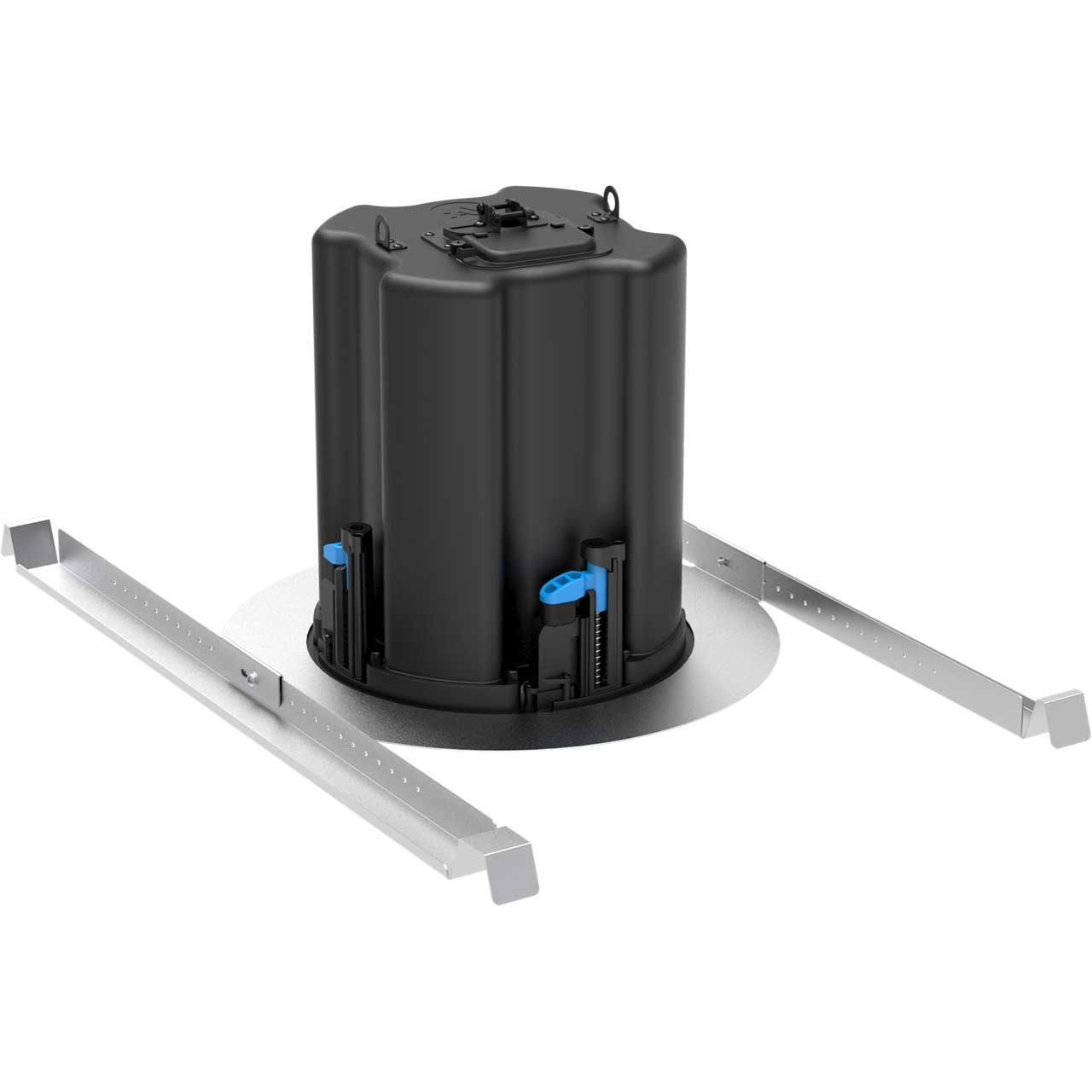

      • 1x Tile-bridge kit
      • 1x Paint mask
      • 1x Cut-out template

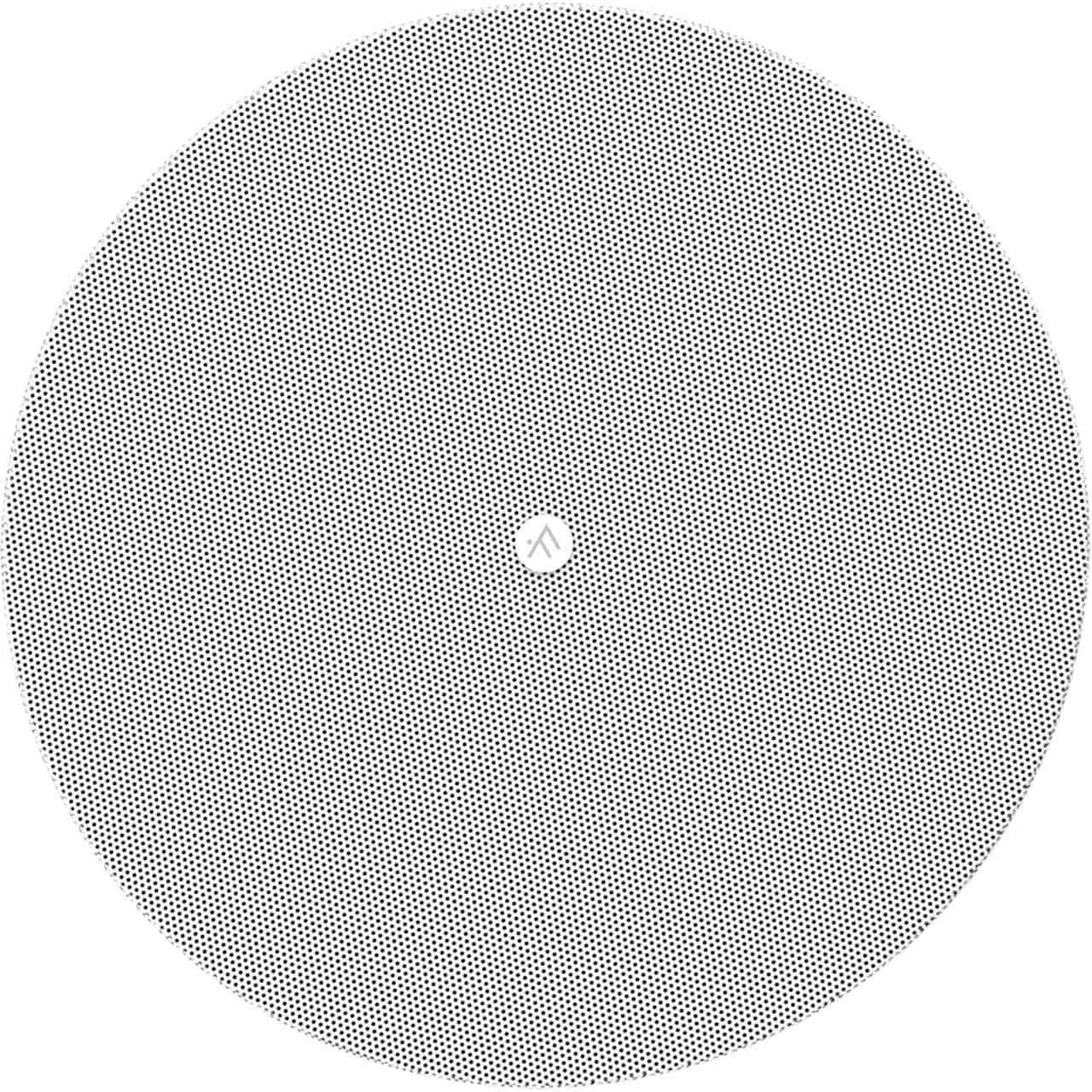

      • 1x Round white grille


    • Warranty:

      • 5-Year Limited Warranty
