Atlas HPA602 2-Channel 600 Watt 70 Volt Power Amp - 2 RU

ITEM #: ATL-HPA602 MFG #: HPA602

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:

$1,396.99

Our Price:

$1,118.99

Availability: Ships Factory Direct, Typically in 3-10 Business Days
iAvailability Description Popup


    HPA602 - Overview

    The AtlasIED High Power Amplifier "HPA602" Series is designed for use in both commercial 70V/100V distributed systems and professional applications that require amplifiers to handle multiple impedance loads. The HPA is compact and lightweight in comparison to other models delivering similar power levels. The HPA Series features Generation II Class D Output topology that provides great efficiency with the sound quality of a Class AB amplifier. The power supply is a switch mode, global auto sensing design that maintains a stable output during fluctuating power conditions. The power supply and output stage collectively are designed to deliver exceptional dynamic high output voltage and current to virtually any speaker load.

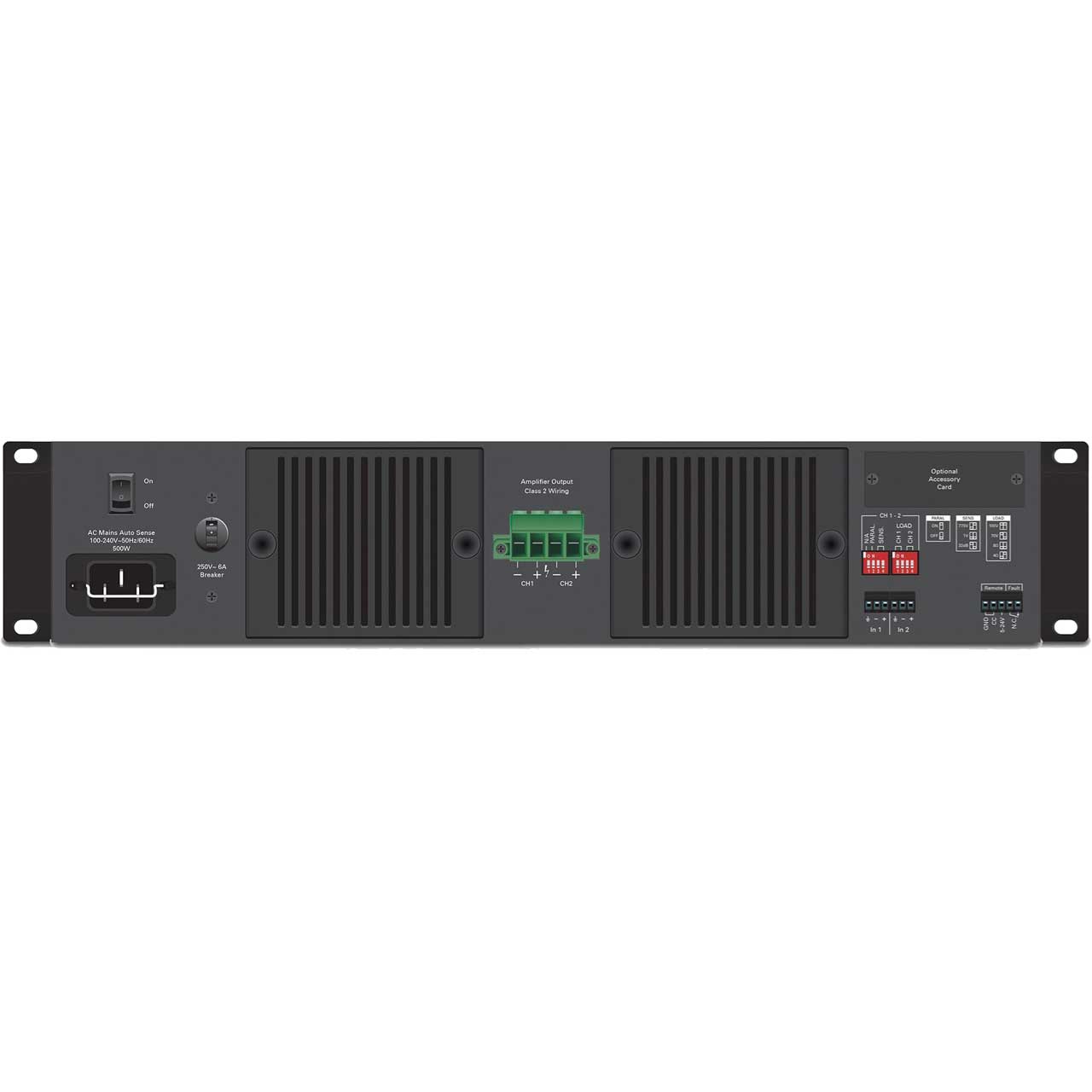

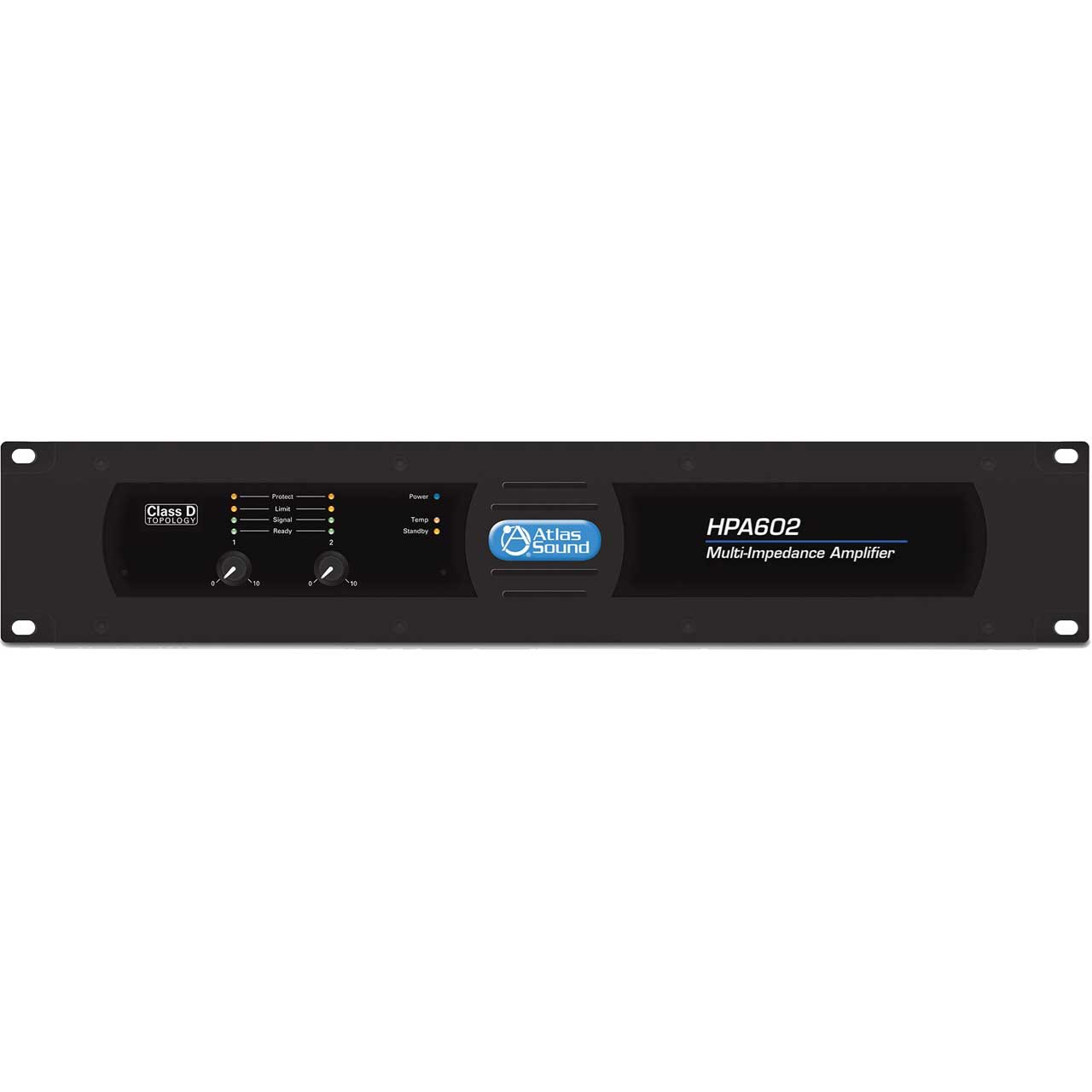

    The HPA Series features front panel detente level controls with a security cover, remote turn on, balanced inputs, fault reporting and a rear panel accessory card slot for an optional DanteT 2-channel digital audio interface. HPA Series amplifiers feature a unique output stage, low resistance direct coupled thermal transfer design that effectively maintains optimal temperature across all loads and output levels. HPA Series amplifiers are also energy efficient and meet Energy Star standards, drawing only 1W of power in standby mode.

    Whether the application is a large distributed constant voltage sound system or a high SPL sound reinforcement system, the AtlasIED HPA Series is the answer for high power/cost effective amplification needs.

    • Features:

      • 4O, 8O, 70.7V, & 100V Operation
      • Balanced Inputs Euro Block Phoenix Style Connector
      • Accessory Card Slot for Optional DanteT Digital Network Audio Card
      • Short-Circuit, Temperature, and DC Offset Protection
      • Auto Sensing 100V-240V~ AC Mains Power Supply
      • Stepped Attenuatorsw with Security Covers

    • Specifications:

      • Power Output
      • 70.7v: 2 X 300w
      • 100v: 2 X 300w
      • 8?: 2 X 300w
      • 4?: 2 X 300w
      • 2?: Na
      • 1? Rms Power Output: Na
      • Frequency Response: 20hz - 20khz
      • Thd: <0.05%
      • Channels: Two
      • Signal To Noise Ratio: >85db
      • Connector Type: Terminal Block & Phoenix
      • Number Of Fans: 1 - Variable Speed
      • Btu All Channels Driven Aes: 607 Btu (70.7v, 120vac)
      • Max Current All Channels Driven Continuous: 14.4a
      • Rack Units: 2 Ru
      • Height: 3.5" (89mm)
      • Width: 19" (483mm)
      • Depth: 9.3" (236mm)
      • Weight: 14.8 Lbs. (6.7kg)
      • Finish: Black
      • Voltage Compatibility: Universal

    • GTIN:

      0612079662623
