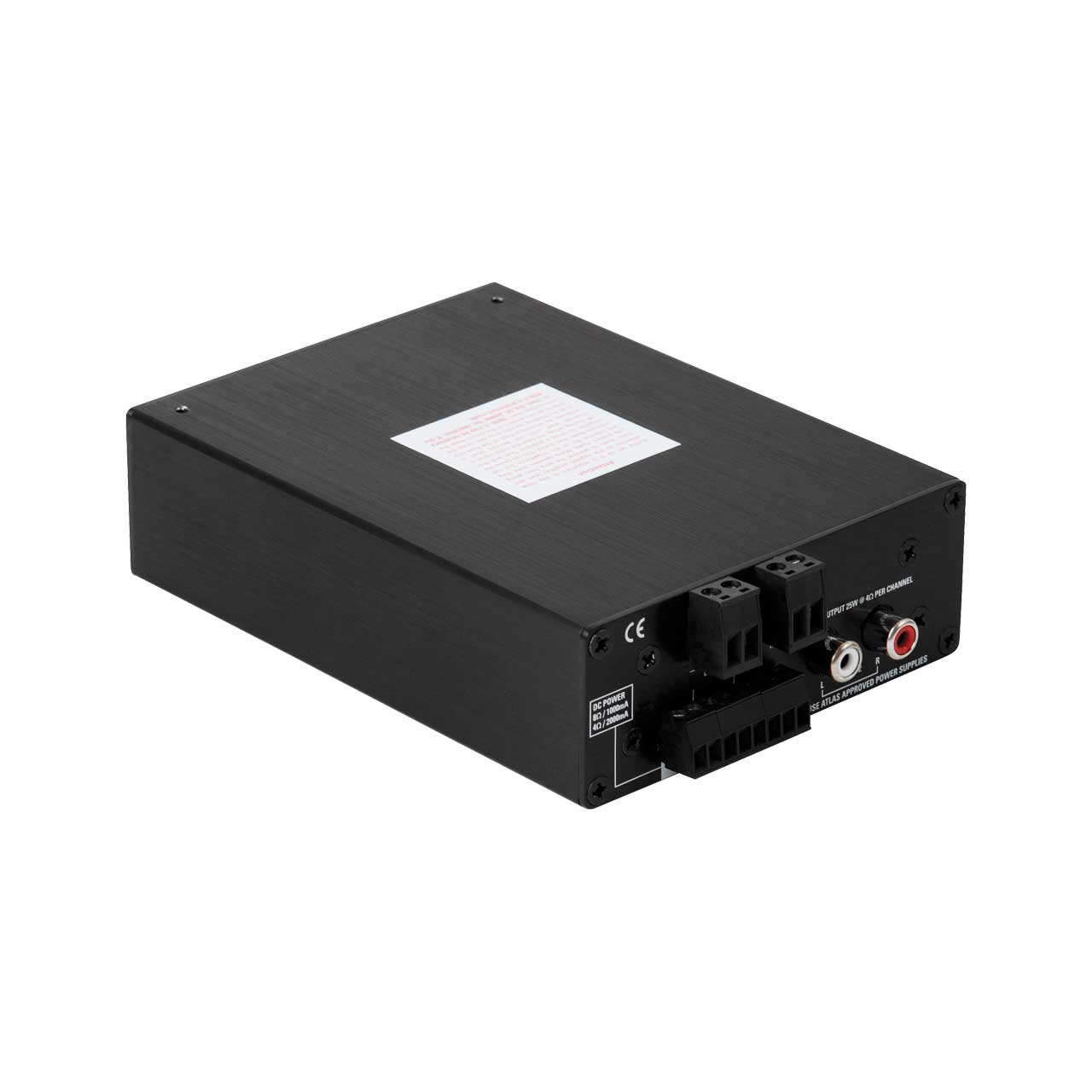

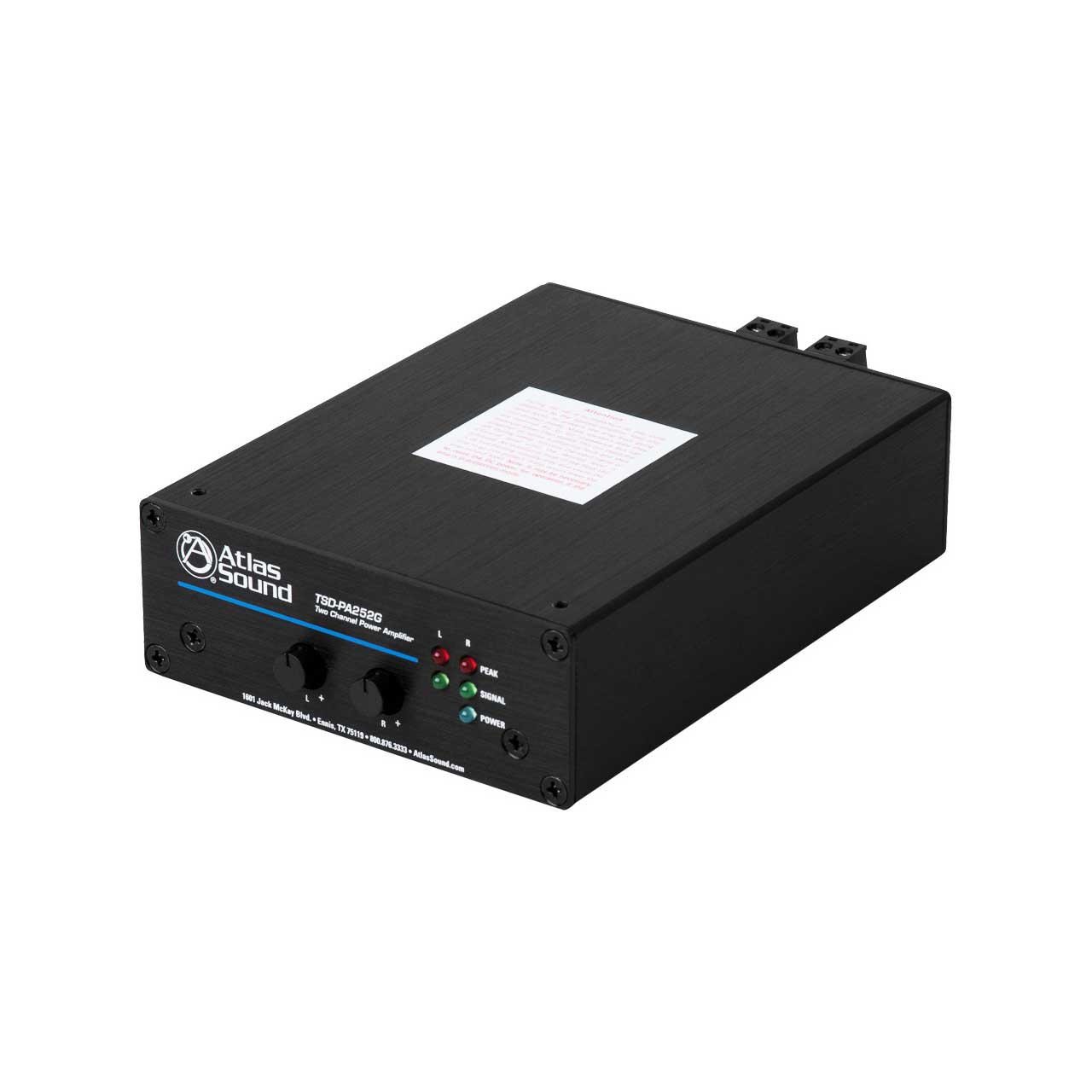

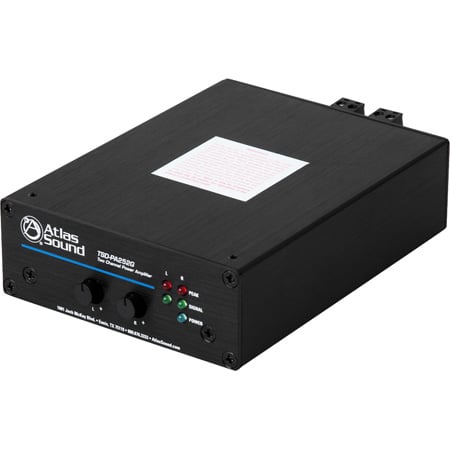

Atlas TSD-PA252G 25W x 2 4 Ohm Two-Channel Power Amplifier

ITEM #: ATL-TSD-PA252G MFG #: TSD-PA252G

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$386.99

Our Price:

$310.99

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    TSD-PA252G - Overview

    The TSD-PA252G is a reliable, cost effective 4Ω; stereo amplifier well suited for higher power amplification requirements. Output is 25W per channel at 4Ω; or 50W bridge mono at 8Ω;. Input is via balanced stereo phoenix style and unbalanced RCA connectors. Front panel gain controls provide adjustment for both left/right or bridged outputs and include removable knobs. Unit requires Power Supply that is sold separately for proper function, multiple TSDs can be powered with one power supply based on current requirements. This unit has a power requirement of 1000mA when used in 8Ω; mode and 2000mA in 4Ω; mode so you must use the TSD-PS24V2500MA power supply. For multiple TSD applications use the TSD Power Calculator to determine the proper power supply needed.

    • Features:

      • 25W per Channel into 4Ω;
      • Two (2) Balanced Inputs
      • Dual RCA Inputs
      • 50W Bridged into 8Ω;

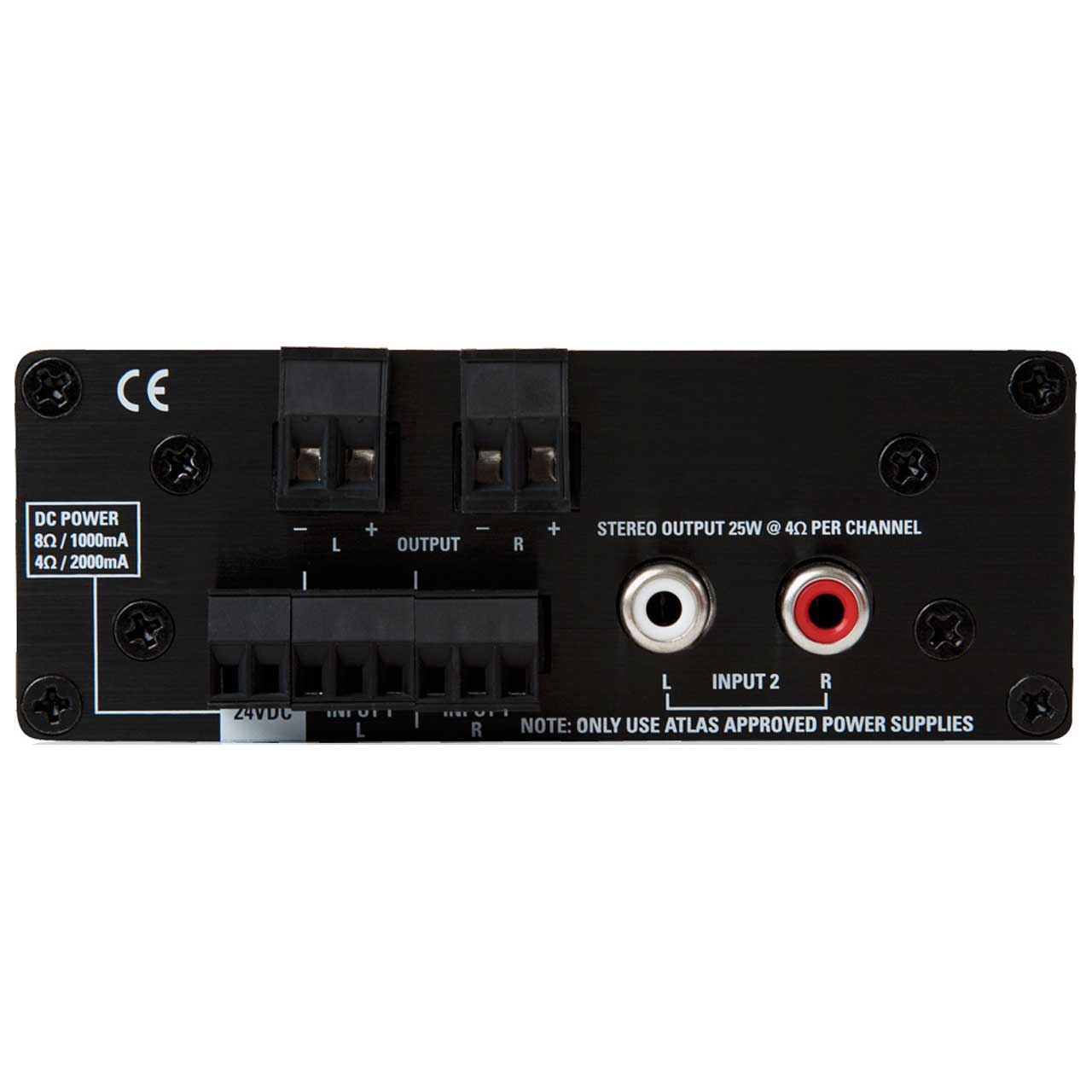

      • Removable Phoenix Style I/O Connectors

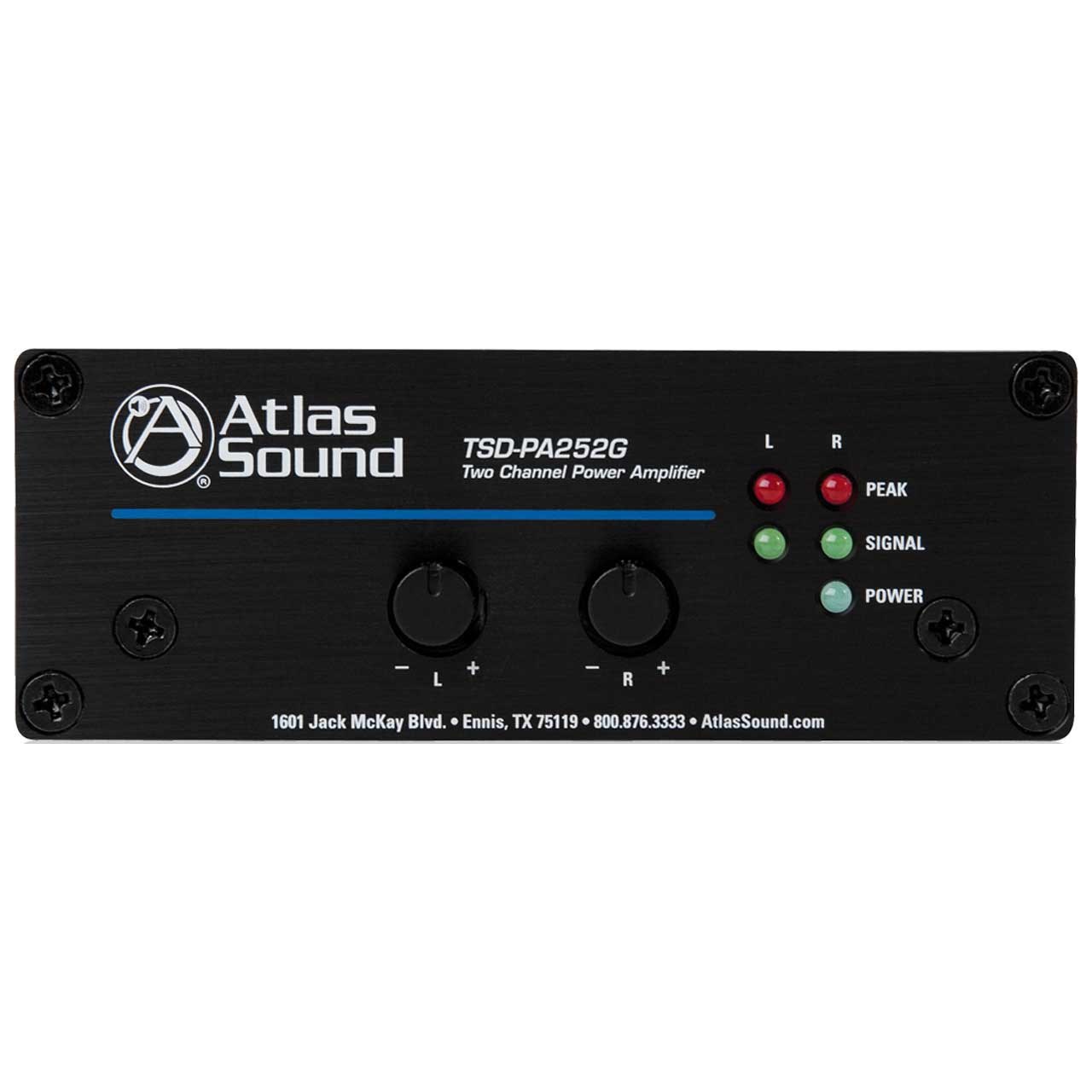

      • Input Signal & Peak Indicator LEDs
      • Security Covers Included for All Front Panel Controls
      • Energy Efficient
      • Power Supply Sold Separately

    • Specifications:

      • Frequency Response: 20Hz - 20kHz
      • Power Output: 25W x 2 CH @ 4Ω, 50W x 1 CH @ 8Ω; Bridged
      • Balanced Input Impedance: 10KO Balanced, 5KO Unbalanced
      • THD: .2% & 1kHz
      • 24VDC Power Requirments: 2000mA
      • Height: 1.5" (3.81 cm)
      • Width: 4" (10.16 cm)
      • Depth: 5.2" (13.2 cm)
      • Voltage Compatibility: 24V

    • GTIN:

      0612079188031
