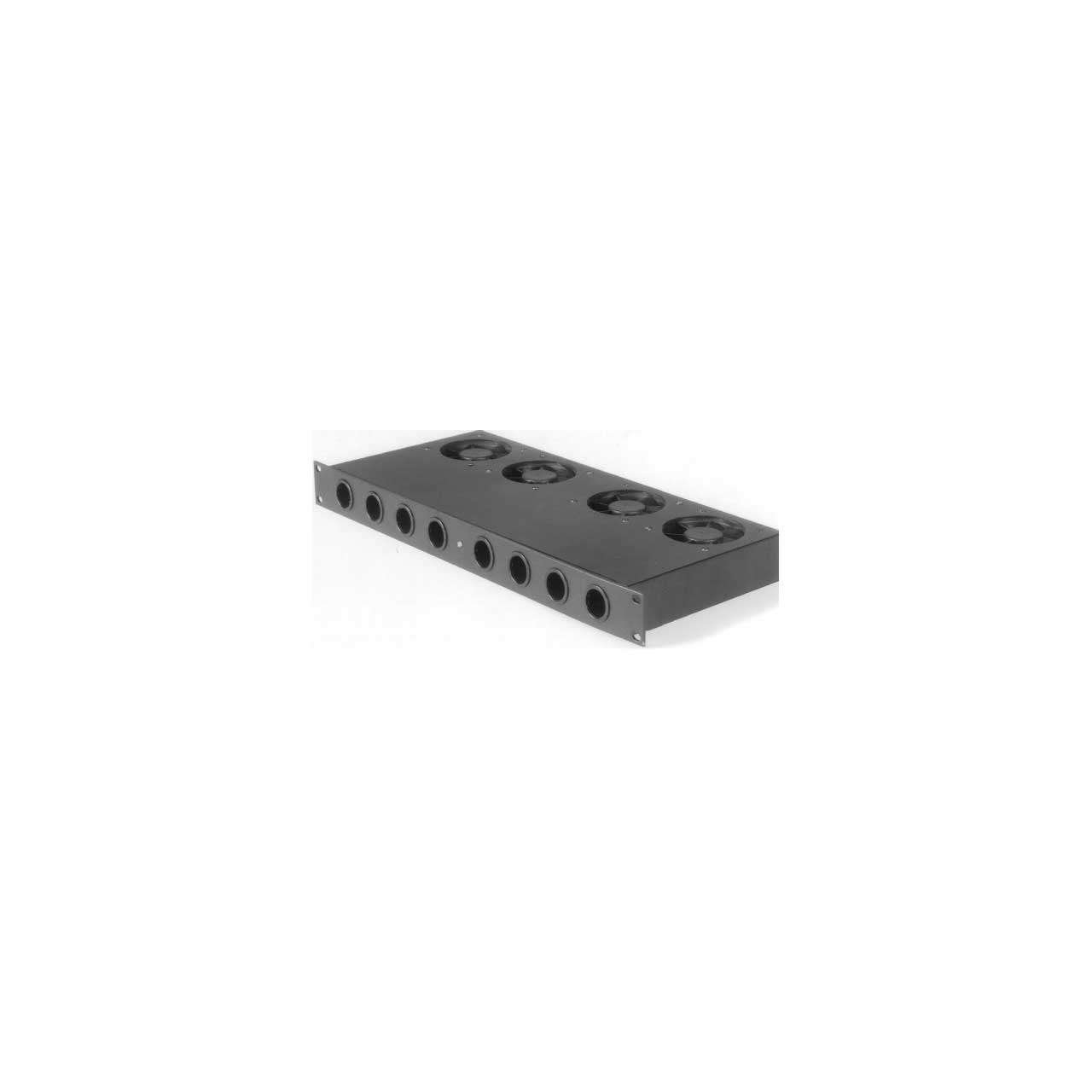

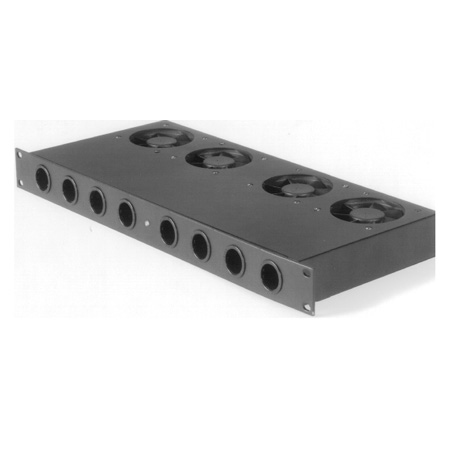

ATM 00-301-03 Cool Stack 1 Exhaust 1U Rack-Mount Ventilator with Remote Thermal Probe and Power Supply

ITEM #: ATMG-00-301-03 MFG #: 00-301-03

Primary Image
Free Shipping with $49 Minimum Order

Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    00-301-03 - Overview

    Cool-stack I is the cooling solution for small to mid-sized racks. Connecting to the chassis through a 4' cable, the thermal control lets Cool-stack I's operation be controlled by the temperature of a component in the rack. This means fans can turn on later and stay on until residual heat has been removed from the component being cooled.

    Cool-stack I is a 1 RU high true rack-mount ventilator. Very quiet in operation, it mounts above the heat producing equipment and pulls the heated air up and out of the equipment, and out through the front of the rack. Four 80mm fans on the under side of Cool-stack turn relatively slowly, making essentially NO noise as they bring room air in and expel heated air through openings on the front panel.

    For larger rack installations, with larger heat loads, the Cool-stack I is also available in an "intake" model. Mounted low in a rack and blowing cool air UP, with an "exhaust" Cool-stack mounted high in the rack and moving heated air OUT, a strong (but quiet) ventilation current is established.

    • Features:

      • 1 U high
      • Very quiet
      • Automatic
    • Specifications:

      • Product: Cool-stack I
      • Fans: 4/80mm
      • Airflow, front exh. (free air): 40 CFM
      • Noise level: 19 dBA
      • Control: 90°F thermal control
      • Power consumption: 7 watts
      • Dimensions(H x W x D): 1.75 inch x 19 inch x 8 inch
    • Item Includes:

      • Fan unit
      • Power supply
      • Thermal sensor
      • Instructions
    • Warranty:

      • 5 years
    • GTIN:
