Atlona AT-HDVS-150-TX Three-Input Switcher for HDMI and VGA Inputs with HDBaseT Output


  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    AT-HDVS-150-TX - Overview

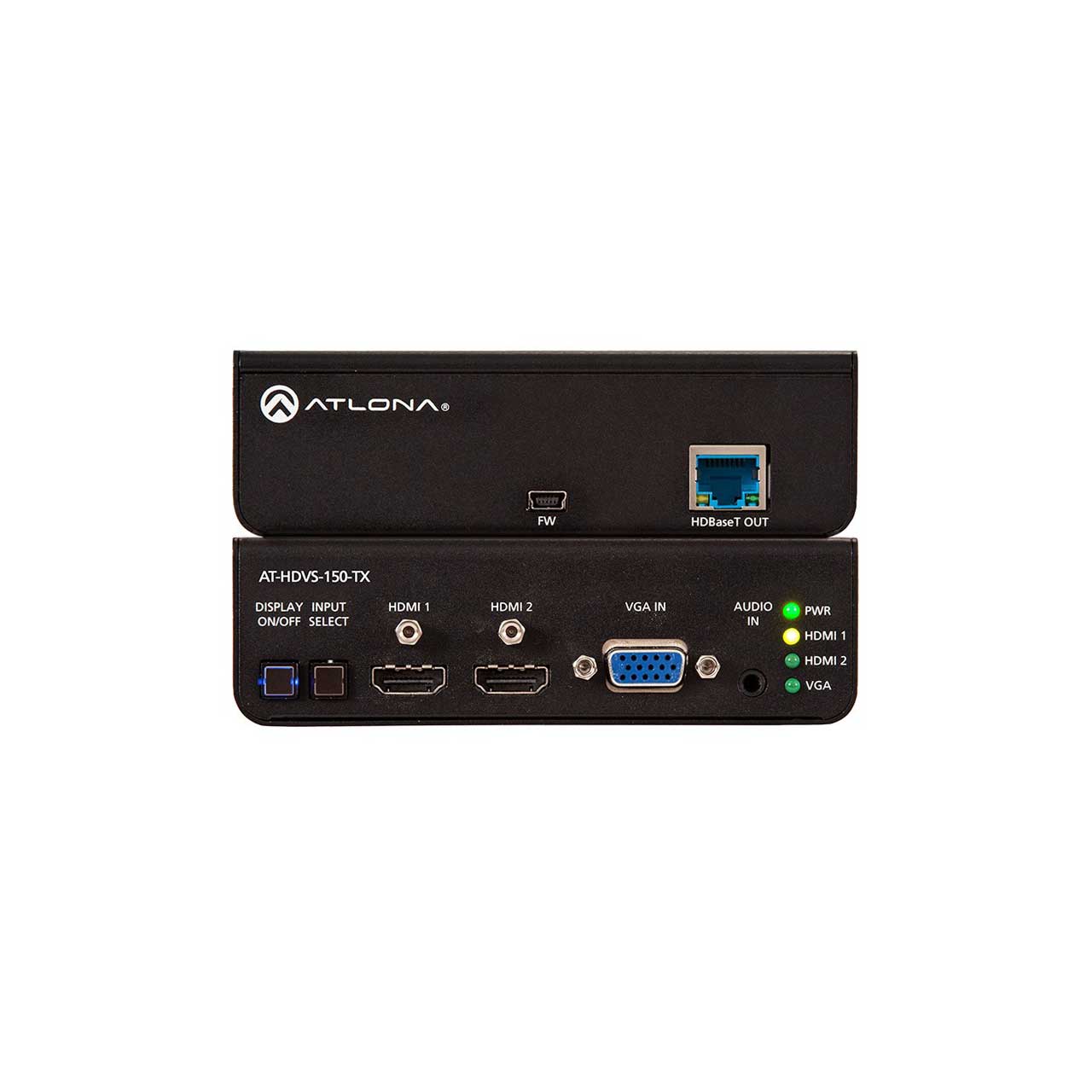

    The Atlona AT-HDVS-150-TX is a 3x1 switcher with display control for HDMI and VGA transmission over HDBaseTT. It features two HDMI inputs plus a VGA input with 3.5mm audio connector. Designed as a remote input device for the AT-UHD-CLSO-824 matrix switcher, the AT-HDVS-150-TX combines the benefits of a switcher with built-in auto-switching and the advantages of long-distance HDBaseT signal extension over a single cable. HDMI signals up to 4K/UHD @ 60Hz with embedded audio, VGA input signals up to 1920x1200 video, and control signals can be extended up to 230 feet (70 meters). The switcher enables auto display on/off, auto-switching, along with other features. The switcher receives power from the AT-UHD-CLSO-824 using Power over Ethernet. The AT-HDVS-150-TX is ideal for long distance transmission and display control in corporate or educational settings using analog and digital sources.

    Remote Input Extension

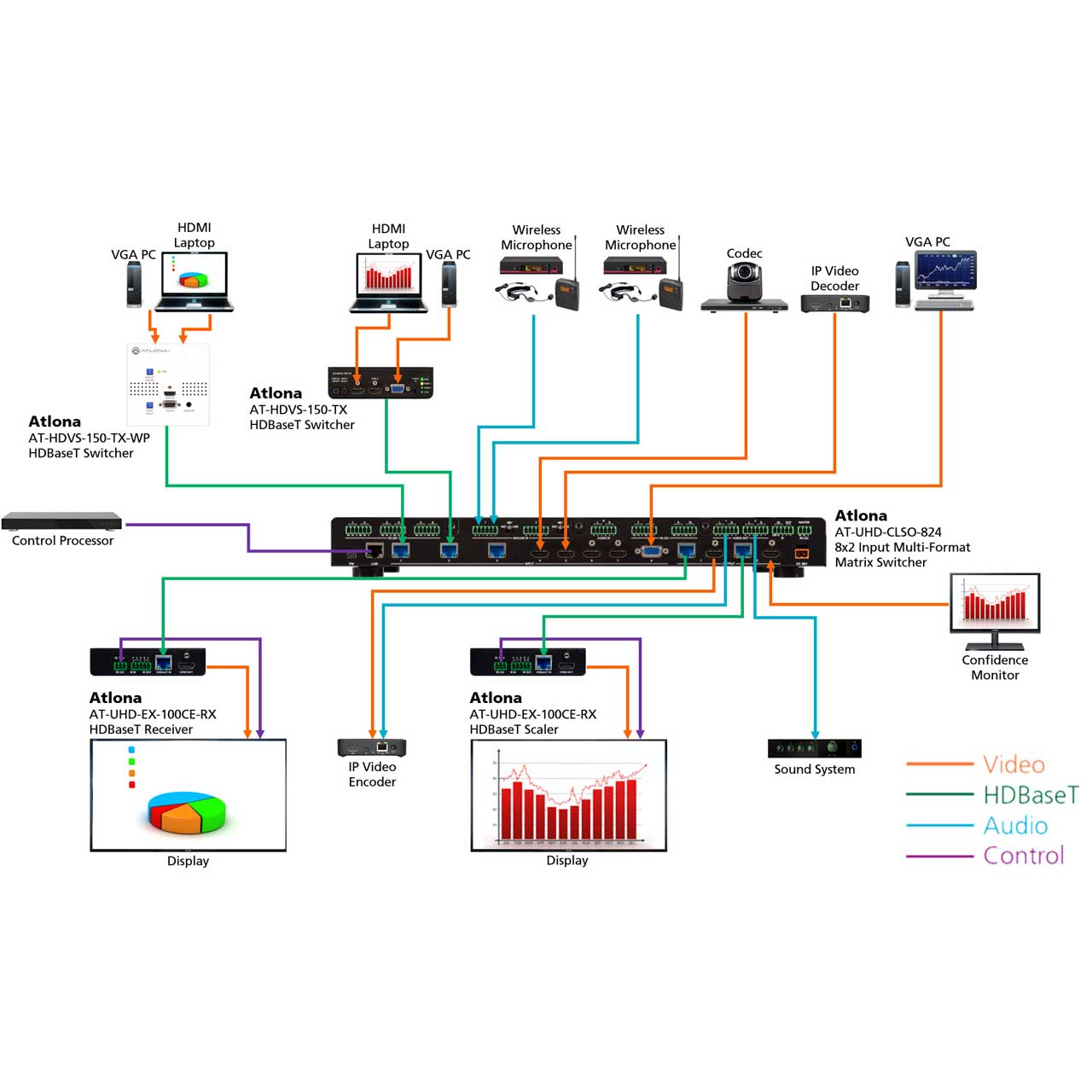

    The Atlona AT-HDVS-150-TX switcher expands the input capabilities of the AT-UHD-CLSO-824. Each remote switcher provides input access for up to three devices with controls for input selection and can control the power state of a display or projector when used with a third party control system. The HDVS series is designed to smooth the transition from analog to digital displays, allowing advanced HDMI display devices to be used with legacy VGA sources. The series also adds the simplicity and performance of HDBaseT technology to eliminate multiple cable runs and signal degradation that can occur with long transmission lines. Cost-effective and easy-to-terminate category cable provides additional integration benefits.

    • Features:

      • 3x1 HDBaseT switcher
      • Long distance HDMI extension
      • Auto-switching
      • Front panel Input Select button
      • Auto display control
      • Front panel Display On/Off control
    • Specifications:

      • Video: [email protected]/25/30/50*/60Hz*, [email protected]/25/30/50*/60Hz*, 2048x1080p,
      • [email protected]/24/25/29.97/30/50/59.94/60Hz, [email protected]/59.94/60Hz, [email protected]/59.94/60Hz, 576p, 576i, 480p, 480i
      • VESA: 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800 1280x768, 1152x768, 1024x768, 800x600, 640x480
      • Color Space: YUV, RGB
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0*
      • Color Depth: 8-bit, 10-bit, 12-bit
      • Audio
      • Analog IN PCM 2Ch
      • HDMI IN & HDBaseT OUT PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio
      • Sample Rate 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
      • Bit Rate up to 24-bit
      • Distance
      • CAT5e/6 @ 4K up to 35 meters up to 115 feet
      • CAT6a/7 @ 4K up to 40 meters up to 130 feet
      • CAT5e/6 @ 1080p up to 60 meters up to 197 feet
      • CAT6a/7 @ 1080p up to 70 meters up to 230 feet
      • HDMI IN/OUT @ 4K up to 5 meters up to 15 feet
      • HDMI IN/OUT @ 1080p up to 10 meters up to 30 feet
      • Signal
      • Bandwidth 10.2 Gbps
      • CEC Yes
      • HDCP 1.4
      • Temperature:
      • Operating 0°C to 50°C 32°F to 122°F
      • Storage -20°C to 60°C -4°F to 140°F
      • Humidity 20 to 90% non-condensing
      • Power: Consumption 18.7W (when paired)
      • Dimension: H x W x D 38 x 127 x 102 (mm) 1.5 x 5 x 4.02 (inch)
      • Weight: Unit 2.34kg 5.16lbs
      • Certification: Unit CE, FCC
    • Warranty:

      • 10 Years
    • GTIN:
