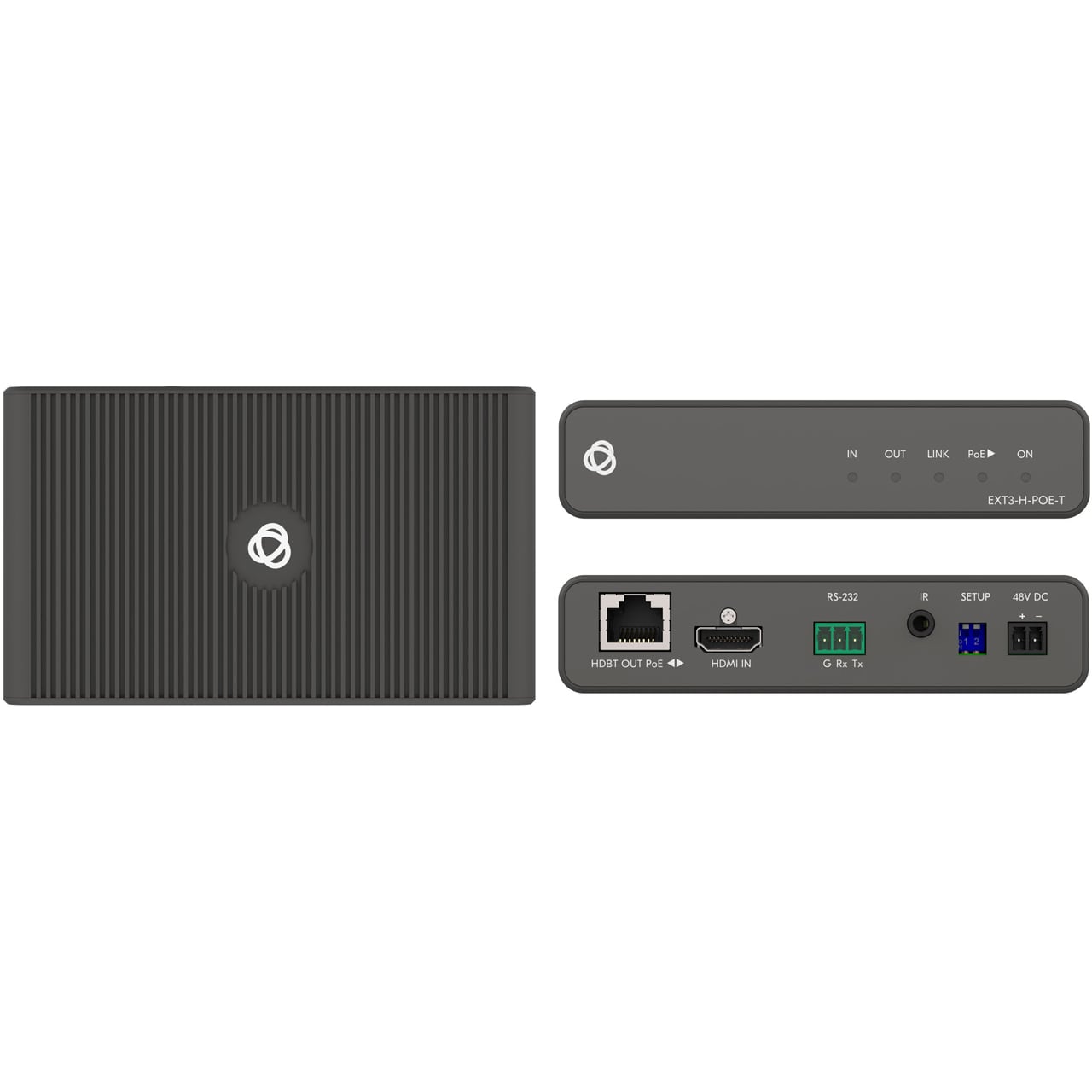

Kramer EXT3-H-POE-T 4K60 4:4:4 HDR HDMI Transmitter with RS-232 and IR Over Long-Reach HDBaseT - Up to 130 Feet

EXT3-H-POE-T - Overview

A high-performance, long-reach HDBaseT 3.0 transmitter for the EXT3-H-POE-R

• Features:

  • Power Options: PoE powered from either transmitter or receiver unit
  • High Performance Standard Extender: Professional HDBaseT extender for providing signals over twisted-pair copper infrastructures. Video signals are transmitted uncompressed with near-zero latency.
  • Future-Proof, Standard Extender: EXT3-H-POE-T is a standard HDBaseT extender, backwards compatible with other standard HDBT extenders. It extends uncompressed HDBaseT signals.
  • HDMI Signal Extension: HDR HDCP 2.3 compliant. Supports deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0b. EDID and CEC signals are passed through from the source to the display.
  • Multi-Channel Audio Extension: Up to 32 channels of digital stereo uncompressed signals for supporting studio-grade surround sound.
  • Bi-Directional RS-232 Extension: Serial interface data flows in both directions, allowing data transmission and device control at baud rates up to 115200bps with no need for pre configuration.
  • Bi-Directional Infrared Extension: IR interface data flows in both directions, allowing remote control of peripheral devices located at either end of the extended line.
  • Cost-Effective Maintenance: Status LED indicators for HDMI and HDBT ports facilitate easy local maintenance and troubleshooting. Local firmware upgrade via RS-232 connection ensures lasting, field-proven deployment.
  • Easy Installation: Compact DigiTOOLS® fan-less enclosure for dropped-ceiling mounting, or side-by-side mounting of 3 units in a 1U rack space with the recommended rack adapter.


• Specifications:

  • Inputs: 1x HDMI
  • Ports:
    - 1x HDBaseT 3.0
    - 1x RS-232
    - 1x IR
  • Standard Compression: Up to 130ft (40m) at 4K@60Hz (4:4:4)
  • High Compression: Up to 230ft (70m) at 4K@30Hz (4:4:4) or full HD (1080p @60Hz 36bpp)
  • Standards Compliance: HDBaseT 3.0
    *Note: When using recommended Kramer cables.
  • Video Max Data Rate: Up to 18Gbps (6Gbps per graphic channel)
  • Compliance: HDCP 2.3, HDR 10
  • HDMI Support: Deep color, x.v.Color™, lip sync, HDMI uncompressed audio channels, Dolby TrueHD, DTS-HD, 2K, 4K, and 3D as specified in HDMI 2.0b
  • Extended Bi-Directional RS-232: 300 - 115200 baud rate
  • Extended Bi-Directional IR: 20kHz - 100kHz frequency
  • User Interface:
    - Indicators: IN, OUT, LINK and ON LEDs
    - Controls: DIP-switches
  • Power Source: 48V DC
  • Power Consumption: 330mA
  • Enclosure:
    - Size: DigiTOOLS®
    - Type: Aluminum
    - Cooling: Convection ventilation
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -40°F - 158°F (-40°C - 70°C)
  • Humidity: 10% - 90%, RHL non-condensing
  • Product Dimensions (HxWxD): 0.96" x 4.72" x 2.81" (2.44cm x 12.00cm x 7.15cm)
  • Product Weight: 0.6lbs (0.3kg) approx.
  • Shipping Dimensions (HxWxD): 23.15" x 19.29" x 7.32" (58.80cm x 49.00cm x 18.60cm)
  • Shipping Weight: 1.5lbs (0.7kg) approx.


• Item Includes:

  • 1x EXT3-H-POE-T
  • 1x Power adapter
  • 1x Power cord
  • 1x Bracket set
