Atlona AT-UHD-EX-100CE-TX 4K/UHD 100M HDBaseT Transmitter with Ethernet and Control

ITEM #: ATNO-UHDEX100CET MFG #: AT-UHD-EX-100CE-TX

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Our Price:

$530.00

Availability: In Stock
iAvailability Description Popup


    AT-UHD-EX-100CE-TX - Overview

    The Atlona AT-UHD-EX-100CE-TX is an HDBaseT transmitter for HDMI transmission up to 328 feet (100 meters) over category cable with Ethernet pass through, plus RS-232 and IR control. Designed to work with HDBaseT inputs on switchers and projectors, this extender transmits video signals up to 4K/UHD @ 60Hz with embedded multi-channel audio. Additionally, the transmitter extends Ethernet, RS-232, and 12 volt-based IR control commands. The AT-UHD-EX-100CE-TX is HDCP 2.2 compliant and supports EDID communication. The transmitter features a quarter rack width metal enclosure for easy rack mounting with rear panel I/O ports for uncluttered wire management. This PSE (Power Sourcing Equipment) device is externally powered, includes a desktop power supply and provides Power over Ethernet for compatible receiving devices. The AT-UHD-EX-100CE-TX is certified by the HDBaseT Alliance.

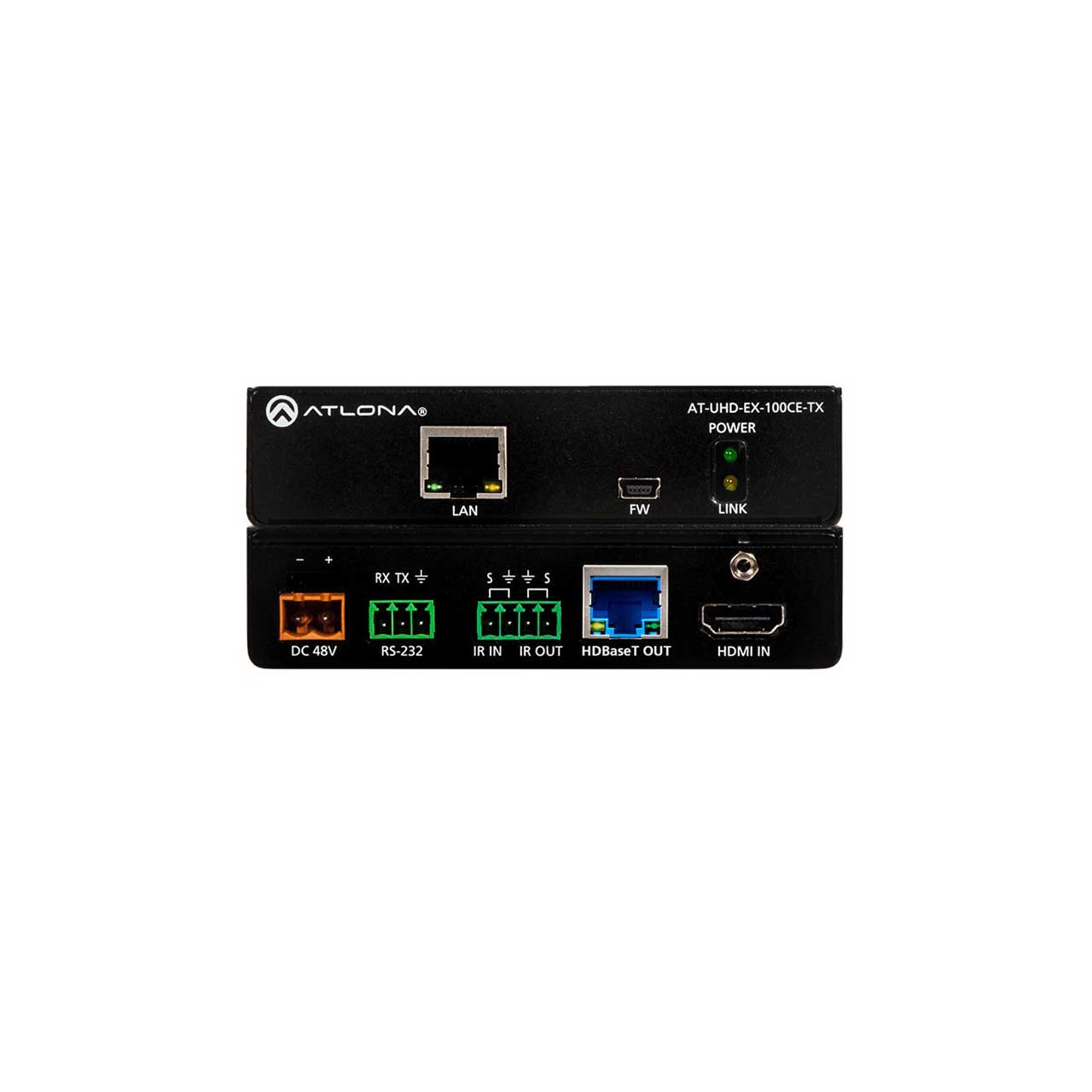

    This HDBaseT Class A transmitter is designed to support the growing number of displays and video projectors in the commercial market with HDBaseT inputs. The AT-UHD-EX-100CE-TX provides extended distance, transmission of uncompressed, 4K/UHD HDMI signals from switchers and matrixes. Other applications include remote input signal transmission for the AT-UHD-CLSO-824 matrix switcher. Built-in Ethernet and bi-directional control signal extension eliminates the need for additional cabling from switcher to the display or remote input device. Installer-friendly features include: a rack-mountable form factor that allows four transmitters to share a single, 1U rack tray; power chaining to allow multiple sets to be powered from one power supply; and a front mounted USB port for easy firmware updates.

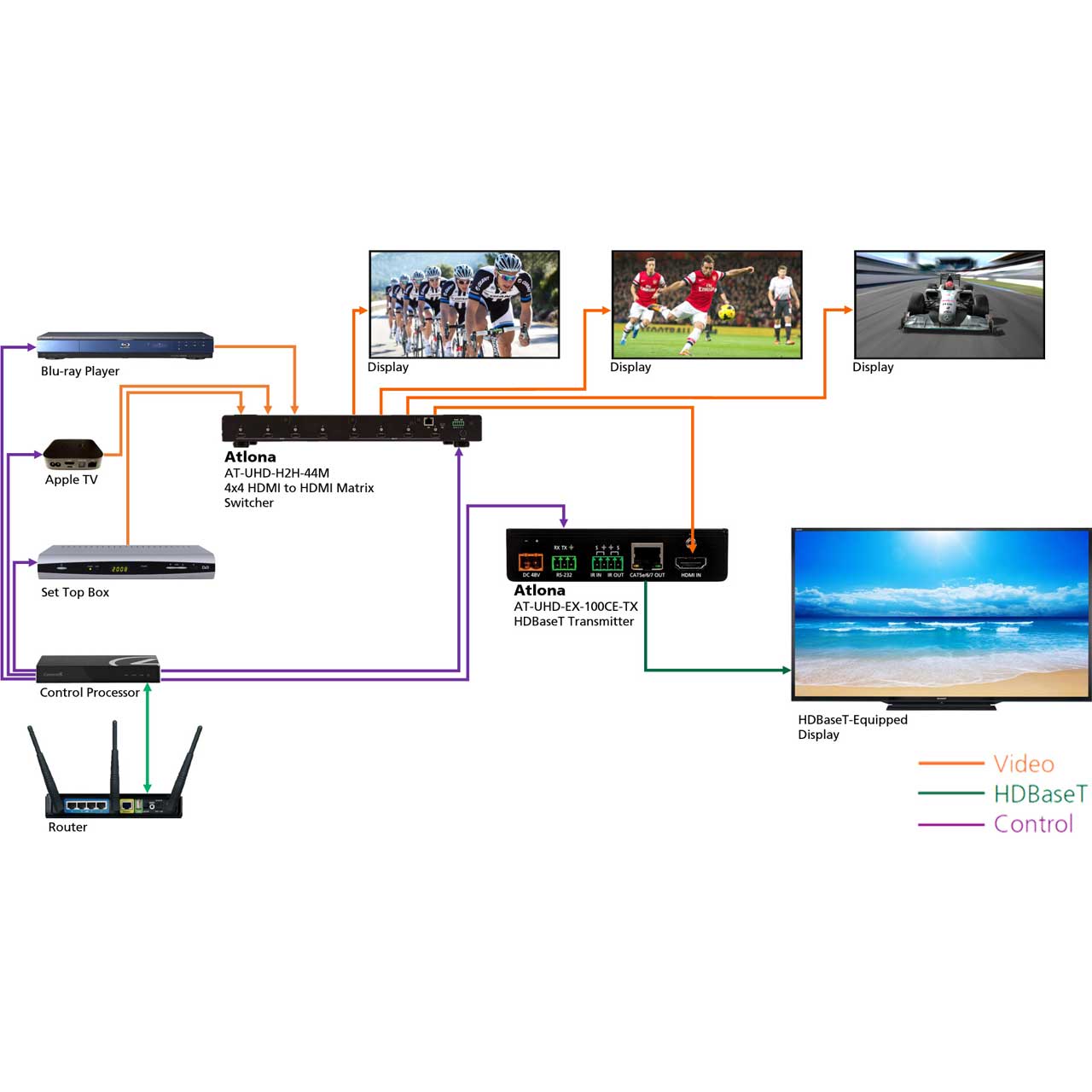

    The AT-UHD-EX-100CE-TX is ideal for use in commercial point to point applications that require extended distance HDMI signal transmission to HDBaseT-equipped displays. The transmitter can be used with any 4K/UHD switcher, matrix switcher, or distribution amplifier. Multiple points of of control allow the transmitter to work with a variety of third-party control systems to cost-effectively extend control signals within a system.

    • Features:

      • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
      • HDCP 2.2 compliant
      • Supports 4K HDR10 @ 24 Hz (4:2:0 chroma subsampling, 10-bit color)
      • HDBaseTTM transmitter for HDMI®, Ethernet, power, and control up to 330 feet (100 meters)
      • Local AC powering - PoE (Power over Ethernet) source
      • Transmits RS-232, IR, CEC, and Ethernet control signals over HDBaseT
      • Multi-channel audio compliant for all PCM, Dolby®, and DTS® formats

    • Specifications:

      • Resolution
      • Video: [email protected]/25/30/50*/60Hz*, [email protected]/25/30/50*/60Hz*, 2048x1080p, [email protected]/24/25/29.97/30/50/59.94/60Hz, [email protected]/59.94/60Hz, [email protected]/59.94/60Hz, 576p, 576i, 480p, 480i
      • VESA: 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800 1280x768, 1152x768, 1024x768, 800x600, 640x480
      • Colorspace: YCbCr, RGB
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
      • Color Depth: 8-bit, 10-bit, 12-bit
      • HDR: 4K HDR10 @ 24Hz, 4:2:0 chroma subsampling, 10-bit color (Source signal delivered from Ultra HD Blu-ray as 4K @ 24Hz 4:2:2. Not compatible with HDR10 @ 60Hz.)
        * [email protected]/60Hz & [email protected]/60Hz supported @ chroma subsampling 4:2:0 8-bit only

        Audio
      • Formats: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
      • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
      • Bit Rate: Up to 24-bit

        Distance
      • CAT5e/6 @ 4K: Up to 70 meters (230 feet)
      • CAT6a/7 @ 4K: Up to 100 meters (328 feet)
      • CAT5e/6 @ 1080p: Up to 100 meters (328 feet)
      • HDMI IN/OUT @ 4K: Up to 5 meters (15 feet)
      • HDMI IN/OUT @ 1080p: Up to 10 meters (30 feet)

        Signal
      • Bandwidth: 10.2 Gbps
      • CEC: Pass through
      • HDCP: Supports up to 2.2

        Connector
      • Firmware: Mini-B USB
      • HDBaseT: RJ45 (8P8C)
      • HDMI: Type A
      • LAN: RJ45 (8P8C), Ethernet pass through
      • TX-IR: 4-pin captive screw
      • RS-232: 3-pin captive screw
      • Power: 2-pin, 48V captive screw

        Temperature
      • Operating: 32°F to 122°F (0°C to 50°C)
      • Storage: -4°F to 140°F (-20°C to 60°C)
      • Humidity: 20 to 90% non-condensing

        Power
      • Consumption: 12W (when paired with RX)
      • Supply: Input: AC100~240V 50/60Hz
      • Output: DC 48V/0.83A

        Dimension
      • H x W x D: 25 x 109 x 89 (mm): 0.98 x 4.29 x 3.50 (inch)
      • H x W x D w/ears: 27 x 119 x 89 (mm): 1.06 x 4.69 x 3.50 (inch)

        Weight
      • Unit: 0.86lbs (0.39kg)

        Certification
      • Power Supply: CE, FCC, RoHS, cULus, RCM, CCC
      • Product: CE, FCC

    • Warranty:

      • 10 Years

    • GTIN:

      0846352004422
