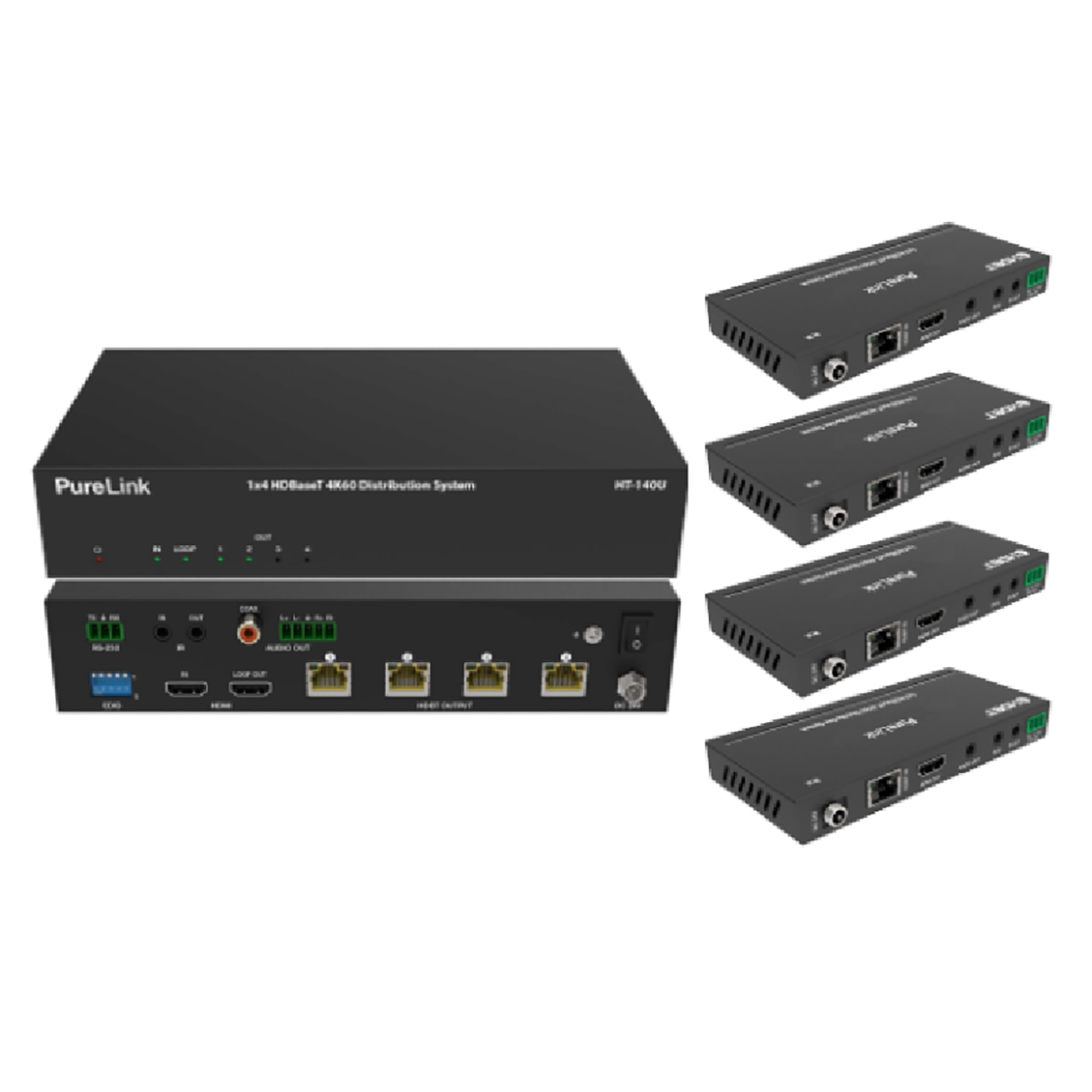

PureLink HT140-U 4K60 1x4 HDMI 2.0/HDBaseT Distribution System

HT140-U - Overview

• Features:

  • Distribute 4K60 4:4:4 HDR signals
  • 390 Feet (120 meter) extension @ 4K60
  • 490 Feet (150 meter) extension @ 1080P60
  • Receivers powered via Transmitter (PoC)
  • 32 Selectable EDID tables
  • IR and RS232 extension
  • Diagnostic LEDs on Transmitter and Receivers


• Specifications:

  Connections
  • Inputs: 1x HDMI Type A (19-pin female)
  • Outputs: 1x HDMI Type A (19-pin female), 4x HDBaseT OUT [RJ45]
  • Control Ports: 1x RS-232 (3-pin phoenix connector), 1x EDID DIP switch [5-pin], 1x IR IN [3.5mm Stereo Mini-jack], 1x IR OUT [3.5mm Stereo Mini-jack]
  • Audio Output Type(s): 1x Coaxial Audio OUT, [RCA] 1x L/R Audio OUT [5-pin phoenix connector]

    Performance
  • Distance: Up to 120m (390ft) 4K2K@60, up to 1080p60 150m (490ft)
  • Resolutions: Up to 4K2K@60Hz (4:4:4)
  • Supported Audio Formats: PCM2.0, PCM 2.0CH, Dolby Digital / Plus, DTS 2.0/5.1
  • HDCP Compliance: 1.x & 2.2
  • Video Bandwidth: 18 Gbps
  • HDR Support: HDR, HDR10+, HLG, & Dolby Vision
  • Color Space RGB: 4:4:4, YCbCr 4:4:4 / 4:2:2 / 4:2:0
  • Color Depth: 8-bit,10-bit,12-bit (1080p60), 8-bit (4K2K@60Hz & YUV 4:4:4), 8-bit, 10-bit, 12-bit (4K2K@60Hz, YCbCr 4:2:2/4:2:0)
  • Supported HDMI Audio Formats: LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X
  • Main Power: Captive 24VDC [TX], 100-240V 50/60Hz UL power adapter included, 35W max draw PoC from TX to RX
  • Power Consumption: 35W
  • Power Supply: 100-240VAC 50/60Hz
  • Operating Temperature: 32°F - 104°F (0°C - 40°C)
  • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
  • Relative Humidity: 20% - 90% non-condensing
  • HDMI/DP/VGA VERSION: HDMI 2.0b
  • Diagnostics LED: Power [TX/RX], HDMI In [TX], HDMI Loop [TX], HDBaseT outputs [TX], HDBaseT in [RX]
  • ESD Protection: ±8kV (Air-gap discharge) & ±4kV (Contact discharge)

    Enclosure
  • Product Dimensions:
    - TX: 8.7" x 5.12" x 1.57" (220mm x 130mm x 40mm)
    - RX: 5.51" x 2.56" x 0.71" (140mm x 65mm x 18mm)
  • Product Weight:
    - TX: 1.88lbs (853g)
    - RX: 0.54lbs (246g)


• Item Includes:

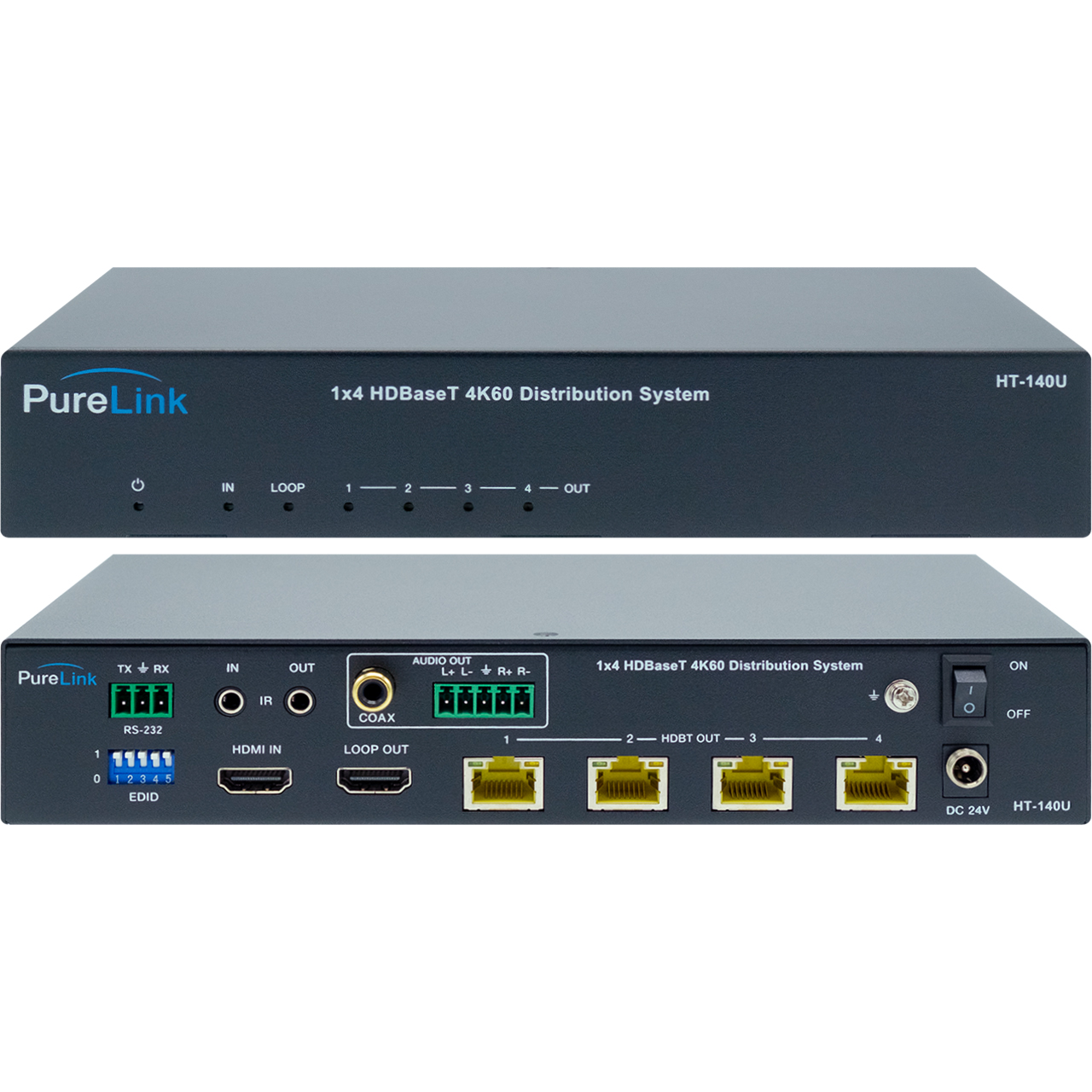

  • 1x 18Gbps HDMI 1x4 HDBaseT Splitter

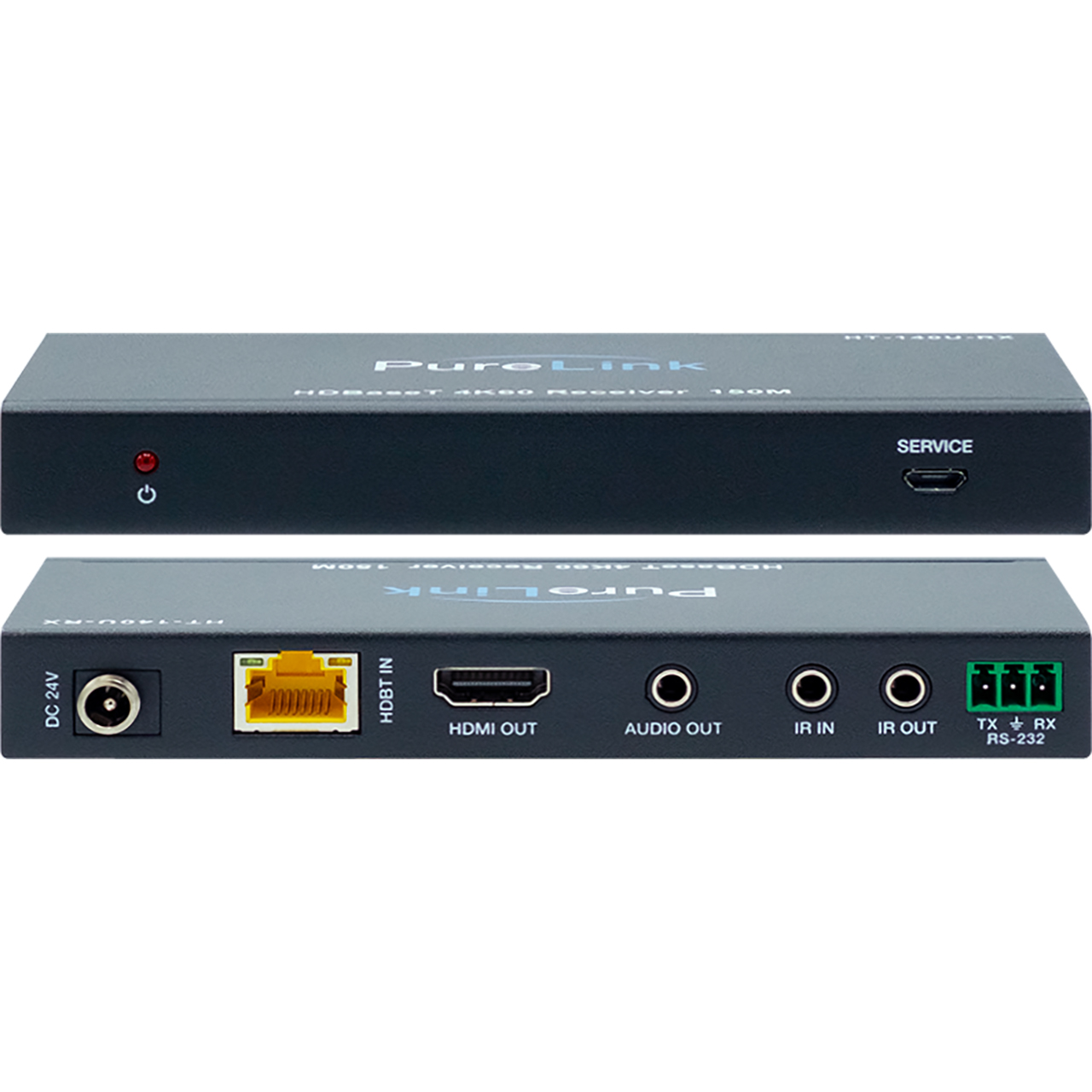

  • 4x HDBaseT Receiver
  • 5x IR Blaster Cable (1.5 meters)
  • 5x 20K~60KHz IR Receiver Cable (1.5 meters)
  • 5x 3-pin Phoenix Connector
  • 1x 5-pin Phoenix Connector
  • 10x Mounting Ear
  • 1x 24/2.7A DC Locking Power Adapter


• Warranty:

  • 5 Year Limited Warranty
