    AT-OME-EXRX - Overview

    The Atlona AT-OME-EX-RX is an HDBaseT receiver for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-EX-RX is HDCP 2.2 compliant and receives IR, RS-232, and IP control signals. With a matching HDBaseT transmitter, the integrated USB extension addresses the challenge of connecting between USB devices at remote locations, and is ideal for software video conferencing and touch or interactive displays. The OME-EX-RX includes two USB interfaces for devices such as a camera, soundbar, or display. This receiver is ideal for use with Omega Series transmitters as well as switchers with HDBaseT outputs. Also available is the OME-EX-KIT which includes the OME-EX-TX and OME-EX-RX.

    The OME-EX-RX incorporates many popular integration convenience features, while delivering excellent performance and value for 4K presentation and video conferencing applications. The OME-EX-RX can remotely power the OME-EX-TX or other Omega Series transmitter through Power over Ethernet (PoE). It can also be remotely powered by an Omega Series switcher. The Ethernet port on the OME-EX-RX is for IP pass-through with the transmitter.

    Applications:
    Complete System Integration
    Video Conferencing and Interactive Displays

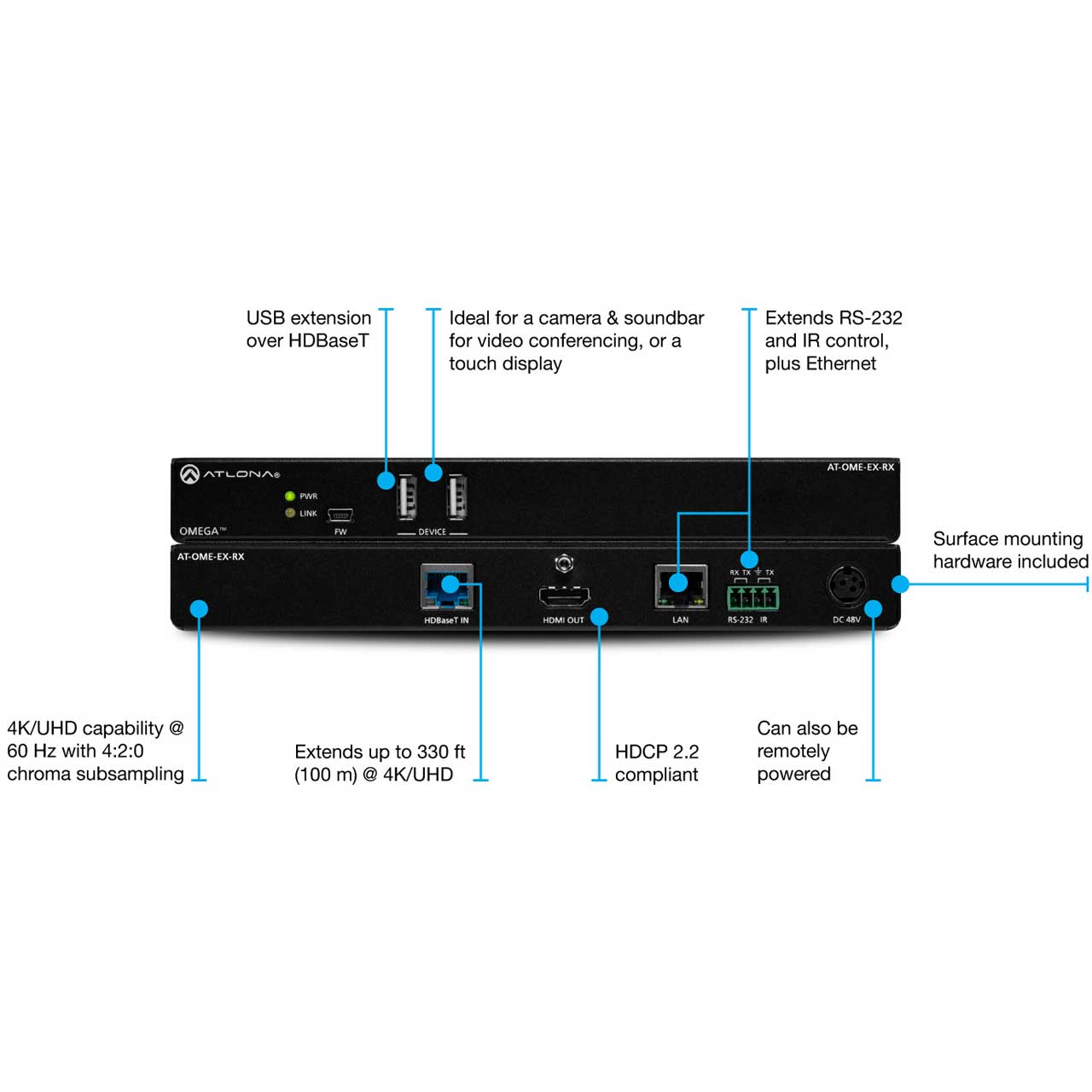

    • Features:

      • HDBaseTTM receiver for HDMI®, Ethernet, power, control, and USB
      • USB 2.0 interfacing and extension up to 330 feet (100 meters)
      • 4K/UHD capability @ 60 Hz with 4:2:0 chroma subsampling
      • HDCP 2.2 compliant
      • Local or remote PoE (Power over Ethernet) powering

    • Specifications:

      • Video
      • HDMI Specification: HDMI 2.0, HDCP 2.2
      • TMDS Clock: 300MHz
      • UHD/HD: 4096x2160(DCI)@60*/30/24Hz, 3840x2160(UHD)@60*/50/24/25/30Hz, [email protected]/24/25/29.97/30/50/59.94/60Hz, [email protected]/29.97/30Hz, [email protected]/50/59.94/60Hz
      • VESA: 2560x2048, 2560x1600, 2048x1536, 1920x1200, 1680x1050, 1600x1200, 1600x900, 1440x900, 1400x1050, 1366x768, 1360x768, 1280x1024, 1280x800 1280x768, 1152x768, 1024x768, 800x600, 640x480
      • Color Space: YUV, RGB
      • Chroma Subsampling: 4:4:4, 4:2:2, 4:2:0
      • Color Depth: 8bit, 10bit, 12bit
      • Note: *4K/UHD @ 60Hz only supports 4:2:0.

        Audio
      • Pass-through: PCM 2Ch, LPCM 5.1, LPCM 7.1, Dolby® Digital, DTS 5.1, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos®, DTS®, DTS-HD Master Audio™, DTS:X
      • Sample Rate: 32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz, 176.4kHz, 192kHz
      • Bit Depth: Up to 24bit

        USB
      • Signal: 2.0
      • Maximum Data Rate: 120Mbps

        Control
      • CEC: Pass-through
      • RS-232: Pass-through from control system to sink device; supports baud rates from 2400 to 115200
      • IR: Pass-through from control system to sink device
      • IP: Pass-through from control system to sink device up to 100Mbps over HDBaseT

        Connectors
      • HDMI Out: 1- Type A, 19pin female
      • FW: 1- mini-USB
      • HDBaseT Out: 1- RJ45
      • Device: 2- USB Type-A
      • LAN: 1- RJ45, 10/100 Mbps
      • RS-232/IR: 1- captive screw, 4pin
      • DC 48V: 1- 3pin DIN

        Indicators and Controls
      • PWR LED indicator: 1-LED, green
      • LINK LED indicator: 1-LED, yellow

        Resolution/Distance (4K/UHD)
      • HDMI In/Out: 15' (5m)
      • CAT5e: 295' (90m)
      • CAT6/6a/7: 330' (100m)

        Resolution/Distance (1080p)
      • HDMI In/Out: 30' (10m)
      • CAT5e: 330 (100m)
      • CAT6/6a/7: 330' (100m)

        General
      • Power Consumption: 18.67W
      • USB Power: 2.5W per USB device interface
      • External Power Supply: Input: 100 - 240V AC, 50/60Hz; Output: 48V, 0.83A DC
      • Safety: CE, FCC, cULus
      • Operating Temperature: 0° - 122° F (0° - 50°C)
      • Storage Temperature: -4° - 140° F (-20° - 60°C)
      • Operating Humidity (RH): 20 - 90%, non-condensing
      • Dimensions (HxWxD): 1.02 x 8.62 x 5.98" (26 x 219 x 152mm)
      • Weight: 1.91LBs (870g)
      • Safety: CE, RoHS, FCC

    • Item Includes:

      • 1 x Installation Guide
      • 1 x Surface Mounting Hardware
      • 1 x External Universal Power Supply

    • Warranty:

      • 10 Year Limited Product Warranty

    • GTIN:

      0846352006082
