Atomos NINJA 5.2 Inch 1000nit HDR HDMI 4K60 On-Camera Monitor/Recorder with AtomOS 11 for DSLR & Mirrorless Cameras

ITEM #: ATO-NINJA-5IN MFG #: ATOMNJA004

Primary Image
  • Product Image Thumbnail 1 of 5
  • Product Image Thumbnail 2 of 5
  • Product Image Thumbnail 3 of 5
  • Product Image Thumbnail 4 of 5
  • Product Image Thumbnail 5 of 5
Free Shipping with $49 Minimum Order

Our Price:

$599.00

Availability: In Stock
iAvailability Description Popup


    ATOMNJA004 - Overview

    The new Ninja 5.2 Inch Recording Monitor

    Atomos Ninja 5.2 is a lightweight, compact camera-mounted 10-bit HDR monitor recorder up to 4Kp60 in ProRes, ProRes RAW, Avid DNx, H.265 codec amplifying on monitoring features and connected capabilities.The Ninja 5.2 is an impressive successor to the Ninja V. These rugged 5.2" monitors were built for the rigors of production, providing a solid yet lightweight on-camera display with powerful built-in tools and 10-bit HDR support.

    Built with the AtomIC chipset and a new user interface AtomOS 11 that optimizes its memory management, Ninja sets a new standard in creativity for any kind of creator. AtomOS 11 brings to creators a host of great new and advanced monitoring and recording features like RecordAssist, PlayBackAssist, SegmentPro, ELZone, Arri False color.

    The evolution of Ninja
    The original Ninja rocked the world, combining an HD disk recorder with a touchscreen monitor you could hold in your hand. It captured pristine, uncompressed video direct from the first generation of DSLRs straight onto a removable SSD. Today, Ninja handles video sources up to nine times that resolution, has a 5.2 inch HDR screen, records ProRes, and connects to almost every camera in the world.

    Cleaner, fresher, faster
    Introducing a new version of our operating system, AtomOS 11. Built uniquely for the new Ninja and Ninja Ultra, it not only looks beautiful but introduces a host of great new features. We've made the tools more visible and improved the icons so you know exactly what you're selecting. It's easier to use, more logical and feels more professional.

    AtomOS 11 unleashes the full potential Ninja with new firmware that optimizes memory management for greater responsiveness. It also enables a host of new features.

    EL Zone exposure referenced colorized image and ARRI False Color
    A powerful new addition to AtomOS 11 provides industry-recognized EL Zone and ARRI colorized exposure display as a selectable alternative to Atomos false color. This allows Atomos monitors to display consistent colorized exposure with multiple monitors in the production pipeline. EL Zone is designed for camera operators.

    What's new, at a glance:
    Brand New OS - New AtomOS 11 - faster, with more features
    More Codecs Included - 6K ProRes RAW, ProRes, DNxHD & H.265 - all for free
    Superb Monitoring Tools - Now with EL Zone exposure and ARRI false color
    RecordAssist - Set a time for your recording to start
    PlaybackAssist - Set a time for your Ninja to play out files or sequences
    TimeLapse - Set up time-lapse recording and control it from your Ninja
    Segment Pro* - Automatically split files when they reach a set size/duration *coming in September 2023
    RemoteView** - Share live views from your screen over the internet
    Wi-Fi 6** - Faster, more stable connection to the internet
    Atomos Care360 - Premium extended warranty that covers unforeseen damage

    **Requires Atomos Connect. Sold Separately.

    • Features:

      • Lightweight, tough and reliable device with a new clean and modern interface and compatible with a huge range of HDMI-output cameras
      • Record up to 4Kp60 in Apple ProRes, Avid DNxHD, and now H.265 (HEVC) included and up to 6Kp30 in Apple ProRes RAW
      • New AtomOS 11 improves memory management, boosts responsiveness, and unleashes new features
      • Share what's on your Atomos screen with other Atomos Connect users, as well as with Shogun Connect, iPads, Macs and Apple TVs wirelessly in the same premises or anywhere in the world with Atomos RemoteView (requires Atomos Connect).
      • New tools to arrange in advance recording and playback with RecordAssist and PlayBackAssist.

    • Specifications:

      • Construction & Control
      • Body: Aluminium with ABS plastic
      • Cooling: Actively controlled fan and heat sink
      • Tally light: Rear/front
      • Multi-function button: Power / lock screen
      • AtomXpansion slot: Yes

        Power

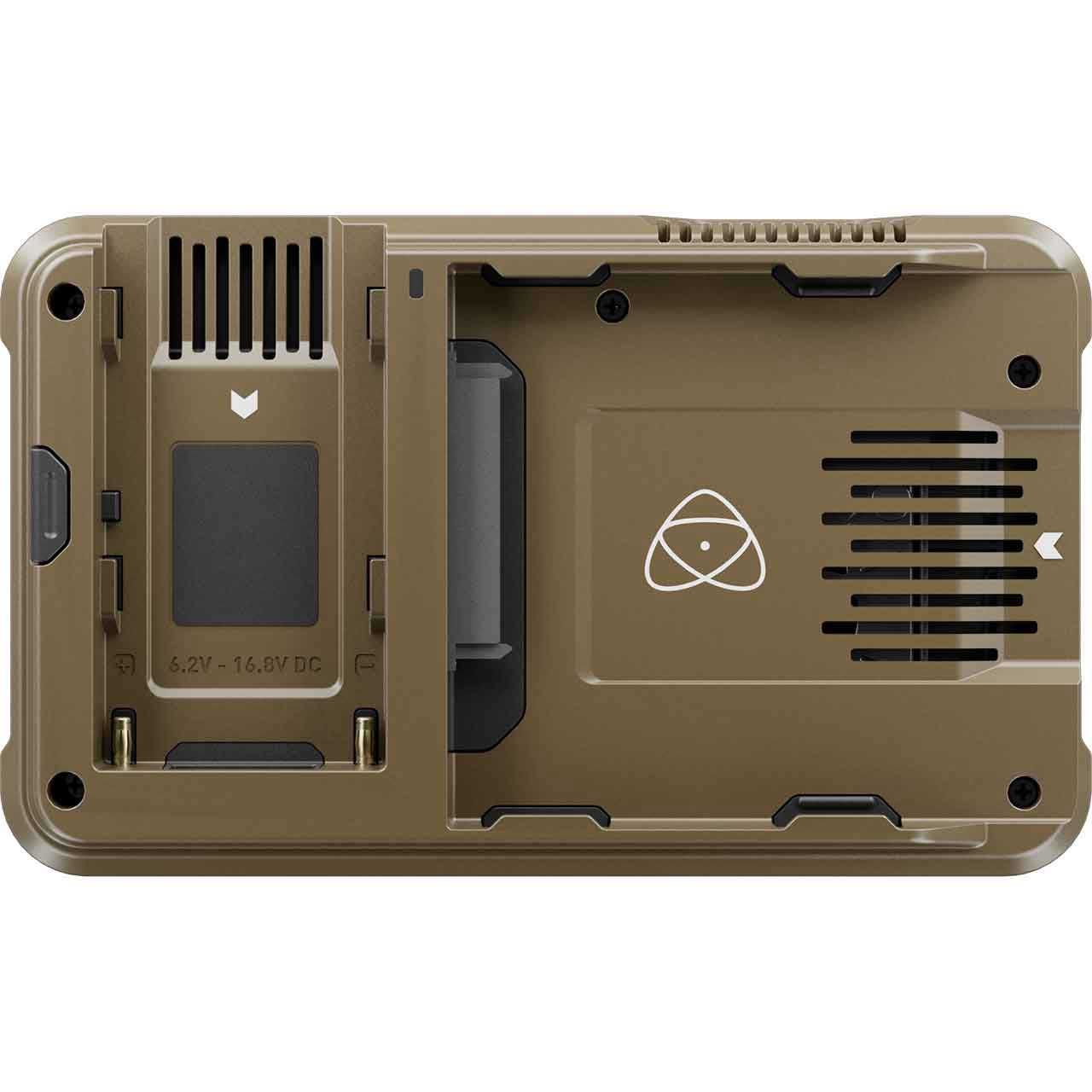

      • Input voltage: 6.2V to 16.8V
      • Operating power: 5.8-7.2v (Battery) or min 30W via USB C PD cable
      • Compatible batteries: NPF L series
      • Built in battery: No
      • Battery run time Record: 5200mAh - up to 2hrs (monitor & record 4K 60p): 7800mAh - up to 3hrs (monitor & record 4K 60p)
      • DC in connector: Via DC jack on battery eliminator
      • DTAP: Via battery eliminator and optional DTap to DC cable

        Display
      • Touchscreen: SuperAtom IPS panel (capacitive touch)
      • Size: 5.2-inch
      • Resolution: 1920 x 1080
      • PPI: 427
      • Bit depth: 10-bit (8+2 FRC)
      • Backlight Type: Edge lit
      • Brightness (cdm2 / Nits): 1000
      • Aspect ratio: 16:09
      • Color Gamut: Rec.709
      • Calibration support: Atomos Calibrator with Calibrite ColorChecker Display Pro & ColorChecker Display Plus

        Video Input

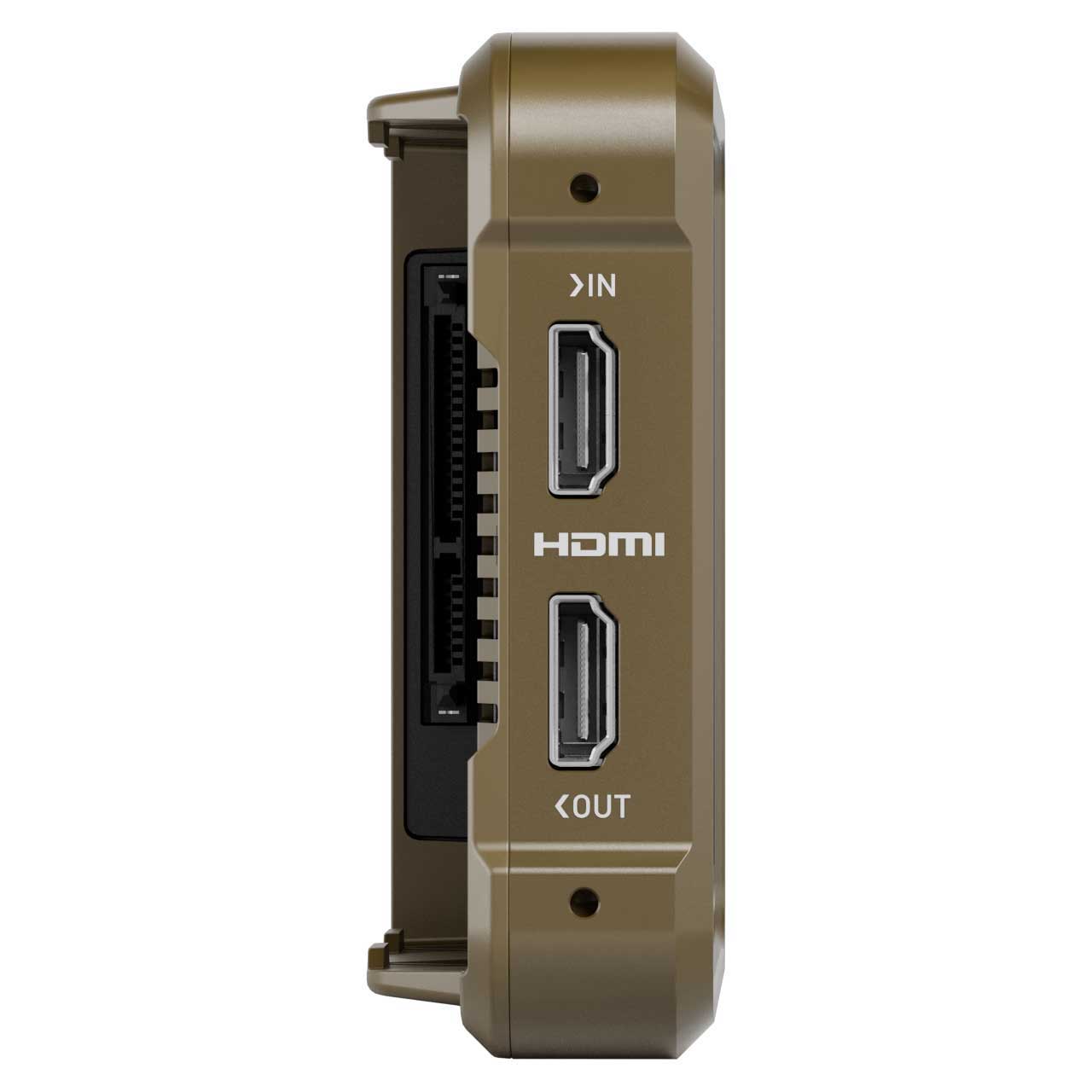

      • HDMI: 1 x HDMI (2.0) 4Kp60
      • HDMI RAW: Apples ProRes RAW up to 6K with compatible cameras
      • SDI: Optional Via Atomos Connect module
      • SDI RAW: Optional Via Atomos Connect module
      • Bit Depth: 8/10-bit video / RAW up to 16-bit
      • Video Chroma Subsampling: 4:2:2

        Video Output
      • HDMI: 1 x HDMI (2.0) 4Kp60
      • RJ45 / GigE: Optional Via Atomos Connect module
      • Wi-Fi 6: Optional Via Atomos Connect module
      • Video Chroma Subsampling: 4:2:2
      • Bit Depth: 10-bit video

        Web Streaming
      • USB UVC: Optional Via Atomos Nexus 4K or AtomX Cast
      • RJ45 / GigE: Optional Via Atomos Connect module
      • RTMP / S: Optional Via Atomos Connect module

        Audio In/Out
      • Audio Quality: 24/48kHz
      • Audio Codec: PCM
      • HDMI: 8ch 24-bit, input dependent
      • SDI: 12ch 24-bit, input dependent

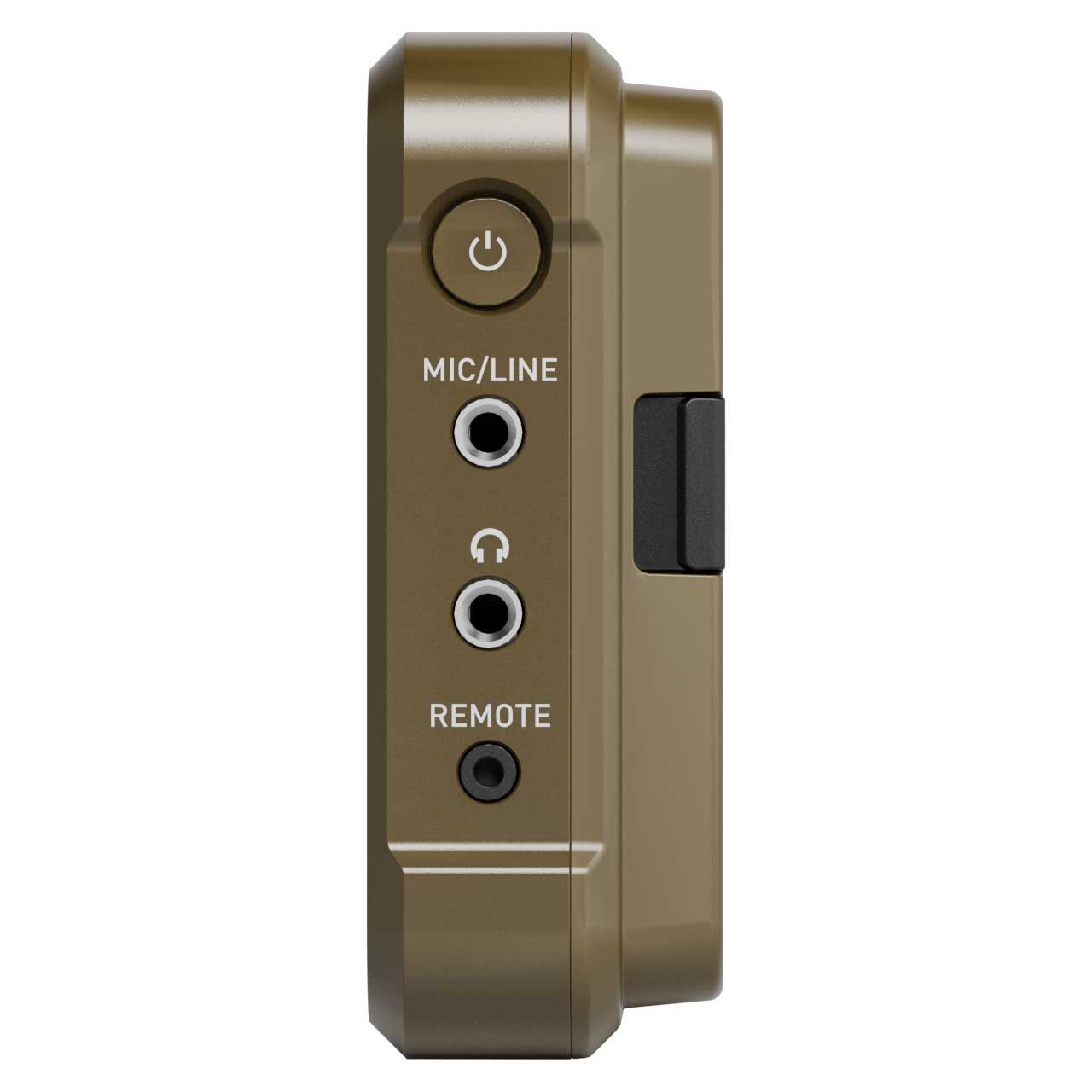

      • Analogue Audio in: 3.5mm 2ch
      • Headphone out: 3.5mm 2ch
      • Audio input delay: User definable from menu

        Timecode / Sync / Control
      • Embedded: HDMI and SDI
      • Time of day: Yes, Time and Date
      • LTC: Optional Via Atomos Connect module
      • Genlock: Optional Via Atomos Connect module
      • Wireless AirGlu RF Server and Client: Optional Via Atomos Connect module
      • Wireless AirGlu BT Server: Optional Via Atomos Connect module

        Resolution & Frame Rates (Record, Monitor & Playback)
      • 6K: RAW Only up to 30p via HDMI
      • 4K DCI: 23.98/24/25/29.9/30/50/59.94/60p
      • 4K UHD: 23.98/24/25/29.9/30/50/59.94/60p
      • 2K DCI 2046 x 1080: Optional via AtomX SDI module
      • Anamorphic: 3.5k: RAW up to 60p (from supported cameras only)
      • FHD 1920 x 1080 Progressive: 23.98/24/25/29.9/30/50/59.94/60/100/120p
      • FHD 1920 x 1080 PsF: converted to P and looped out PsF
      • FHD 1920 x 1080 Interlaced: 23.98/24/25/29.9/30/50/59.94/60i
      • 1280 x 720p: 50/59.94/60p

        Physical Specifications
      • Dimensions (W x H x D mm): 151 x 91.5 x 31mm
      • Weight: 360g / 12.7oz
      • Mount points: 1 x anti-rotation 1/4-inch / 3/8-inch top and bottom

    • Item Includes:

      • 1x Ninja
      • 1x Battery eliminator
      • 1x USB C PD to 2.1mm DC power lead
      • 1x QuickStart Guide

    • Warranty:

      • 1 year

    • GTIN:

      0814164022804
