    KI PRO GO2 - Overview

    A Next Generation Digital Recorder featuring HEVC

    The AJA Ki Pro GO2 is a portable multi-channel H.265 (HEVC)* and H.264 (AVC) recorder offering up to 4-channels of simultaneous HD or SD recording to qualified USB drives and/or network storage with redundant recording capabilities.

    4x 3G-SDI and 4x HDMI digital video inputs with flexible channel assignments provide connections to a wide range of video sources, including any 3G-SDI signal from a router for example, professional and prosumer cameras and DSLRs. Incoming video sources do not have to be genlocked due to Ki Pro GO2's input frame synchronizers. Ki Pro GO2 also features AJA's high quality de-interlacers on each input so progressive recordings can be made from interlaced inputs. High quality 2-channel embedded audio or balanced XLR analog audio can be assigned to any recording channel. Multi-Channel Matrix Monitoring enables multiple video channels to be viewed on any single HDMI or SDI display, and Enhanced Super Out offers timecode, media status and audio meter overlays over the SDI and HDMI monitor outputs.

    Designed to be either portable or rackmountable with half rack wide, 2RU high dimensions, Ki Pro GO2 is well suited for use in any production environment be it a global concert tour or your local house of worship.

    *(High Efficiency Video Coding)

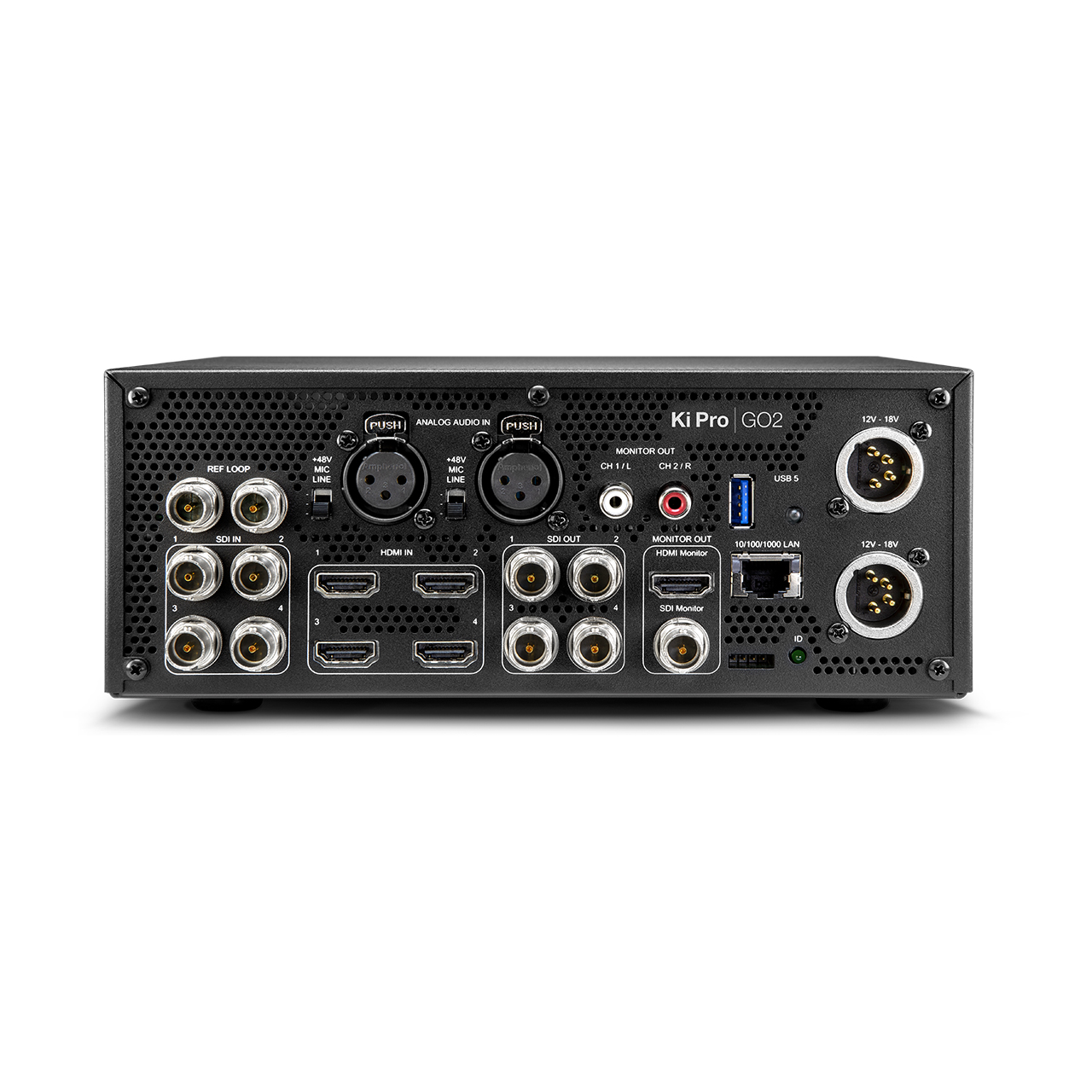

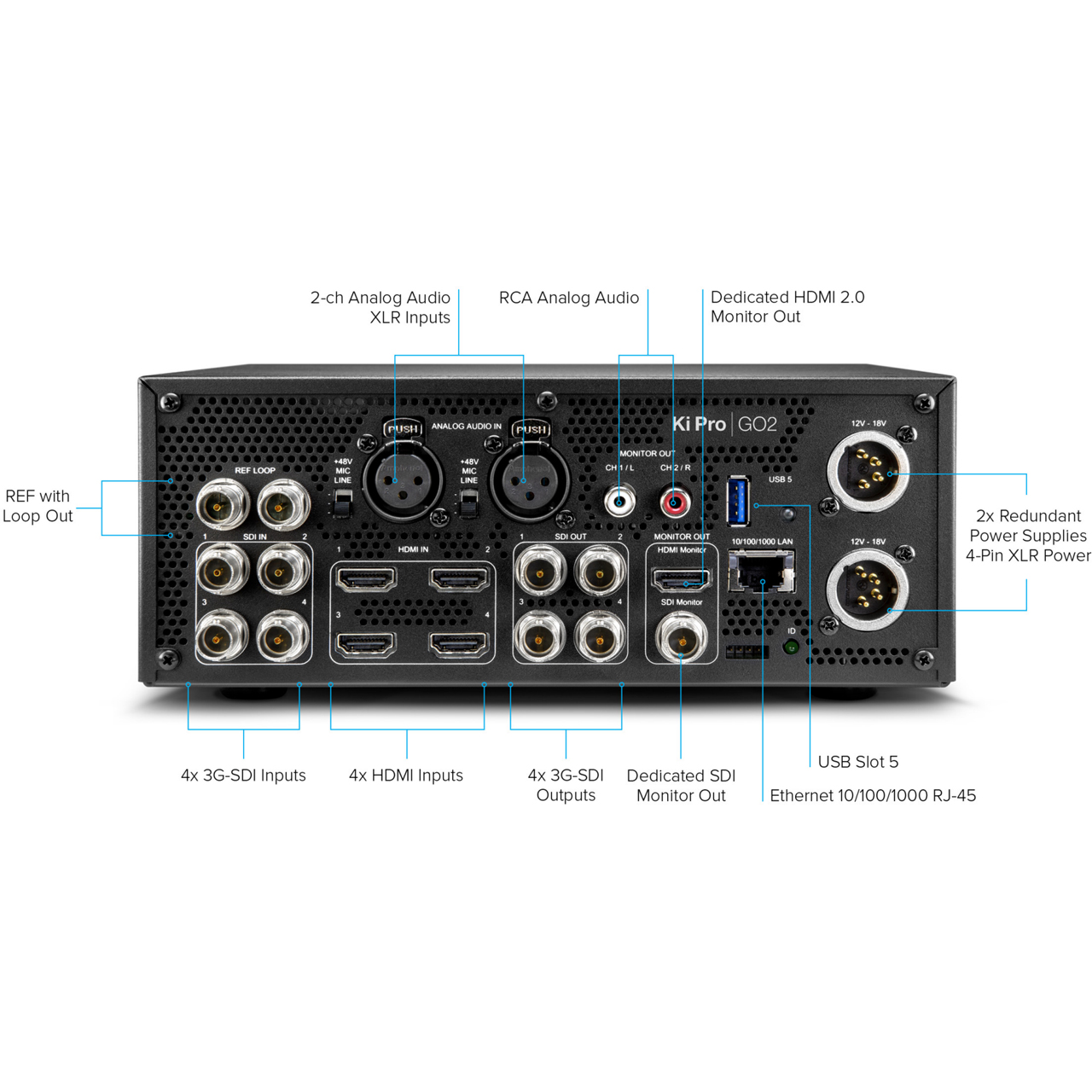

    Industry Standard Connectivity - The video and audio connections on the rear panel of the Ki Pro GO2 offer 4x 3G-SDI and 4x HDMI inputs with separate SDI and HDMI monitoring which includes Matrix Monitoring for multi-channel viewing on a single HD display. XLR Analog Audio In supports Mic and Line level signals with Phantom Power for audio recording from master sources, mixers and more. HDMI and SDI 2-channel embedded audio or the XLR analog inputs can be easily assigned to each recording channel. Alternatively, you can use the second Analog Audio input as a LTC input.

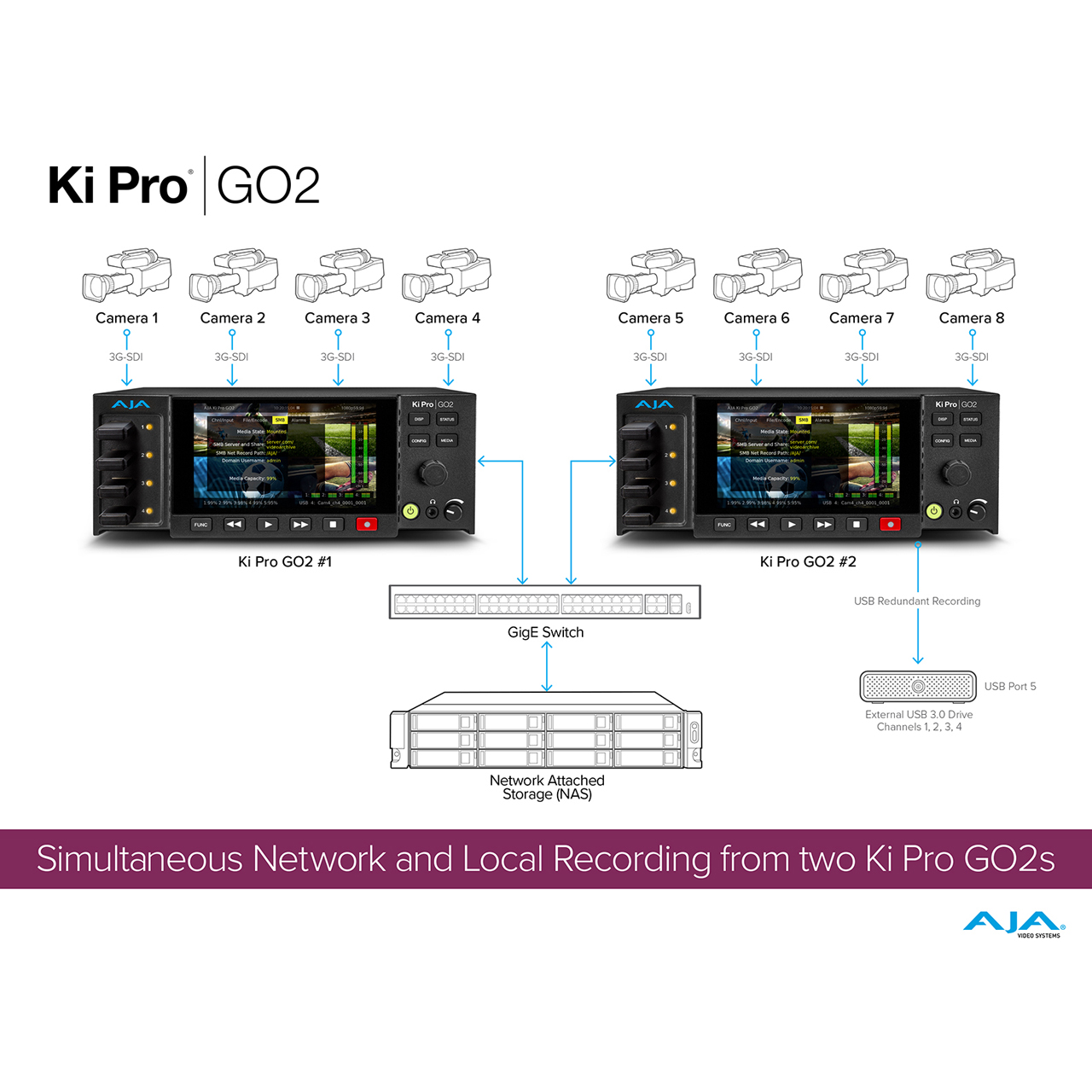

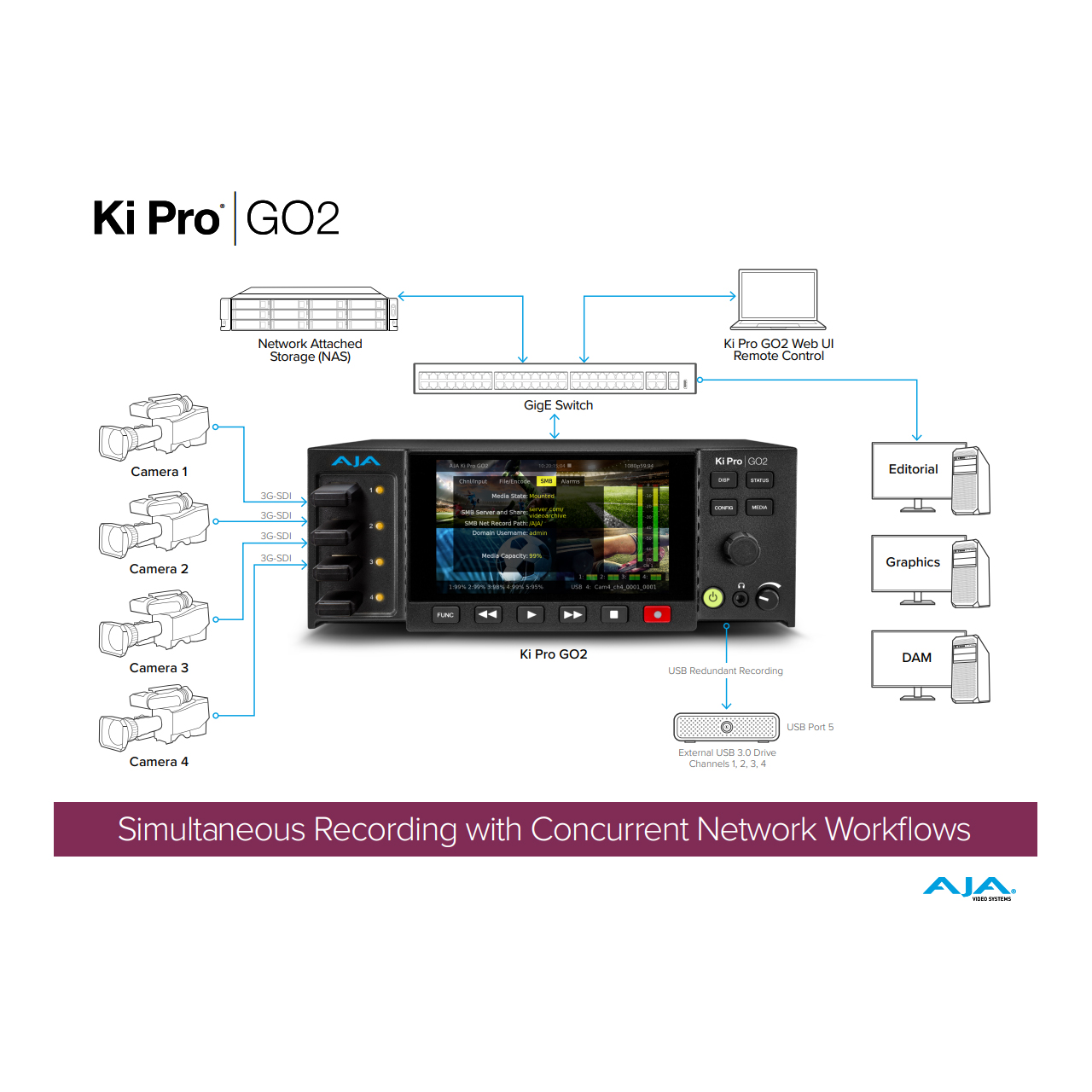

    Four USB ports on the front provide easy to access recording media using qualified USB drives, with a fifth USB port on the rear. Flexible destination mapping allows any USB port or network storage to be used as the primary record location and any USB port to be used as a backup location or pass-on of a second copy. This allows for backup or pass-on of a secondary copy of captured files to post-production, clients, or others on your team. You can also map a single source to multiple USBs for duplication.

    Four 3G-SDI outputs ensure that signal pass through is available for connectivity into a wide range of devices from routers, to switchers, additional Ki Pros and more.

    Genlock Free Recording with Easy Input Mapping - Record 1, 2, 3 or 4-channels of HD or SD up to 1080p 50/60 in H.265 or H.264 simultaneously with Ki Pro GO2. Simplify your setup by connecting up to four HDMI and four 3G-SDI source cables into Ki Pro GO2 and assign any combination of four inputs at a time for four channels of H.265 or H.264 recording to any four of the 5 USB ports on the Ki Pro GO2.

    Time is always tight, especially for live events. Ki Pro GO2's Genlock free inputs make it easy to switch your sources including SDI cameras, DSLRs, or HDMI cameras to the appropriate recording channel, all conveniently mapped within Ki Pro GO2's elegant and easy to use UI.

    • Features:

      • Multi-channel H.265 (HEVC) and H.264 (AVC) recording
      • Easy-to-use web UI, compatible with standard web browsers

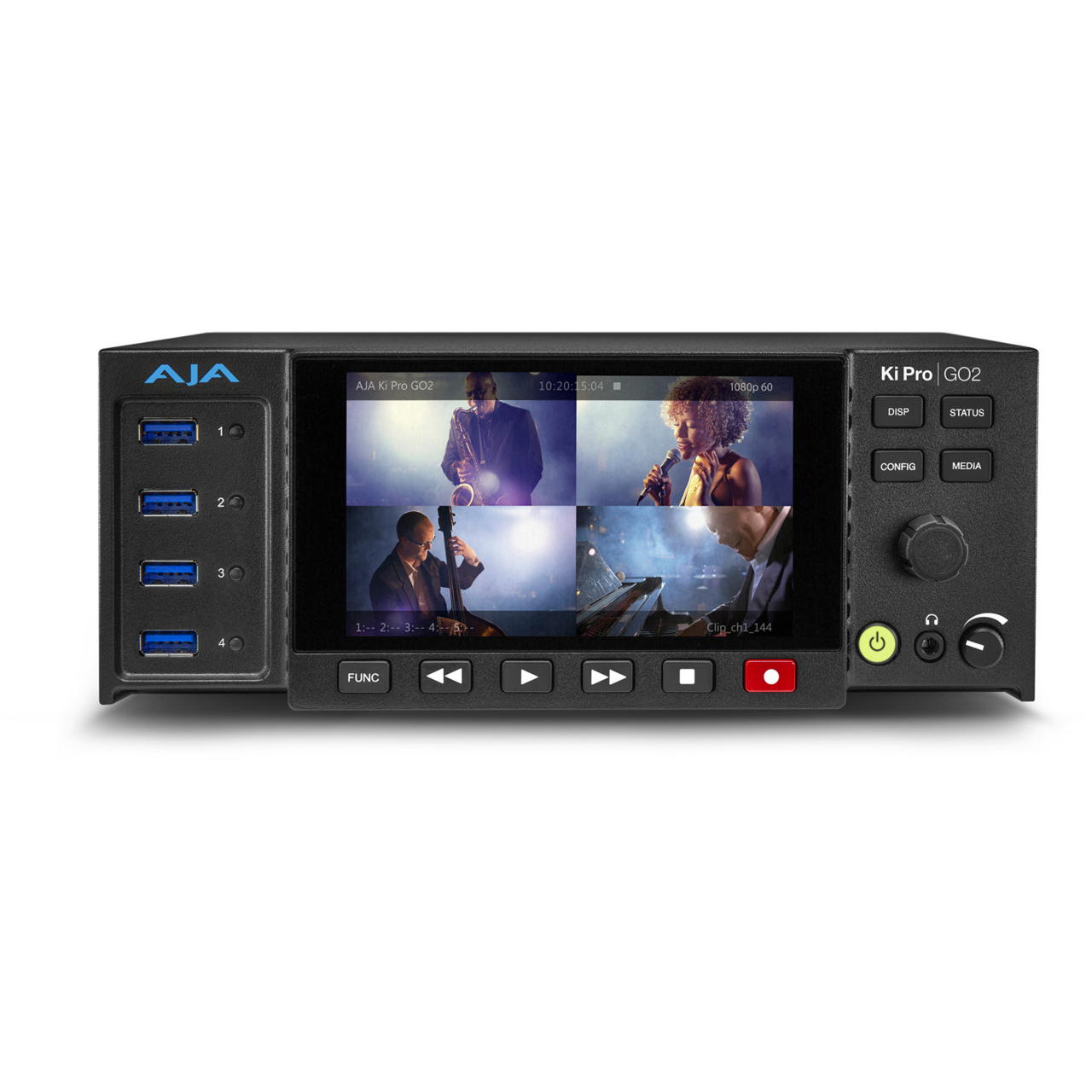

      • Front panel button controls with integrated HD resolution screen
      • 5x USB recording media ports, compatible with off-the-shelf USB 3.2 Gen 1 media
      • Onboard exFAT drive formatting
      • Real time recording to network (SMB) storage
      • Redundant recording to user selectable destinations - USB or SMB
      • Built-in Frame Syncs
      • 4x 3G-SDI inputs
      • 4x 3G-SDI outputs
      • 1x 3G-SDI monitoring output
      • 4x HDMI inputs
      • 1x HDMI monitoring output
      • HDMI and SDI multi-channel matrix monitoring
      • HDMI and SDI Enhanced Super Out for monitoring: timecode, media status and audio levels
      • Single-channel H.265 or H.264 playback
      • Selectable VBR recording settings with 5 options
      • Timecode SDI RP-188 Input Support: Time of Day or Timecode Value
      • LTC Support, available using 1-channel of Analog Audio In
      • Balanced XLR analog audio inputs, mic/line/48v switchable
      • 2-channel embedded audio per video input
      • Network web UI based file downloads
      • Stand-alone operation

    • Specifications:

      • Video Formats
      • (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
      • (HD) 1080i 50, 59.94, 60*
      • (HD) 1080PsF 23.98, 24, 25, 29.97, 30*,**
      • (HD) 720p 50, 59.94, 60
      • (SD) 525i 59.94*
      • (SD) 625i 50*
        * Recording will be converted to progressive
        ** PsF input support only
        Note: Multi-channel recording requires the same frame rate and resolution for all input sources.

        Video Codec Support
      • Supports H.265/HEVC, up to 15 Mbps recorded output
      • Supports H.264/MPEG-4, up to 25 Mbps recorded output

        Audio Codec Support
      • 4x audio compression codecs
      • 2-channel audio support for each
      • Up to 320 kbps
      • MPEG-4 AAC-LC

        Removable Storage
      • 5x USB 3.2 Gen 1 (5 Gbps) ports
      • All ports are also compatible with the following standards:
        - USB 2.0 (480 Mbps)
        - USB 3.0 (5 Gbps)
        - USB 3.2 Gen 1 (5 Gbps)
      • 5V 1A max current per port

        Removable Storage File System Support
      • FAT file systems
        - FAT16
        - FAT32
        - exFAT
      • In-system formatting support for exFAT only

        SMB Protocols Supported
      • SMB 3.1.1
      • SMB 3.0.2
      • SMB 3.02
      • SMB 2.1
      • SMB 2.0

        Video Input
      • 4x 3G-SDI BNC, SMPTE-259/292/424, 4:2:2 10-bit
      • 4x HDMI standard Type A connector
      • HDMI v1.4a:
        - 4:4:4 RGB 8, 10-bit (deep color)
        - 4:2:2 YCbCr 8, 10, 12-bit
        - 4:2:0 YCbCr 8-bit

        Video Output
      • 5x 3G-SDI BNC, SMPTE-259/292/424, 4:2:2 10-bit
      • 1x HDMI standard Type A connector
      • HDMI v1.4a:
        - 4:4:4 RGB 8, 10-bit (deep color)
        - 4:2:2 YCbCr 8, 10, or 12-bit
        - 4:2:0 YCbCr 8-bit

        Audio Output
      • 5x SDI embedded
        - 2-channel, 24-bit embedded audio
        - 48 kHz sample rate, synchronous
      • 1x HDMI embedded
        - 2-channel, 24-bit embedded audio
        - 48 kHz sample rate, synchronous
      • Stereo unbalanced headphone jack (1x 3.5mm jack) with volume control
      • 2-channel unbalanced 2x RCA connectors

        Weight and Dimensions
      • Dimensions (WxDxH): 8.64" x 10.59" x 3.31" (219.46 mm x 268.90 mm x 84.08 mm)
      • Weight: 5.1 lbs (2.3 kg)

    • Item Includes:

      • 1x Ki Pro GO2 Multi-Channel H.265/H.264 Recorder
      • 1x AC Power supply
      • 1x Carry handle

    • Warranty:

      • 3-Year Limited Warranty
