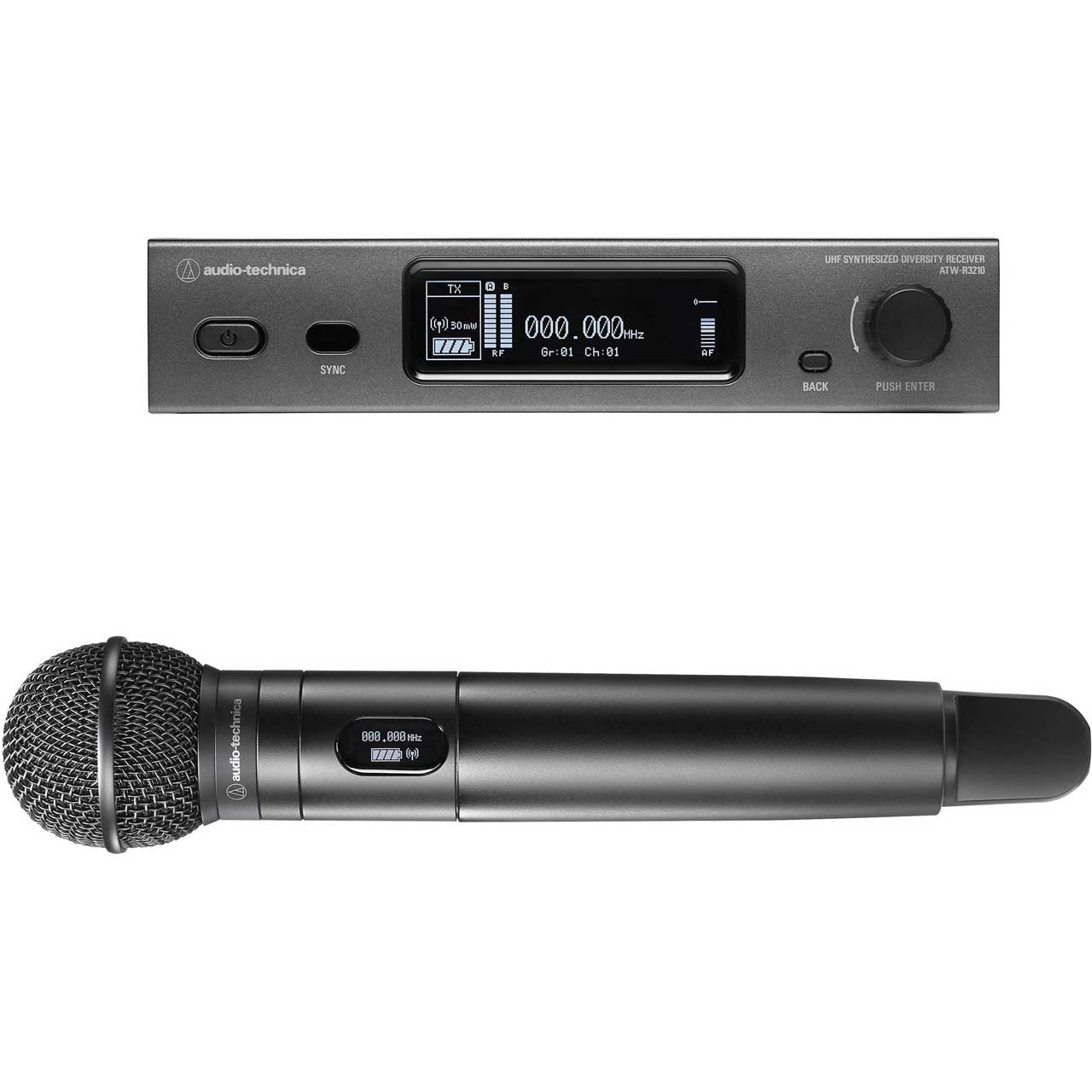

Audio Technica ATW-3212/C510DE2 Wireless System R3210 Receiver T3202 Handheld Transmitter C510 Mic Capsule 470-530 MHz

    Questions? Ask a Markertek Expert:
    800-522-2025 Email

    Audio Technica ATW-3212/C510DE2 Wireless System R3210 Receiver T3202 Handheld Transmitter C510 Mic Capsule 470-530 MHz

    Manufacturer: Audio-Technica

    Item #: ATW-3212-C510DE2   •   MFG #: ATW-3212/C510DE2




    Our Price:$599.00

    free ship


    Availability: Direct Ship From Manufacturer
    i
    Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




      Share!

      California Residents:
      8pt-triangleWARNING:
      Cancer and Reproductive Harm - www.P65Warnings.ca.gov





      Required Accessories

      The Audio-Technica ATW-3212/C510DE2 wireless microphone system with ATW-R3210 receiver and ATW-T3202 handheld transmitter with ATW-C510 cardioid dynamic microphone capsule is part of the fourth-generation 3000 Series wireless systems that give you the power and flexibility to operate within the congested UHF spectrum. 3000 Series systems have an operating range of 300ft and are available in two frequency bands - DE2 (470 - 530MHz) and EE1 (530 - 590MHz) - that provide a class-leading 60MHz tuning range, which is more than twice that offered by the previous 3000 Series models. Frequencies can be easily scanned and selected on the receiver and then synced with the transmitter via IR sync functionality. The 3000 Series even lets you set a backup frequency that can be quickly swapped by pressing the transmitter's multifunction button in the event of unexpected interference. Available system configurations feature an ATW-R3210 receiver along with an ATW-T3201 body-pack or ATW-T3202 handheld transmitter. The ATW-T3201 is equipped with Audio-Technica's new rugged cH-style screw-down 4-pin connector for secure connection to A-T's cH-style lavalier and headworn microphones, or cables. The ATW-T3202 comes with either an ATW-C510 dynamic or ATW-C710 condenser interchangeable cardioid capsule, and its industry-standard thread allows for the use of four additional A-T capsules, plus other compatible capsules. Both transmitters feature rugged, metal housings and are powered by two AA batteries. Charging terminals on each transmitter work with the ATW-CHG3 and ATW-CHG3N smart charging docks (sold separately) to recharge NiMH batteries.


      • Features

        • Extremely wide 60MHz UHF tuning bandwidth for maximum versatility in an increasingly congested RF environment; available in two frequency bands: DE2 (470 - 530MHz) and EE1 (530 - 590MHz)
        • Unique multifunction button on the handheld and body-pack transmitters can be used to switch to a backup frequency (on both transmitter and receiver) should interference be encountered
        • True Diversity operation reduces dropouts
        • Auto Squelch feature automatically adjusts squelch setting to maximize range while minimizing potential interference
        • Frequency scan and IR sync functionality for ease of setup
        • Dual-mode receiver display can switch between standard view or a performance view that highlights key metering
        • Transmitters and receivers include OLED screens for optimal readout of key settings and alerts
        • Handheld transmitter offers extremely low handling noise and includes an industry-standard thread mount for use with six interchangeable A-T microphone capsules, as well as other compatible capsules
        • New rugged cH-style connector on body-pack transmitter provides secure connection to lavalier mics, headworn mics, and cables with cH-style screw-down 4-pin connector
        • Body-pack transmitter features tactile mute toggle switch (defeatable) for physical confirmation of mute status when transmitter display is not visible
        • Charging terminals on transmitters work with optional ATW-CHG3 and ATW-CHG3N smart charging docks to recharge NiMH batteries
        • Antenna power available for powered antennas and other in-line RF devices
        • Ground-lift switch helps eliminate audible hum caused by ground loops
        • Balanced and unbalanced audio output jacks

      • Specifications

        • Overall System Specifications
        • Operating Frequencies: Band DE2: 470.125 to 529.975 MHz (2395 frequencies), Please note that some frequency bands might not be available in your territory or could come with a limited tuning bandwidth/transmitting power due to local regulations
        • Minimum Frequency Step: 25kHz
        • Modulation Mode: FM
        • Maximum Deviation: ±36kHz (THD:10%)
        • Dynamic Range: >115dB (A-weighted), typical
        • Total Harmonic Distortion: <1.0% (@ 1kHz, ±17.5kHz deviation)
        • Operating Range: 328ft, Open range environment with no interfering signals
        • Operating Temperature Range: 23°F - 113°F
        • Frequency Response: 25Hz - 16,700Hz, Frequency response depends on attached microphone element
        • Maximum Simultaneous Use (Recommended): 40 Channels per band

          Receiver Specifications
        • Receiving System: True Diversity
        • Image Rejection: 60dB nominal
        • RF Sensitivity: 20dBuV @ 60dBA S/N ratio (50Ω termination)
        • Antenna Power: 12V DC, 160mA (combined)
        • Maximum Output Level: XLR, balanced: +14dBV; 1/4", unbalanced: +8dBV
        • Antenna Input: BNC-type, 50Ω
        • Power Supply: 100 - 240V AC (50/60Hz) to 12V DC 1A (center positive) switched mode external power supply
        • Dimensions (HxWxD): 1.71" x 8.27" x 7.52"
        • Net Weight: 38.8oz, without accessories

          Handheld Transmitter Specifications
        • Capsule Element: Dynamic
        • Capsule Polar Pattern: Cardioid
        • Capsule Weight: 4.6oz
        • RF Power Output: High: 30mW, Low: 10mW (switchable), at 50Ω
        • Spurious Emissions: Following Federal and National Regulations
        • Microphone Capsule: Interchangable industry standard thread
        • Batteries: Two 1.5V AA, not included
        • Battery Life: High: 8.0 hours (alkaline), Low: 9.0 hours (alkaline); High: 9.0 hours (Ni-MH 1900mAh), Low: 9.5 hours (Ni-MH 1900mAh), Depending on battery type, usage, and environmental conditions
        • Dimensions: 7.60" long, 1.46" maximum diameter (without capsule); 10.43" long, 2.13" maximum diameter (with capsule)
        • Net Weight: 7.1oz, without batteries (without capsule); 11.6oz, without batteries (with capsule)

      • Item Includes

        • Two flexible UHF antennas
        • AC adapter (country dependent)
        • Rack-mount adapters
        • ATW-R3210 Receiver
        • ATW-T3202 Handheld transmitter
        • ATW-C510 Cardioid dynamic microphone capsule

      • GTIN:

        4961310143480
