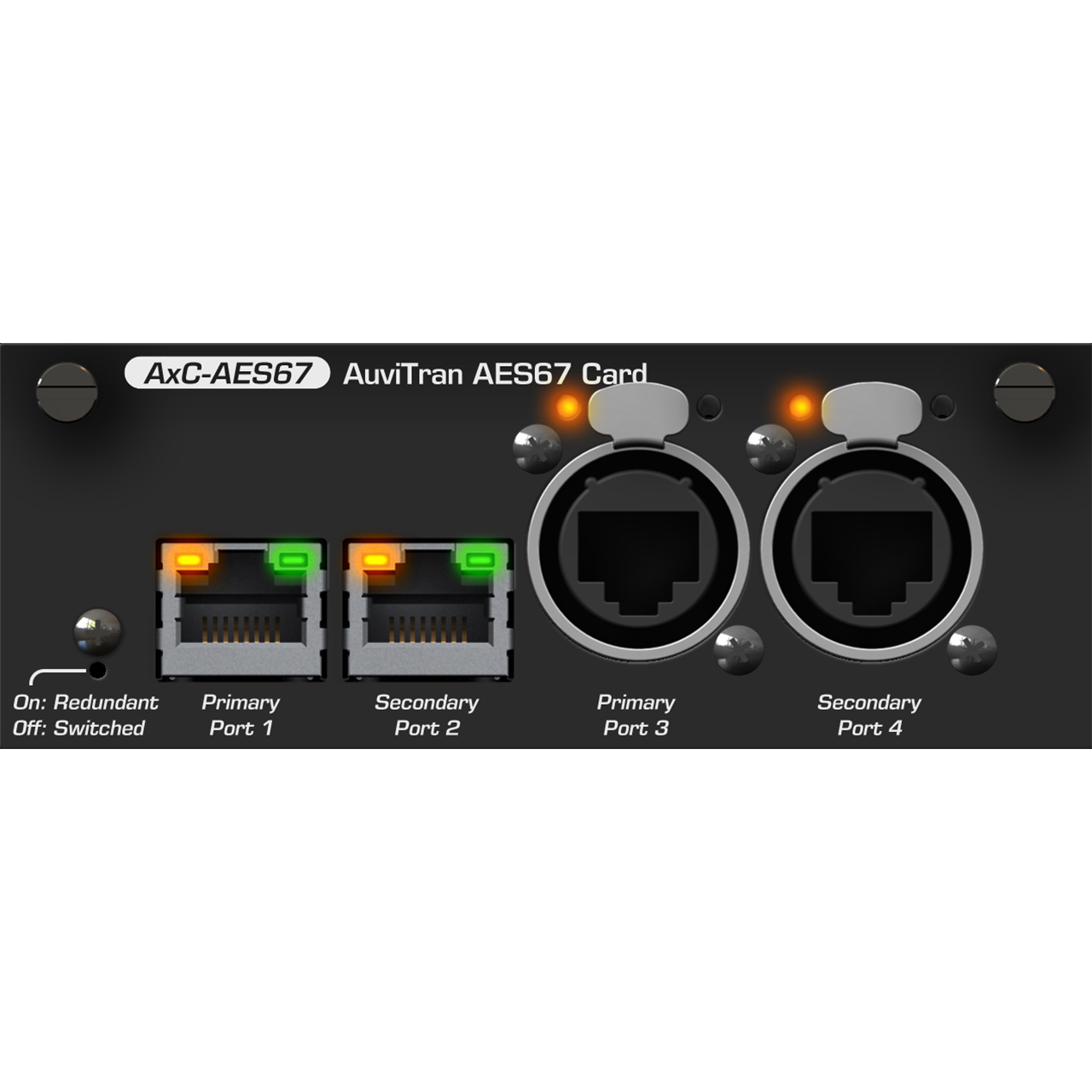

AuviTran AxC-AES67 AES67 Interface Card with 64 In & 64 Out + Four Gigabit Ports on Two EtherCon & Two RJ45 + Remote IP

ITEM #: AUT-AXC-AES67 MFG #: AXC-AES67

Primary Image
AuviTran
Free Shipping with $49 Minimum Order

Our Price:

$1,999.00

Add to Wish ListLeasing Options
Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup
Notify when in stock
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

AXC-AES67 - Overview

Meet AuviTran's AxC-AES67, the new addition to the AxC cards range designed by AuviTran. Used in either AVBx3 or AVBx7 Audio ToolBox platforms, AxC-AES67 connects AES67 networks with any other audio or network protocol in the rack, expanding your capacities to build and bridge audio networks. Its performances make it the perfect fit for demanding applications, such as Studio Production, Live or Public Address. Combined with other AuviTran Audio ToolBox cards, the AxC-AES67 opens exciting possibilities to professional audio systems: Can be transformed into a flexible analog StageBox when combined with a ToolBox (AVBx3 or AVBx7), AxC-AX4M high class mic/line preamp cards and AxC-AX4O analog output card. Build or address complex audio systems by bridging technologies: combine your AxC-AES67 to any other AxC card, such as AES67-Dante, AES67-AVB, AES67-MADI. Can operate as a Virtual Soundcard with any standard ASIO, WDM or Core Audio interface

  • Features:

    • Fully compatible RAVENNA/AES67 protocols
    • Full fallback analog or digital
    • One slot occupation of Audio ToolBox AVBx3 or AVBx7 platforms for increased applications
    • Up to 64 input channels and 64 output channels at 48kHz (32 in + 32 out at 96kHz) over AES67
    • One integrated switch featuring 4x gigabit ports
    • Two EtherCon connectors (Primary/Secondary) for connection in switch or redundant mode
    • Two Ethernet RJ45 connectors (ports 3 and 4) to be used as integrated gigabit switch ports
    • Remote management with AVS-Monitor software
    • PTPv2 Master or Slave, IEEE-1588-2008 standard
    • Support for industry standard SMPTE 2110
    • Support for ST2022-7 Seamless Protection Switching
    • NMOS IS-04 and IS-05 support
    • Discovery, Configuration and Control via WebUI, NMOS, Ravenna, SAP, ANEMAN


  • Specifications:

    • Power Supply: +12V/+3.3V - through AuviTran Audio ToolBox backplane
    • Temp/Humidity:
      - Storage: 23°F - 158°F (-5°C - 70°C), 0% - 95% (non-condensing)
      - Operating: 32°F - 113°F (0°C - 45°C), 5% - 90% (non-condensing).
    • Connectors:
      - 2x Neutrik EtherCon RJ45-XLR female connectors
      - 2x RJ45 connectors.
    • AES67 Operation Modes: Switch - Integrated gigabit switch, Redundant with Primary and Secondary ports, replicated on ports 3 and 4
    • Audio Outputs: Up to 64 channels
    • Audio Inputs: Up to 64 channels
    • Sample Format: 16/24/32 bits
    • Sample Rate: 48kHz/96kHz/44.1kHz/88.2kHz
    • Synchronization: Automatic from AES67 network or from Audio ToolBox.
