AuviTran AxC-AES67 Audio ToolBox 128x128 AES67 Interface Card - 4x Gigabit on 2x EtherCon + 2x RJ45 / Remote IP & ASRC

ITEM #: AUT-AXC-AES67128 MFG #: AXC-AES67-128

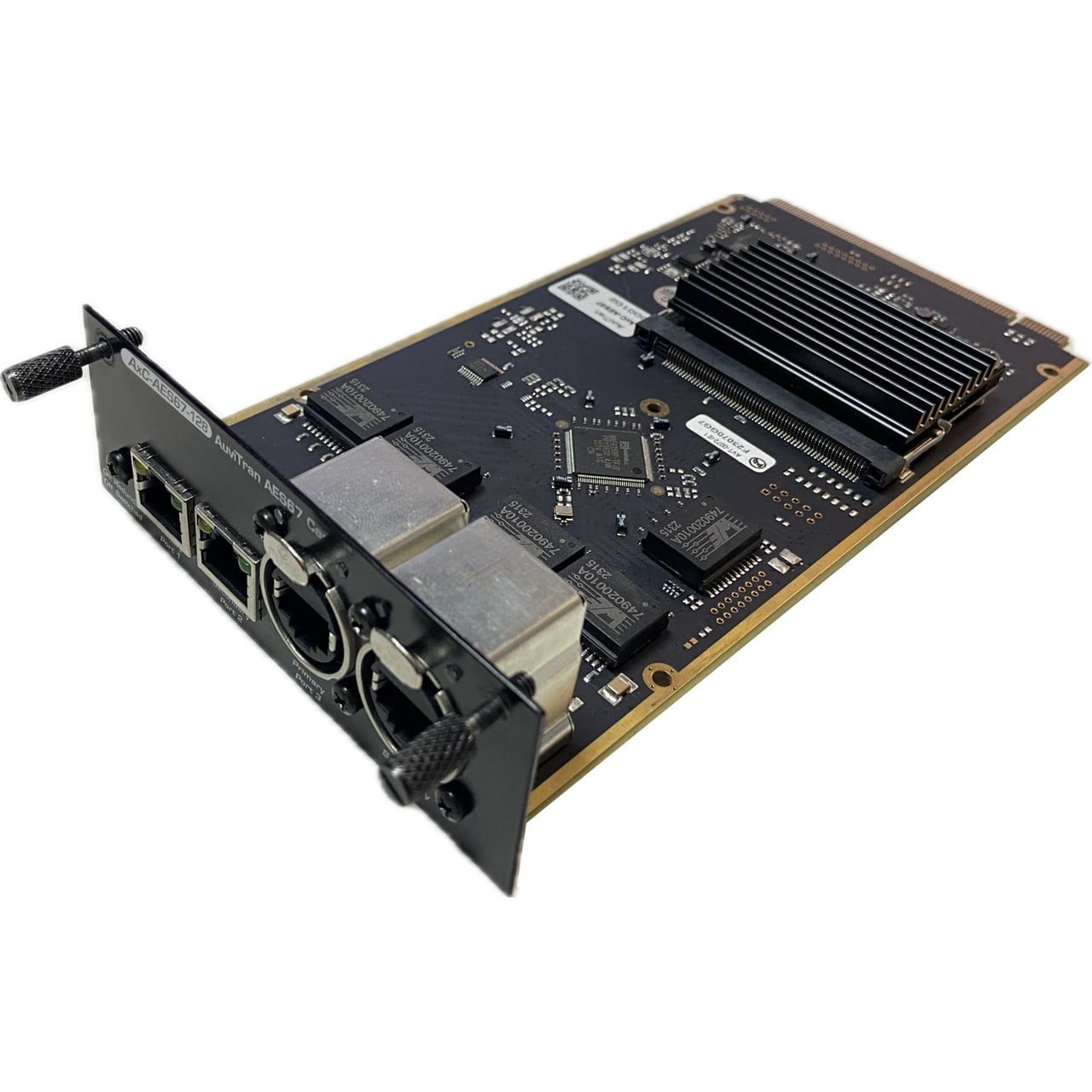

Primary Image
AuviTran
Free Shipping with $49 Minimum Order

Our Price:

$2,499.00

Add to Wish ListLeasing Options
Availability: Preorder - Expected Availability Oct 2026.
iAvailability Description Popup
  • Special Order Item: non-cancelable, non-returnable, non-refundable.
Report Lower PriceLarge Quantity Quote

AXC-AES67-128 - Overview

Bridge low latency and expanded AES67 connectivity to your system!

Meet Auvitran AxC-AES67-128, the latest addition to the audio interface range within the Audio ToolBox Suite. Expand your AES67 channel count (128 channels operational with Audio ToolBox Touch Control) and maximize your performances with the ultra-low latency AuviTran embedded ASRC feature.The card's eASRC delivers swift and reliable sample rate conversion with a less than 0.1 ms latency compared to nominal card usage. AxC-AES67-128 ensures swift and uncompromised audio quality.

Zoom on embedded ASRC
Maximize your performances with the ultra-low latency AuviTran embedded ASRC feature: when two digital interfaces operate in different clock domains, this eASRC delivers swift and reliable sample rate conversion with a less than 0.1 ms latency compared to nominal card usage. AuviTran's card ensures fast and uncompromised audio quality, regardless of the overall infrastructure.

The show must go on, and it will, without missing a beat, as eASRC integrated functionality keeps your production running smoothly!

Applications:
• Cinema & Movie Screening: Bridge between AES67 Dolby Atmos and Dante/AVB/MADI
• Production studio & Broadcast: Bridge and physically separate the AES67 ST2110 to the Analog/MADI/Dante networks
• Live & Entertainment: Bridge between Live AES67 consoles to the Analog/AVB/Dante networks

Please Note: 128 x 128 44.1kHz / 48 kHz is only possible on AVBx7 Touch Control (sold separately).

  • Features:

    • Full compliance with AES67, RAVENNA and ST2110-30, ST2022-7
    • Full fallback analog or digital
    • 128 input and 128 output channels at 48kHz embedded ASRC included for swift and reliable sample rate conversion with a less than 0.1 ms latency
    • 2x EtherCon connectors (Primary / Secondary) for connection in switch or redundant mode
    • 2x Ethernet RJ45 connectors (ports 3 and 4) to be used as integrated gigabit switch ports


  • Specifications:

      Audio Inputs and Outputs
    • Number of Input and Output Channel:
      - 44.1kHz / 48 kHz - 128 x 128 ***only possible on AVBx7 Touch Control (sold separately)
      - 88.2 kHz / 96 kHz - 64 x 64
      - 176.4 kHz and 192 kHz - 32 x 32
    • Audio Streams:
      - Max 64 input streams
      - Max 64 output streams

      Protocols
    • Compatibility:
      - Full compliance with AES67, RAVENNA and ST2110-30 (Level A, AX, B, BX, C, CX), ST2022-7 (Class A, B, C, D)
      - PTPv2 Master or Slave, IEEE-1588-2008 standard
    • Operating Modes:
      - Switch - Integrated gigabit switch
      - Redundant with Primary and Secondary ports, replicated on ports 3 and 4
    • Synchronization: Automatic from AES67 network or from Audio ToolBox
    • Audio sample resolution: 16/24/32 bits
    • Audio sampling frequency: 44.1kHz, 48kHz, 88.2kHz, 96kHz

      General
    • Dimensions (W x H x D): 7.90" x 3.9"0 x 1.60" (200 x 100 x 40 mm)
    • Power Supply: +12V / +3.3V - through AuviTran Audio ToolBox backplane
    • Temp/Humidity:
      - Storage: 23°F - 158°F (-5°C - 70°C), 0% - 95% (non-condensing)
      - Operating: 32°F - 113°F (0°C - 45°C), 5% - 90% (non-condensing)
    • Connectors:
      - 2x Neutrik EtherCon RJ45-XLR female connectors
      - 2x RJ45 connectors


  • Item Includes:

    • 1x AuviTran AxC-AES67 128x128 AES67 Interface Card with Four Gigabit Ports on Two EtherCon / Two RJ45 / Remote IP & ASRC


  • GTIN:

    0641094623883
