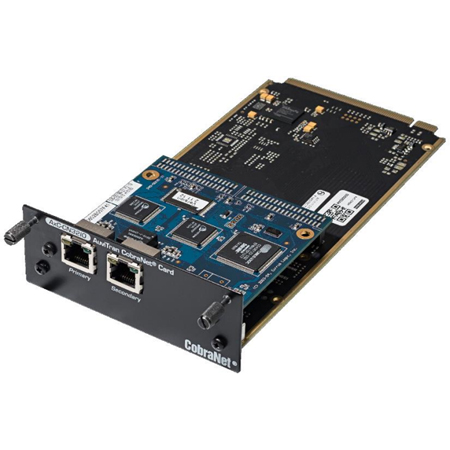

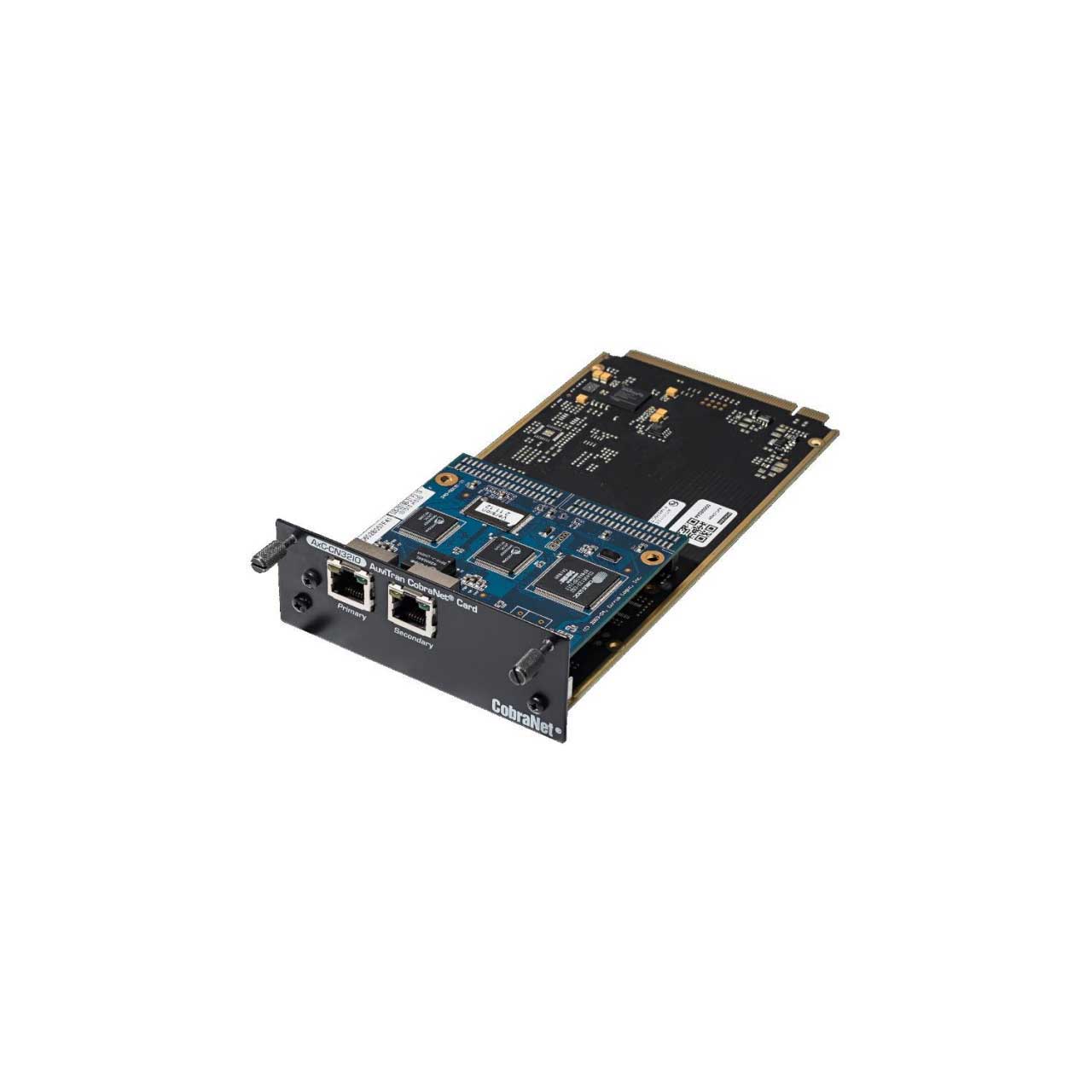

AuviTran AxC-CN32IO CobraNet Card for Audio ToolBox with 16 In and 16 Out on 2x RJ45 (Primary/Secondary)

ITEM #: AUT-AXC-CN32IO MFG #: AXC-CN32IO

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the AUT-AXC-CN32IO

AXC-CN32IO - Overview

Just like every AxC card within the Audio ToolBox range, the AuviTran CobraNet card AxC-AT32IO can equally be used in AVBx3 or AVBx7 platforms. The AxC-CN32IO interface, combined with an AuviTran Audio ToolBox AVBx3 or AVBx7 rack, constitutes the ideal solution to connect two 16 channel banks between a CobraNet device and other analog, digital or network devices.

Smart, expandable and sustainable:
Meet AuviTran's versatile and flexible platforms bringing convergence among network technologies and audio interfaces. With two 19" rack chassis, AVBx3 and AVBx7, both available in StageBox or Installation modes, plus fourteen interfaces cards, build the configuration you need.

Combined with other AuviTran Audio ToolBox cards, the AxC-CN32IO opens exciting interconnection possibilities such as:

- Bridge CobraNet - Dante
- Bridge CobraNet - MADI
- Bridge CobraNet - EtherSound
- Bridge CobraNet - AES/EBU
- Bridge CobraNet - Analog
- Bridge CobraNet - ADAT

Applications:
Concerts
Live Broadcast, Broadcast Studios and OB Vans
Recording Studios
Stadiums/Concert Halls
Theaters, Bars, Pubs and Discos

  • Features:

    • 16x CobraNet digital inputs and 16x CobraNet Digital Outputs on 1x RJ45 connector
    • Redundant connection on 1x RJ45 connector
    • Possible synchronization on CobraNet input
    • Remote management with AVS-Monitor software
    • Dedicated control page for remote monitoring and controlling all the card parameters
    • Audio Patch with Cobranet Discovery Software


  • Specifications:

    • General
    • Dimensions: 7.87 x 3.94 x 1.57 In (200 x 100 x 40 mm) - AuviTran Audio ToolBox platform cards format
    • Power Supply: +12V / +3.3V - Through AuviTran Audio ToolBox backplane
    • Storage Temp/Humidity: 23°F to 158°F (- 5 °C to 70 °C) / 0% to 95% (non-condensing)
    • Operating Temp/Humidity: 32°F to 122°F (0 °C to 50 °C / 5% to 90% (non-condensing)
    • Connectors: 2x RJ45 connectors (Main and Redundant)

      Audio
    • Number of Inputs: Up to 16 CobraNet inputs routed through the AuviTran ToolBox backplane from other cards
    • Number of Outputs: Up to 16 CobraNet outputs routed through the AuviTran ToolBox backplane from other cards
    • Sampling Frequency: 44.1 kHz / 48 kHz
    • Sample Format: Up to 24 bits
    • Synchronization: Possible synchronization from CobraNet input

      Integration Environment
    • Audio ToolBox Platform: AxC-CN32IO is one of the cards of the AuviTran Audio ToolBox platform
    • AVS-Monitor: AVS-Monitor enables to remotely set, control and monitor an EtherSound network. It provides enhanced control pages to manage the specific parameters of the AxC-CN32IO card
    • CobraNet Discovery: For audio patch of any CobraNet device, and additional features/Remote Management possible via Simple Network Management Protocol (SNMP)
    • OS Supported: Windows 10, 8, 7, Vista, XP 32/64 bit
