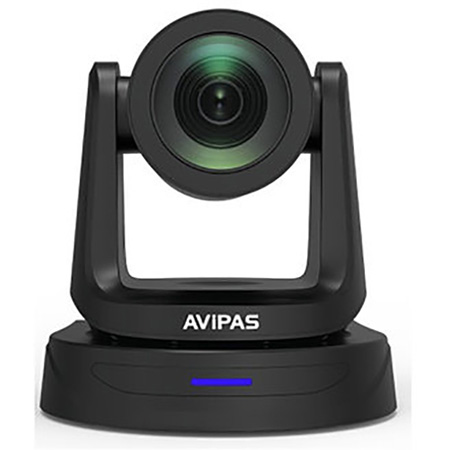

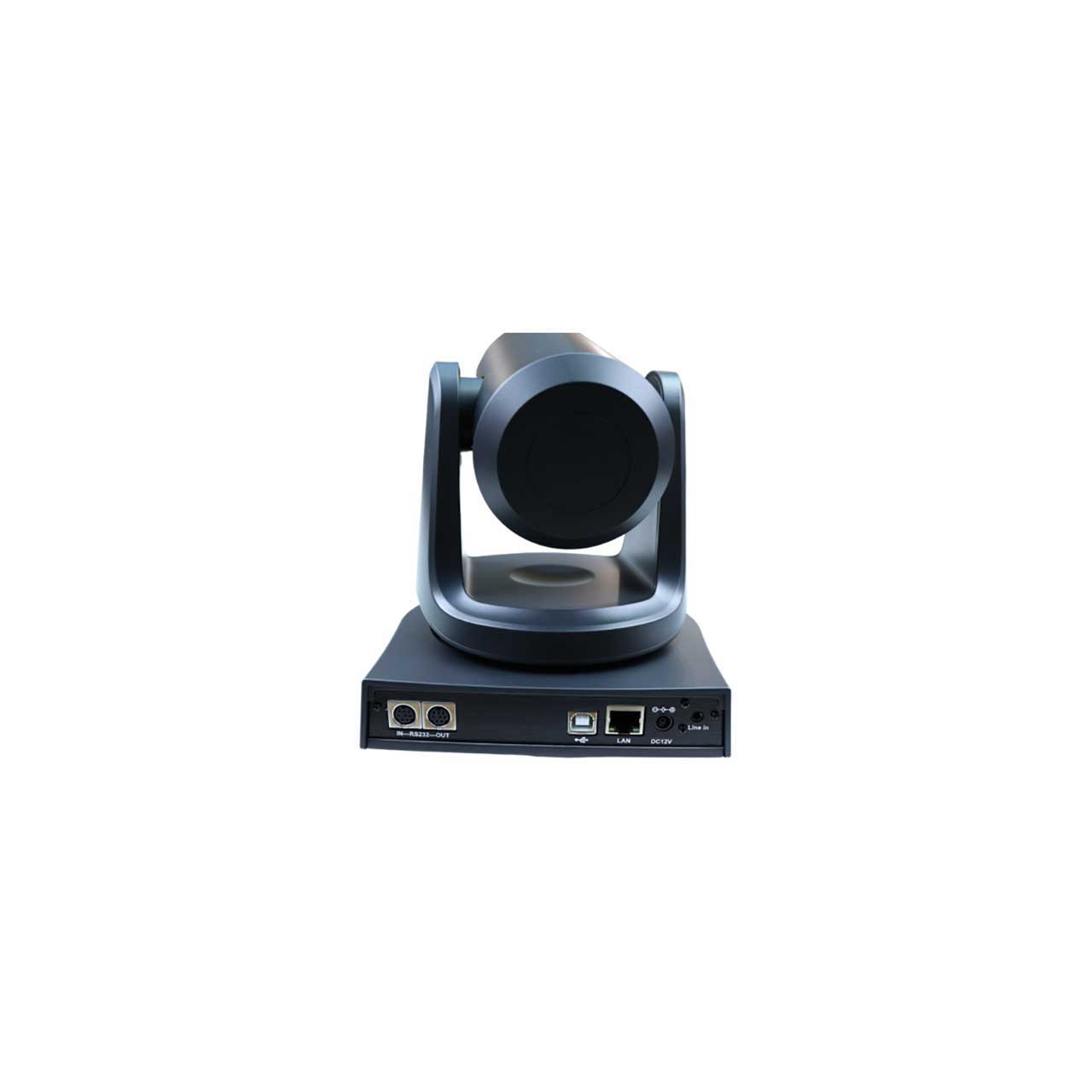

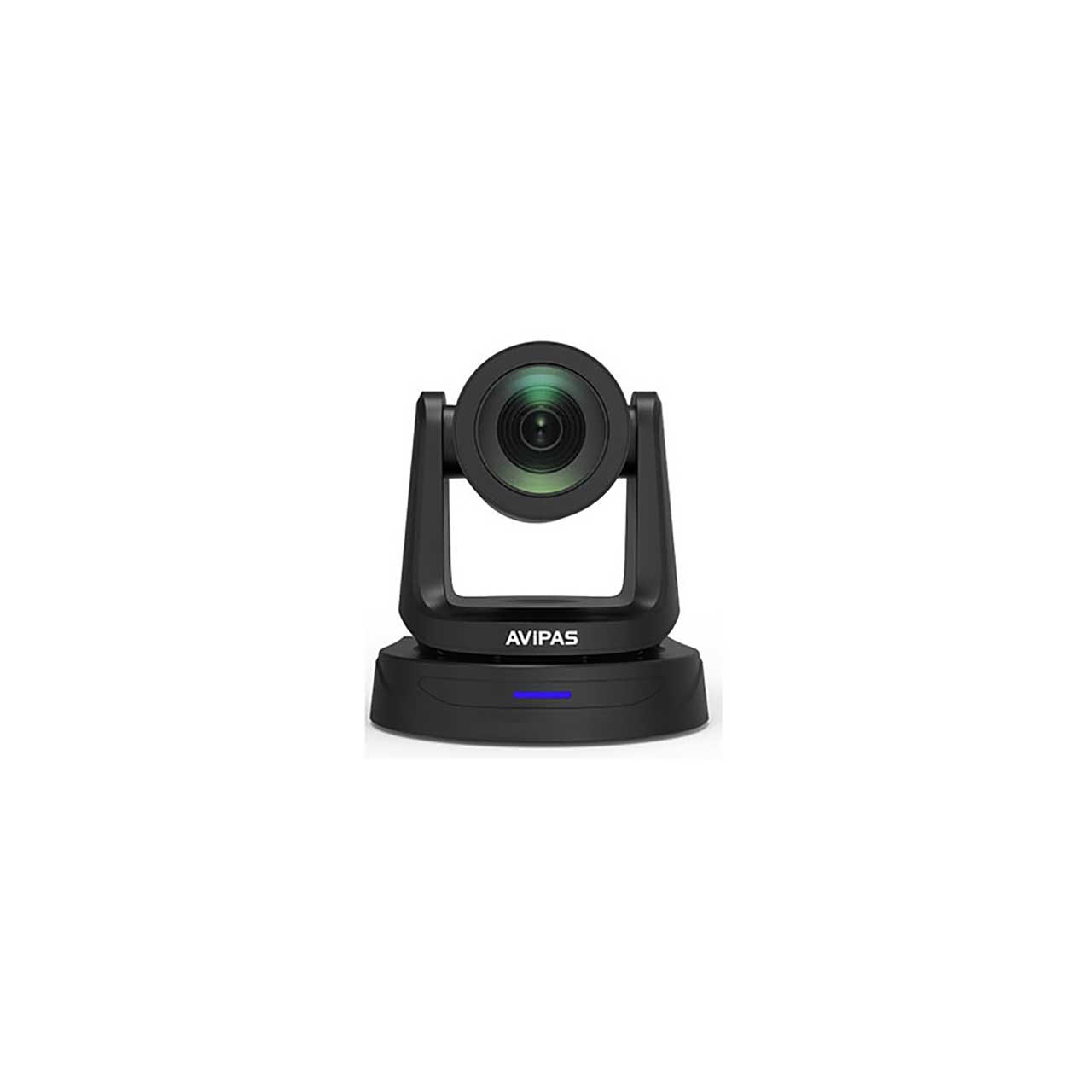

AViPAS AV-2010 20x USB 2.0 PTZ Camera with 1080p30 Resolution and IP Output - Black

AV-2010 - Overview

• Features:

  • Adopts advanced ISP, 1/2.8-inch 2.1MP sensor, providing full HD video resolution
  • High-quality 20x optical zoom, 2x digital zoom lens with 60-degree field of view
  • IP, USB video output interface, compatible with different applications
  • Advanced focusing algorithm: fast and precise focusing performance during movement
  • Smooth PTZ mechanism, accurate pan tilt motor control
  • Up to 128 presets available
  • White balance/ Exposure/ Focus/ Iris can be adjusted automatically or manually
  • Support PoE+: one single CAT5/6 for video, control and power, highly efficient video encoding
  • Support line-in function, AAC and LPCM audio encoding
  • Support VISCA, PELCO-P, PELCO-D, ONVIF and VISCA over IP control protocol; IP VISCA over both TCP and UDP
  • Support RS232 daisy chain, up to 7 cameras under VISCA protocol
  • Support upside-down (ceiling) installation, H/V flip
  • Support RS232/UVC control
  • Standard UVC1.1 protocol, seamlessly compatible with all major video conferencing software and platforms


• Specifications:

  • Video Format
  • USB: 1920*1080P30; 1280*720P30; 1024*576P30; 960*540P30; 720*576P30; 640*480P30; 640*360P30; 352*288P30; 320*240P30
  • RJ45: 1920*1080@3~30 / 1280*720@3~30 / 1024*576 @3~30 (Main stream); 1280*720@3~30 / 1024*576@3~30 / 640*360 @3~30 (Sub stream)


  • Video Interface: RJ45, USB2.0
  • Sensor: 1/2.8" 2.1MP CMOS sensor
  • Zoom: f4.9~98mm, F1.5~3.0; View angle: 60°(Far)~3.23°(Near)
  • Rotation Angle: Pan: -170° ~ +170° Tilt: -90° ~ +90°
  • Rotation Speed: Pan: 0°~120°/s; Tilt: 0°~80°/s
  • Preset: Remote controller: 10; RS232: 128; Accuracy: 0.1°
  • Control Port: RS232, RJ45 (VISCA over IP), USB2.0(UVC1.1)
  • Network Speed: 1000M
  • Video Encode: H.264/H.265 (default: H.264)
  • Bit Rate Control: Variable Bit Rate, Constant Bit Rate
  • Video Bit Rate: 1024Kbps~16384Kbps
  • IP Protocol: TCP/IP, HTTP, RTSP, RTMP, DHCP, Onvif, VISCA over IP, NTP
  • POE+: Support
  • Daisy Chain: RS232 serial daisy chain (up to 7 units under VISCA protocol)
  • Minimum Lux: 0.1 Lux (F1.5)
  • White Balance: Auto/Indoor/Outdoor/Manual/AWT/PUSH
  • Exposure: Auto/Manual/Bright/Shutter/Iris
  • Focus: Auto/Manual
  • Iris: Auto/Manual
  • Electric Shutter: Auto/Manual
  • Gamma: Support
  • WDR: Support
  • BLC: Support
  • 2D/3D Noise Reduction: Support
  • Anti-Flicker: OFF/50Hz/60Hz
  • H/V Flip: Support
  • Input Voltage: DC12V/ POE+
  • Dimension: 6.6 x 6.6 x 7.1inch (167.5 x 168 x 180.5mm)
  • Net Weight: 3.1lb (1.4kg)


• Item Includes:

  • 1x Camera
  • 1x Power Adapter
  • 1x Power Cable
  • 1x RS232 Control Cable
  • 1x USB2.0 Cable
  • 1x Remote Controller
  • 1x User Manual
