Stewart Audio AV30MX-2 2 Channel Stereo Mixer Amp - 30W x 2 at 8 Ohm

ITEM #: AV30MX-2 MFG #: AV30MX-2

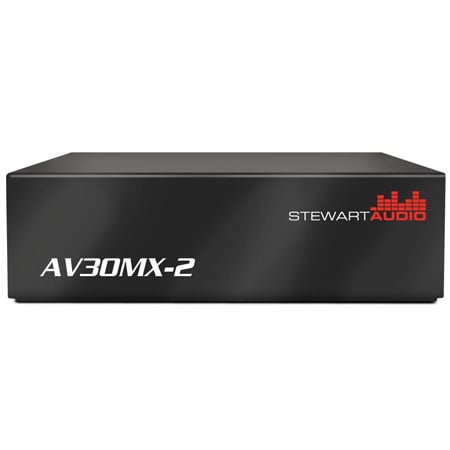

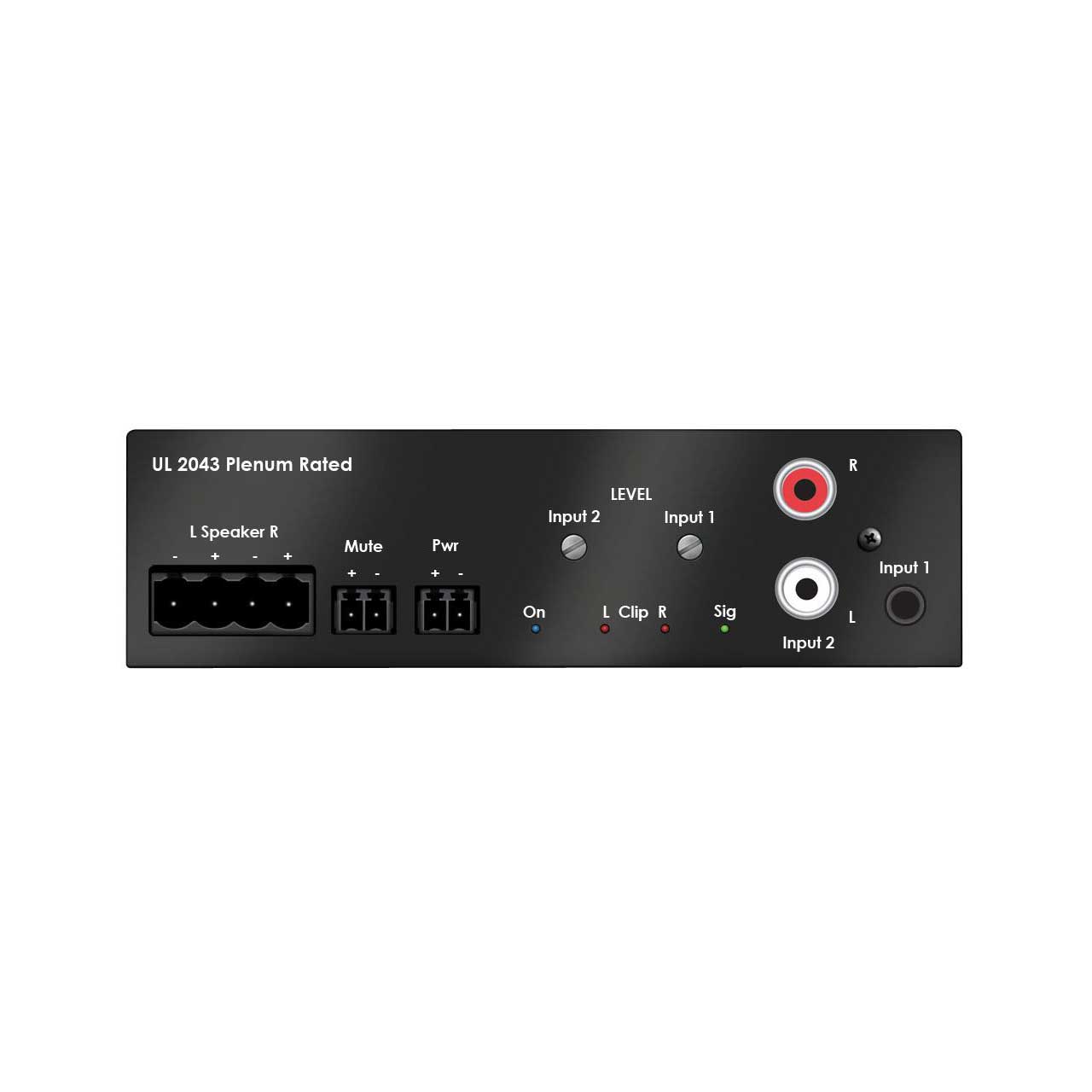

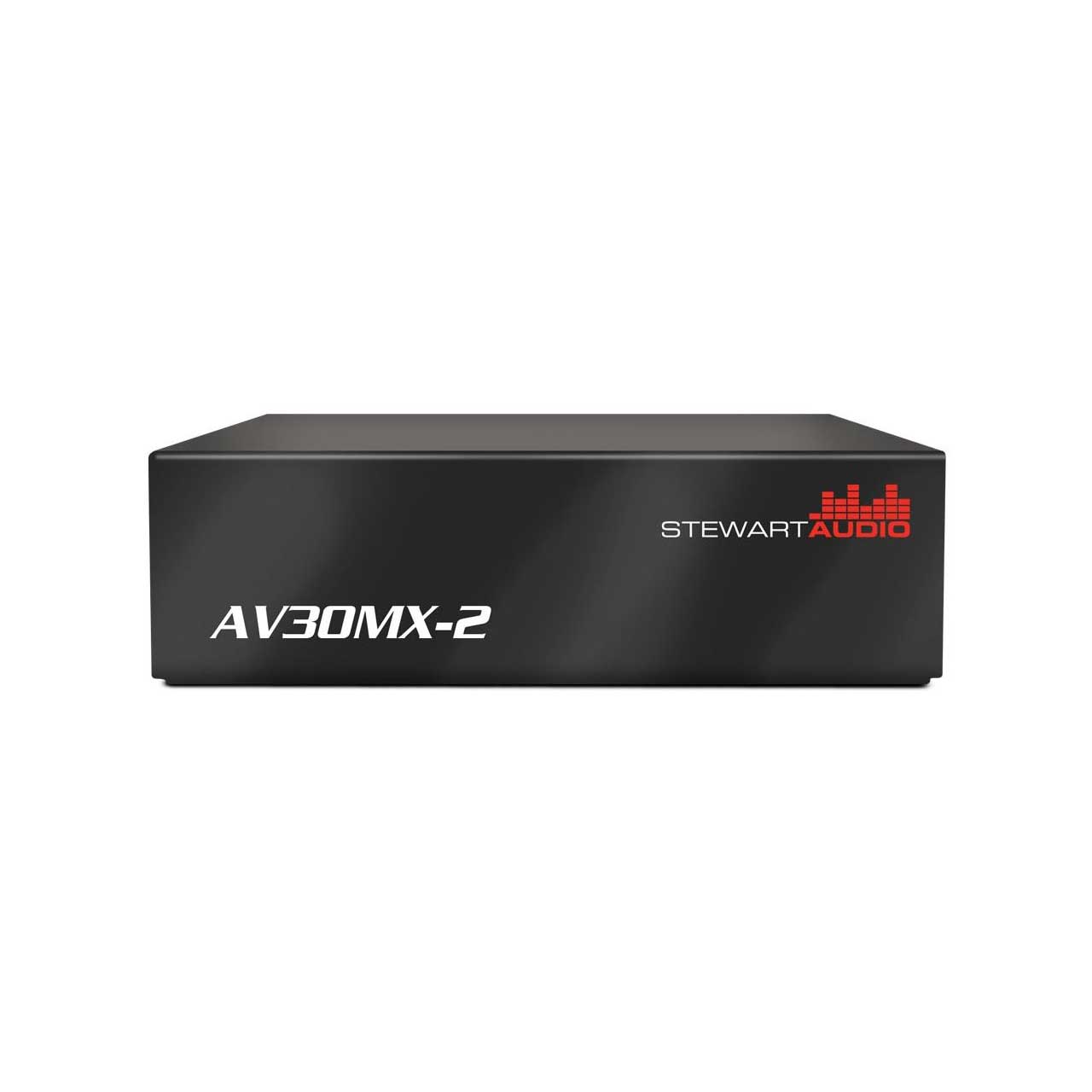

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:


Our Price:


Availability: Ships Factory Direct, Typically in 3-10 Days
iAvailability Description Popup

    AV30MX-2 - Overview

    The sub compact AV30MX-2 is built to meet the rigorous demands of high quality commercial, industrial and Pro Audio sound installations. Low cost, lightweight and convection cooling make this Class D mixer amplifier flexible enough for a broad range of applications requiring quiet amplification. With an extremely compact form factor, the AV30MX-2 allows amplification to be located in places off limits to normal mixer amplifiers without compromising sound or power.

    Like all Stewart products, the AV30MX-2 is designed for sonic accuracy, high efficiency and extended duty cycles. Our Signal Sense Power Technology (SSPT) ensures the amplifier is only powered when there is a signal present, saving energy and extending product life.

    • Features:

      • Music and fire alarm muting
      • Clean full-range dynamic power
      • Signal Detect trigger for sleep & wake up
      • Multiple mounting options
      • External inline power supply
    • Specifications:

      • 4 Ohm Stereo Power: 30W
      • 8 Ohm Stereo Power: 30W
      • Frequency Response (+0, -3 dB, 1W): 30 Hz-20 kHz
      • Power Bandwidth (+3dB, -3dB): 30 Hz-30 kHz
      • THD+N: <.1% @ 1 Watt
      • Signal-to-Noise Ratio: >100dB
      • External Mute: 5-12VDC
      • Slew Rate: 30V/microsecond
      • Input Sensitivity: .5V (-3 dBV)
      • Standard Voltage Gain: 28X (26.5dB)
      • Input Impedance (Unabalanced): 10k Ohms
      • Standby, Idle Current Draw, 1/8 Power Draw: 0.005/0.01/0.15 Amps
      • Class: D
      • Input Connectors: 3.5mm Stereo, Dual RCA
      • Output Connectors: Euro Block
      • Power Supply: External in-line 48VDC (Included)
      • Cooling: Convection-Cooling (No Fans)
      • Controls: 2 Independent Level Controls
      • LED Indicators: Power, Signal Present & Clip
      • Construction: Aluminum Chassis
      • Dimensions (height, width, depth): 1.25"H x 4.35"W x 3.2"D
      • Weight: <.37 lbs (0.16kg)
      • Warranty: 3 years
      • Plenum Rating: UL 2043 Approved
