AVMATRIX HVS0401E Micro 4 Channel HDMI/ DP Video Stream Switcher

ITEM #: AVMX-HVS0401E MFG #: HVS0401E

Primary Image
  • Product Image Thumbnail 1 of 4
  • Product Image Thumbnail 2 of 4
  • Product Image Thumbnail 3 of 4
  • Product Image Thumbnail 4 of 4
Free Shipping with $49 Minimum Order

List Price:

$479.00

Our Price:

$449.00

Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup


    HVS0401E - Overview

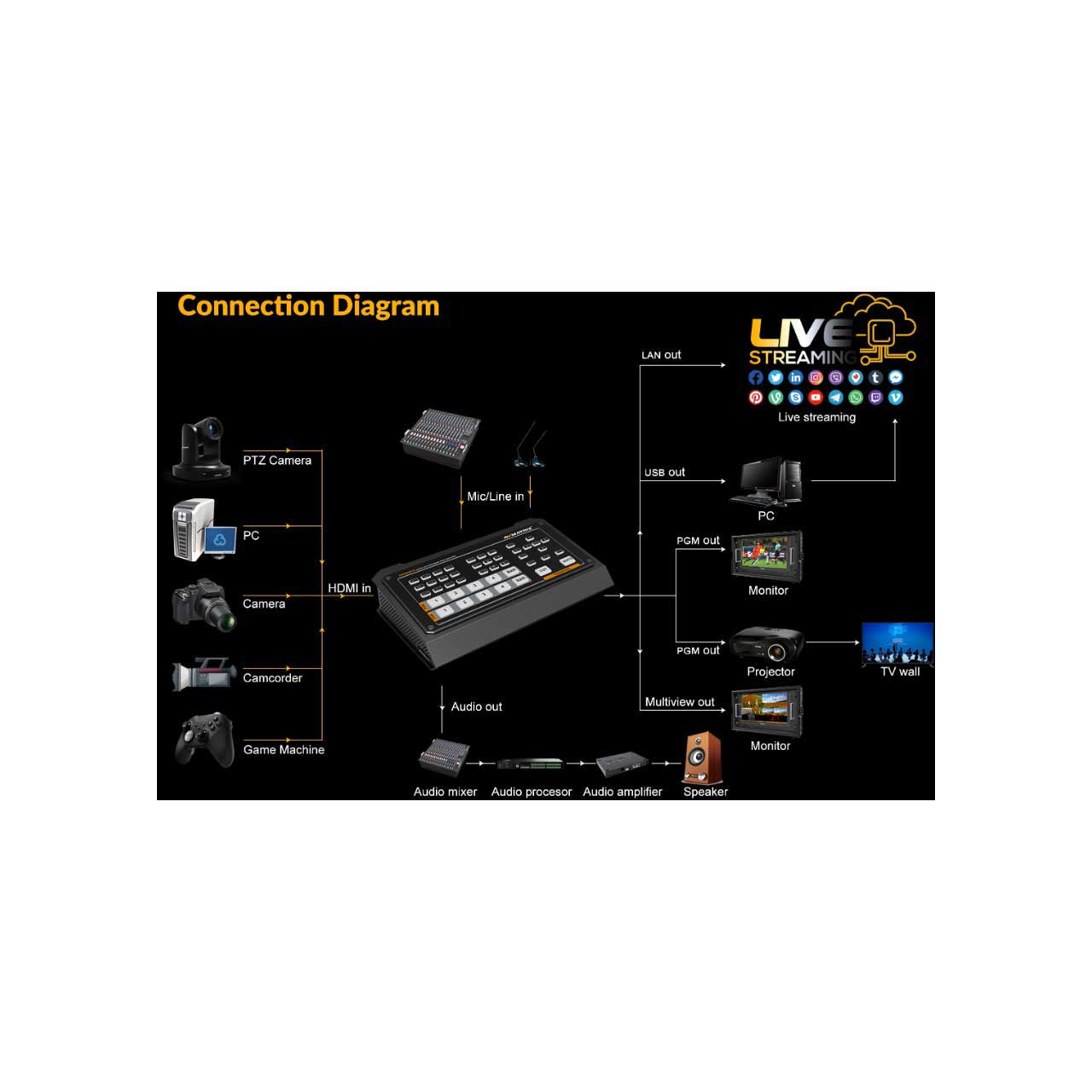

    AVMATRIX HVS0401E is a 4-channel HDMI/DP multi-format video switcher with a compact and rugged metal housing design that allows for video switching, audio mixing and different transition effects.Inputs support multi-format, PGM output can be scaled, compatible with a variety of equipment. The switcher supports capture to a PC for performance and presentation via the USB Type-C port and can be directly pushed for streaming via the LAN port. A built-in video recorder allows direct recording via USB disk andSDcard.User can also customize different settings and import or export the configuration quickly for various scenarios. It's a powerful and professional video switcher for your choices.

    • Features:

      • Inputs 1~3: HDMI, Input 4: HDMI/DP
      • Outputs: HDMI PGMx2, HDMI multiviewx1, USB type-Cx1, LANx1
      • LAN port for RTMP streaming and upgrade

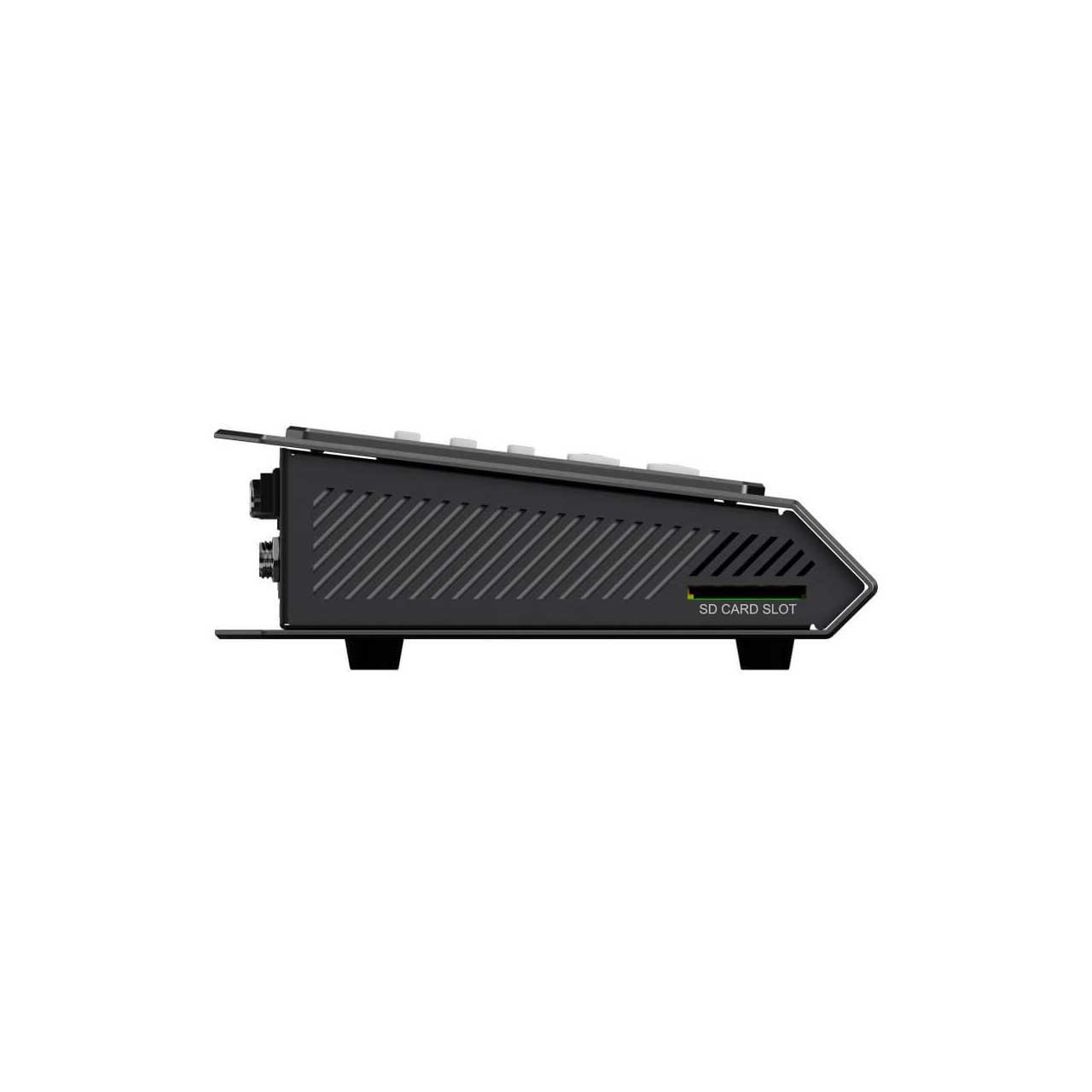

      • USB disk/ SD card for PGM recording
      • USB Type-C for video capturing (UVC)
      • PIP function, adjustable size and position
      • Audio mixer: 3.5mm MIC/ RCA/ HDMI embedded audio
      • AUTO/ CUT transitions and MIX/ FADE/ WIPE effects
      • GPIO interface for live tally system
      • FTB for emergency situation

    • Specifications:

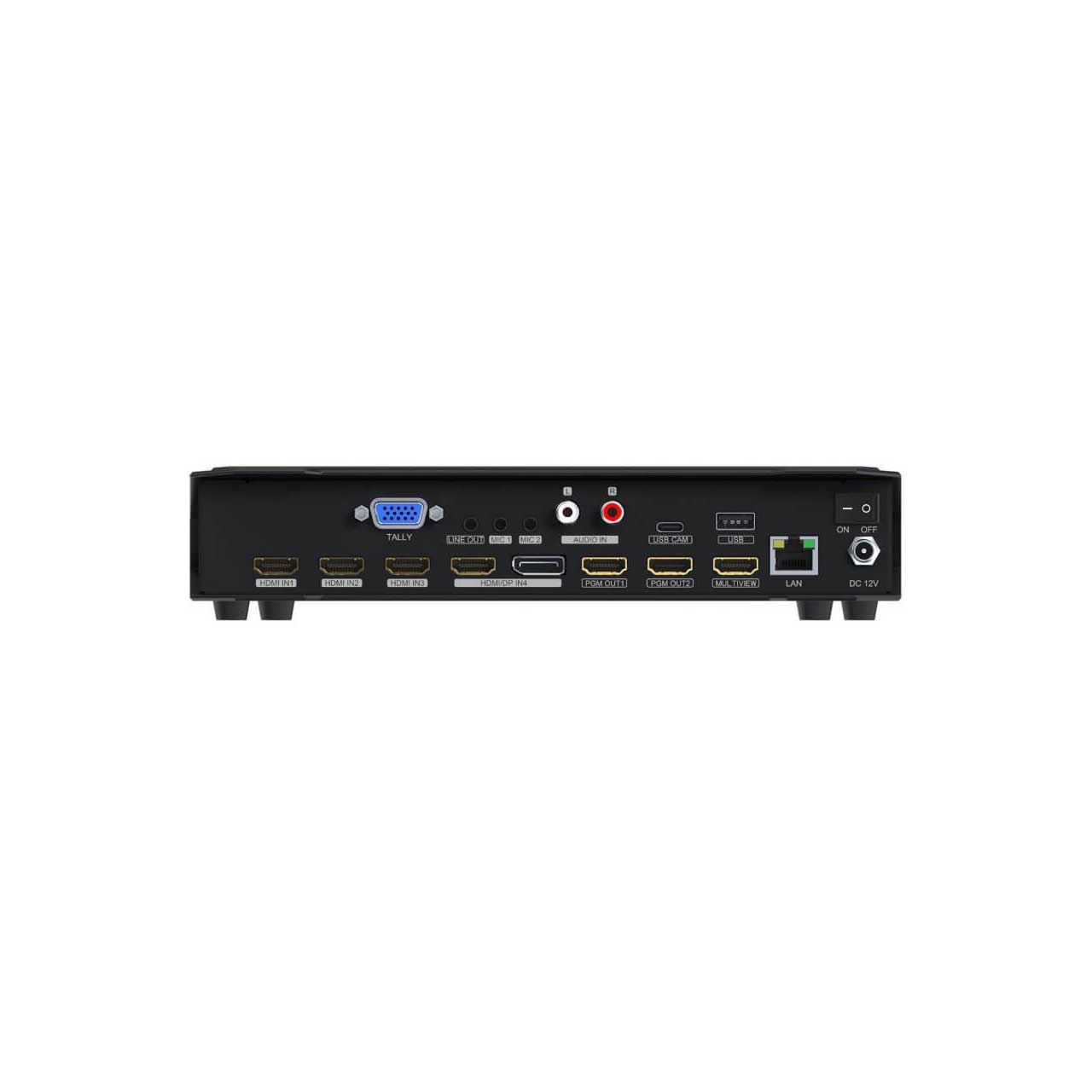

      • Connection
      • Video In: IN1~IN3: HDMI type-A x3; IN4: HDMI type-A/ Display Port x1

        Video Out
      • PGM: HDMI type-Ax2
      • Multiview: HDMI type-Ax1
      • USB Capture: USB type-C x1
      • Streaming & PC control: LAN Port x1

        Audio In
      • MIC/ Line x2 (3.5mm audio)
      • RCA x2 (stereo audio)
      • Tally Port DB-15 x1
      • Power In DC 12V IN x1

        Stream & Record
      • Encode Bitrate 2/ 4/ 8/ 12/ 16/ 24/ 32Mbps
      • Rate Control CBR/ VBR
      • Stream Protocol RTMP
      • Storage Format SD card:FAT32/exFAT; USB disk: FAT32/exFAT/NTFS
      • REC Format MP4/ TS
      • Encoder H.265/ H.264 High/ H.264 Main/ H.264 Base
      • REC File Segment 1/ 5/ 10/ 20/ 30/ 60/ 90mins

        Functions
      • Functions Image Still/ Transitioin Speed/ MUTE/ Audio follows Video/ Audio Mixer
      • Transitions AUTO/ CUT
      • Effects WIPE/ MIX/ FADE/ FTB
      • Layouts PIP, Multiview

        Standards
      • HDMI In Format Support
      • 1080p 60/ 59.94/ 50/ 30/ 29.97/ 25/ 24/ 23.98/23.976
      • 1080i 50/ 59.94/ 60
      • 720p 60/ 59.94 /50/ 30/ 25/ 24
      • 576i 50, 576p 50, 480p 59.94/ 60, 480i 59.94/ 60
      • PC HDMI/DP Input Format Support
      • 2560x1600, 2048x1152, 1920x1080,1680x1050, 1600x1200, 1600x900, 1400x1050, 1440x900, 1366x768, 1360x768, 1280x1024, 1280x960, 1280x800, 1280x768, 1280x720, 1280x600, 1152x864, 1024x768, 800x600, 640x480
      • HDMI PGM Out
      • 1080p 60/ 50/ 30/ 25/ 24
      • 1080i 60/ 50
      • HDMI Multiview Out 1080p60
      • HDMI Color Space RGB/ YCbCr
      • USB Capture Out MJPG/ H.265/ H.264 , Up to 1080p60

        Others
      • Power =14.4W(12V 1.2A)
      • Dimension (LWD) 238.5x140.4x44.5mm
      • Weight Net: 968.3g; Gross: 1365.8g
      • Operating Temperature: 14° to 140°F
      • Storage Temperature: -22° to 155°F+

    • Item Includes:

      • 1x Power supply (12V 2A)
      • 1x USB cable (type A-C)
      • 1x Tally connector (DB-15)

    • GTIN:

      6971118001941
