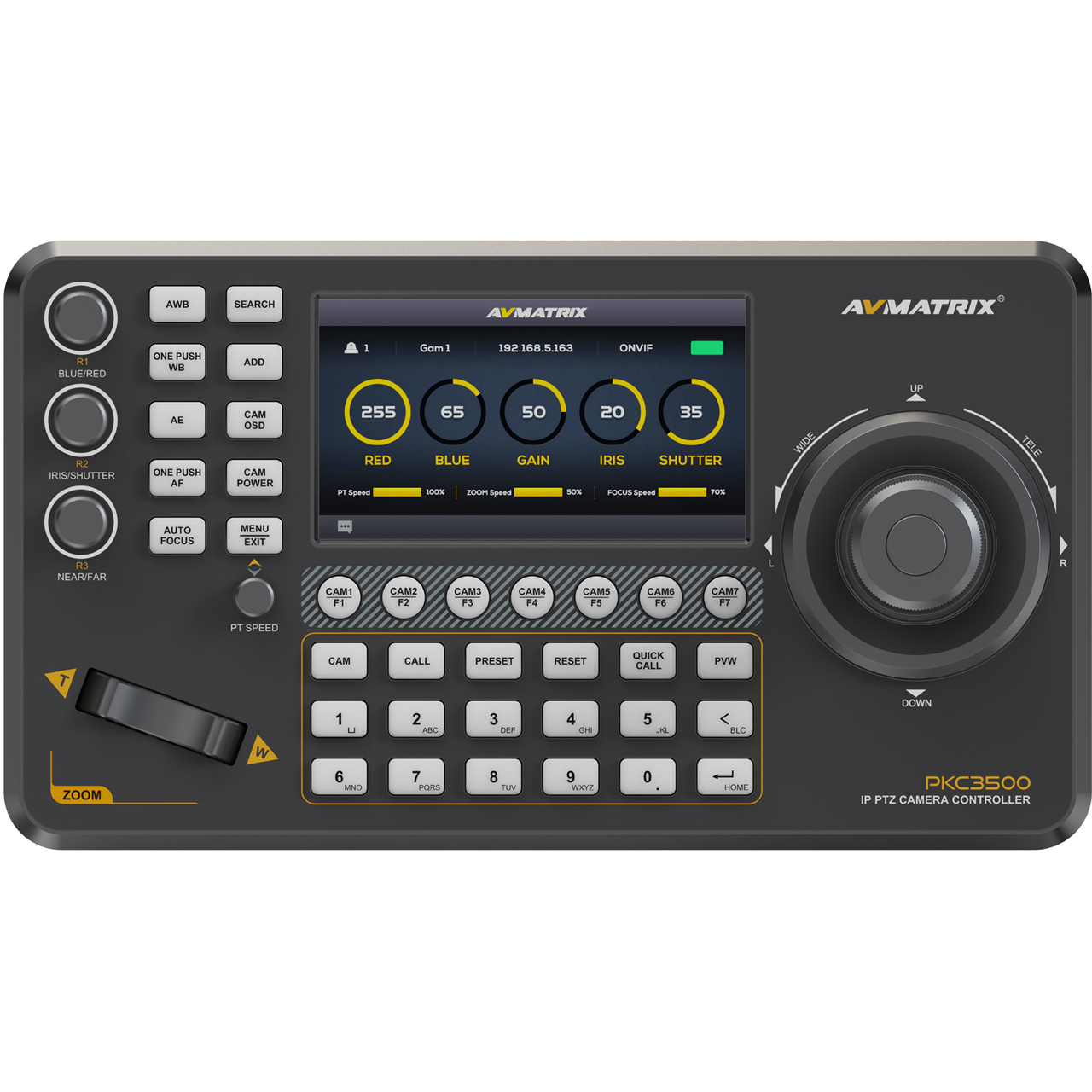

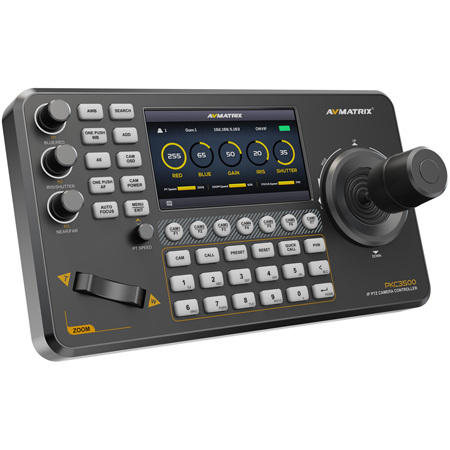

The AVMATRIX PKC3500 is a PTZ camera controller that features a 5" HD screen that clearly presents real-time status as well as an intuitive and well-organized menu layout, which ensures a more efficient and professional control experience, making every action clear and easy, enhancing both convenience and precision.
Track Recording and Playback
The PTZ camera controller supports the track loop function, which allows you to record the camera path (pan, tilt, zoom) and replay it whenever required without having to manually control the camera.
Camera Control Protocol
The controller has a variety of control interfaces, including IP, RS-422/RS-485/RS-232. The rich control interface makes it easy to match the camera connections of different interfaces. It offers cross-protocol mix-control on one controller operating protocol by ONVIF, VISCA, IP VISCA, and Pelco P&D.
Power-over-Ethernet (PoE)

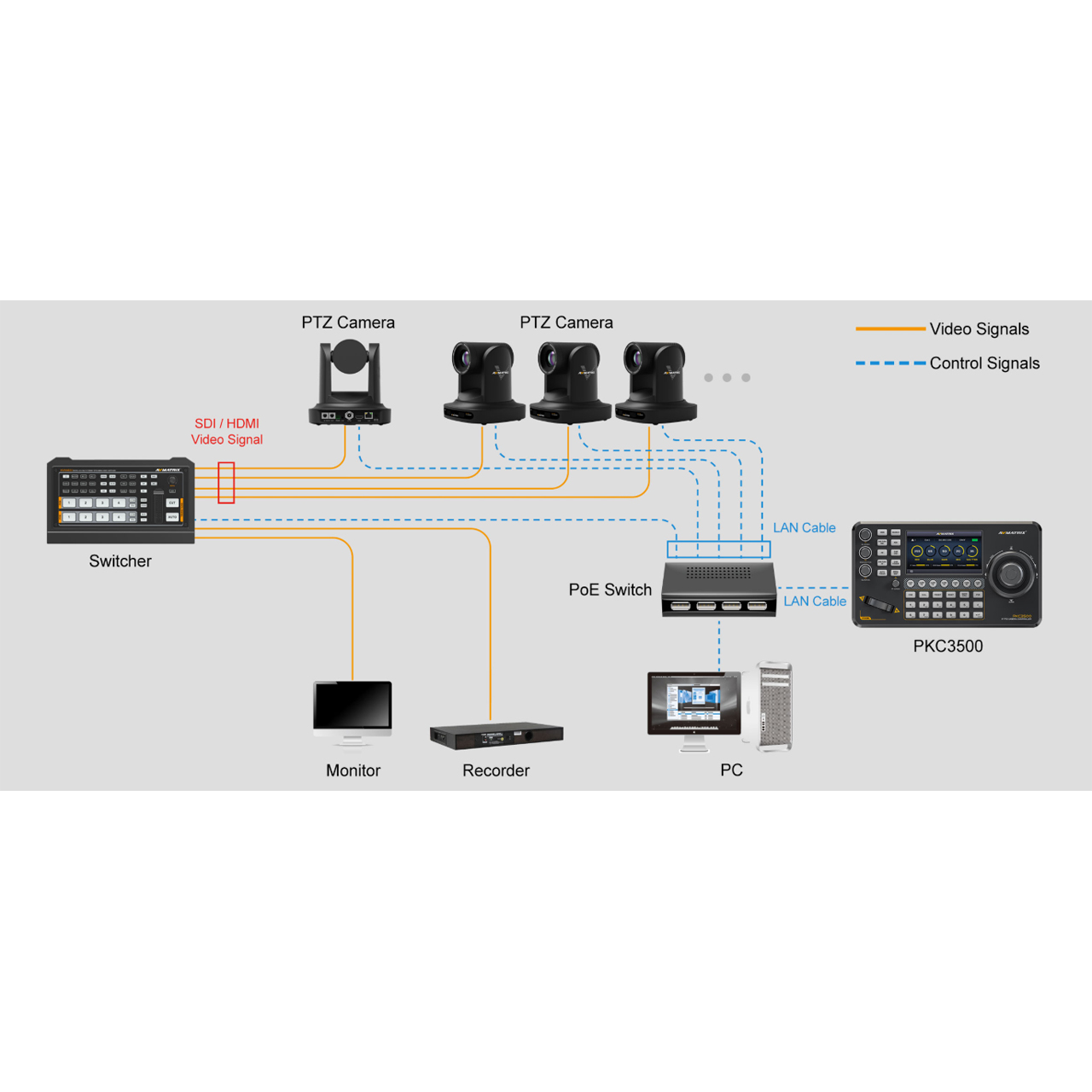

Control up to a total of 255 IP cameras on a single network with PoE support. You can use not only a traditional DC power supply but also a POE power supply to set up in various locations.
IP Control Interface
IP control automates searching for network IP cameras and assigns IP addresses easily. Supports ONVIF, and IP Visca protocols. The PKC3500 enables users to easily control up to 255 IP cameras.

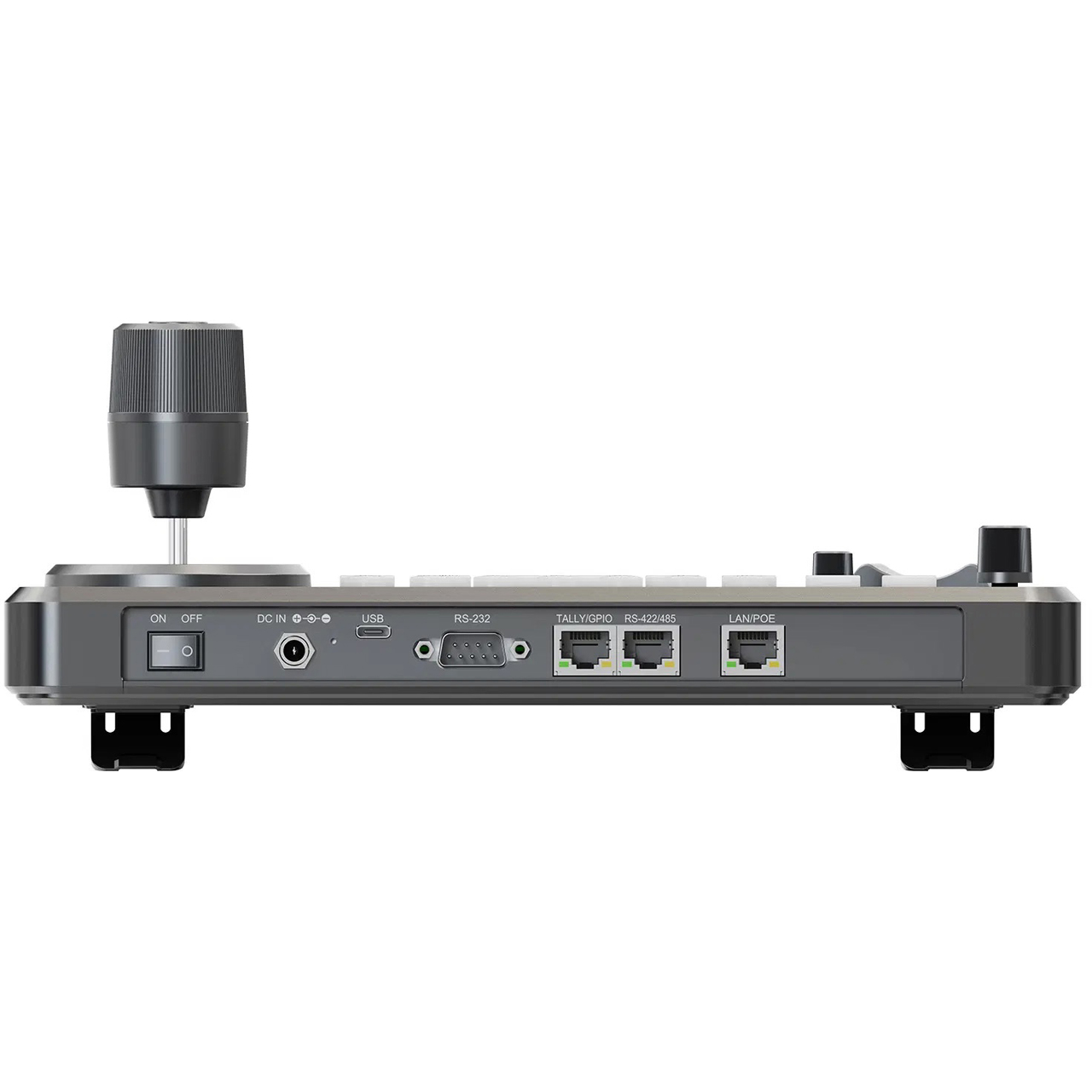

RS-232 and RS-485/422 Control Interfaces
RS-232, RS-422, and RS-485 communication support protocols such as PELCO-D, PELCO-P, and VISCA. Each serial port can connect up to 7 cameras under the Visca protocol.
