Blackmagic Design SWATEMMINIBPR ATEM Mini Pro HDMI Video Production Switcher with Live Streaming

ITEM #: BMD-SWATEMMINIBP MFG #: SWATEMMINIBPR

  • Product Image Thumbnail 1 of 3
  • Product Image Thumbnail 2 of 3
  • Product Image Thumbnail 3 of 3
free ship

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

Our Price:

$295.00

Availability: In Stock
iAvailability Description Popup

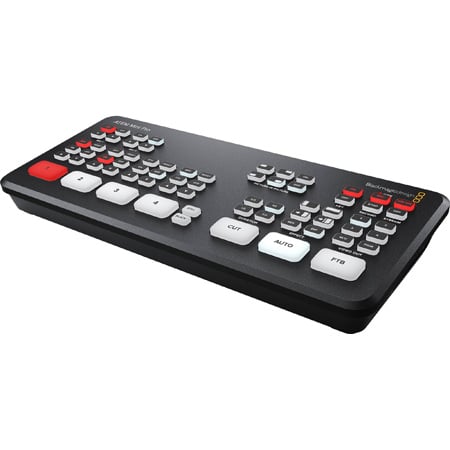

    SWATEMMINIBPR - Overview

    Lowcost, multi camera, live production with advanced broadcast features!!

    The Black Magic ATEM Mini Pro is a true Broadcast Switcher hidden in a tiny and affordable form! The ATEM Mini Pro uses the same features as high-end broadcast studios, it's a perfect way for entry level operators to learn the same controls and features used by broadcasters. With a little experimentation you can learn how to produce broadcast quality live production. The ATEM Mini Pro also supports direct recording of your streaming data to USB flash disks! That means you get very long recordings in the same H.264 video file format with AAC audio that you streamed. That makes it easy to directly upload to any online video site like YouTube, Skype, Vimeo or Zoom. There's also a multiview with 4 cameras, media, preview and program plus status of recording, streaming and audio.

    ATEM Mini can switch live between 4 high quality video camera inputs for dramatically better-quality images. Connect a computer for PowerPoint slides or gaming consoles, perfect for E-Sports. The built in DVE allows exciting picture in picture effects, great for commentary! There are loads of video effects too! All ATEM Mini models have USB that works like a webcam so you can use any streaming software while the ATEM Mini Pro model adds live streaming and recording to USB disks. ATEM Mini even has secret broadcast features built in so it can do high end work! Just run the free ATEM Software Control app on Mac or Windows while connected via USB or Ethernet to access the extended features of the ATEM Mini like ATEM Advanced Chroma Key, the Fairlight audio mixer, DVE, still store for graphics and much more!

    The ATEM Mini Pro helps you create professional productions, you'll feel like almost anything is possible with this range of built in video effects! The cut button ensures an instant cut when switching between sources. The auto button is a professional term that's used on large broadcast switchers to enable video effect transitions. There are duration buttons for video effects allowing 0.5, 1, 1.5 and 2 second settings. You can also select the type of effect you want including mix, which does a smooth transition between sources, and dip which fades via a color during the transition. Or use fun built-in DVE effects that move the image off screen when transitioning between sources!

    • Features:

      • Easy to Use and Quick to Learn!
      • ATEM Software Control Panel included free!
      • Faster Video Production
      • Stream Live via Ethernet!
      • Self Contained Broadcast Quality Switcher
      • Record Direct to USB Flash Disks
      • Connect 4G or 5G Phones for Mobile Data
      • Secret Broadcast Features Built In!
      • Automatically Converts any HDMI Input Format!
      • Work with Professional Microphones

    • Specifications:

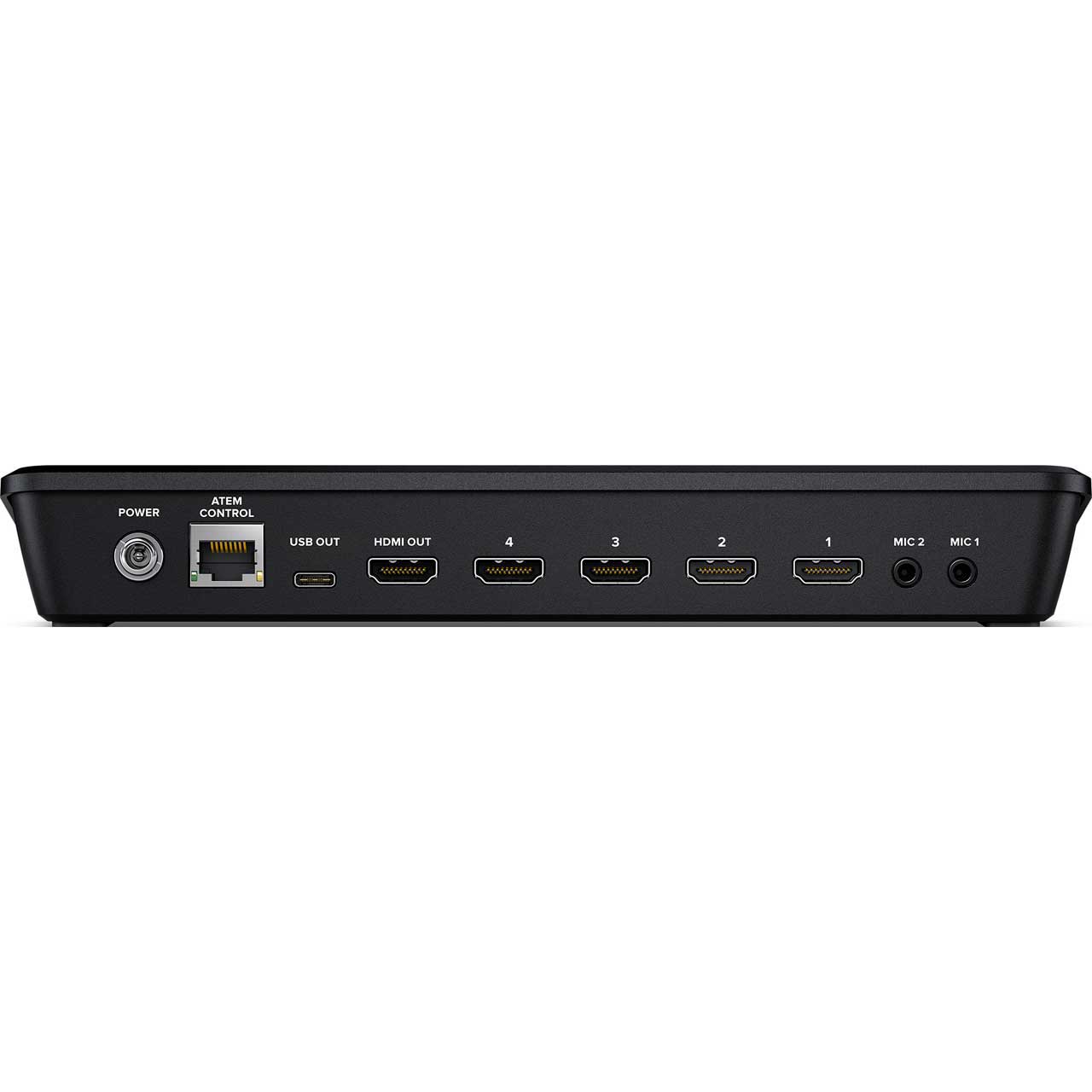

      • Connections
      • Total Video Inputs: 4
      • Total Outputs: 2
      • Total Aux Outputs: 1
      • Total Audio Inputs: 2 x 3.5mm stereo mini jack.
      • Total Audio Outputs: None, embedded audio only.
      • Timecode Connection: None
      • HDMI Video Inputs: 4 x HDMI type A, 10-bit HD switchable. 2 channel embedded audio.
      • Video Input Re-Sync: On all 4 HDMI inputs.
      • Frame Rate and Format Converters: On all 4 HDMI inputs.
      • HDMI Program Outputs: 1
      • Ethernet: Ethernet supports 10/100/1000 BaseT for live streaming, software control, software updates and direct or network panel connection.
      • Computer Interface: 1 x USB Type-C 3.1 Gen 1 for external drive recording, webcam out, software control, software updates and panel connection.

        Product Specifics
      • Upstream Keyers: 1
      • Downstream Keyers: 1
      • Advanced Chroma Keyers: 1
      • Linear/Luma Keyers: 2
      • Transition Keyer: DVE only.
      • Total Number of Layers 5
      • Pattern Generators: 1
      • Color Generators: 2
      • DVE with Borders and Drop Shadow 1
      • Interface: Minimum monitor resolution of 1366 x 768.

        Audio
      • Audio Mixer: 6 input x 2 channel mixer. Selectable On/Off/Audio-Follow-Video per channel plus separate gain control per channel. Level and Peak metering. Plus new Fairlight audio enhancements: Compressor, Gate, Limiter, 6 bands of parametric EQ. Master gain control.
      • Analog Input: Unbalanced stereo
      • Analog Input Delay: Up to 8 frames
      • Input Impedance: 1.8k
      • Max Input Level: +6dBV
      • Mic Plug In Power: Available on both 3.5mm mini jack connections.

        Streaming
      • Direct Streaming: ATEM Mini Pro supports direct live streaming over ethernet using Real Time Messaging Protocol (RTMP).

        Recording
      • Direct Recording: 1 x USB-C 3.1 Gen 1 expansion port for external media to direct record a .mp4 H.264 with AAC audio at the ATEM video standard.
      • Media Format: Supports media formatted ExFAT (Windows/Mac) or HFS+ (Mac) file system.

      • Control
      • Control Panel: Built in control panel. Software control panel with camera control included. Supports optional hardware panel.
      • Control Panel Connection: Ethernet supports 10/100/1000 BaseT. Ethernet used for direct connection between panel and chassis or via network. ATEM Mini Pro also supports direct USB-C connection. Ethernet or USB-C used for updating the software.
      • Control Panel Compatibility: Includes ATEM Software Control Panel. Also compatible with ATEM 1 M/E Advanced Panel and ATEM 2 M/E Broadcast Panel.
      • Control Panel Included: ATEM Software Control Panel included free for Mac 10.14 Mojave, Mac 10.15 Catalina or later and Windows 10 (64 bit only).

    • Item Includes:

      • 1x ATEM Mini Pro
      • 1x External 12V DC power supply with international socket adapters
      • 1x ATEM Software Control Panel for Mac 10.14 Mojave, Mac 10.15 Catalina or later and Windows 10 (64 bit only).

    • Warranty:

      • 12 Months Limited Manufacturer's Warranty
