AVMATRIX SHARK H4M All-In-One 4-Channel HDMI 1080p60 Audio and Video Switcher with 4x HDMI Inputs

SHARK H4M - Overview

• Features:

  • All-in-one portable audio-video switcher
  • 6x Microphone & 2x Stereo inputs, 4-Channel input embeded audio
  • Balanced XLR outputs + TRS monitoring
  • Gain control, signal indicator lamp, 2-band tones, low cut filter
  • Mono/Stereo switch, volume adjustment function
  • 99 DSP effect processor modes
  • Separate Bluetooth player
  • MP3 recorder/player/USB sound card
  • 48V phantom power supply for XLR
  • 4x HDMI Inputs
  • 2x HDMI PGM outputs, 1x HDMI multiview output, 1x USB type-C
  • RTMP/SRT streaming via LAN port or USB capture streaming
  • SD card recording or USB Disk recording
  • Luma key, Chroma key, PIP+2/POP, DSK, and LOGO overlay
  • T-bar/AUTO/CUT; various effects: WIPE/MIX/DIP


• Specifications:

  General
  • Dimensions(LxWxD): 11.3" x 11.2" x 3.3" (287.7mm x 286.7mm x 83.2mm)
  • Weight: 5.5lbs (2500g)
  • Power: 12V 2A
  • Operating Power: ≤18W

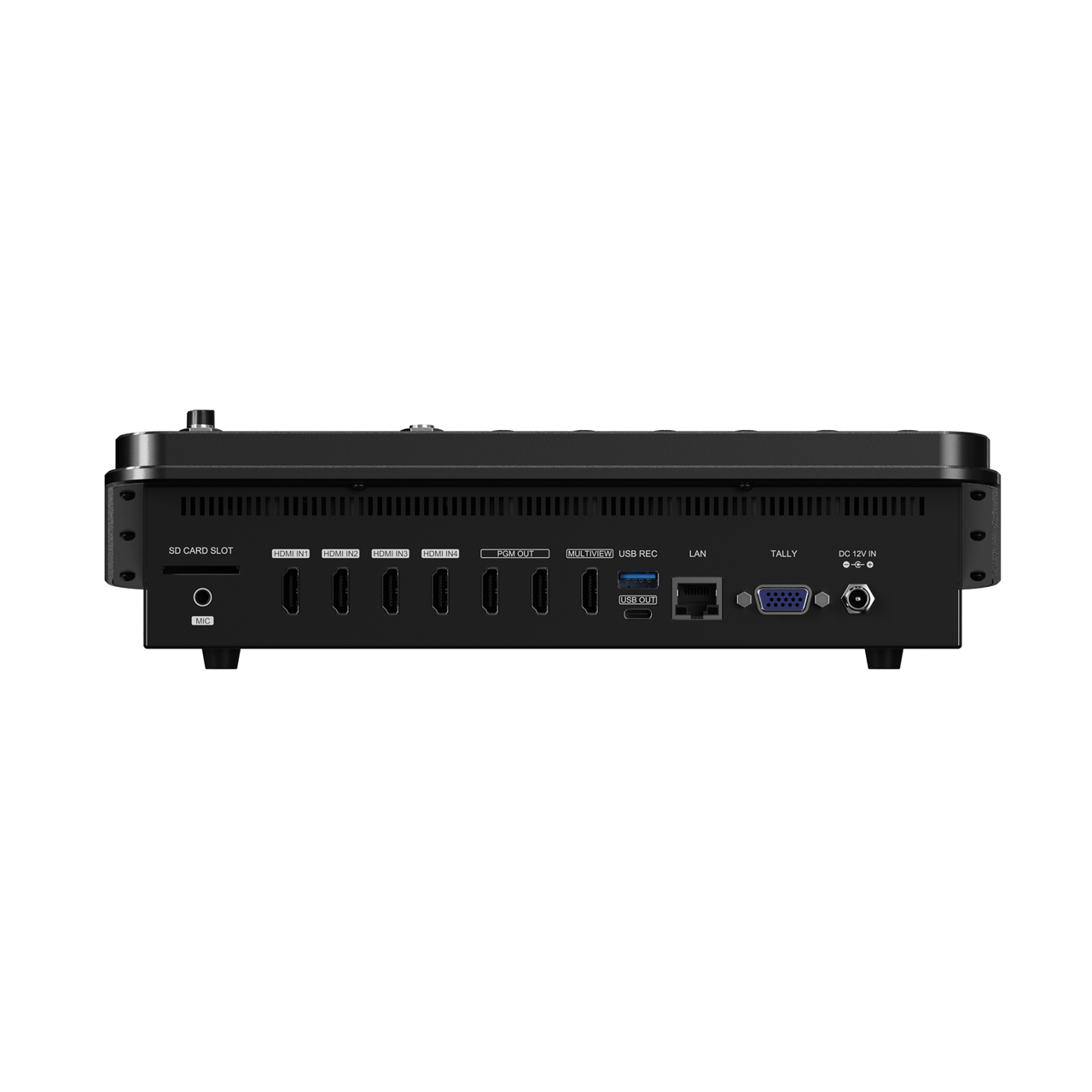

    Video
  • Video In: 4x HDMI Type-A
  • Video Out:
    - 2x HDMI Type-A PGM
    - 1x HDMI Type-A Multiview Output
  • USB Capture: 1x USB Type-C
  • LAN Port: 1x LAN (web control, video streaming, firmware upgrade)
  • Media Library: 1x USB type-A (import/export configuration, images and LOGO; firmware upgrade)
  • Tally Port: 1x DB-15
  • Power In: 1x DC 12V 2A
  • Record: 1x SD Card/U-Disk
  • Layouts: Horizontal and Vertical
  • Upstream Key:
    - 1x Luma Key
    - 1x Chroma Key
    - 2x PIP
    - 2x POP
  • Downstream Key: 1x DSK
  • Generators:
    - 1x Pattern Generator
    - 2x Color Generators
  • HDMI In Format Support:
    - 1080p 60/59.94/50/30/29.97/25/24/23.98
    - 1080i 50/59.94/60
    - 720p 60/59.94/50/30/29.97/25/24/23.98
    - 576i 50
    - 576p 50
    - 480p 59.94/60
    - 480i 59
  • HDMI PGM Out:
    - 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98
    - 1080i 60/59.94/50
  • HDMI Multiview Out:
    - 1080p 60/59.94/50/48/47.95/30/29.97/25/24/23.98
    - 1080i 60/59.94/50
  • HDMI Color Space: RGB/YUV
  • USB Capture Out: Up to 1080p

    Audio
  • Audio Input Channel:
    - 6x Mono (Mic/Line)
    - 2x Stereo (Line)
    - 1x USB Player/Bluetooth
  • Audio Output Channel:
    - 2x Main L/R Out
    - 1x Mixer Out
  • Audio Mixer:
    - 6x XLR
    - 2x TRS
    - 4x HDMI
  • Audio Delay: 0-500ms
  • CH1-6 Mic/Line:
    - Gain: -14-+40dB
    - Mic Input Ch 2 Band EQ, 80Hz/12KHz, ±15dB
    - 48V Phantom Power Supply with Indicator
    - Peak Level LED
  • Main Output Level Meter: 2-Channel 6-Segment LED Display
  • Maximum Input Level: Mic +10dBu/Line +22dBu
  • Input Impedance:
    - XLR: 10k Ω
    - Mic: 15k Ω
  • Maximum Output Level:
    - XLR+22dBu;
    - TRS+20 dBu;
  • Output Impedance:
    - XLR: 600 Ω
    - Phones: 10 Ω
  • Frequency Response Range: ±1 dB, 20-22kHz
  • Dynamic Range: 102dB
  • Total Harmonic Distortion @ 1KHz: <0.05% (Mix Out)
  • Stereo Separation: >80dB


• Item Includes:

  • 1x SHARK H4M All-In-One 4-Channel HDMI 1080p60 Audio and Video Switcher
  • 1x 12V/2A Power Adapter
  • 1x USB-A to USB-C Cable
  • 1x 15-Pin Tally Connector


• Warranty:

  • 2-Year Limited Warranty
