ViewZ VZ-215LED-M 21.5 Inch 4 Channel 3G-SDI/HDMI Multi-Viewing Broadcast Monitor - 500nits - 1080p Resolution

VZ-215LED-M - Overview

• Features:

  • 21.5" 4ch 3G-SDI Monitor

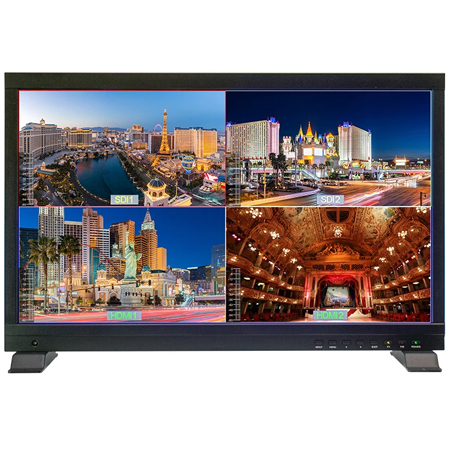

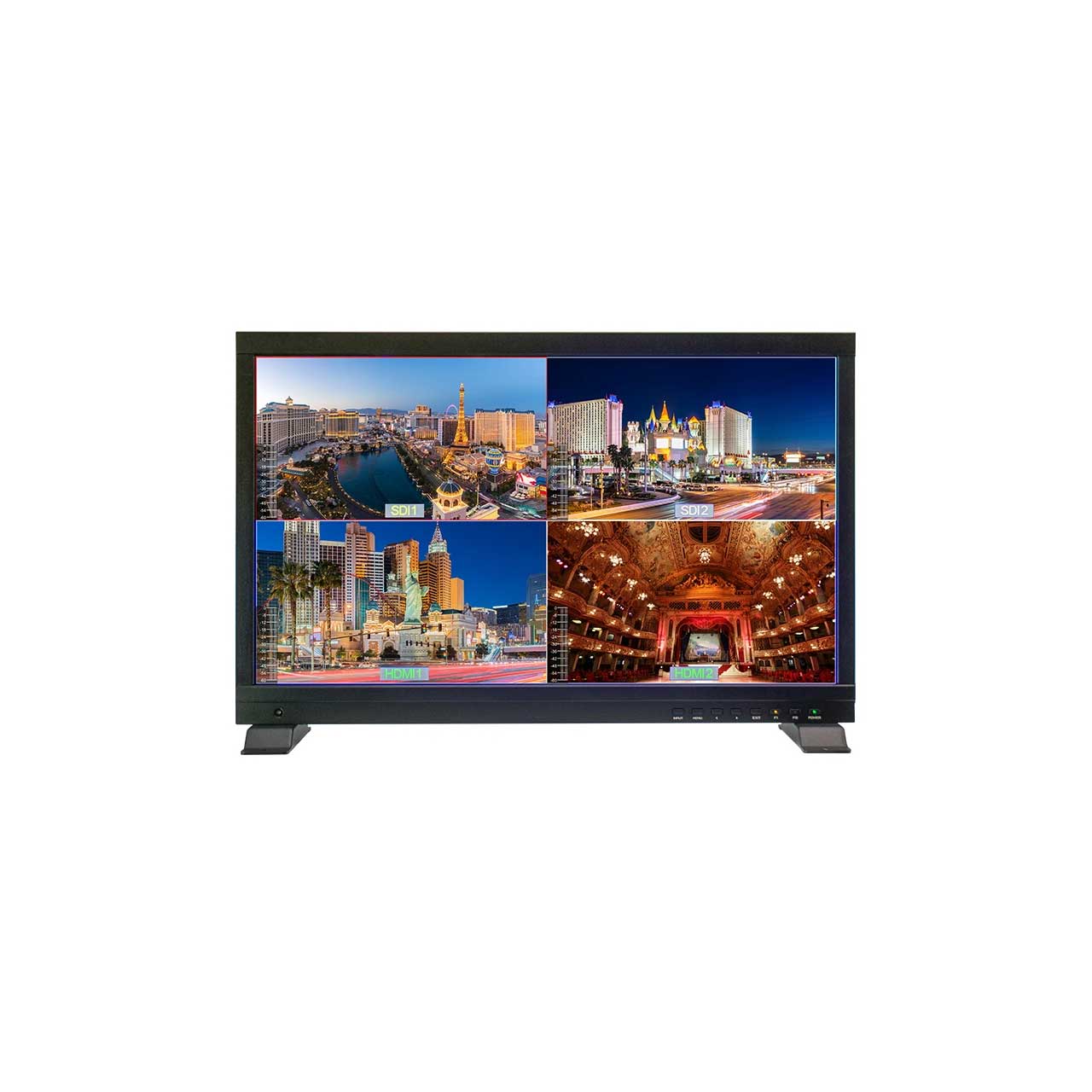

  • Support 3G-SDI Input x2, HDMI Input x2 and USB Type-C x1 for the multi-viewing
  • Support 3G-SDI Loop-through x2 and HDMI Loop-through x2
  • Support PGM Output (SDI/HDMI) x1

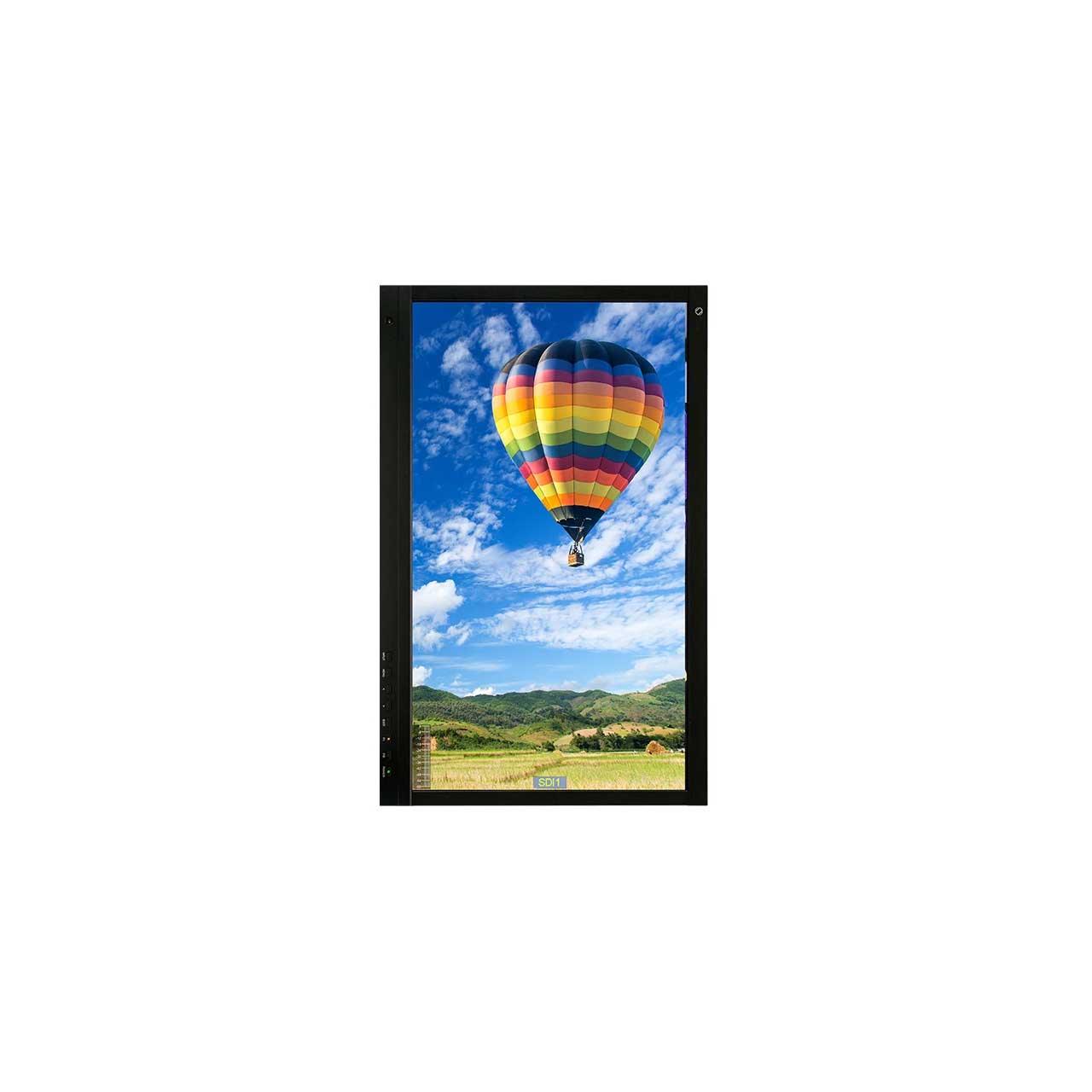

  • USB Type-C Input to display full screen for smartphone vertically
  • Support HDMI and SDI signal cross conversion (Output 1080p 60/50/30/25/24 through PGM)
  • Automatic backlight adjustment
  • 2 User-definable function buttons
  • Optional VZ-RMK08 rackmount adaptor available


• Specifications:

  • Display
  • Screen Size: 21.5"
  • Max Resolution: 1920 x 1080 (Full HD) IPS pixel
  • Pixel Pitch: 0.18159 x 0.18159 mm
  • Brightness: 500 cd/m²(Typical)
  • Contrast Ratio: 1500 : 1
  • Aspect Ratio: 16 : 9
  • Viewing Angle (H/V): 170°/170°
  • Display Color: 1.07 B

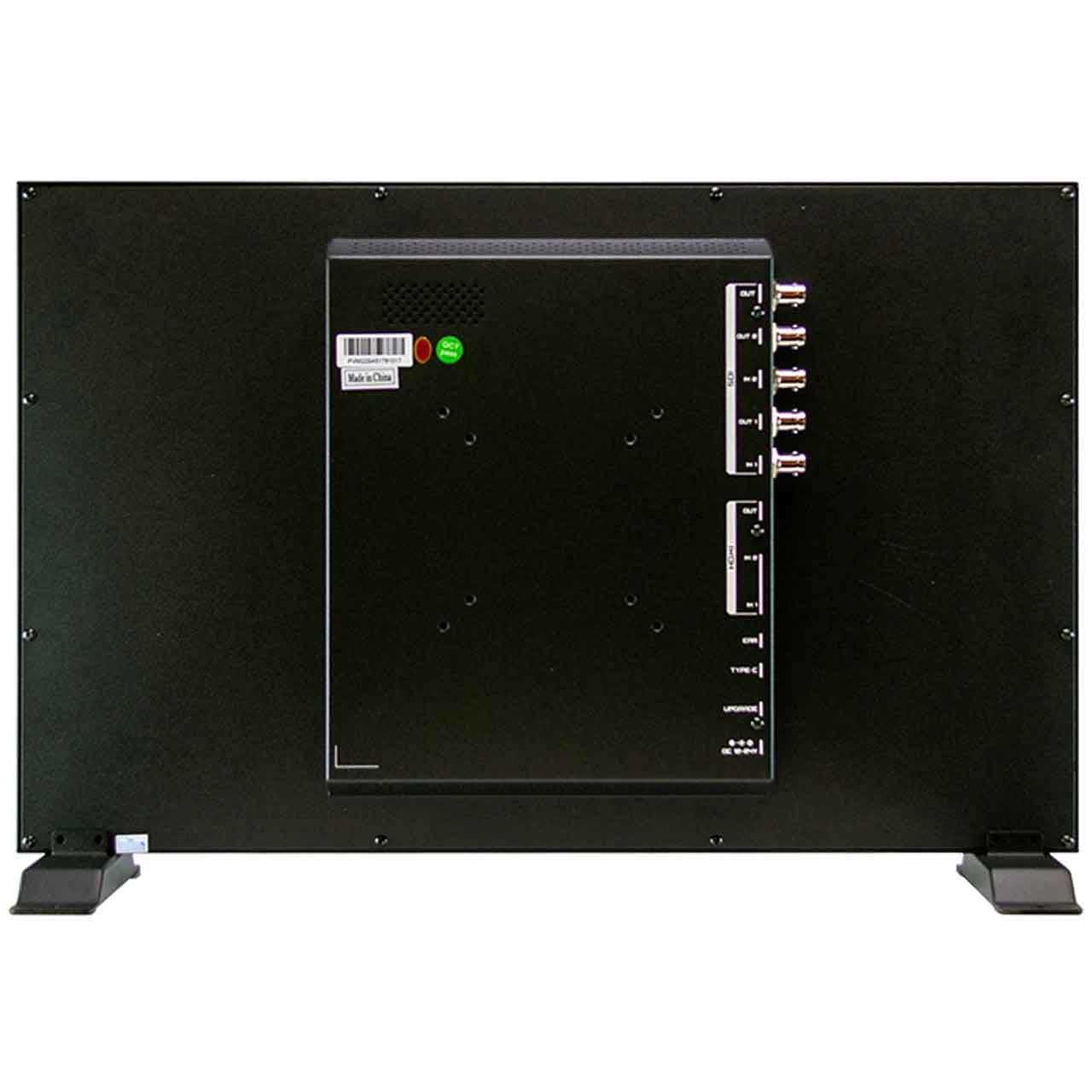

    Interface
  • 3G-SDI In / Out: 2 / 2 (Loop-through)
  • 3G SDI Out (PGM): 1
  • HDMI 2.0 In / Out: 2 / 1
  • Audio Out: 1
  • USB Type-C: 1
  • USB 2.0: 1 (Upgrade)

    Audio
  • Built in speaker: 1W x 1
  • SDI: 16ch 48kHz 24 bit
  • HDMI: 2ch 24 bit
  • Ear Jack: 3.5 mm

    Dimensions & Weight
  • Outline Dimension (W x H x D): 20 x 12.63 x 1.85" / 508 x 321 x 47 mm
  • Net Weight: 11.88 lbs / 5.39 kg

    Input Format
  • SDI 3GSDI-Level A (4:2:2): 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50
  • HDMI: 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50
  • USB Type-C: 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50

    Output Format
  • SDI 3GSDI-Level A (4:2:2): 1080p 60/59.94/50/30/29.97/25/24/23.98, 1080i 60/59.94/50, 720p 60/59.94/50
  • SDI PGM: 1080p 60/50/30/25/24
  • HDMI PGM: 1080p 60/50/30/25/24

    General Summary
  • Power - Electrical Ratings: DC 12~24V
  • Power - Consumption: ≤ 33 W (15V)
  • Warranty: 2 Years
  • Operating Temperature: -4 ~ 140°F / -20 ~ 60°C
  • Operating Humidity: 90% RH for 240 hrs, TA=+ 140°F (60°C)
  • Storage Temperature: -22 ~ 158°F / -30 ~ 70°C
  • Battery Plate: V-mount / Anton Bauer mount


• Item Includes:

  • 1x Carrying Case
  • 1x Swivel Bracket
  • 1x V-mount


• Warranty:

  • 2 Years
