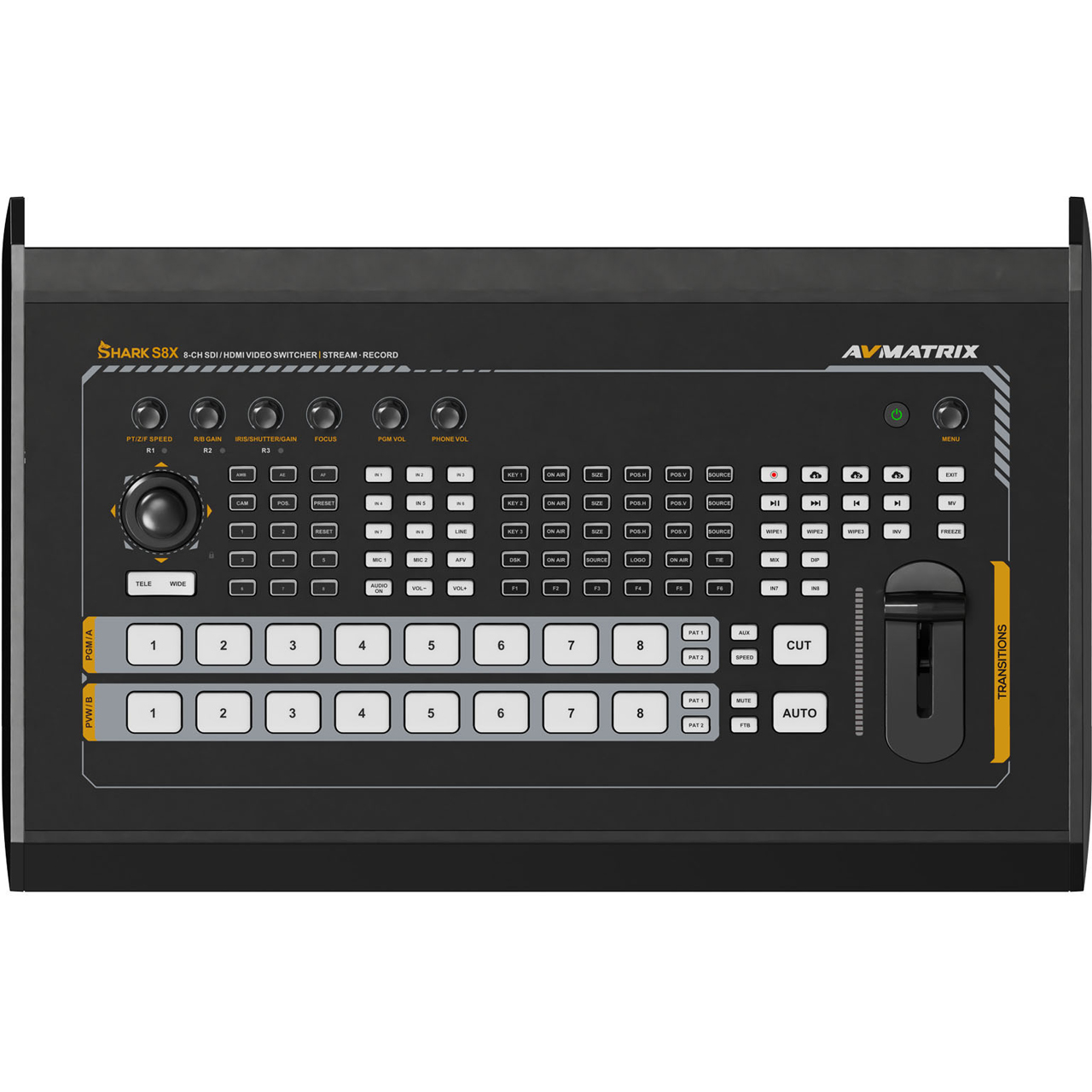

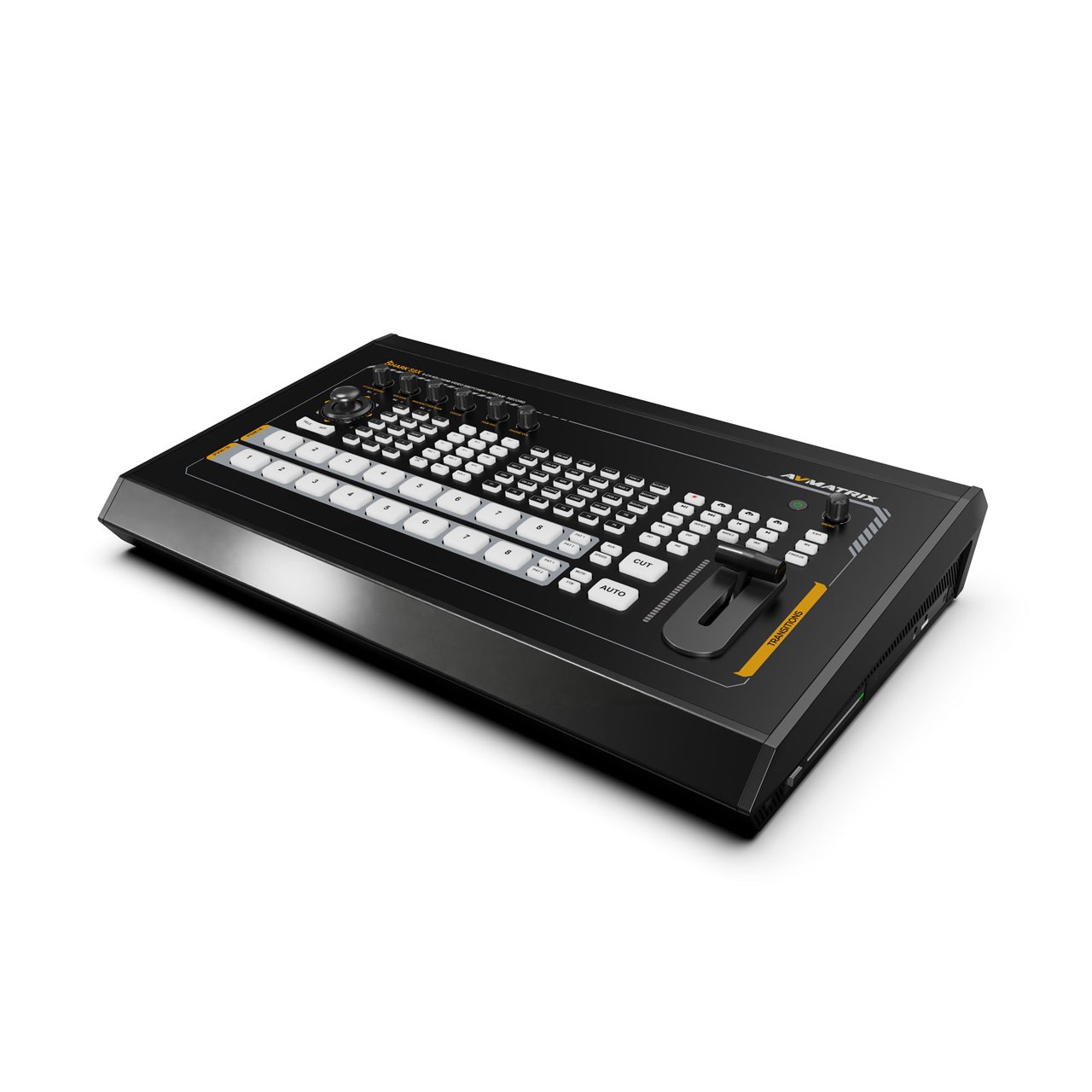

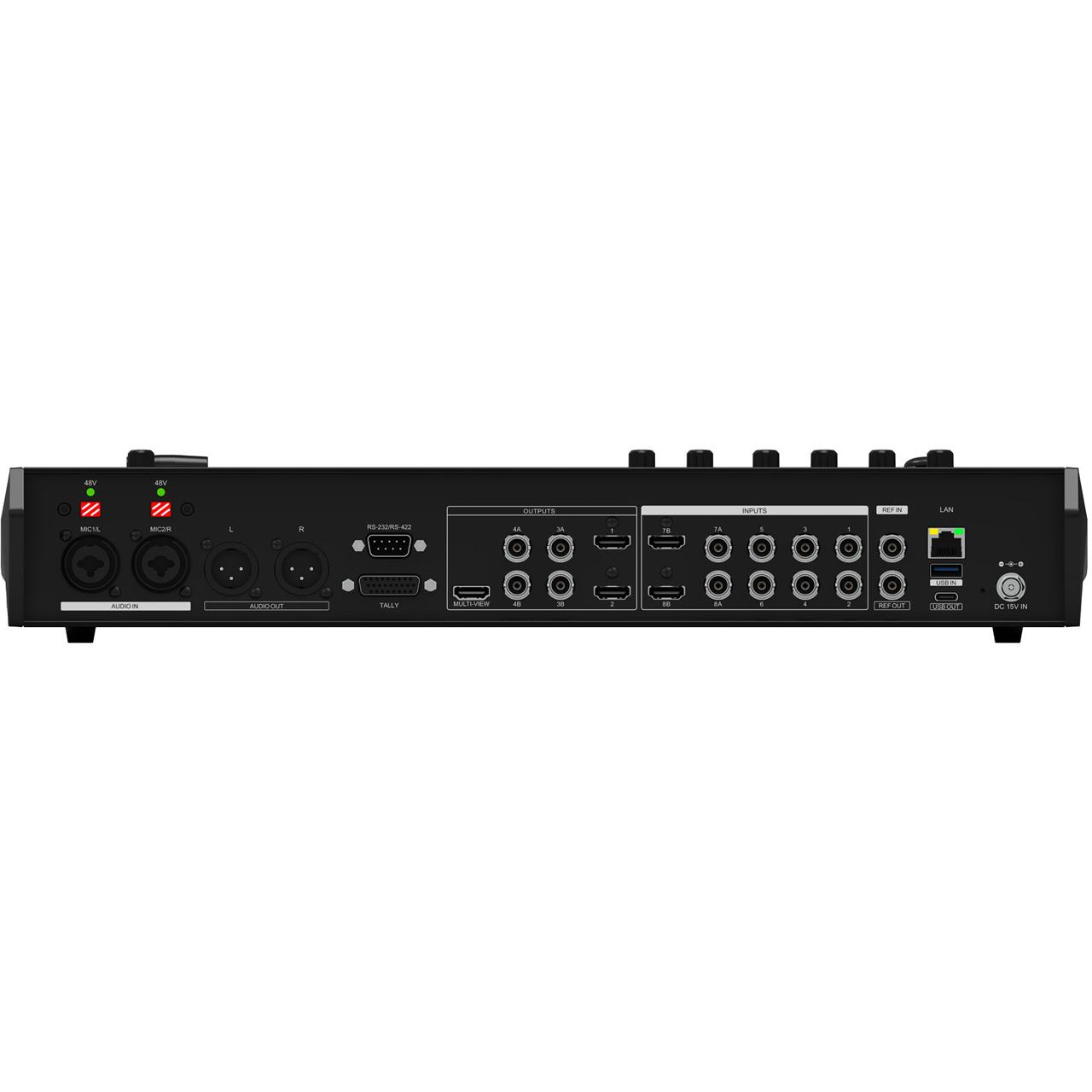

The AVMATRIX SHARK S8X supports 8-channel 3G-SDI and 2-channel 4K HDMI input, with frame synchronization output and an AUX input (supporting video player, UVC, streaming, NDI). Outputs include two HDMI, four SDI, and one HDMI multiview with customizable output source and format options. It supports RTMP(S)/SRT/RTSP streaming, recording, and playback via USB/SD card/2.5" SATA, and UVC lossless capture. The switcher offers chroma key, luma key, customizable PIP, POP, DSK, and LOGO overlay. For the Audio function, it provides two XLR/TRS balanced inputs with 48V phantom power and a 3.5mm stereo input, supporting mixing of eight embedded video audio channels and two external audio inputs. It also features 8-channel PTZ control with rate, preset, focus control, and manual/auto exposure and color control. The switcher supports macro script functionality for effortless automation of operations, meeting professional live streaming requirements.
Convenient PTZ Control
The switcher features a PTZ controller supporting pan, tilt, zoom, and gain via RS232/RS485 and LAN. It controls up to six IP cameras and supports VISCA, ONVIF protocols.
Professional XLR Audio and 48V Phantom Power
The switcher features professional XLR input/output, supporting XLR, TRS, also it comes with 48V phantom power for condenser mics. The user can configure AFV, audio mixing, and a 500ms audio delay, making it ideal for professional productions.
Advanced Keyer Functions
The switcher integrates 3 powerful upstream keys for users to configure PIP, LUMA Key, Chroma Key freely, and DSK, logo overlay. Position and size of these keys can be easily adjusted through the buttons or the menu knob.
Build-In Recording

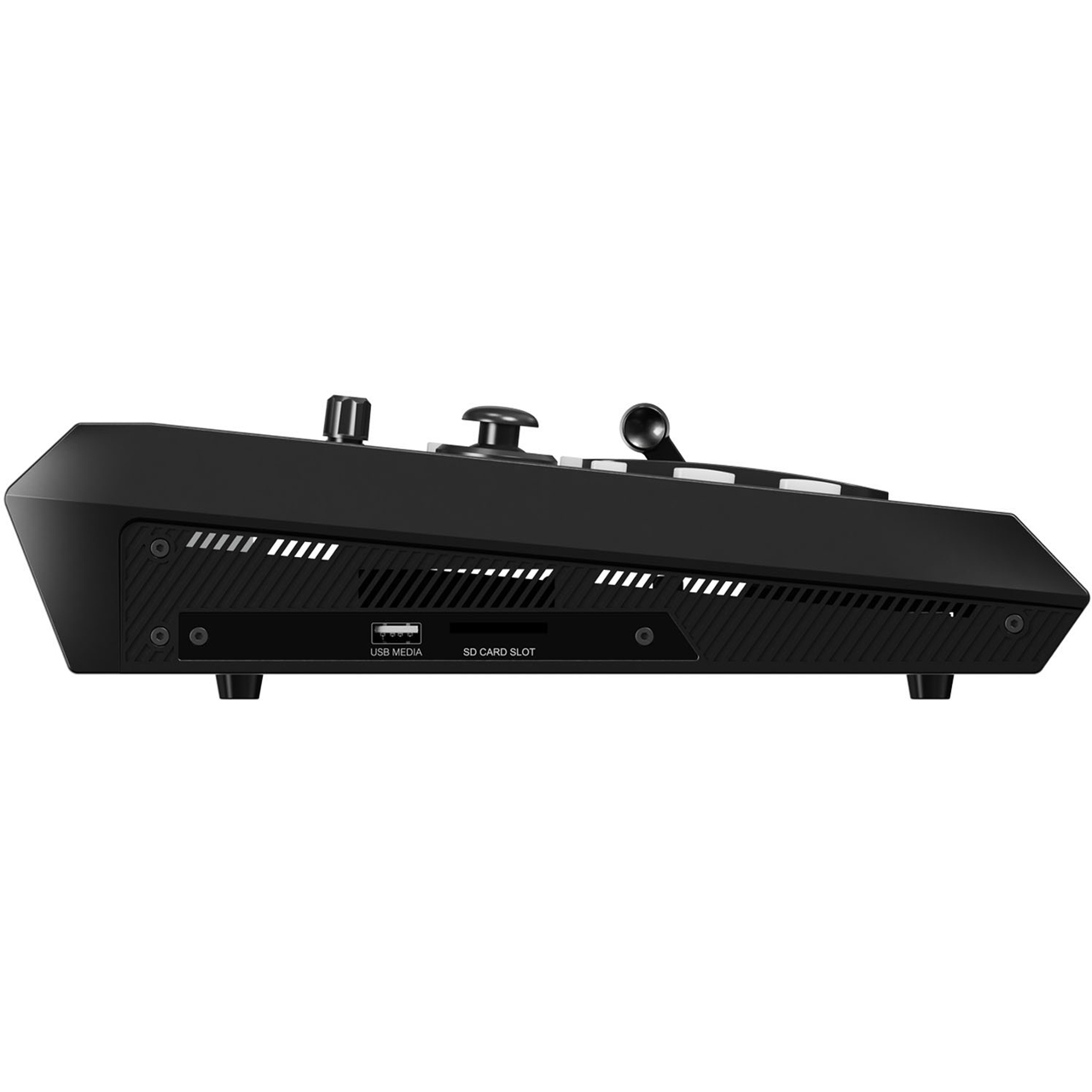

This switcher supports 1080p60 recording at up to 32Mbps via SD card, USB, offering professional-grade storage in MP4 and TS formats for seamless workflow integration.
