AVMATRIX UC7018 Multi-Signal to USB 3.0 Capture Device up to 1080p60 with SDI/HDMI/DVI-I/VGA/CVBS/S-Video Inputs

UC7018 - Overview

• Features:

  • Input: SDI/HDMI/DVI-I/VGA/CVBS/S-VIDEO/YPbPr input, analog audio input
  • Output: USB 3.1 Gen1 (USB3.0) output
  • Automatic input signal detection up to 1080p60
  • Plug and play, no driver or power supply required
  • Uncompressed audio and video capture, UVC and UAC compliant, supports RGB, YUY2, and NV12.
  • With video and power signal LED indicators
  • USB Type-C for capture, power, and upgrades

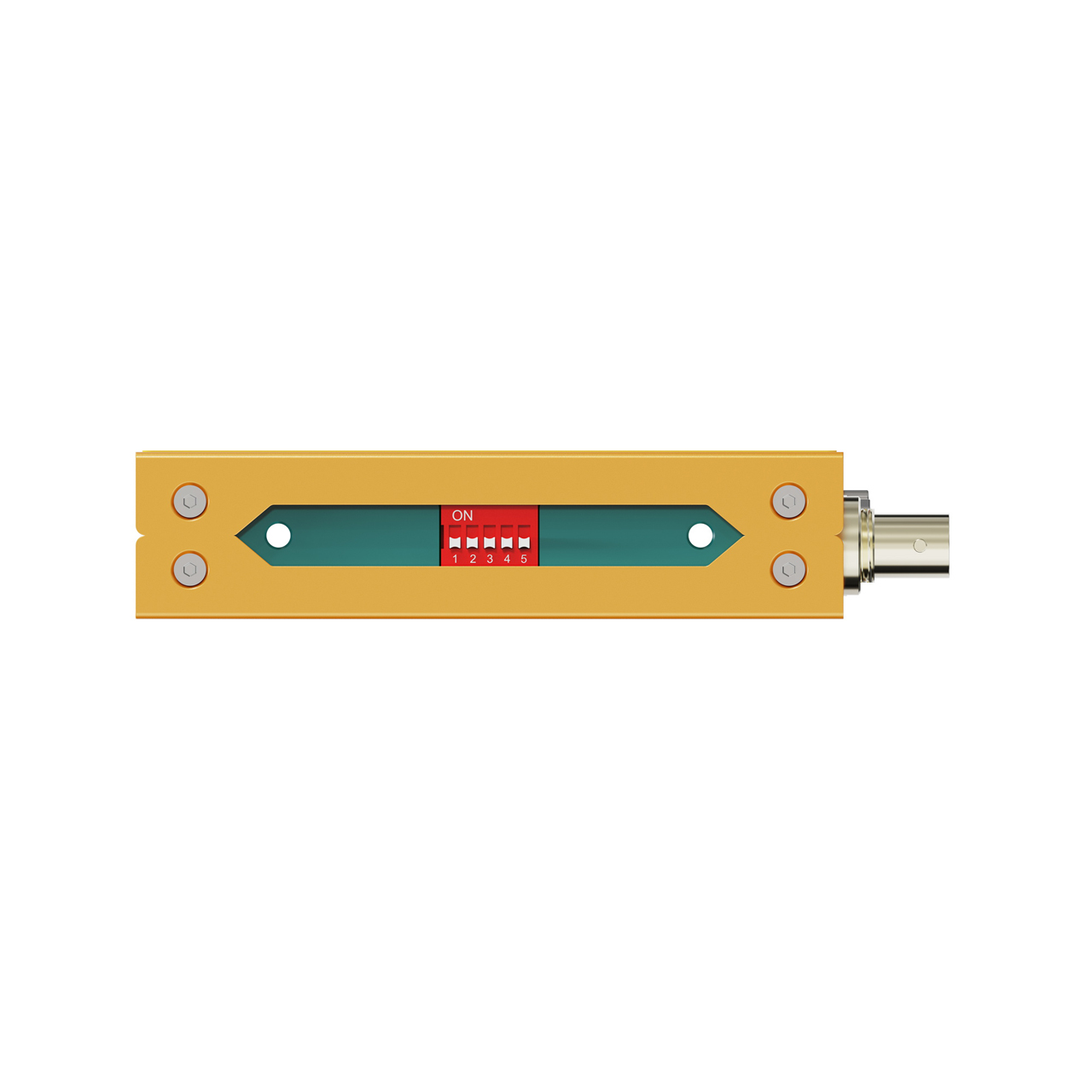

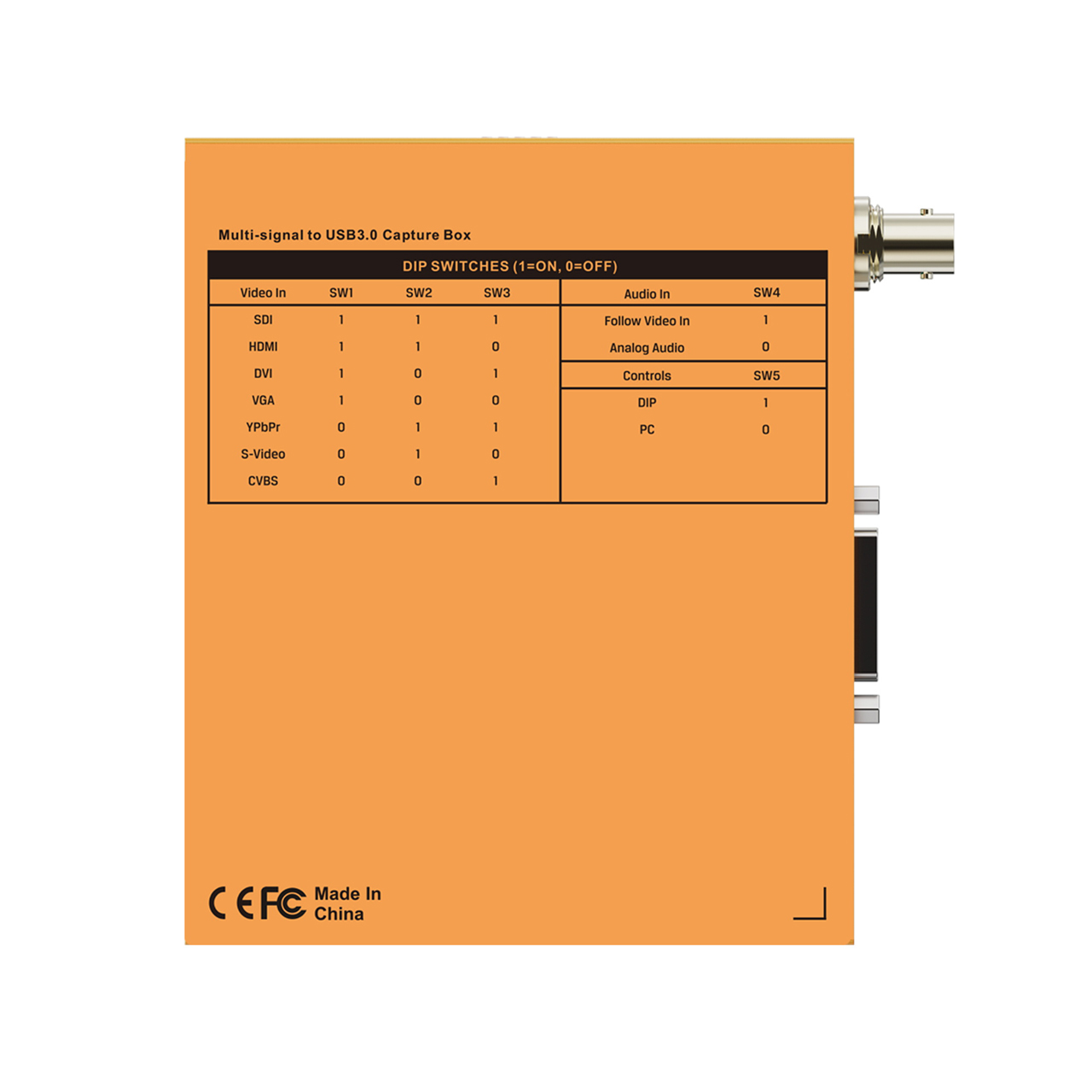

  • Easily controlled by dip switches and PC software
  • Compatible with Windows, Linux, and MacOS
  • Compatible with OBS, ZOOM, Teams, Twitch, Vmix, and other live streaming software


• Specifications:

  General
  • Dimensions (LxWxH): 4.09" x 5" x 0.96" (104mm x 125.5mm x 24.5mm)
  • Weight: 1.04lbs (473g)
  • Power: USB Type-C
  • Power Consumption: ≤5W 5V, 1A
  • Voltage: 5V
  • Relative Humidity: 20% - 90% RH (non-condensing)

    Interface

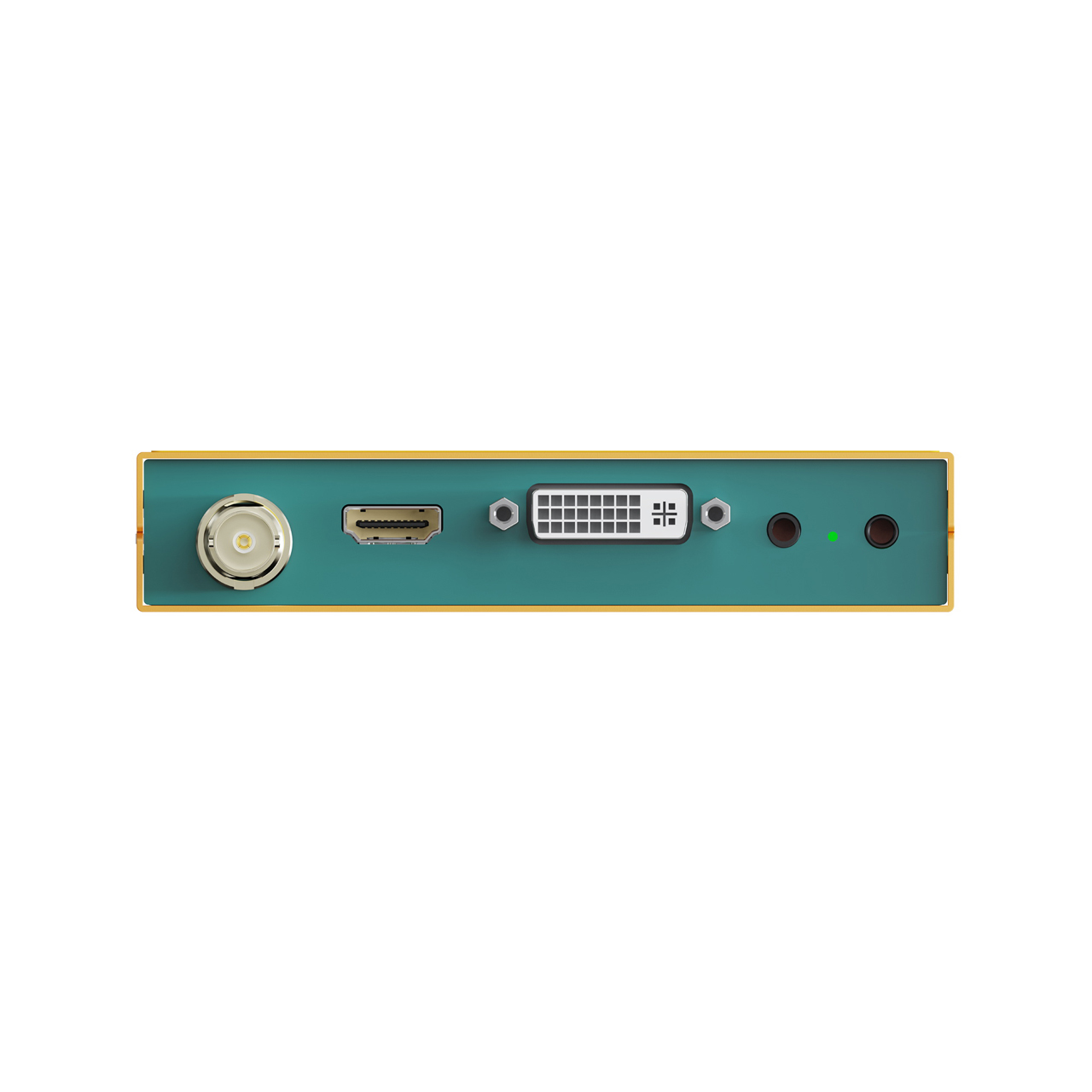

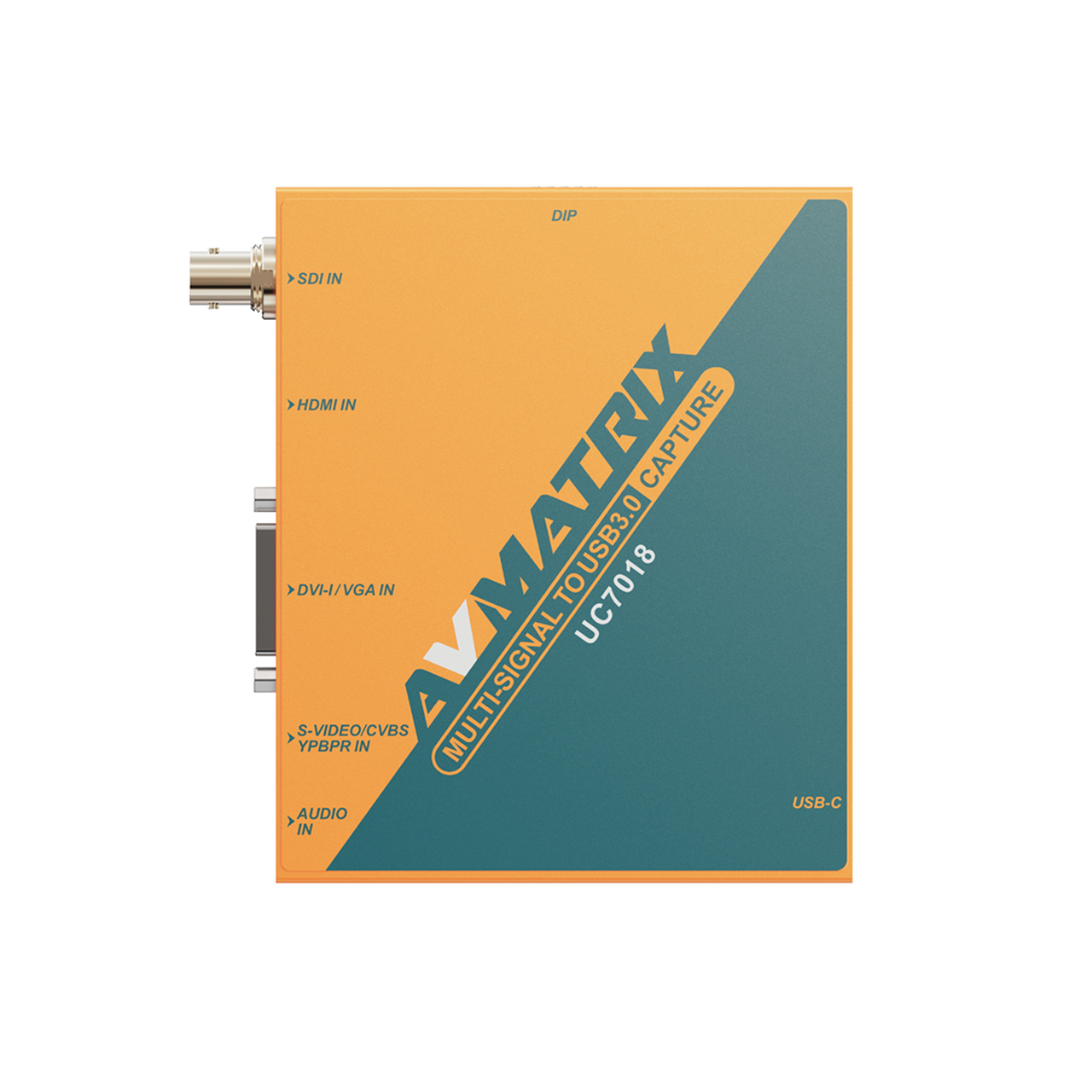

  • Video Interface:
    - 1x SDI input
    - 1x HDMI input
    - 1x DVI-I/VGA input
    - 1x S-VIDEO/CVBS/YPBPR input
    - 1x 3.5mm (analog audio input)
  • Output Interface: 1x USB 3.0 Type C (USB 3.1 Gen1, up to 200MB/s)

    Format
  • SDI Input Format:
    - 1080p 60/59.94/50/30/29.97/25/24/23.98
    - 1080sf 30/29.97/25/24/23.98
    - 1080i 50/59.94/60
    - 720p 60/59.94/50/30/29.97/25/24/23.98
  • HDMI Input Format:
    - 1080p 60/59.94/50/30/29.97/25/24/23.98
    - 1080i 50/59.94/60
    - 720p 60/59.94/50/30/29.97/25/24/23.98
  • S-Video/CVB Input Format:
    - 710x484i
    - 702x576i
  • YPBPR Input Format:
    - 1920x1080p
    - 1920x1080i
    - 1280x720p
    - 1024x576p
    - 720x576p,
    - 720x483p
    - 710x484i
  • DVI Input Format:
    - 1920x1080
    - 1600x1200
    - 1280x1024
    - 1280x960
    - 1280x720
    - 1152x900
    - 1152x870
    - 1152x864
    - 1024x768
    - 800x600
    - 720x400
    - 640x480
    - 640x400
  • VGA Input Format:
    - 1920x1080
    - 1600x1200
    - 1280x1024
    - 1280x960
    - 1280x720
    - 1152x900
    - 1152x870
    - 1152x864
    - 1024x768
    - 800x600
    - 720x400
    - 640x480
  • USB Capture Resolution:
    - 1920x1080
    - 1600x900
    - 1440x900
    - 1368x768
    - 1280x960
    - 1280x720
    - 1024x768
    - 960x540
    - 800x600
    - 640x360
  • Audio & Video Capture:
    - UVC (USB Video Class) Standard
    - UAC (USB Audio Class) Standard
  • Audio Codec: 2 Channel, 16 bit PCM, 48kHz, 1536kbps
  • Video Color Space: RGB, YUY2, NV12


• Item Includes:

  • 1x UC7018 Multi-Signal to USB 3.0 Capture Device
  • 1x USB 3.0 Cable (USB-A to USB-C)
  • 1x DVI to VGA Adapter
  • 1x 3-in-1 Multi-Interface Connector


• Warranty:

  • 3 Year Limited Warranty
