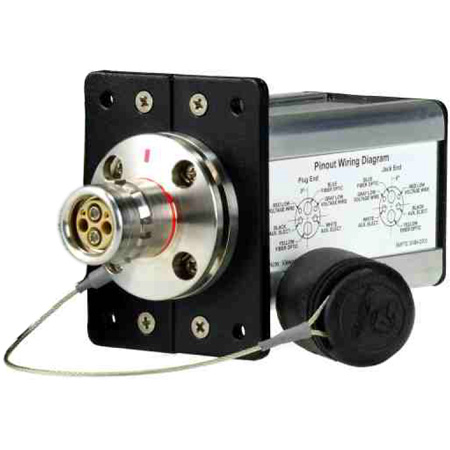

AVP MB8FM-LP-LC Module - LEMO Plug SMPTE 304M Camera Connector - Round Flange

ITEM #: AVP-MB8FM-LP-LC MFG #: MB8FM-LP-LC

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$901.00

Our Price:

$810.90

Availability: Usually Ships in 5-14 Days.
Please Email, Chat or Call (800) 522-2025 for Detailed Delivery Info
iAvailability Description Popup


    MB8FM-LP-LC - Overview

    The AVP MB8FM-LP-LC is for use in television broadcasting and video equipment such as camera head to camera control unit connections. These hybrid Break-Out modules terminate two singlemode fiber-optic contacts, two low-voltage contacts and two auxiliary 600VAC electrical contacts.

    • Features:

      • Conform to SMPTE 304M-2003 Standard
      • Feature Lemo® Connectors for Ultimate Reliability
      • 6 Position and 8 Position Panel Configurations Available
      • Include 60" [1.5m] Electrical Connector Mating Cable

    • Specifications:

      • General
      • Wavelength: 1100 nm - 1350 nm
      • Insertion Loss: 0.5 dB maximum
      • Return Loss: Better than -45 dB

        Electrical
      • Auxiliary Elec. Contacts:
        Voltage: 600VAC
        Current: 10A
      • Low-Voltage Contacts:
        Voltage: 42VAC or 60VDC
        Current: 1A

        Environmental
      • Operating Temperature: -4° to 140°F (-20° to +60°C)
      • Storage Temperature: -40° to 185°F (-40° to +85°C)
      • Humidity: <95% RH (at +40°C)
      • RoHS: Compliant
