AVP UM2RJ45-6S Maxxum Cat6 Shielded RJ45 Tool-less or 110/Krone Punchdown 23-26AWG Stranded or Solid

ITEM #: AVP-UM2RJ45-6S MFG #: UM2RJ45-6S

Primary Image
  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    UM2RJ45-6S - Overview

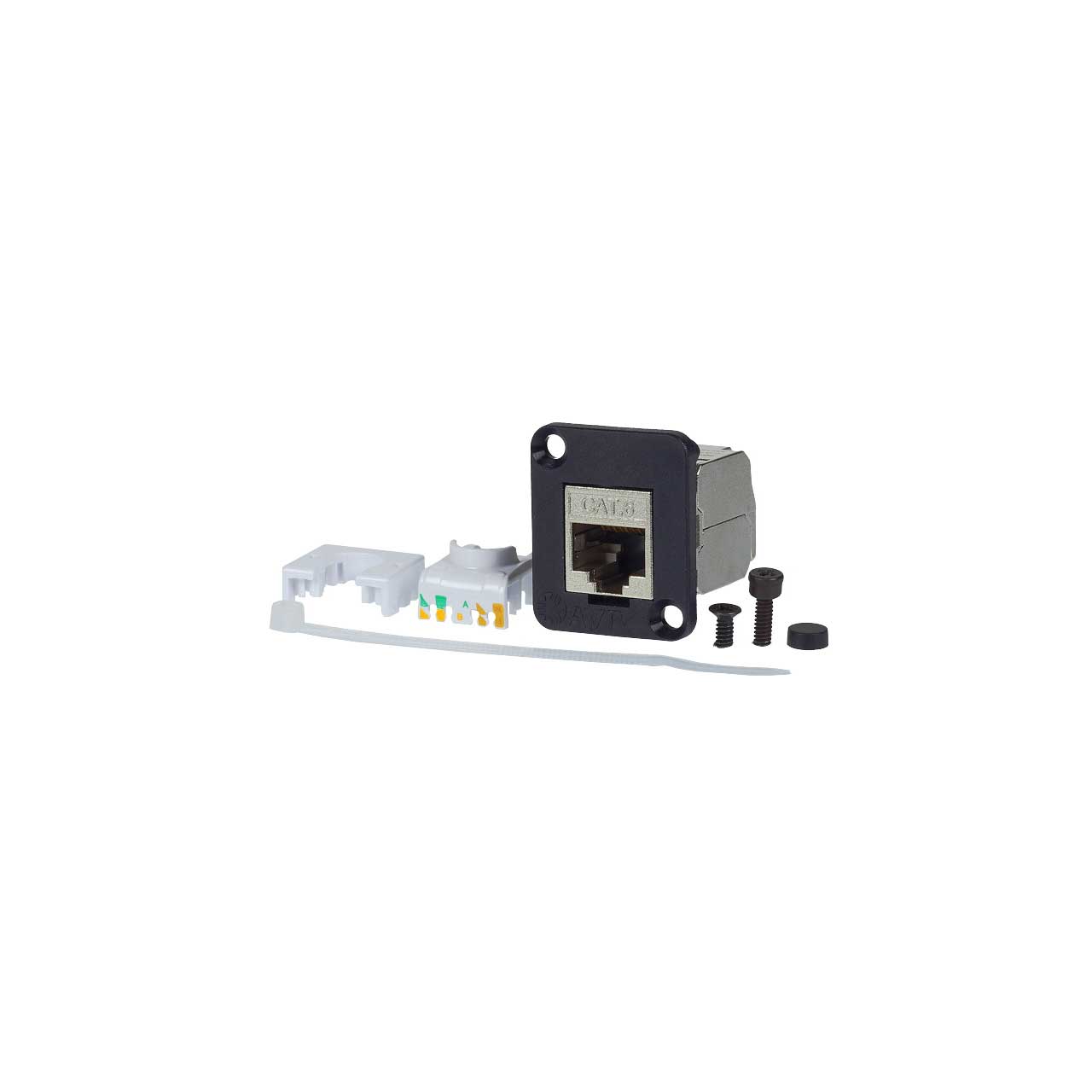

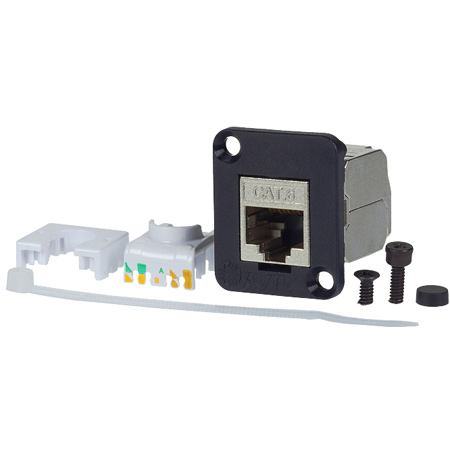

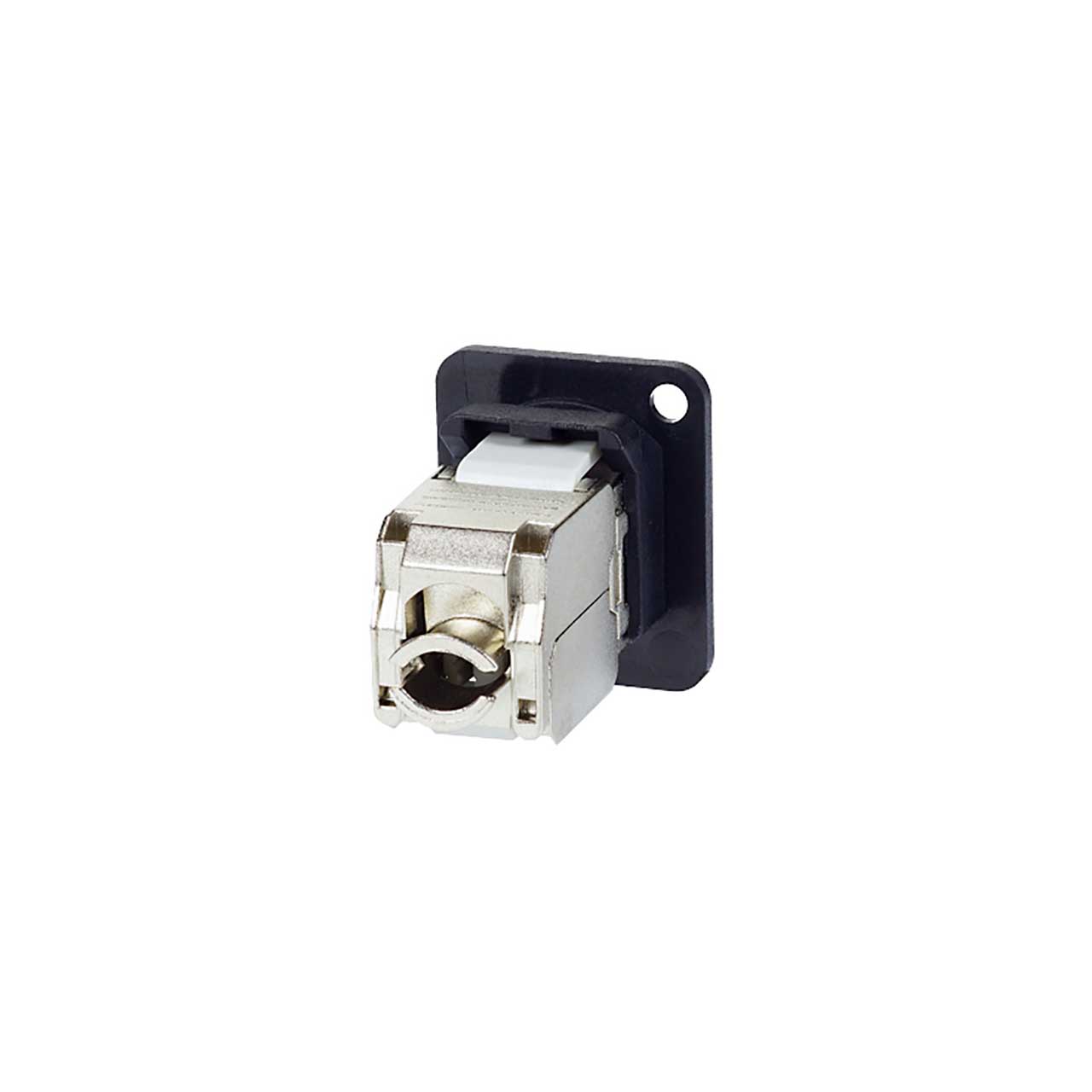

    The AVP-UM2RJ45-6S is a Maxxum Single D Mount AVP Premium Shielded IDC Punchdown Universal Bulkhead Connector Kit for Cat3 to Cat6A Shielded or Unshielded Applications. This unit has a Zinc Die-Cast Body with Nickel Plate, Gold plated contacts, rated 750 cycles, ANSI/TIA/EIA 568 B.2-1 ,Adapter Plate(s) and/or Hardware.

    • Features:

      • T568A/T568B
      • Zinc Die-Cast with Nickel Plate
      • 50 Micro-Inch Gold plated Contacts
      • Phosphor Bronze IDC contacts with Nickel/tin plate
      • 750 Cycles Minimum Mechanical Durability
    • Specifications:

      • Zinc Die-Cast with Nickel Plate
      • Contact Bracket: PC UL 94V-0
      • Nickel plated Phosphor Bronze contacts with 50 Micro-Inch Gold plate
      • Phosphor Bronze IDC with Nickel/tin plate
      • IDC Caps PC+Glass Fiber
      • PCB FR4 UL 94V-0
      • Insertion Force: 30N Max IEC 60603-7-5
      • Retention Strength: 7.7Kg between jack and plug
      • Operating Temperature: -10°C to 60°C
      • 750 Mating Cycles Minimum
      • ANSI/TIA/EIA 568 B.2-1
    • Item Includes:

      • Maxxum Adapter Plate(s) and/or hardware
      • Tool-Less and IDC retention Caps
      • Instruction Sheet
      • MIS Color-Code
      • MIS hardware
    • Warranty:

      • 5 Years
