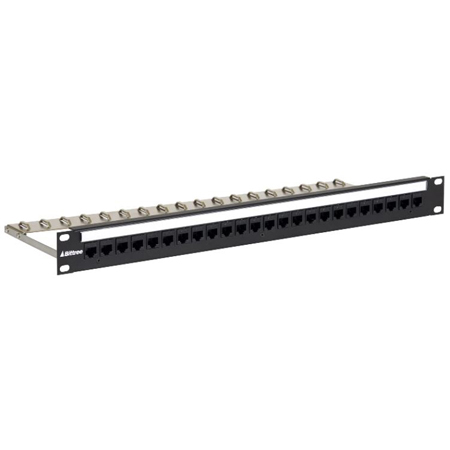

Bittree DSKP124B-C6F Flush-Mount 1x24 CAT6 Feed-Through Modular Keystone Panel - 1RU - Unshielded - Black

DSKP124B-C6F - Overview

• Specifications:

  • CAT 6 Jacks:
  • RJ45 jack to RJ45 jack, unshielded
  • High-impact ABS resin housing and PBT contact holder, UL 94 V-0
  • Nickel-plated phosphor bronze contacts with gold over plate

    Panel:
  • Keystone jacks mount flush with the surface of the panel
  • Accommodates high-density (HD) keystone inserts with up to a .66 inches/17 mm width
  • Folded steel front panel with a durable black powder-coat finish
  • Nickel-plated rear panel and two 45-degree faston lugs enable bussed and bonded grounding schemes when used with shielded modular jacks

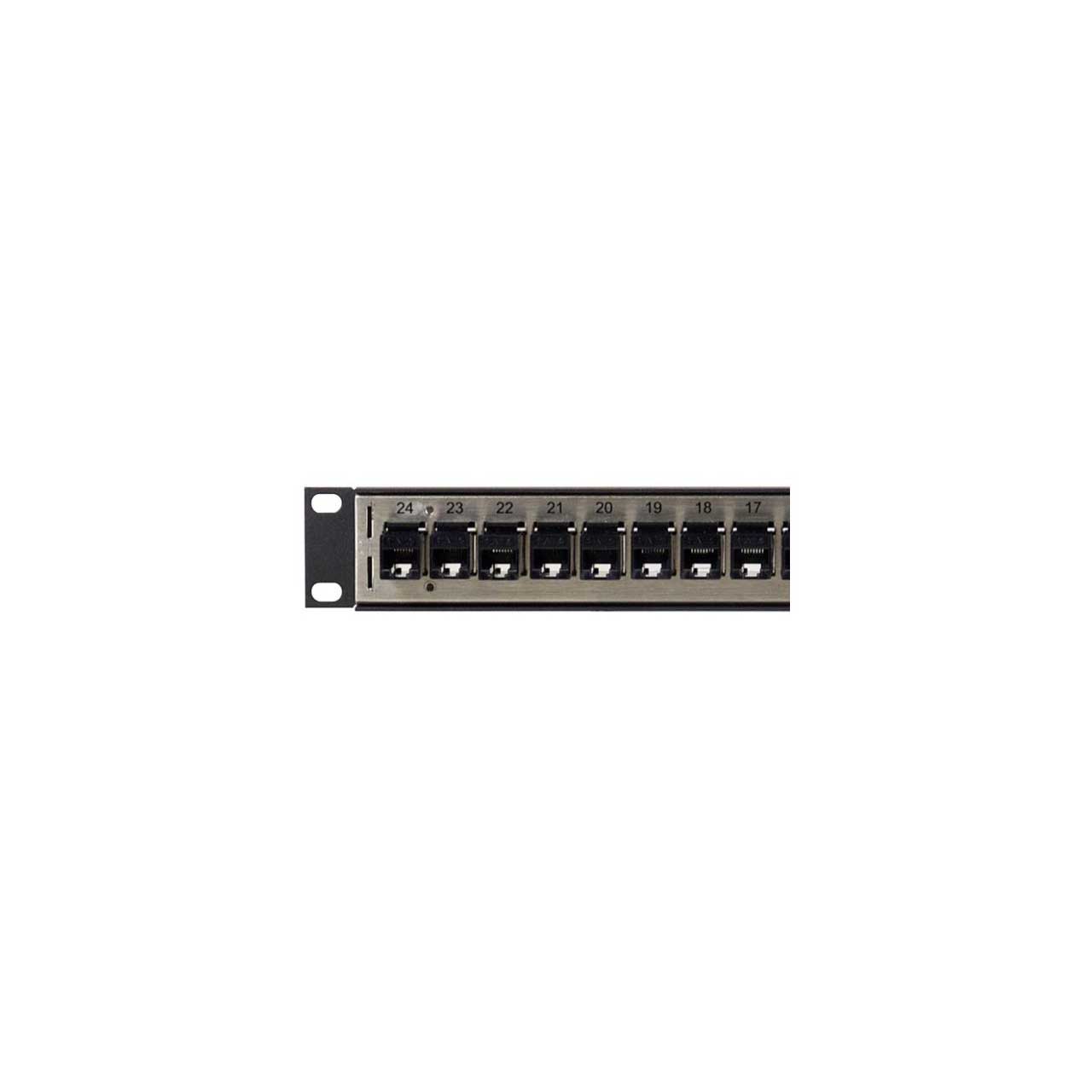

  • Silk screened circuit numbering on the rear
  • 1 x DS430-10 designation strip on the front (bar and cap design)

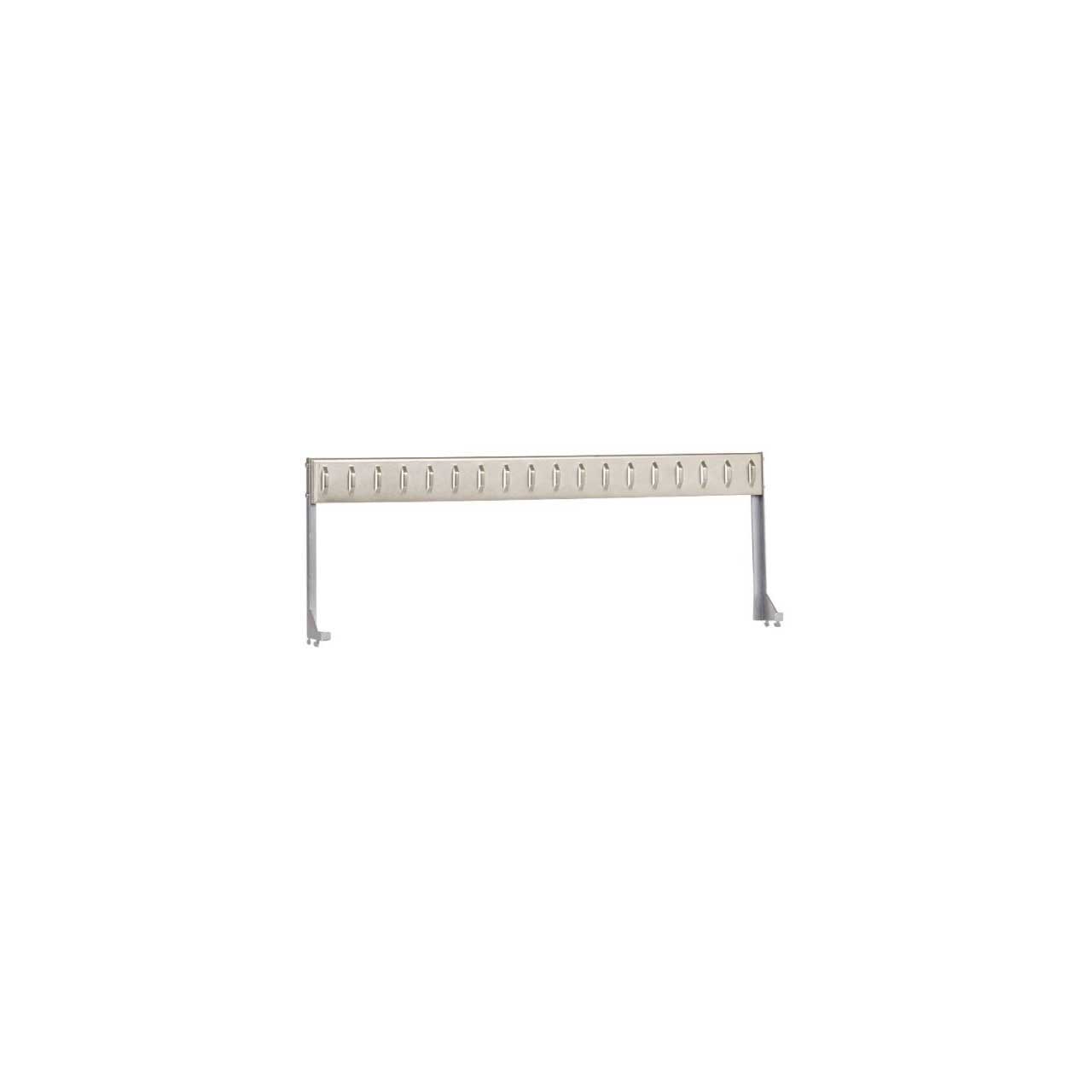

  • 6" (15.24 cm) deep removable rear lacing bar for cable dressing

    Compliance:
  • RoHS Compliance
