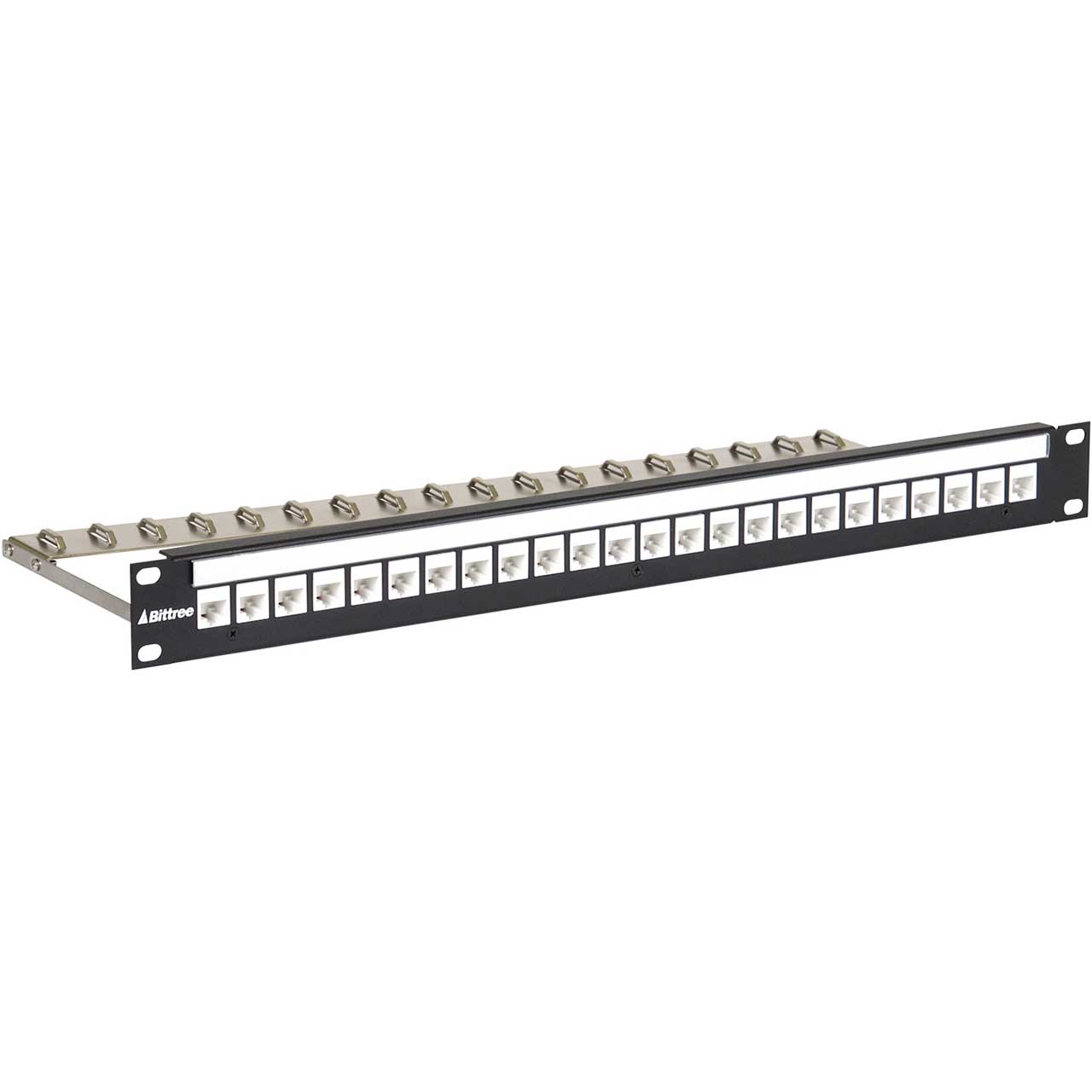

Bittree DSKP124B-C6P Flush-Mount Modular Keystone Panel - CAT 6 - 110 Punchdown - Unshielded - 1x24 - 1 RU - Black

DSKP124B-C6P - Overview

• Features:

  • CAT 6 Jack Properties
  • RJ45 jack to 110 IDC (punchdown) interface, unshielded
  • Exceeds ANSI/TIA-568-C.2 Category 6 connecting hardware requirements
  • High-impact PBT resin housing and PC termination cap, UL 94 V-2
  • Nickel-plated phosphor bronze contacts with gold over plate
  • Integrated TIA-568A/B color wiring diagram
  • Accommodates 22-24 AWG solid wire

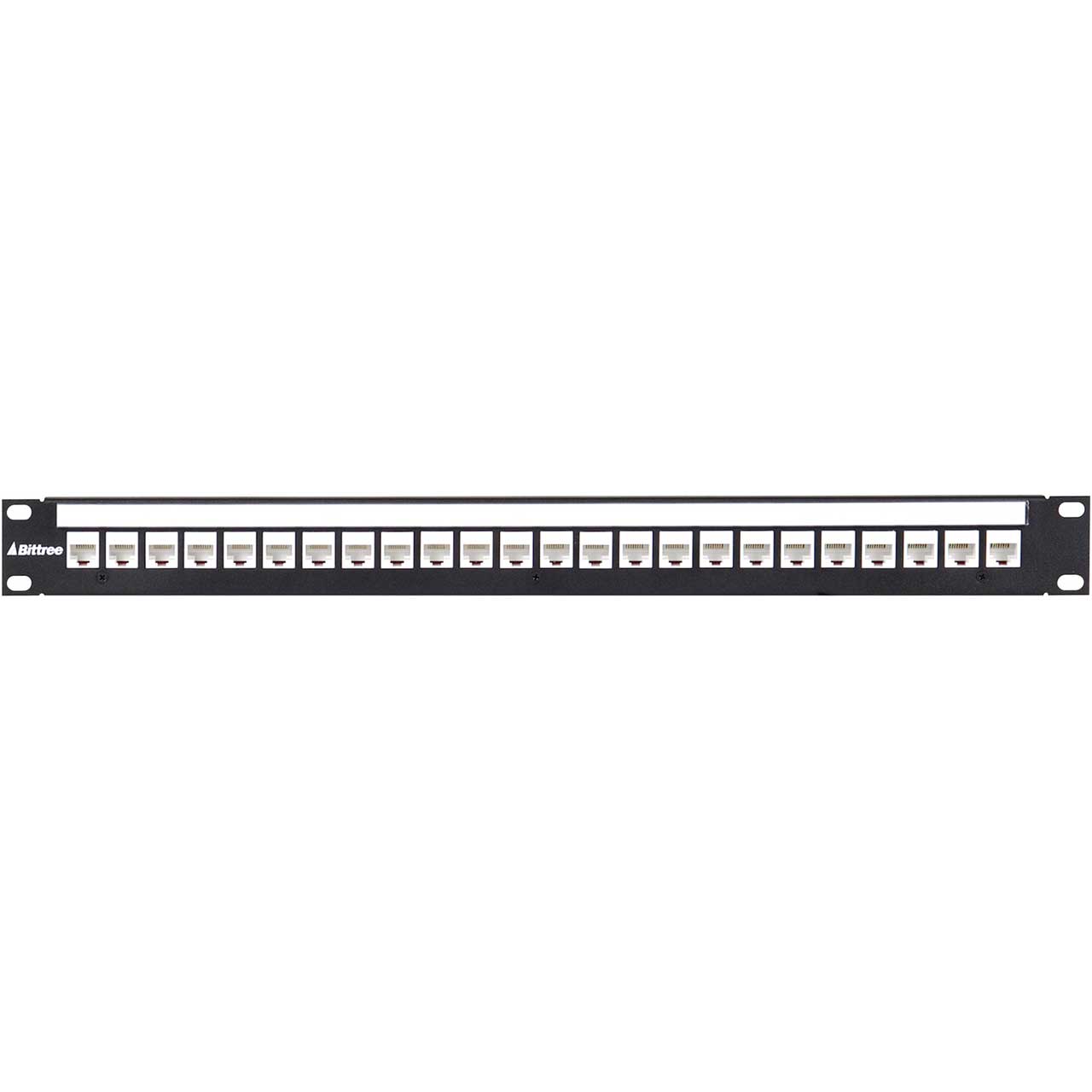

  • Keystone jacks mount flush with the surface of the panel
  • Accommodates high-density (HD) keystone inserts with up to a 17 mm width
  • Folded steel front panel with a durable black powder-coat finish
  • Nickel-plated rear panel and two 45-degree faston lugs enable bussed and bonded grounding schemes when used with shielded modular jacks

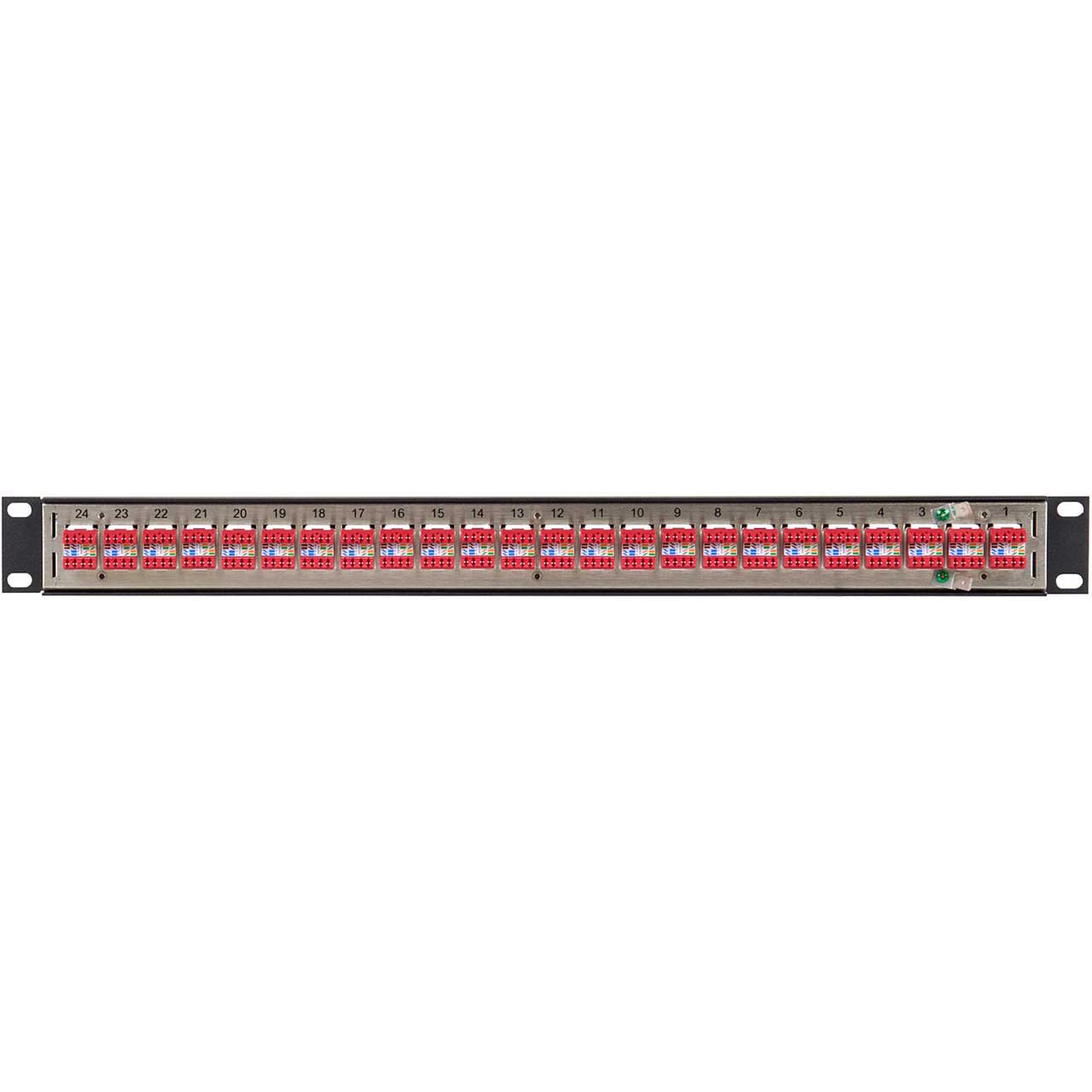

  • Silk screened circuit numbering on the rear
  • 1 x DS430-10 designation strip on the front (bar and cap design)
  • 6" (15.24 cm) deep removable rear lacing bar for cable dressing

    Compliance
  • RoHS Compliance


• Item Includes:

  • 1x Bittree DSKP124B-C6P Flush-Mount Modular Keystone Panel - CAT 6 - 110 Punchdown - Unshielded - 1x24 - 1 RU - Black
