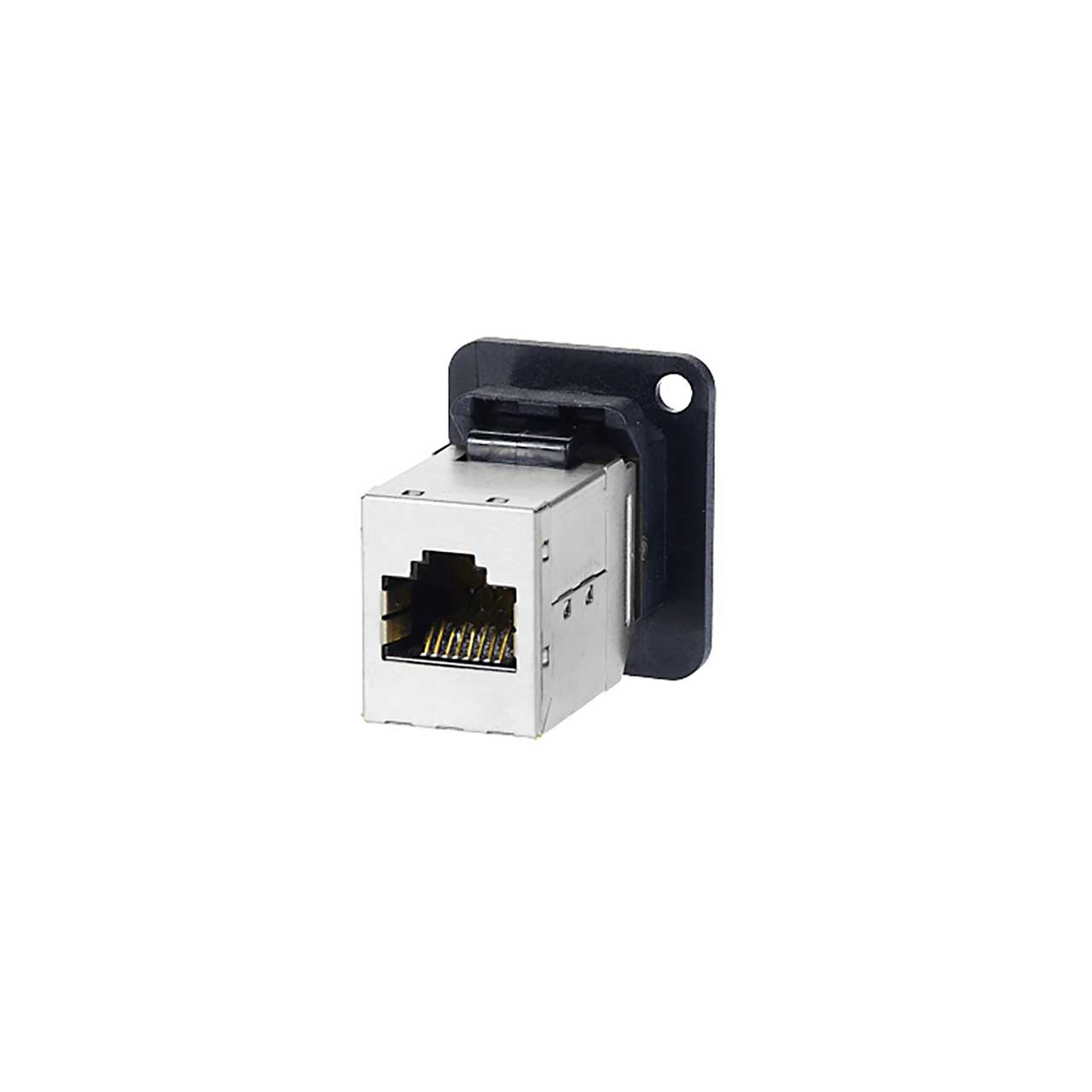

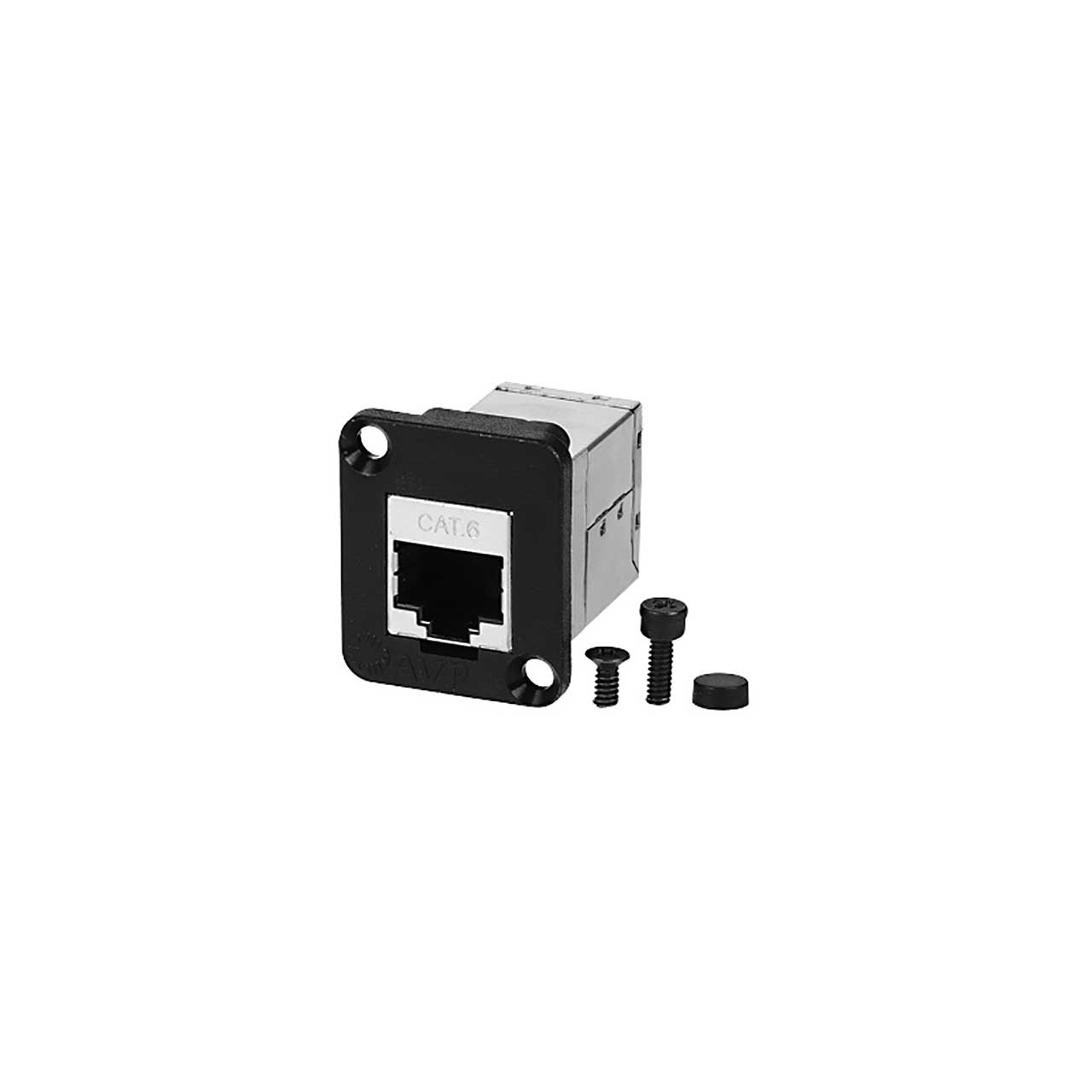

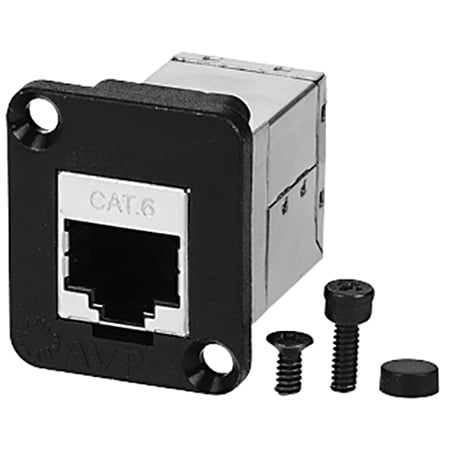

AVP UM2RJ45-6FS Maxxum Cat6 RJ45 Feedthru Female to Female Shielded

ITEM #: AVP-UM2RJ45-6FS MFG #: UM2RJ45-6FS

  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

List Price:

$9.70

Our Price:

$8.63

Availability: Typically Ships in 3-10 Days
iAvailability Description Popup


    UM2RJ45-6FS - Overview

    The UM2RJ45-6FS is a Maxxum Single D Mount AVP Premium Shielded Feedthru Universal Bulkhead Connector kit for Cat3 to Cat6A Shielded or Unshielded Applications. The Jack Shield is Nickel plated bronze, Gold plated contacts, rated 750 cycles, ANSI/TIA/EIA 568 B.2-1 Standard, Adapter Plate(s) and/or Hardware.

    • Features:

      • 50 Micro-Inch Gold plated Contacts
      • Nickel Plated Bronze Shielding
      • Fem to Fem Feedthru
      • 750 Cycles Mechanical Durability

    • Specifications:

      • Jack Housing: ABS + PC UL 94V-0
      • Contact Bracket: PC UL 94V-0
      • Nickel Plated Bronze Shield
      • Nickel plated Phosphor Bronze contacts with 50 Micro-Inch Gold plate
      • PCB FR4 UL 94V-0
      • Insertion Force: 30N Max IEC 60603-7-5
      • Retention Strength: 7.7Kg between jack and plug
      • Operating Temperature: -10°C to 60°C
      • 750 Mating Cycles Minimum
      • ANSI/TIA/EIA 568 B.2-1

    • Item Includes:

      • Maxxum Adapter Plate(s) and/or hardware
      • MIS Color-Code
      • MIS hardware

    • Warranty:

      • 5 Years
