EX-50H - Overview

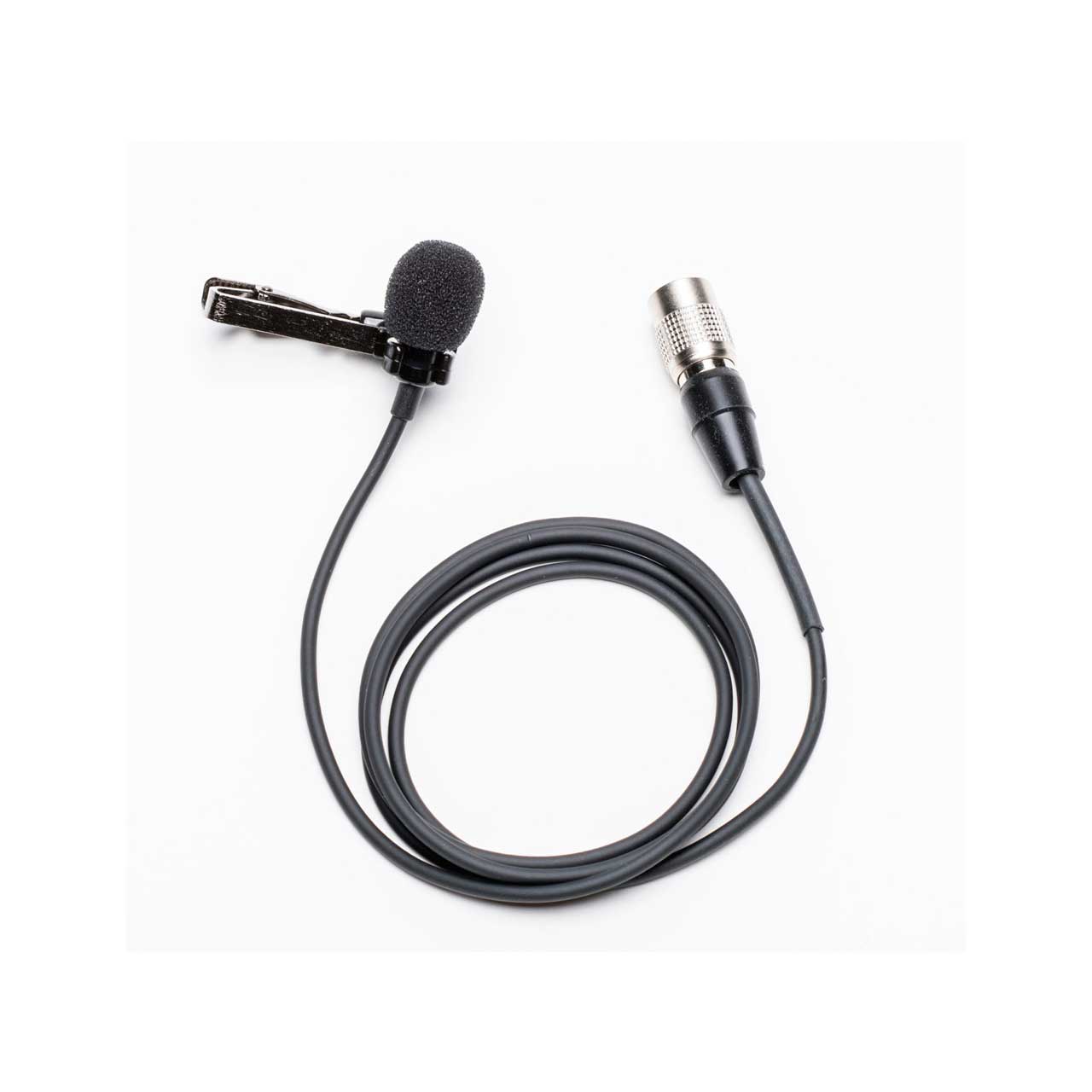

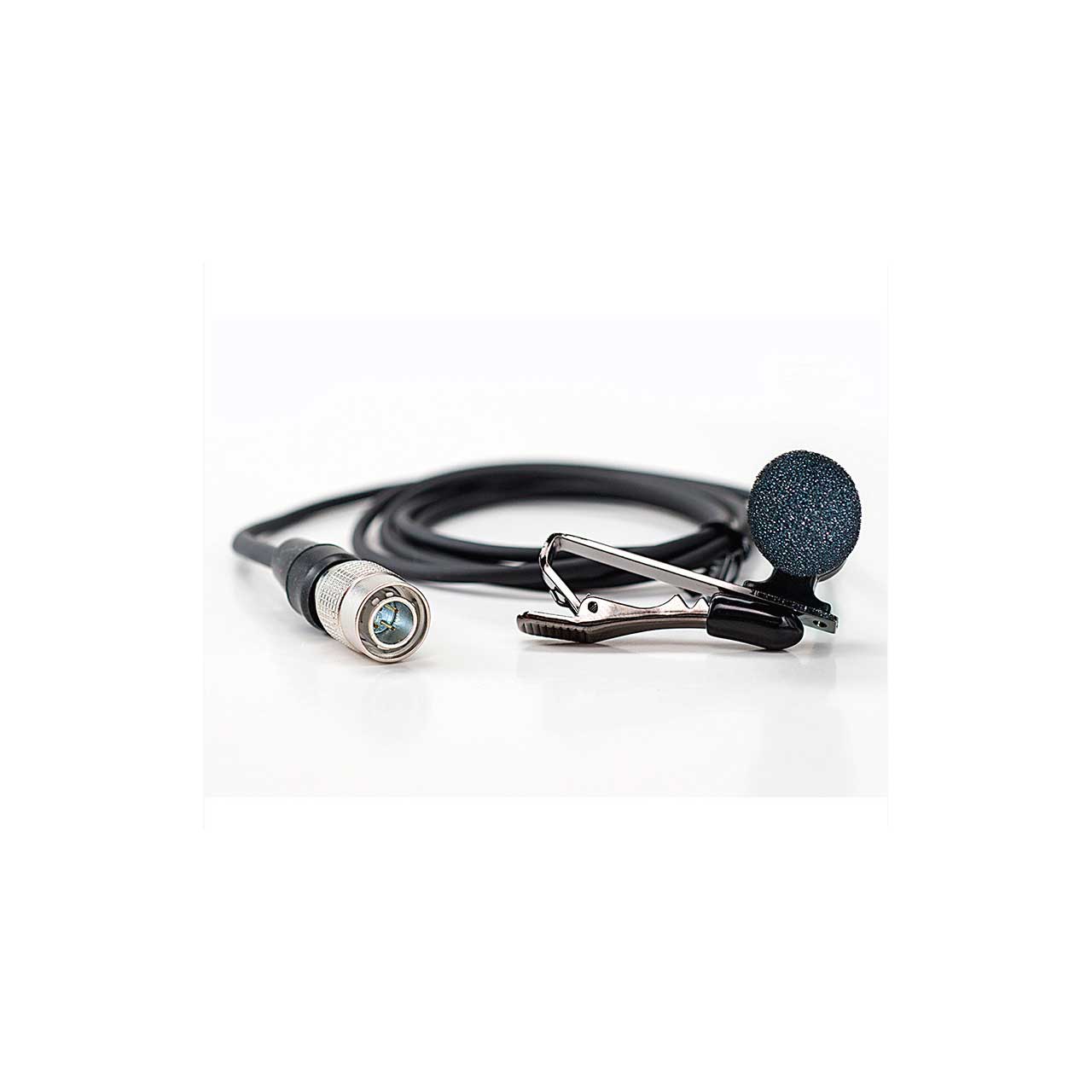

Azden's EX-50H lapel microphone is designed to improve the sound quality of any Azden wireless system. The EX-50H is fitted with a more sensitive microphone element that offers a nuanced, full bodied sound with wider response when compared to the standard lapel microphone supplied with the system. The EX-50H has a 4 pin Hirose connector and works with Azden's 1201BT & 2000BT transmitters.

  • Features:

    • High performance omni-directional lavalier
    • Electret condensor microphone
    • For use with 1201BT & 2000BT body-packs
    • 4-pin Hirose connector


  • Specifications:

    • Microphone Type: Electret condenser
    • Frequency Response: 30 to 20,000 Hz
    • Sensitivity: -43 dB @ 1 kHz (0 dB = 1 V/Pa)
    • Impedance: 2.2 kΩ
    • SPL: 100 dB
    • S/N Ratio: >50 dB
    • Power Requirement: 1 to 11 VDC
    • Power Consumption: 0.5 mA or less
    • Connector Type: 4-pin Hirose

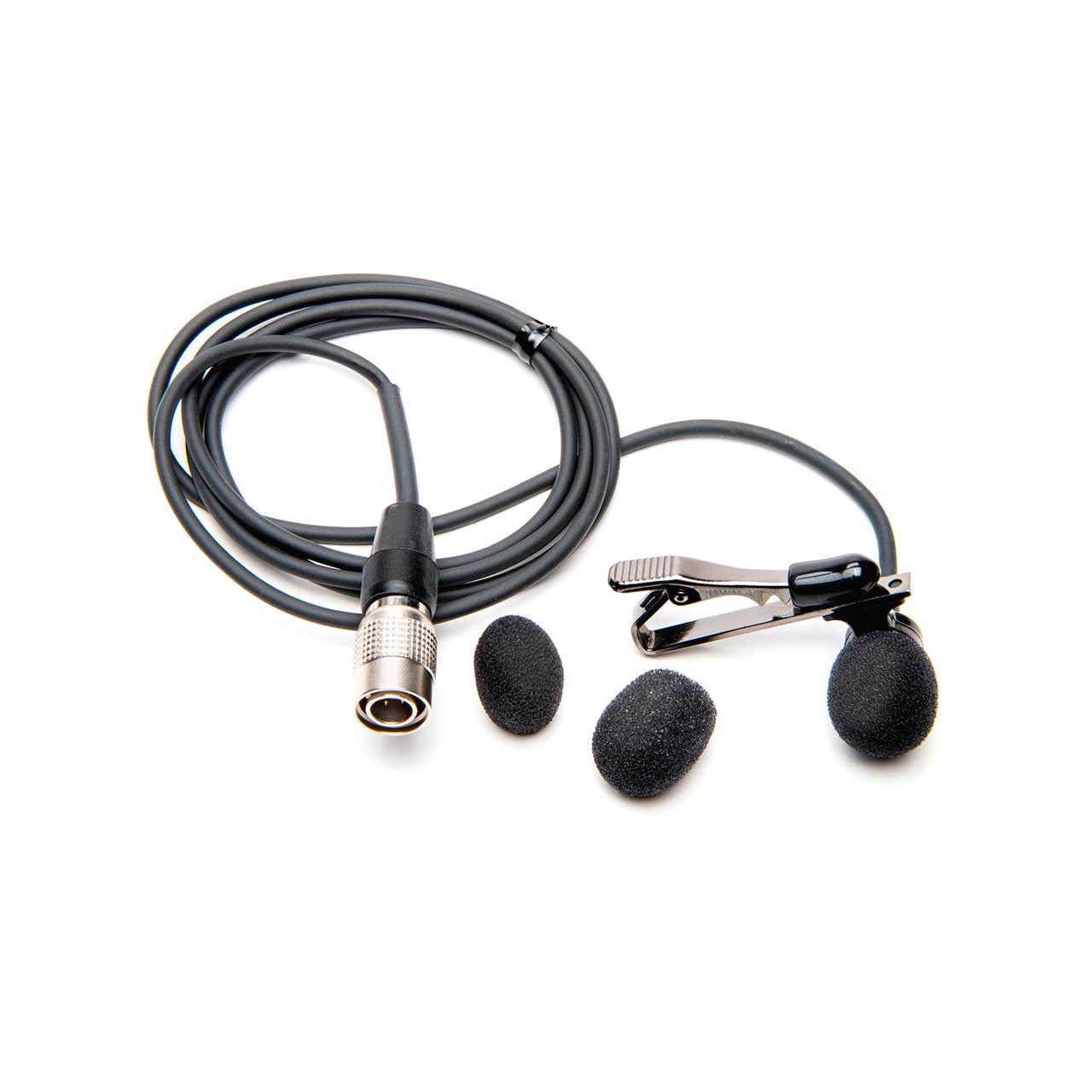

  • Item Includes:

    • Lapel Clip
    • Windscreen


  • GTIN:

    0095528080634
