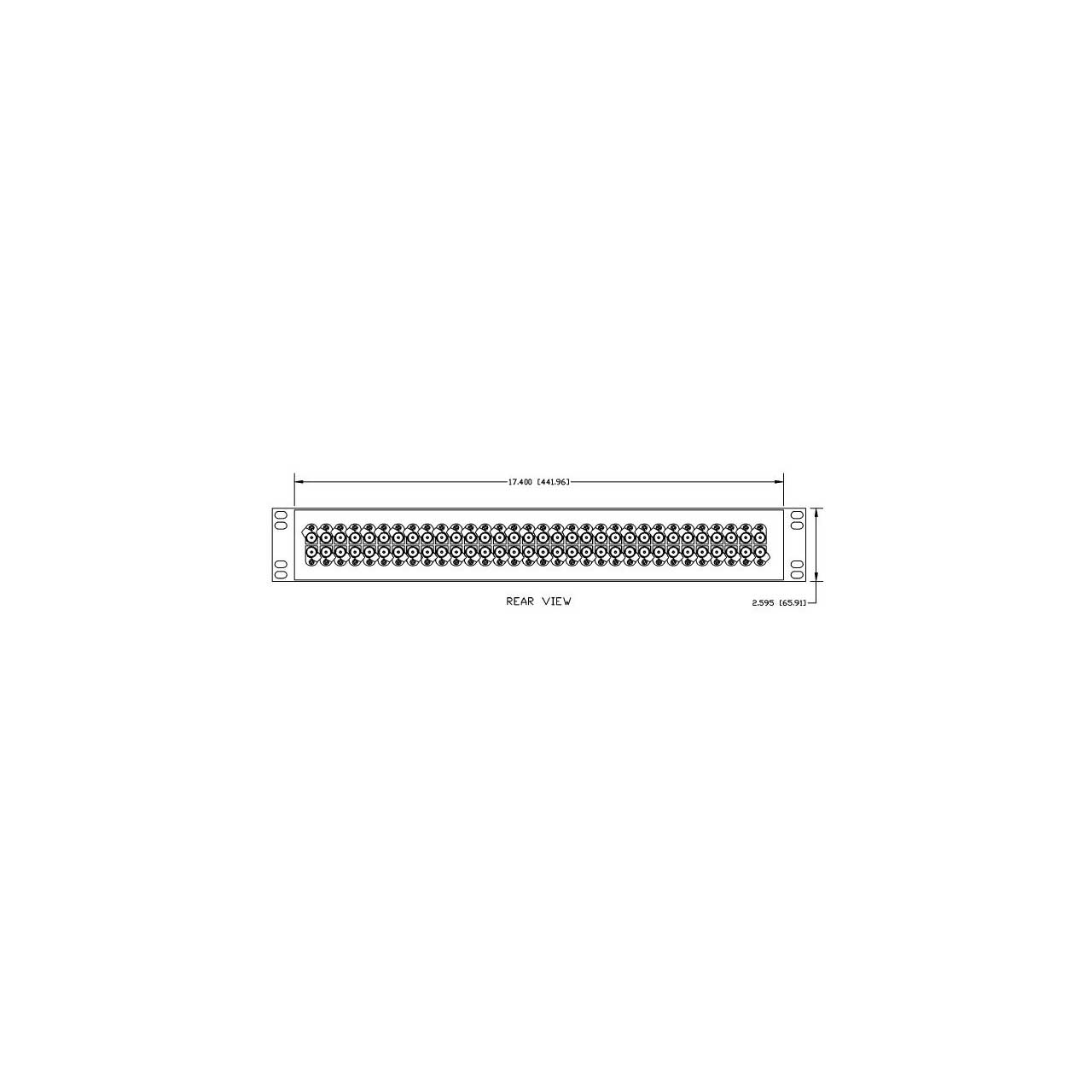

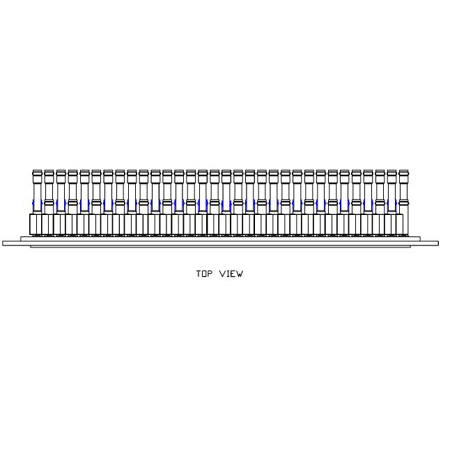

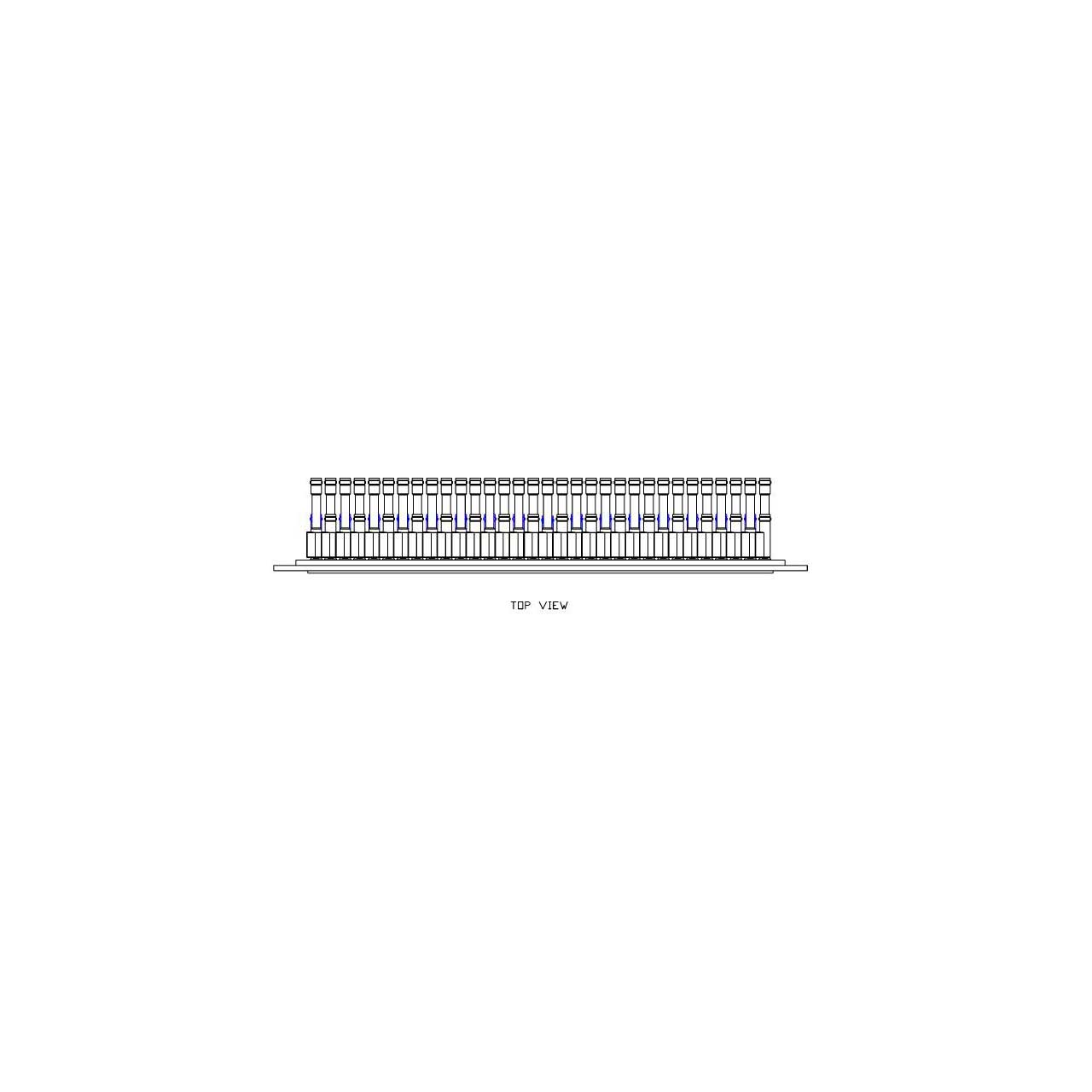

Bittree B64H-1MWTHD 2x32 1.5RU MW 3Ghz Non-Norm Patchbay - Black

B64H-1MWTHD - Overview

2x32, 1.5RU Panel, Black, Non-Normalling, Terminating

• Features:

  • High-bandwidth performance for SD/SDI, HD/SDI, and 3 Gb/s applications
  • High-density video jack count of 32 jacks per row
  • Jacks conform to SMPTE 259M, 292M and 424M
  • True 75 ohm impedance with low return loss
  • Panels made from 3/16" solid aluminum
  • Staggered BNC rear interface
  • Durable, scratch-resistant powder-coat finish
  • Jacks are isolated from the panel
  • Extra wide designation strips


• Specifications:

  • Black, 2x32, 1.5RU Panel
  • Mini-Weco High-Bandwidth (3Ghz) Video Jacks
  • Dual Body, Straight-Through Non-Normalling, with 75 Ohm Termination
  • BNC Rear Interface
  • SMPTE 259M, 292M and 424M Compliant
  • DS800-10 Designation Strips
