Belden 8241 RG59 23AWG 75 Ohm Coaxial Video Cable - Light Blue - Per Foot

ITEM #: B8241-BE MFG #: 8241 006U1000

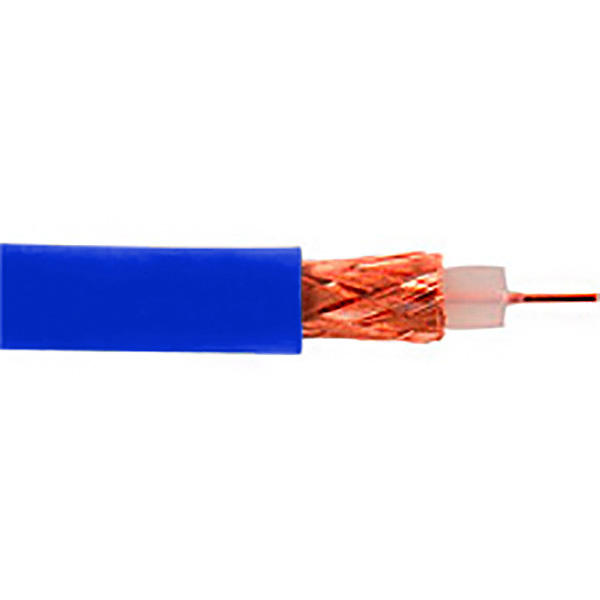

Primary Image

This item is no longer available.
Ask a Markertek Expert if you need assistance finding an appropriate substitute.

(800) 522-2025Email

Items similar to the B8241-BE

8241 006U1000 - Overview

Belden 8241 is a 23 AWG Solid .023" bare copper-covered steel conductor with polyethylene insulation, bare copper braid shield (95% coverage), and PVC jacket.

  • Specifications:

    • Nominal Characteristic Impedance: 75 Ohm
    • Conductor Count: 1
    • Conductor Size: 23 AWG
    • UL Temp Rating: 75°C
    • RG Type: 59
    • Operating Temp Range: -40°C To +75°C
    • Bulk Cable Weight: 37 lbs/1000ft
    • Max Recommended Pulling Tension: 62 lbs
    • Min Bend Radius/Minor Axis: 2.5 in
    • Nom. Conductor DCR: 49 Ohm/1000ft
    • Nom. Outer Shield DCR: 2.6 Ohm/1000ft
    • Nom. Capacitance Cond-to-Shield: 20.4 pF/ft
    • Nom. Impedence: 75 Ohm
    • Environmental Suitability: Indoor/Outdoor, Indoor
    • Sustainability: CA Prop 65
    • Flammability / Fire Resistance: UL1685 UL Loading


  • GTIN:

    0612825358039
