Kings 2065-7-9 75 Ohm BNC Connector for Belden 8241 / Standard RG59 Cables

ITEM #: 2065-7-9 MFG #: 2065-7-9

Free Shipping with Minimum Order Banner

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    2065-7-9 - Overview

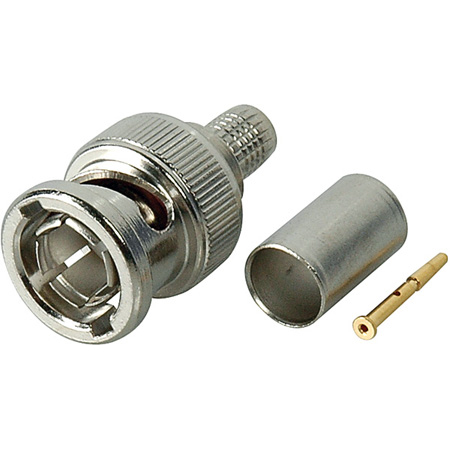

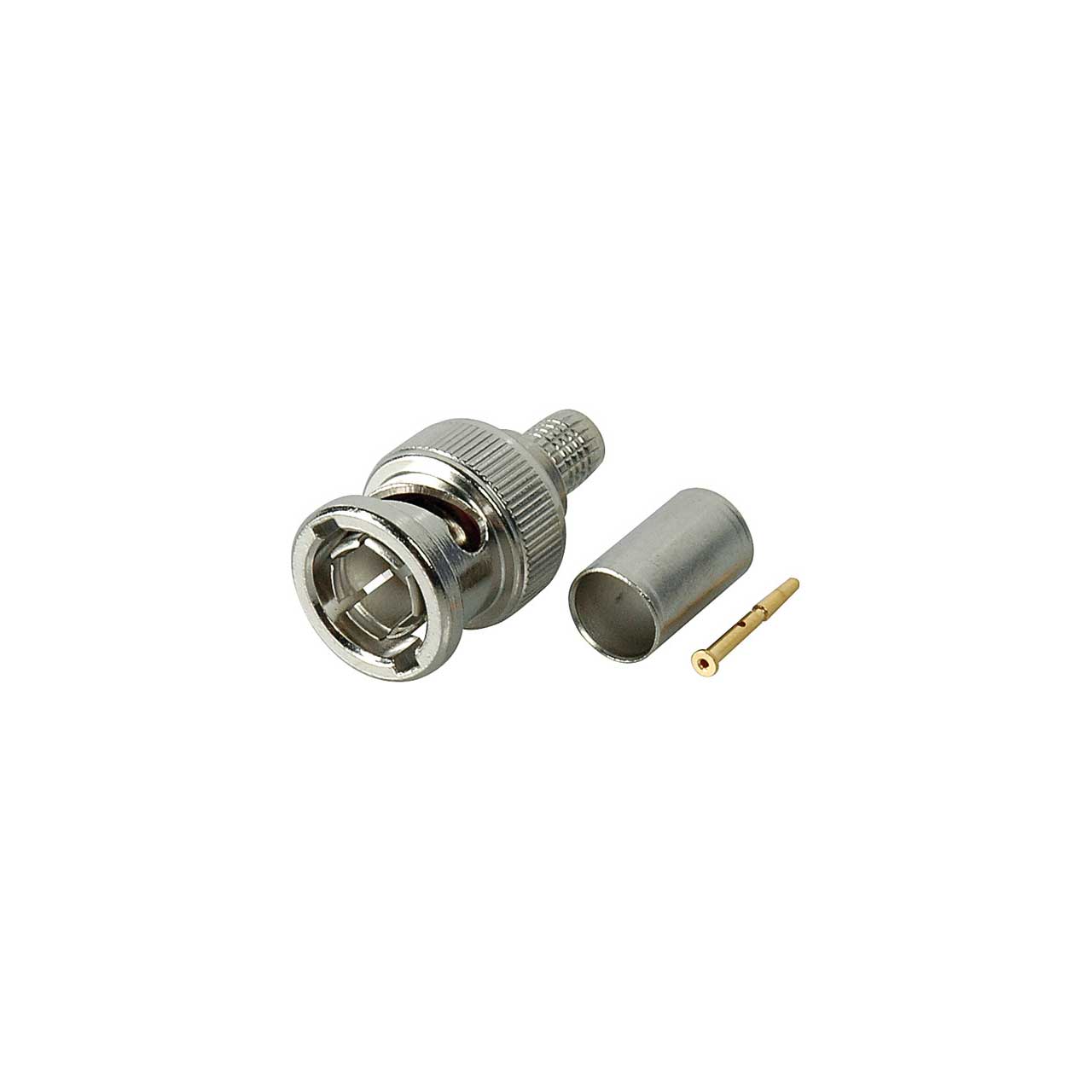

    RF BNC connectors for the most popular and widely used miniature size connectors for coaxial cables. The 2065 Series True 75 Ohm BNC connectors from Kings Electronics are ideal for Broadcast applications - meeting the industry's stringent HDTV standards. Kings 75 Ohm BNCs feature a full crimp design, and are field installable using our hand crimping tools, which were developed to perfectly fit our connector design. Kings 75 Ohm BNC connectors feature a bayonet coupling for quick connect and disconnect, and are designed to terminate to the most commonly used coaxial cables in the broadcast industry.The 2065-7-9 BNC plug with gold-plated beryllium copper was designed for use with 8421 Belden, VJ59U Gepco cables. The 2065 series connector is designed for use on both analog and digital cable. BNC series RF connector with a reduced dielectric to achieve 75 ohm nominal impedance. It will mate with 50 ohm BNC connectors with no damage.

    • Features:

      • Serial Digital 75 Ohm 500 volts RMS BNC Connectors
      • Frequency to 5 GHz
      • 500 cycles minimum
      • Full crimp design
      • Fits analog & digital cables
      • Field installable
      • Meets or exceeds HDTV standards
      • Use: KTH-5003 Die with KTH-5000 CrimpTool Frame
      • Use: KTH-2261 Crimp Die with KTH1000 Crimp Tool Frame
      • Use Gepco Cable: VJ59U
      • Use Belden 8241 and other Standard RG59 Coax
      • America's Best Source For Kings!

    2065-7-9 - Required Accessories

      2065-7-9 - Recommended Accessories
