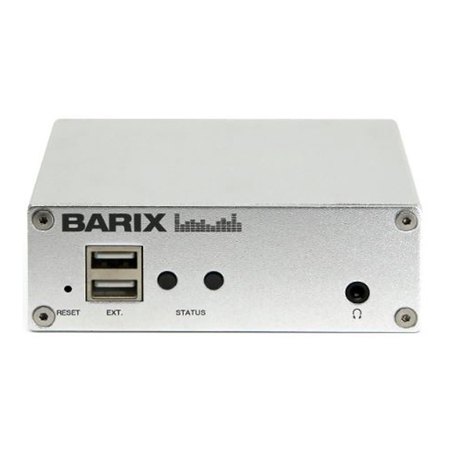

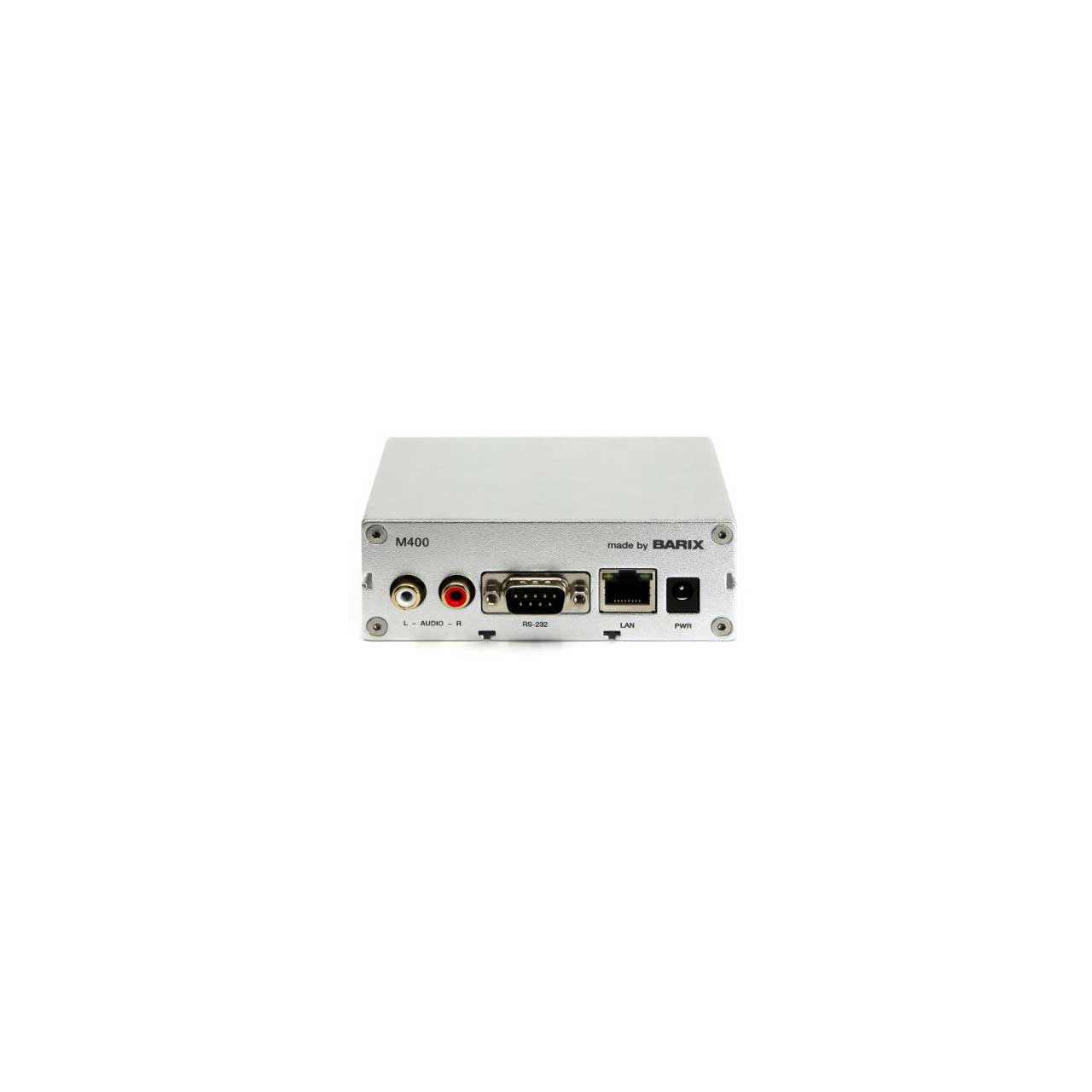

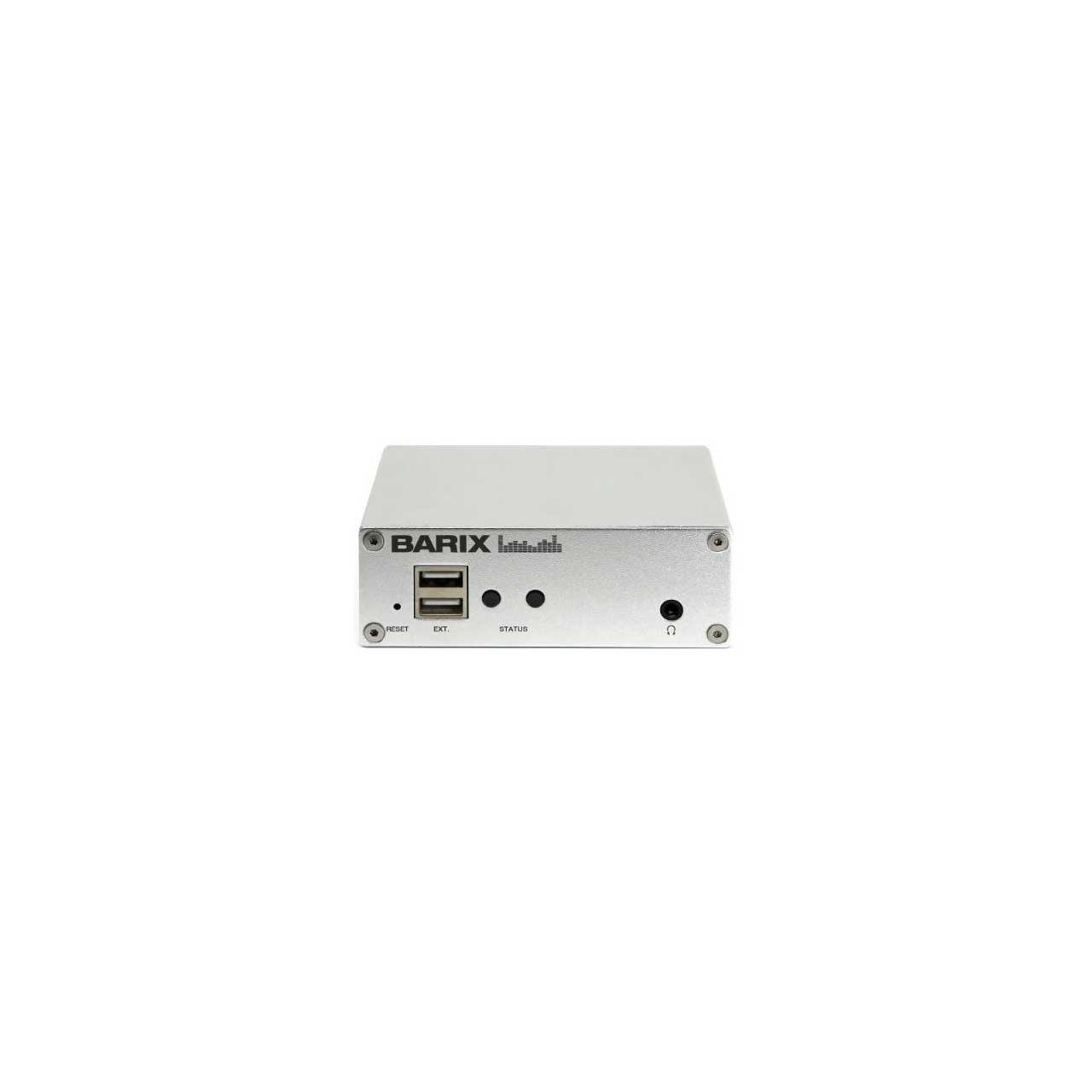

Barix Intercom Paging Gateway M400 - Bridges Smartphones/Tablets/Computers with Analog and IP Paging Systems

2021.9348P - Overview

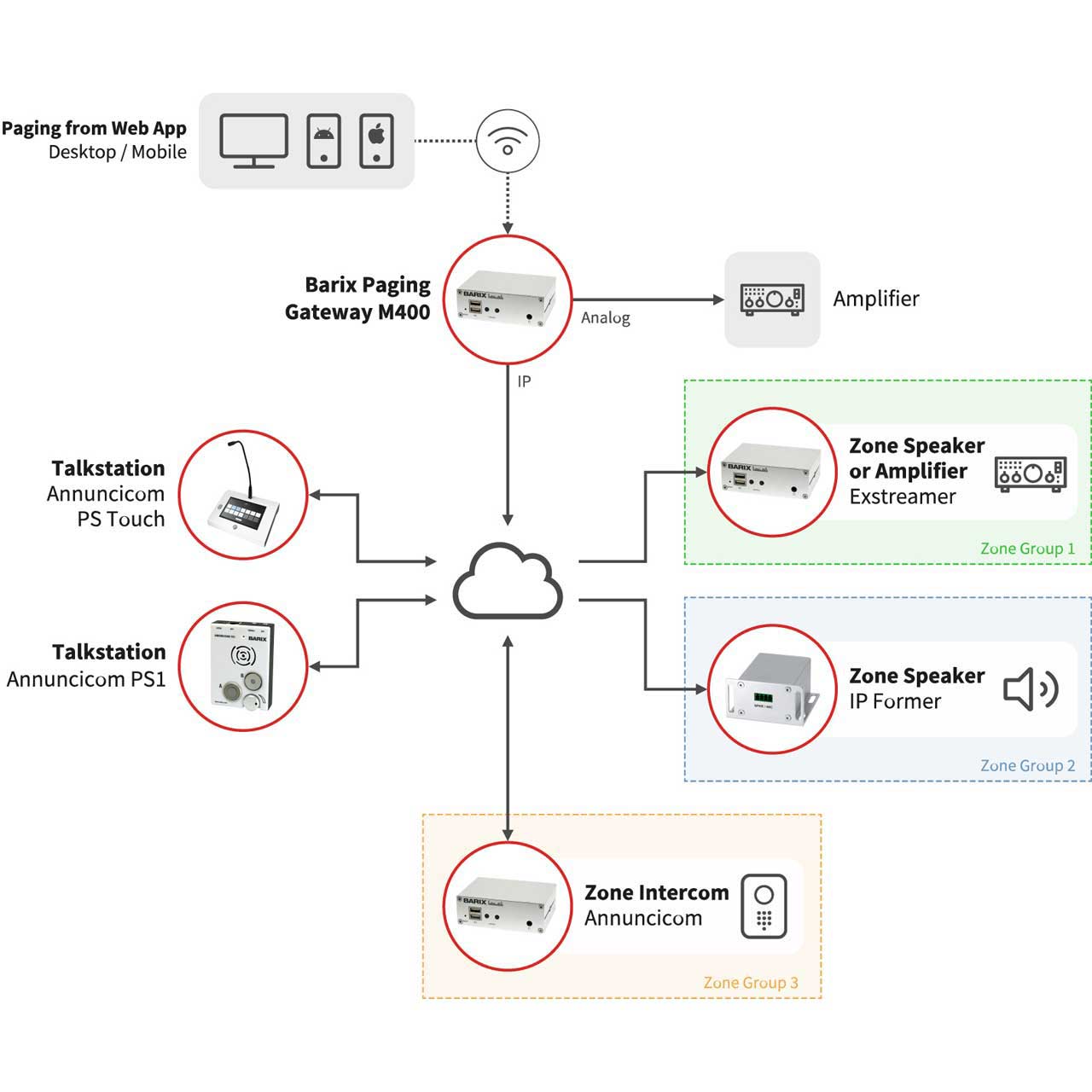

PAGING GATEWAY M400 - Bridges Smartphones, Computer and Tablet with Analog and IP Paging Systems!

• Features:

  • L-R Line Out on RCA Connectors (unbalanced)
  • Multi-level message priority
  • G.711 over RTP


• Specifications:

  • Operation System
  • Embedded Linux based on Yocto


    Network Interfaces
  • 1 x Ethernet (RJ45) Interface
  • IPv4, IPv6 capable
  • 10/100 fdx/hdx, auto negotiation
  • TCP/IP, UDP, RTP, SRTP, HTTP, HTTPS, DHCP, mDNS/DNS-SD(Avahi), NTP
  • BARP


    CPU / Memory
  • Barix IPAM400 Processor Module
  • Quad-Core ARM Cortex™ -A7
  • 2GB DDR3 SDRAM
  • 16MB SPI Flash
  • 8GB SD-Card Flash


    Audio Formats
  • G.711 (uLaw/aLaw), 8kHz and 24kHz


    Audio Interface
  • Unbalanced L-R Line level output on RCA connectors
  • Headphone connector on the front panel


    User Interface
  • Mobile Paging Web App
  • Web interface for configuration
  • 2 x Multicolor LED Status indicators
  • Reset & Factory Defaults Button


    Power Requirements
  • 5VDC, 10W maximum on 6.5x1.5mm barrel connector (positive polarity)


    MTBF
  • > 200'000h


    Measurement
  • 108x38x78.7mm (4.25x1.5x3.1 inch)


    Weight
  • 250g

    Operating Environment
  • 0 to +50°C / 32 to 122°F
  • 0 - 70% relative humidity, non-condensing


    Storage Conditions
  • -20 to +70°C / -4 to 158°F
  • 0 - 70% relative humidity, non-condensing


    Certifications
  • CE, RoHS, FCC


• Item Includes:

  • 1x 2021.9348P Paging Gateway M400


• Warranty:

  • 2-Year
