    FSII-TCVR-19-US - Overview

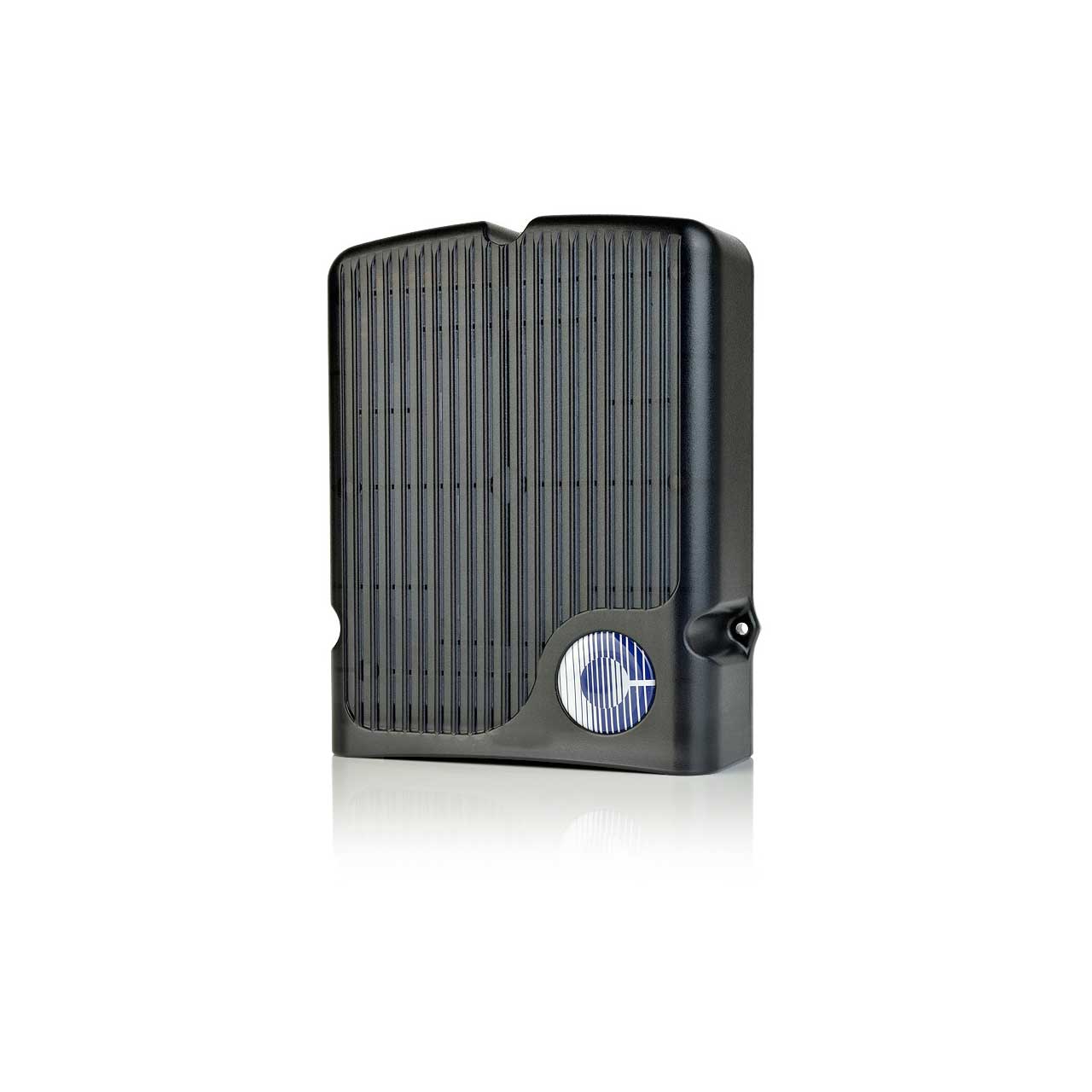

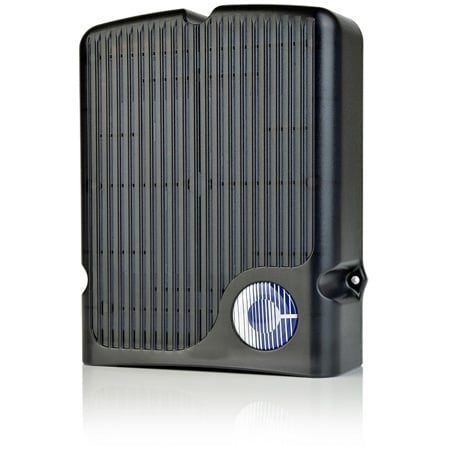

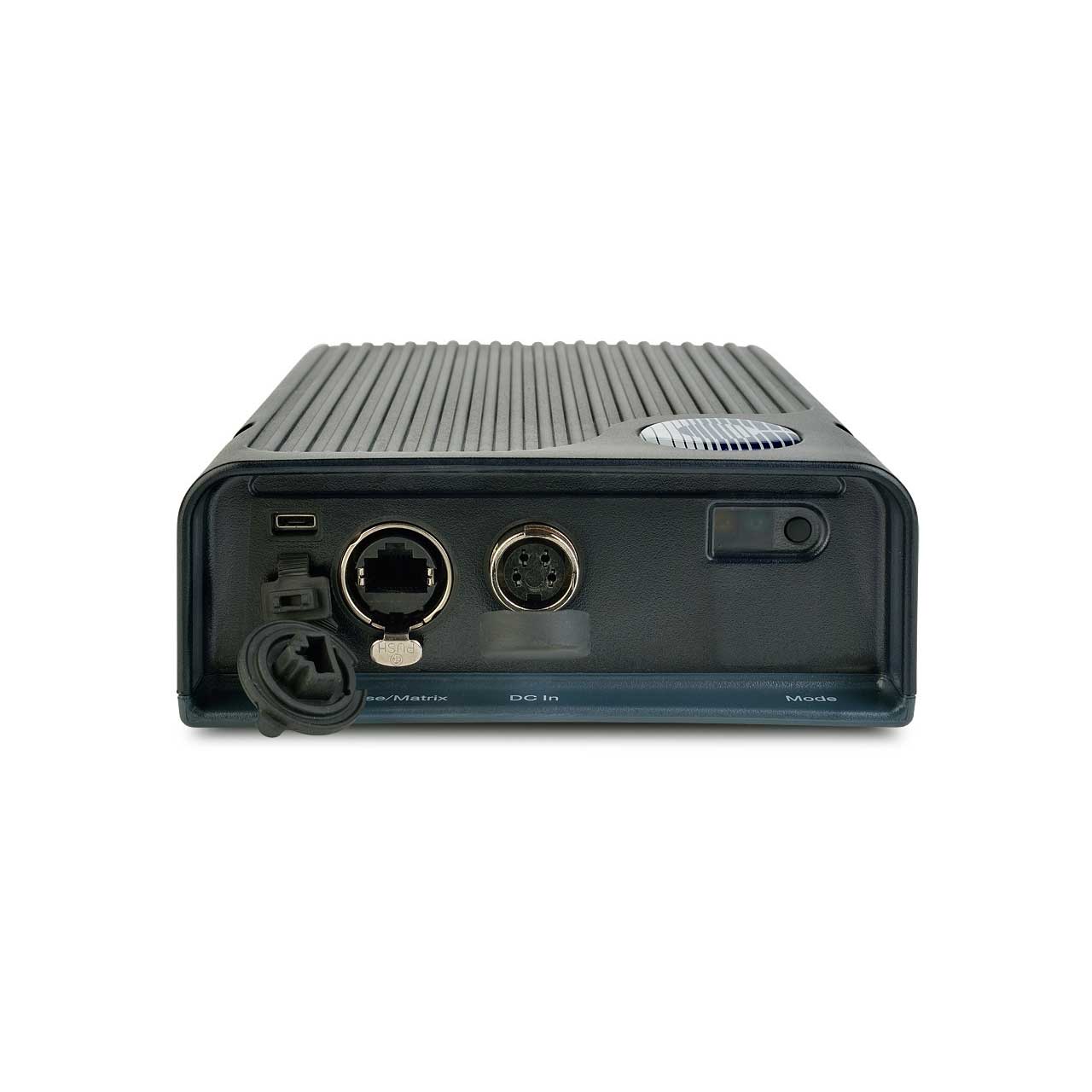

    The ClearCom FreeSpeak II FSII-TCVR-19 is an active transceiver antenna for the FSII-BP19 beltpacks. FreeSpeak II is a high performance wireless solution operating in the 1.9 and 2.4 GHz frequency bands designed for extensive communication in large-scale operations. This antenna can be locally powered or powered via the FSII base station or matrix on shorter connections (less than 1000 ft). The FSII-TCVR-19 has a mount options for both wall or a microphone stand. A green status light is visible from either mounting orientations. When mixed with FSII-TCVR-24 antennas (sold separately), a single radio space can support up to 65-90 FreeSpeak II 1.9 GHz or 2.4 GHz beltpacks. The FSII-TCVR-19 is IP53 rated for wet weather or dusty conditions making them ideal for outdoor productions.

    A Clear-Com FreeSpeak II (FS II) system consists of five main elements all sold separately:
    The Base station (FSII-BASE) that routes communication to and from the beltpacks and other audio devices.
    Antennas like this one (FSII-TCVR-19, FSII-TCVR-24) that provide coverage zones in which the beltpacks operate.
    Wireless beltpacks (FSII-BP-19, FSII-BP-24).
    Optional antenna splitters (FSII-SPL) that run up to 5 separate antennas.
    Suitable headsets such as the Clear-Com CC-300-X4.

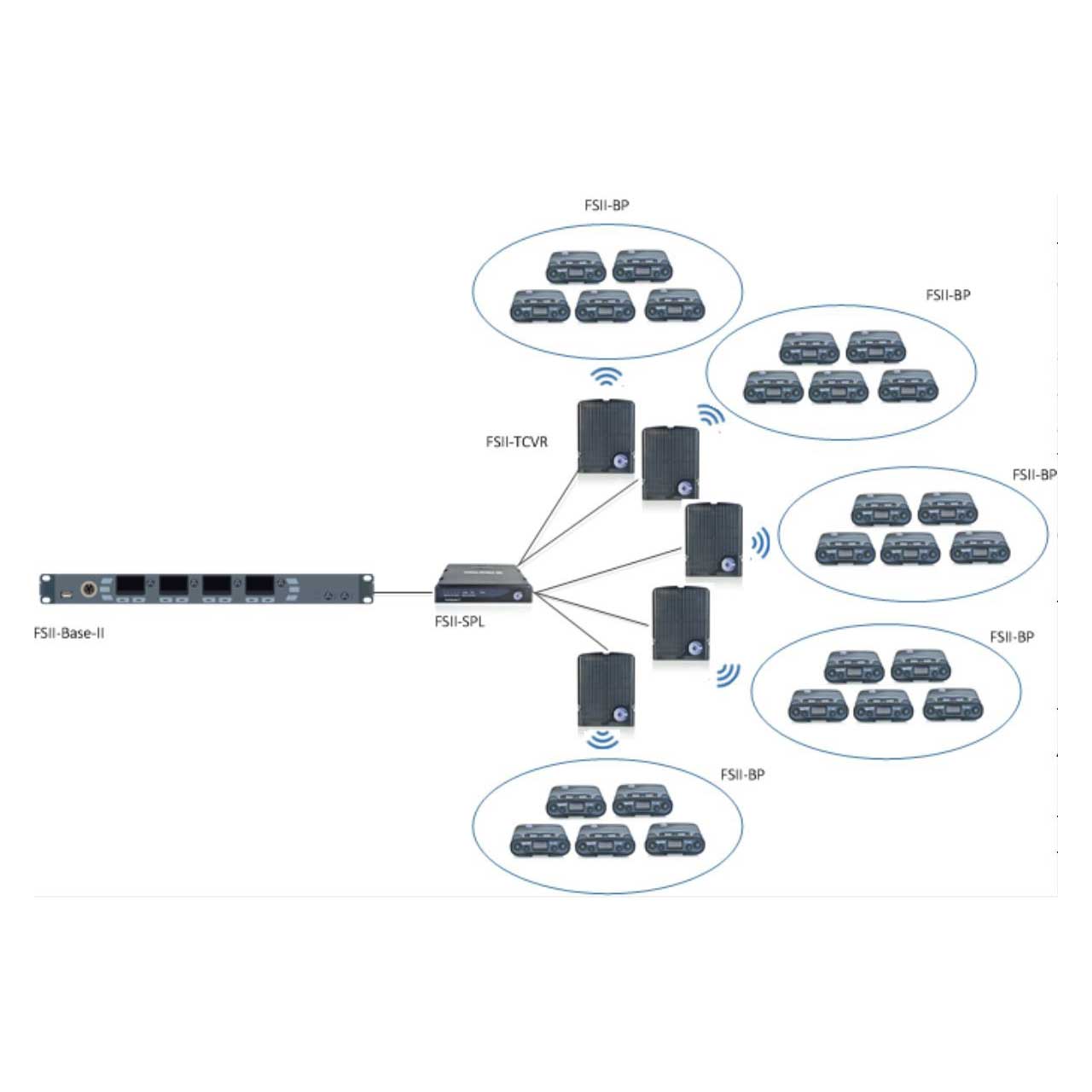

    PLEASE NOTE: This item is just one component of a larger system. Please refer to the diagram for ideas and recommendations for your Clear-Com intercom system.

    • Features:

      • Supports 5 FSII-BP19 beltpacks (sold separately) per FSII-TCVR-19 transceiver
      • Supports systems with up to 65-90 beltpacks when mixed with FSII-24-TCVRs (sold separately)
      • Green LED status indicator on top and bottom

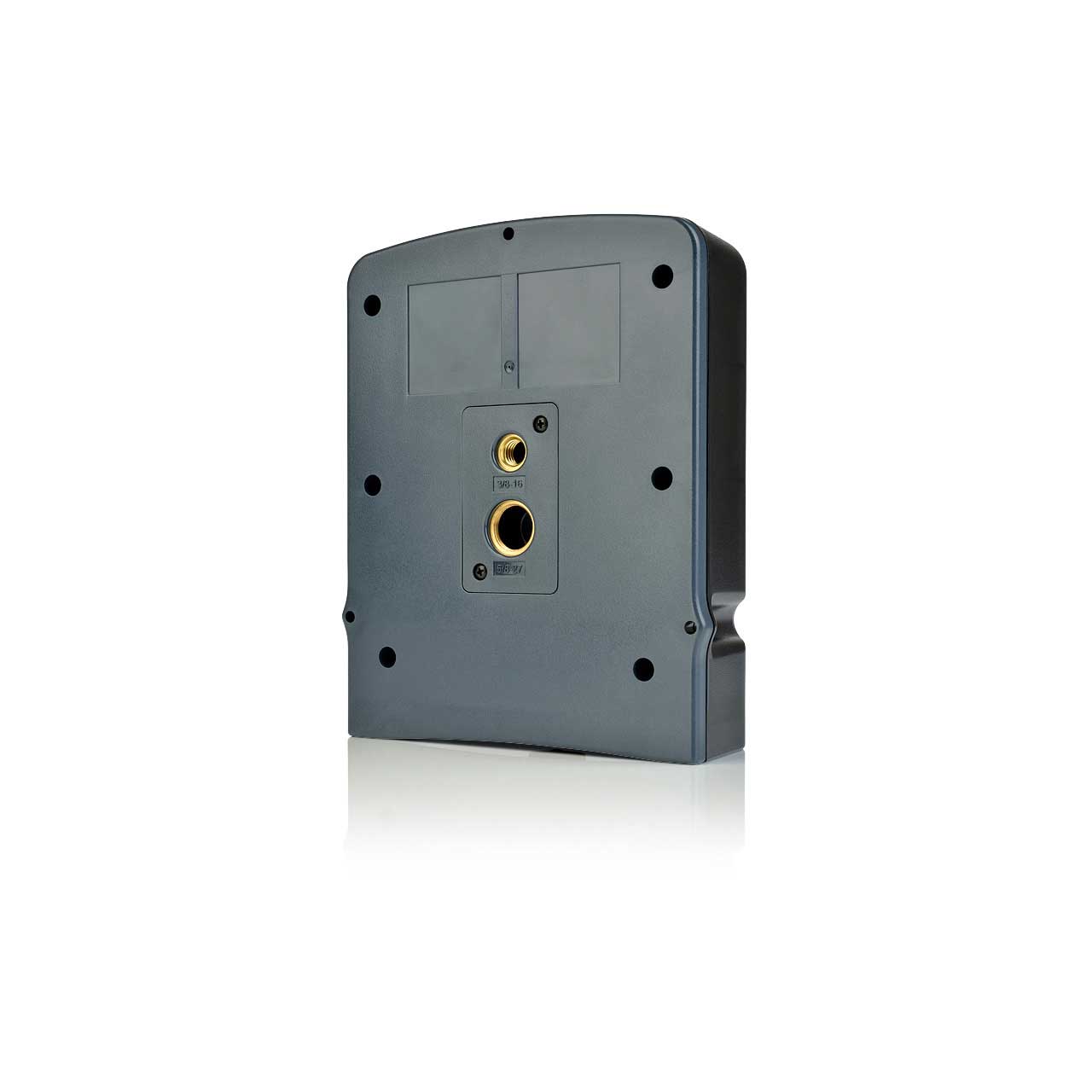

      • Mic stand or wall mount orientation (metric and imperial threads)
      • IP53 rating for wet and dusty conditions
      • Uses existing FSII base, E-QUE-HX cards, and FSII splitter hardware

    • Specifications:

      • Frequency Spectrum
      • USA, Canada, Mexico: 1920-1930MHz (5 Channels)
      • Transceiver Range Output Power: 100mW

      • EU, Russia, Singapore, Hong Kong, Australia, New Zealand, South Africa:
      • 1880-1900MHz (5 Channels)
      • Transceiver Range Output Power: 250mW

      • Japan: 1893-1906MHz (2 Channels)
      • Transceiver Range Output Power: 250mW
      • Argentina, Bahamas: 1910-1930MHz (10 Channels)
      • Transceiver Range Output Power: 250mW

      • Brazil: 1910-1930MHz (5 Channels)
      • Transceiver Range Output Power: 250mW

      • Chile: 1910-1930MHz (5 Channels)
      • Transceiver Range Output Power: 70mW

      • Taiwan: 1880-1895MHz (8 Channels)
      • Transceiver Range Output Power: 250mW
      • Modulation: GFSK, TDMA frame 10ms Full and Long slot

      • Output: (EU/Russia) 10dBm average, (US): 18-20dBm

        Environmental
      • IP53 water and dust resistance
      • Operating: 32§-125§F (0§-50§C)
      • Storage: 32§-150§F (0§-70§C)
      • Humidity: Between 20% and 90%, Non-Condensing

    • GTIN:

      0609385892011
