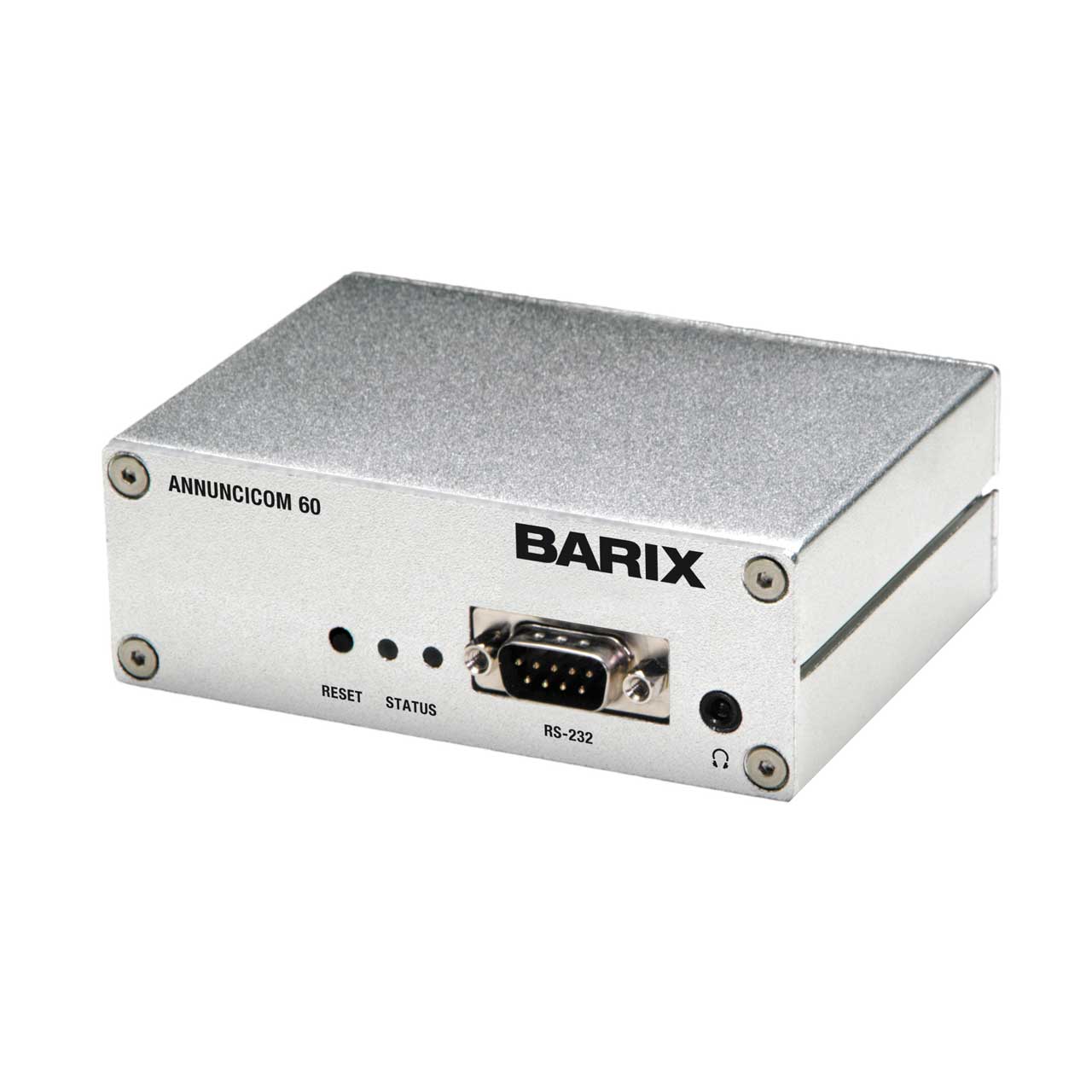

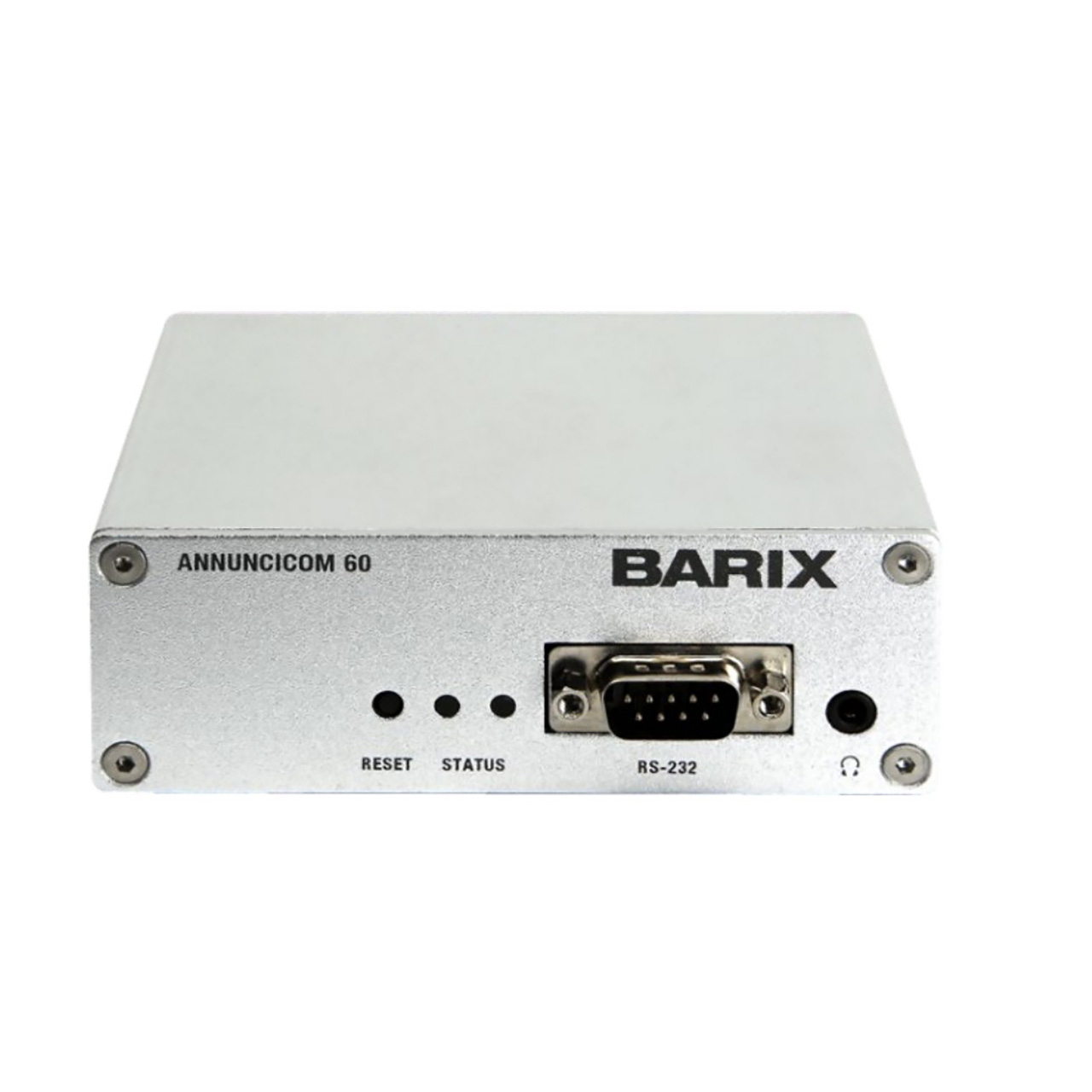

Barix Annuncicom 60 IP Paging and Intercom Device

2012.912 - Overview

Annuncicom 60 IP Paging and Intercom Device

• Features:

  • MP3, G.711, G.722, PCM Encoding
  • AACplus, MP3, Ogg Vorbis, G.711, G.722, PCM Decoding
  • Shoutcast/Icecast Source capability
  • Audio Level Supervision with SNMP Trap generation
  • IP Streaming via TCP, UDP, RTP, Multicast
  • Microphone/ Line Level Input
  • Line Level Output (balanced)
  • Amplified Output 5W (8Ohm)
  • Contact Closure Input (1)
  • RS-232 Serial Port
  • Power over Ethernet (PoE)


• Specifications:

  Electrical
  • 802.3af PoE on RJ-45 connector
  • 48V DC nomimal, 12 Watt max.

    Ethernet
  • 10/100Mbps auto rate, full/half duplex
  • RJ-45 connector with integrated Link/Activity LED
  • 802.3af PoE support
  • Protocols: TCP/IP, UDP, RTP, DHCP, Multicast capable

    Audio Input
  • Characteristics/mode selectable by software:
    - "Mic" Mode: tba, bias power for electret microphone supplied
    - "Line" Mode: 2kU input impedance
  • 3.9 VPP max, adjustable in sensitivity
  • Frequency Response: 20Hz - 18kHz (-3dB)*
  • Dynamic Range: 87dB, SNR -87dB, THD <0.1% (-3dBFS)*

    Mechanical
  • Aluminum case, 280g
  • Dimensions: 4.25" x 1.5" x 3.1" (108mm x 38mm x 78.7mm)
  • rack and wall mountable using optional accessories

    MTBF
  • min. 500 000h (according to MIL217F at 25°C)

    Analog Line Output (mono)
  • Transformer isolated, balanced (600 U)
  • Output level software controllable
  • Full scale output voltage: 5.7 dBu, 4.2 VPP, 4.7 dBm @ 600 U
  • Frequency Response: 30Hz - 18kHz (-3dB)*
  • Dynamic Range: 88dB, SNR -88dB, THD
  • (-3dBFS)*

    Speaker Out
  • Suggested speaker impedance 8U (min.)
  • 5 Watt max output power @ 8U
  • Values @ 8U:
  • Frequency Response: 25Hz - 12kHz (-3dB)*,
  • Dynamic Range: tba, SNR tba, THD <1% (-3dBFS)*

    RS-232 Interface
  • On 9-pin Sub-D connector, male
  • 5-wire ( Tx,Rx,RTS,CTS)
  • 300..230`400 Baud asynchronous, tunneling or local
  • control

    Supported Audio formats
  • PCM, G.711, G.722, MP3 encode/decode
  • AAC+ decode
  • PCM 16 bit and 8 bit (uLaw, aLaw) @ 8..48 kHz

    Discrete I/O (Contact Closure Input)
  • 1 discrete / dry contact input
  • depends on used codec, best results @48kHz PCM


• Item Includes:

  • Annuncicom 60, 8-pin screw block terminal,


• GTIN:

  7640113551209
