Black Box AMS9205A KVM Extender - DisplayPort 1.2 4K60 USB HID USB 2.0 Serial Audio Single-Mode Fiber
  • Black Box AMS9205A KVM Extender - DisplayPort 1.2 4K60 USB HID USB 2.0 Serial Audio Single-Mode Fiber
  • Black Box AMS9205A KVM Extender - DisplayPort 1.2 4K60 USB HID USB 2.0 Serial Audio Single-Mode Fiber
  • Black Box AMS9205A KVM Extender - DisplayPort 1.2 4K60 USB HID USB 2.0 Serial Audio Single-Mode Fiber

Questions? Ask a Markertek Expert:
800-522-2025 Email

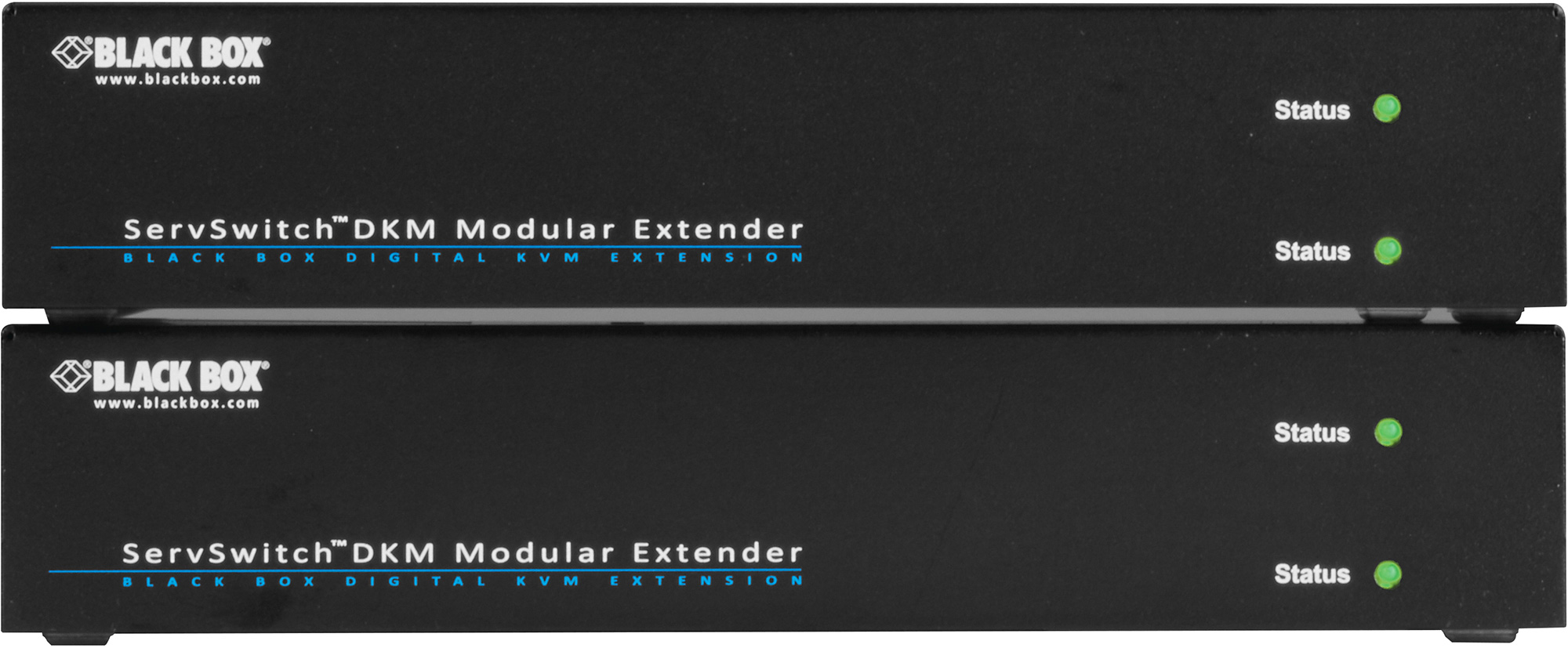

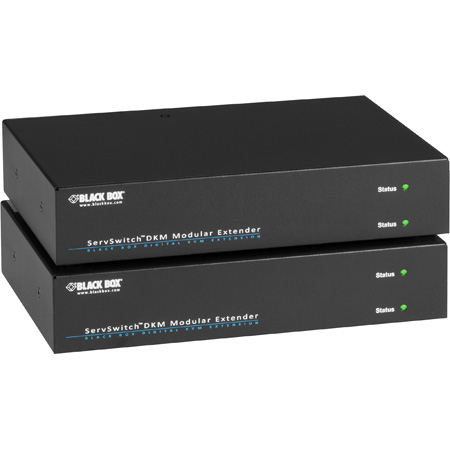

Black Box AMS9205A KVM Extender - DisplayPort 1.2 4K60 USB HID USB 2.0 Serial Audio Single-Mode Fiber

Manufacturer: Black Box

Item #: BBX-AMS9205A   •   MFG #: AMS9205A




Our Price:$6,984.96

free ship


Availability: Usually ships in 3-10 business days
i
This item is currently out of stock and will ship the minute we receive it – typically 3-10 business days. Need it sooner? Expedited delivery options may be available. Email [email protected] or call customer service at 800-522-2025 and we'll make it happen.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    The Black Box AMS9205A DKM FX Fiber Extender Kit is comprised of 2 modular housing chassis with 2 slots and transmitter and receiver interface cards. The DKM FX extender setup provides the widest range of possible combinations, which makes it easy to customize for your specific application.

    These DKM FX components are part of a modular system. You will need to contact Black Box to have them assembled to fit your application. To configure your DKM FX HD Video and Peripheral Matrix Switch setup, call their free Tech Support.


    • Features

      • Part of the DKM FX HD Video and Peripheral Matrix Switch System of transmitter and receiver interface cards and housings
      • Supports integrated DisplayPort digital audio
      • Supports USB HID signals
      • Supports resolutions up to 4K at 60 Hz, including 4096 x 2160 and 3840 x 2160

    • Specifications

      • Connectors: TX: (1) IEC 320, (1) DisplayPort, (1) USB HID Type B HID, (1) USB 2.0 Type B, (2) 3.5mm Audio, (1) DB9 F; RX: (1) IEC 320, (1) DisplayPort, (2) USB HID Type A HID, (2) USB 2.0 Type A, (2) 3.5mm Audio, (1) DB9 M
      • Dimensions(H x W x D): 1.7 in x 8.75 in x 5.75 in (4.3 x 22.2 x 14.6 cm)
      • Distance:32,800 ft (10,000 m) using singlemode 9 µm (OM3) cable 3280 ft (1000 m) using multimode 50 µm (OM3) cable 1300 ft (400 m) using multimode 50 µm cable 650 ft (200 m) using multimode 62.5 µm cable
      • MTBF: 400,000 hours
      • Operating Humidity: 20 to 90%, non-condensing
      • Operating Temperature: -4°F to 158°F (-20°C to 70°C)
      • Power Consumption: 15 W
      • Power Input: 100-240 VAC, 50/60 Hz, 0.7 Amp
      • Power Output: 5 VDC, 3 Amp
      • Storage Temperature: -40°F to 185°F (-40°C to 85° C)

    • Item Includes

      • DKM FX Extender Modular Housing, 2-Slot Chassis (ACXMODH2R-P-R2)
      • DKM FX Transmitter Modular Interface Card (ACX2MT-DP4KHS-SM)
      • DKM FX Transmitter Modular Interface Card (ACX1MT-ARE)
      • DKM FX Receiver Modular Interface Card (ACX2MR-DP4KHS-SM)
