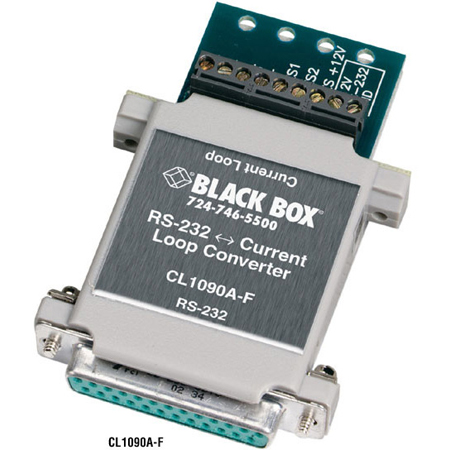

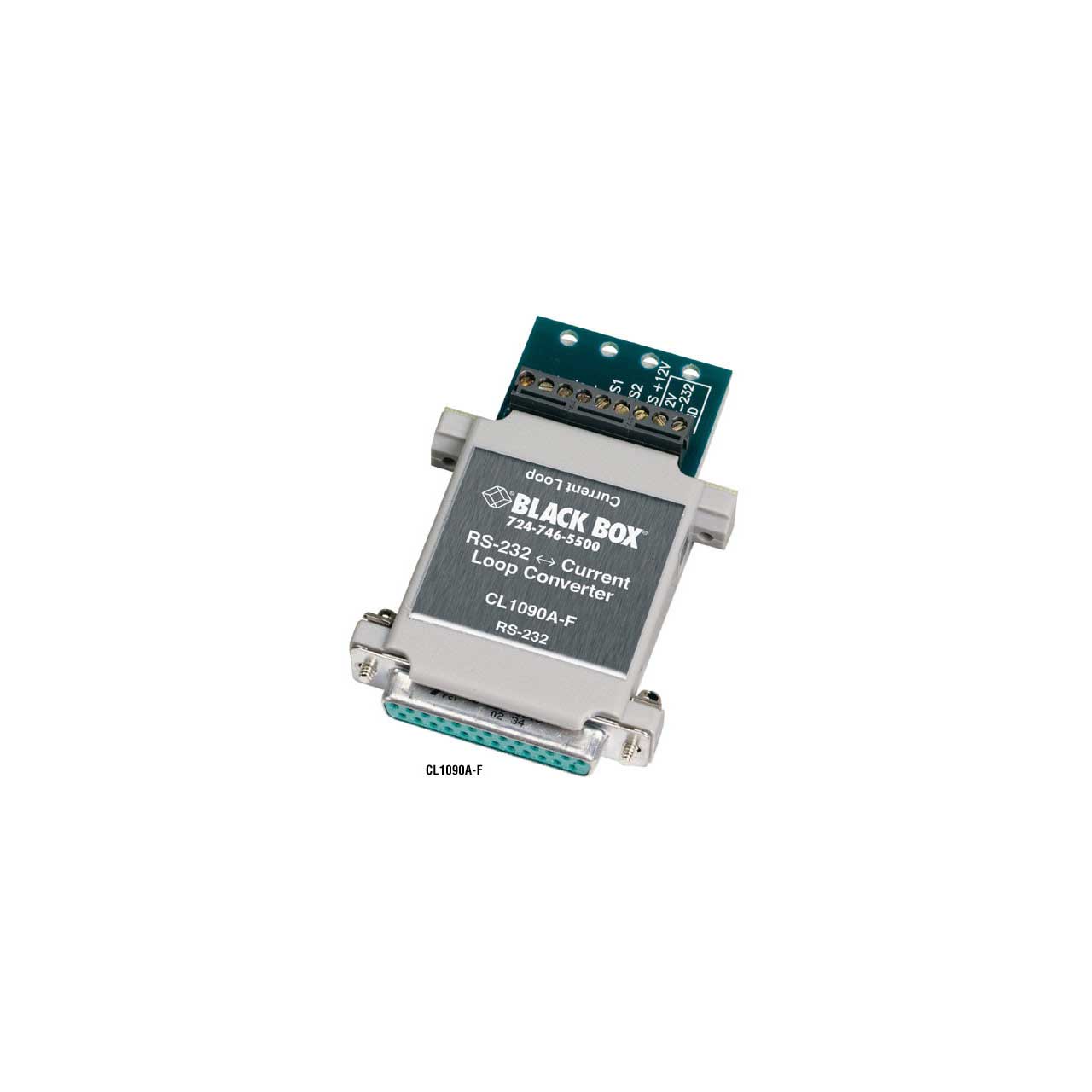

Black Box CL1090A-F RS232 to Current Loop Converter - DB25 Female to Terminal Block

ITEM #: BBX-CL1090A-F MFG #: CL1090A-F

Primary Image
Free Shipping with $49 Minimum Order

List Price:


Our Price:


Availability: Typically Ships in 3-10 Business Days
iAvailability Description Popup

    CL1090A-F - Overview

    Black Box CL1090A-F converters can be configured for active or passive Current Loop. In active mode, an async RS-232 device can communicate with a passive 20-mA Current Loop device. In passive mode, an async RS-232 device can communicate with an active 20-mA Current Loop device.

    These compact solutions are configured as RS-232 (DCE), but they can be modified for DTE use with an asynchronous modem eliminator (ME212).

    Each converter has a Transmit (T+ and T-) and a Receive (R+ and R-) loop. Optical isolators in both the transmit and receive loops keep out electrical interference and eliminate ground loops.

    • Features:

      • Bidirectional conversion of RS-232 to 20-mA Current Loop.
      • Active or passive operation.
      • Features Optical isolation.
      • Compact size.
    • Specifications:

      • Operation: Active or passive unipolar 20-mA Current Loop
      • Power: From the interface or optional power supply (PS1003-R2, not included)
    • Warranty:

      • 1 Year Double Diamond Warranty (Standard)
    • GTIN:
