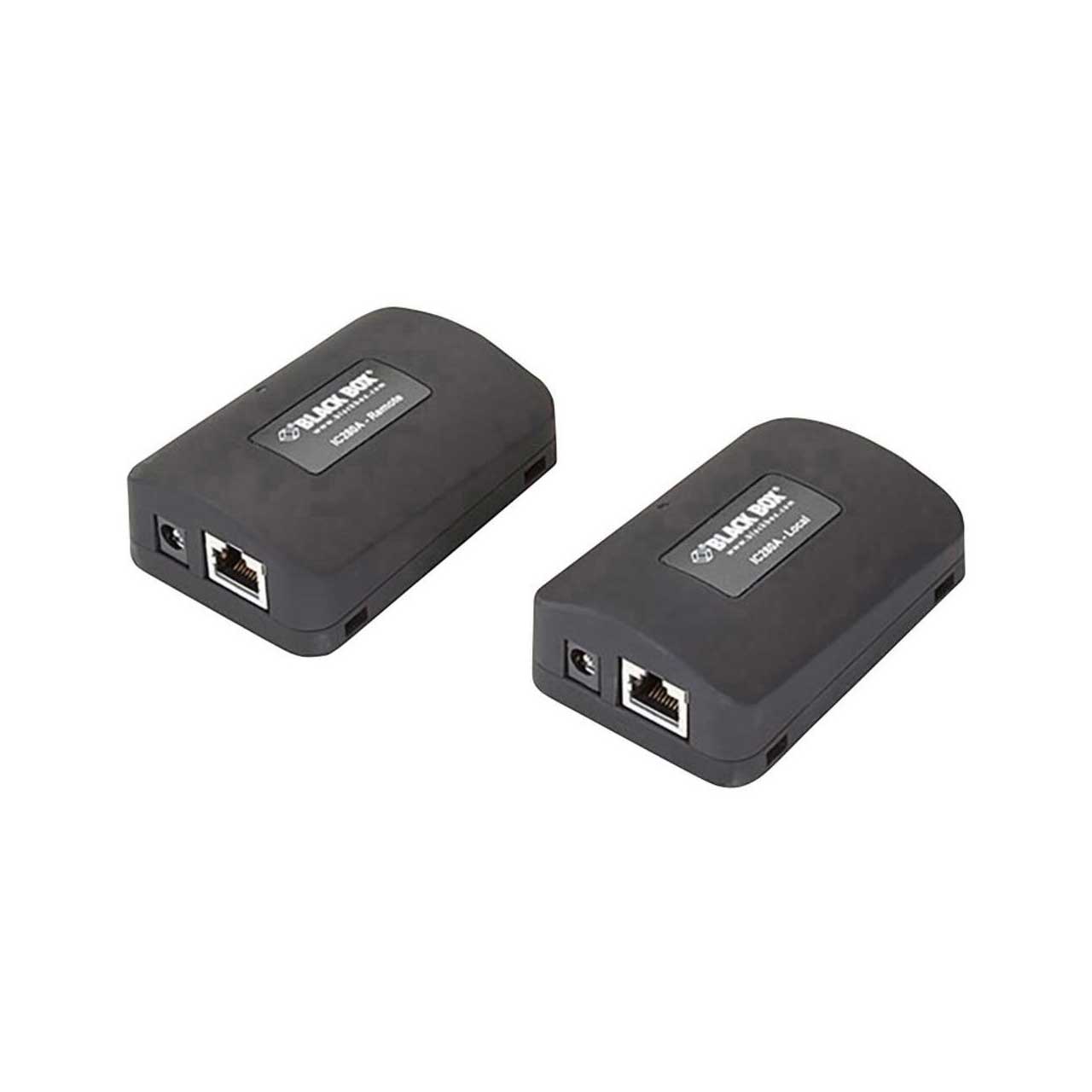

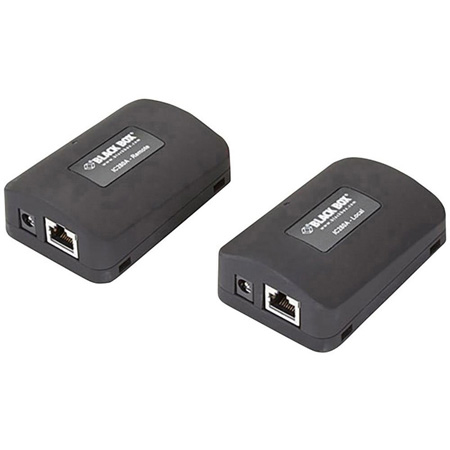

Black Box IC280A-R2 USB 2.0 CAT5 Extender

ITEM #: BBX-IC280A-R2 MFG #: IC280A-R2

free ship

List Price:


Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    IC280A-R2 - Overview

    With the IC280A-R2, you can extend USB 2.0 peripherals beyond the 16 ft (5 m) limitation up to 328 ft (100 m) over CATx, and power it locally or remotely. Extend a USB peripheral connection beyond the desktop to USB keyboards, mice, printers, webcams, interactive whiteboards, and other devices. The extender receives power locally or remotely, so you have the flexibility to power the extender where it is most convenient for you. Use it, for instance, in industrial control, factory floor, classroom, or meeting room applications where you're short on power outlets. The extender supplies up to 500 mA to the downstream USB device and offers reliable operation with USB 1.1 and USB 2.0 devices.

    • Features:

      • Extend USB 2.0 signaling over CAT5 cable to a remote USB peripheral
      • Gives you the option to power it locally or remotely. Transmits power over the UTP cable
      • Works with USB 1.1 and USB 2.0 hosts
      • Compatible with USB devices operating at speeds up to 480 Mbps
      • Supports all major operating systems: Windows, Mac OS X, and Linux
      • Plug and play. No software drivers to load on a host computer
      • Includes 6-foot (1.8-m) USB cable for transmitter-to-host connection
    • Specifications:

      • General
      • Range: Up to 100 m (330 ft.) over Cat 5e/6/7 cable
      • USB Device Support: High-speed devices (480 Mbps) (USB 2.0); Full-speed devices (12 Mbps) (USB 1.1); Low-speed devices (1.5 Mbps) (USB 1.1)
      • Maximum USB Devices Supported: 30 USB devices or 4 USB hubs with 26 USB devices
      • Power Supply Input: 100-240 VAC; Output: 24 VDC, 1 A
      • AC Adapter Connector: 2.1-mm center-positive jack
      • Current Available to USB Device at Remote Extender: Up to 1 Amp
      • Mounting: Slots for Cable Ties
      • Enclosure Material: Black ABS with Rubberized Coating
      • System Shipping Weight: 1.416 lb.
        Local Extender
      • USB Connector: (1) USB 2.0 Type B
      • Link Connector: (1) RJ-45
      • Dimensions: 1.2"H x 3.4"W x 2.6"D
        Remote Extender
      • USB Connector: (1) USB 2.0 Type A
      • Link Connector: (1) RJ-45
      • Dimensions: 1.2"H x 3.4"W x 2.6"D
      • Operating Temperature Range: 32 to 122° F
      • Storage Temperature Range: -4 to +158° F
      • Storage Humidity: 10 to 90% relative humidity, noncondensing
      • FCC: Class A
      • CE: Class A
      • Environmental: RoHS2 (CE)
      • Safety: Flammability V-0
    • GTIN:
