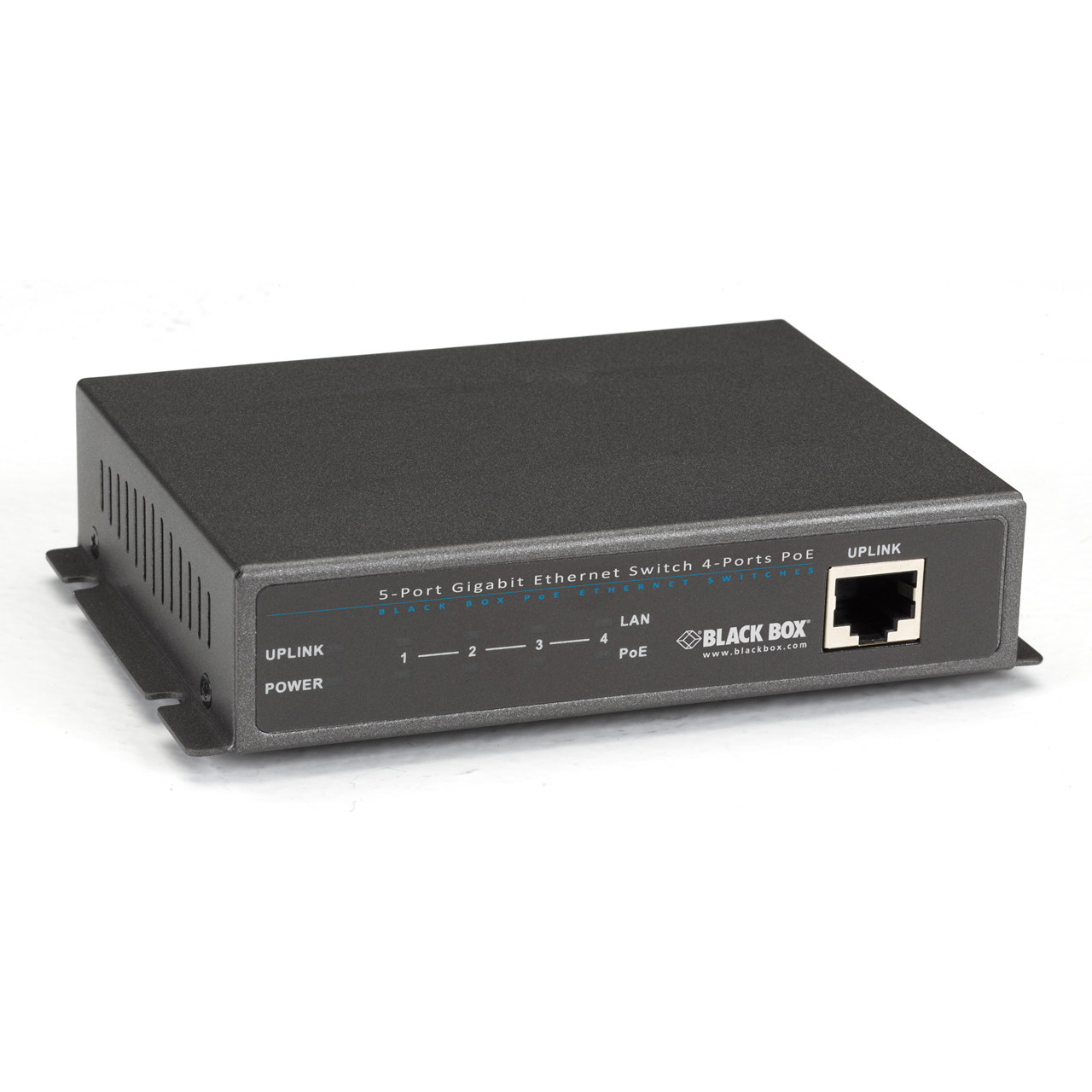

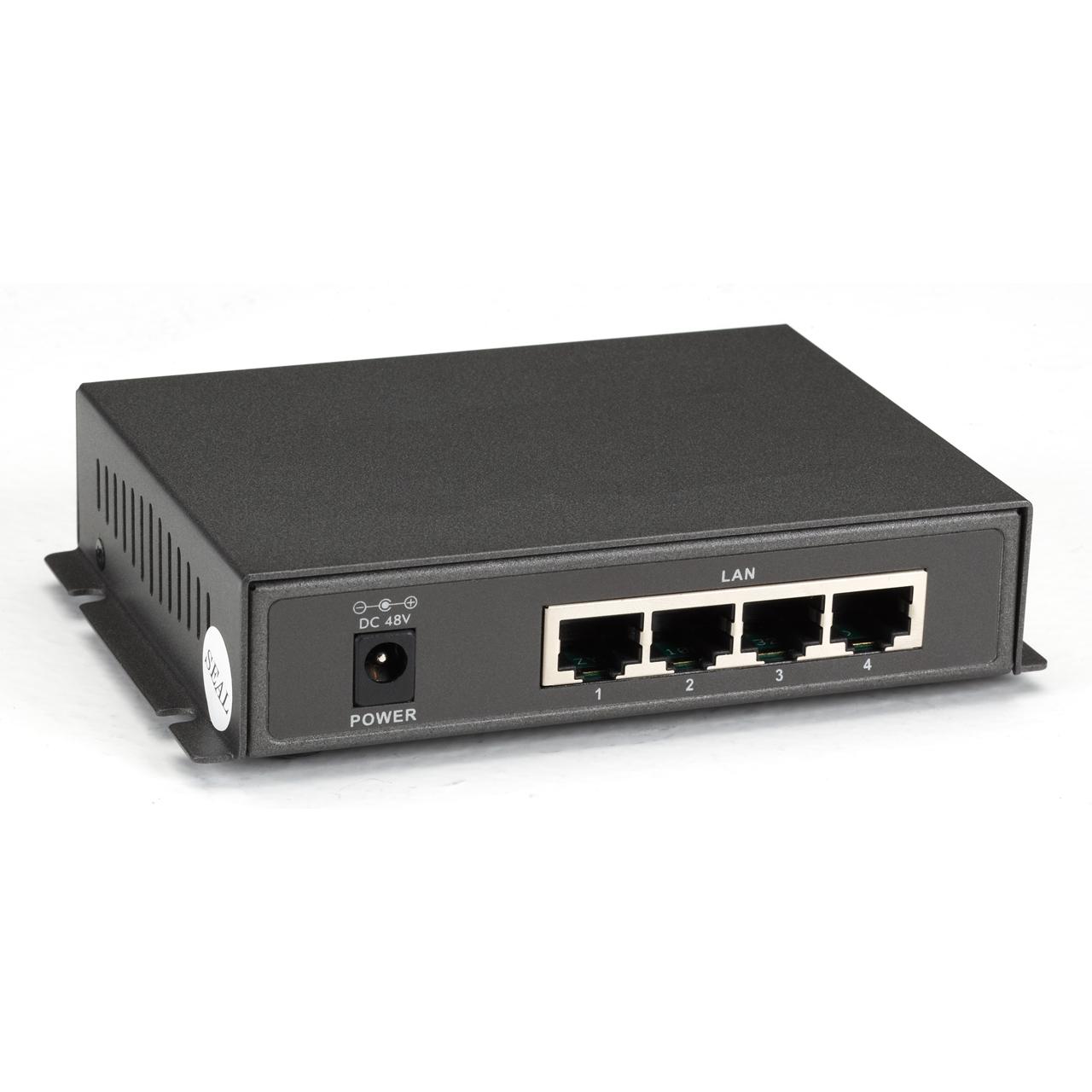

Black Box LPB1205A-R2 PoE Plus Switch with Four RJ45 Ports - 10/100/1000Mbps

LPB1205A-R2 - Overview

• Features:

  • Four PoE ports and one uplink port
  • IEEE 802.3at compliant providing up to 30 watts of power per PoE port
  • Supports up to 144 W total power per switch
  • Automatically detects and adapts to 10/100/1000Mbps speeds
  • Diagnostic LEDs provide switch status at a glance


• Specifications:

  • Connectors:
    - 1x RJ45
    - 4x RJ45 PoE
  • Buffer: 104KB
  • Cable Requirements: CAT5e/6/7 UTP and STP cable
  • CE Approval: Yes
  • Filtering/Forwarding Rate:
    - 10Mbps Port: 14,880pps
    - 100Mbps Port: 148,800pps
    - 1000Mbps Port: 1,488,000pps
  • MAC Address: 1K
  • Operating Environment Temperature: 32°F - 122°F (0°C - 50°C)
  • Operating Humidity: 10% - 90% non-condensing
  • PoE: 802.3at
  • Power: 30W per Port
  • Total Watts: 144W
  • RoHS: Yes
  • Standards:
    - IEEE 802.3 10BASE-T
    - IEEE 802.3u 100BASE-T
    - IEEE 802.3ab 1000BASE-T
    - IEEE 802.3at Power over Ethernet
  • Transmission Method: Store and forward
  • LED Indicators: Power, Uplink, LAN and PoE: Ports 1-4
  • Dimensions (HxWxD): 1.1" x 4.7" x 3.5" (2.8 x 9 x 12cm)
  • Weight: 2.6lbs (1.18kg)


• Warranty:

  • 1 Year Warranty
