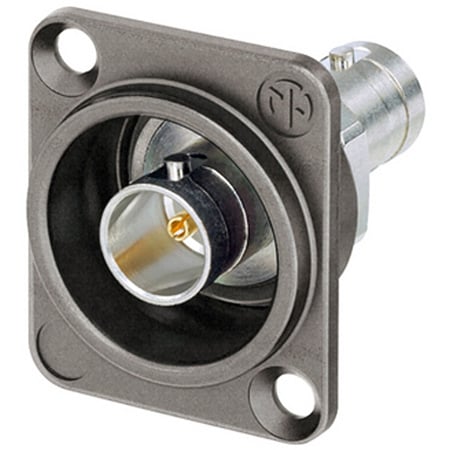

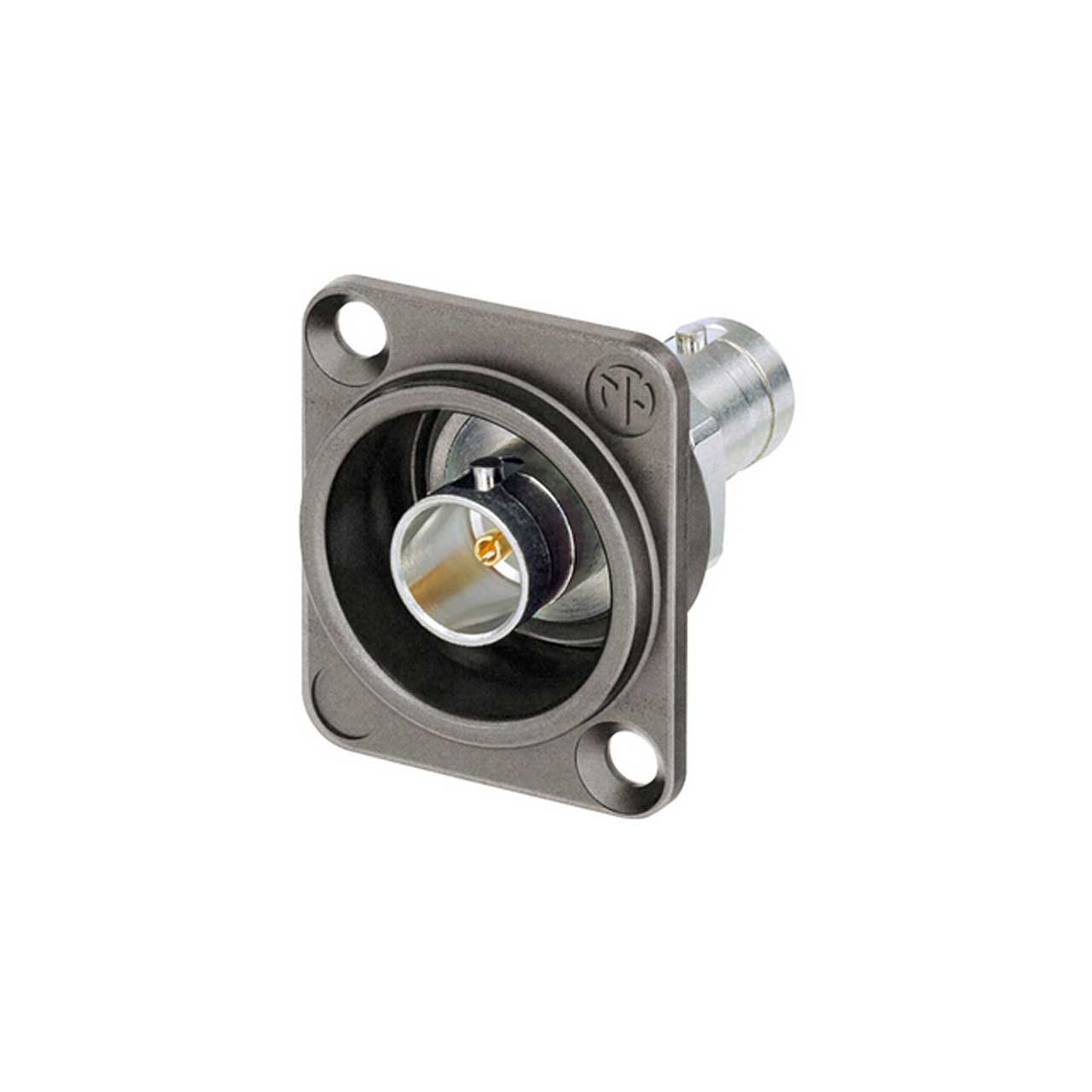

Neutrik NBB75DFGX Grounded 75 Ohm 4K/8K 12G-SDI UHD D-Style Chassis Mount BNC Connector


free ship

List Price:


Our Price:


Availability: In Stock
iAvailability Description Popup

    NBB75DFGX - Overview

    Grounded UHD BNC chassis connector, feedthrough in antraloy plated D-shape housing.

    Neutrik's UHD BNC chassis connectors offer low return loss values at high frequencies specific for high resolution video signal transmission. The machined brass connector body provides an extremely rugged and non-abrasive connection over long term use and is in addition recessed and therefore well protected in a D-shape housing.

    Due to optimized insulator design the Neutrik rearTWIST UHD BNC chassis connector achieves increased headroom compared to conventional BNC connectors and offers additional return loss reserve for potential impedance deviations resulting from cable bending, incorrect connector assembly or faulty connection interfaces without signal interruption.

    • Features:

      • Optimized gold plated cage type center contact for UHD signals as 4K or 8K
      • Swiss black chrome plating
      • Grounded panel mount
      • Standard D-shape housing provides flush mounting and protection from damage
      • Color coding possible
      • Fully compatible with conventional BNC cable connectors
