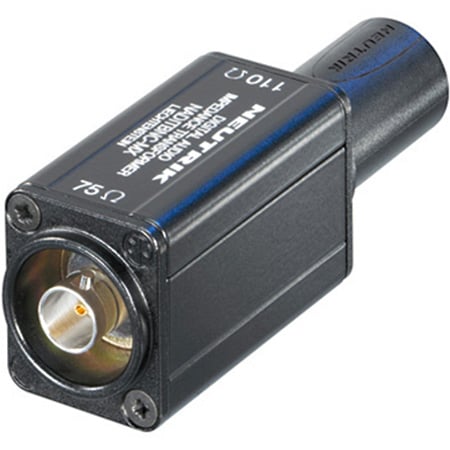

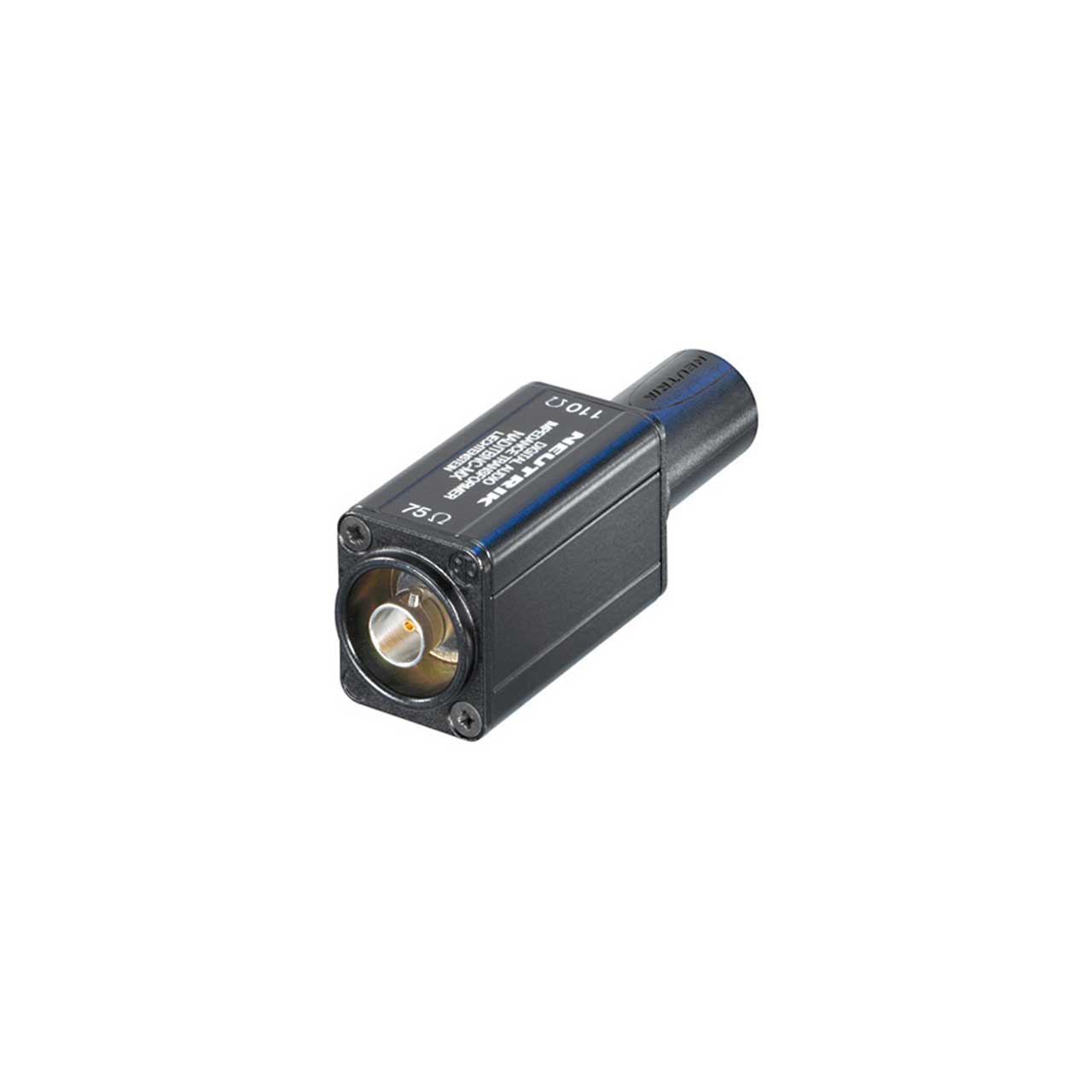

Neutrik NADITBNC-MX BNC Female 75 Ohm Input To Male XLR Cable End output adapter

ITEM #: NA-BMX MFG #: NADITBNC-MX

Primary Image
Free Shipping with $49 Minimum Order

Item unavailable. Please select another option.

Ask a Markertek Expert if you need assistance finding an appropriate substitute.

List Price:

$65.05

Our Price:

$55.76

Availability: In Stock
iAvailability Description Popup


    NADITBNC-MX - Overview

    The Neutrik NADITBNC-MX is a female BNC 75Ω input to male XLR cable end 110Ω output. It allows you to interface balanced and coaxial lines.

    • Features:

      • Allow long cable runs for digital audio signals via low attenuation coax lines
      • Match impedances 110Ω to 75Ω
      • Match balanced to coaxial lines
      • Simple to use, passive units

    • Specifications:

      • Frequency Range: 0.1 - 6MHz
      • Rated Voltage: ≤5 V p-p
      • VSWR: <1.1
      • Return Loss: >26.4dB
      • Insertion Loss: <0.3 dB @ 0.1 MHz to 10 MHz
