Link Bridge 4800-T-M-LC-WUXGA-1PS DVI Graphics Transmitter ONLY
  • Link Bridge 4800-T-M-LC-WUXGA-1PS DVI Graphics Transmitter ONLY
  • Link Bridge 4800-T-M-LC-WUXGA-1PS DVI Graphics Transmitter ONLY

Questions? Ask a Markertek Expert:
800-522-2025 Email

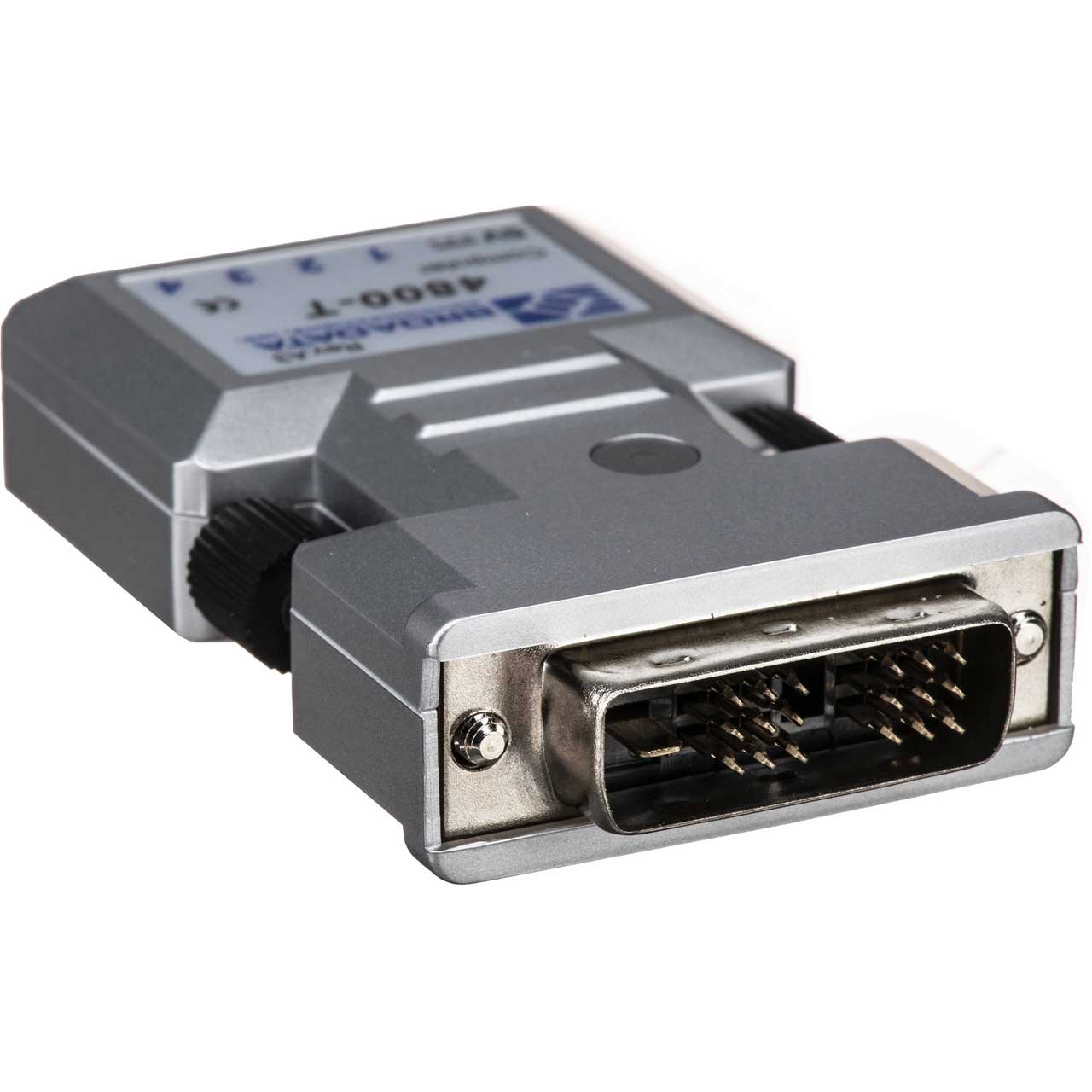

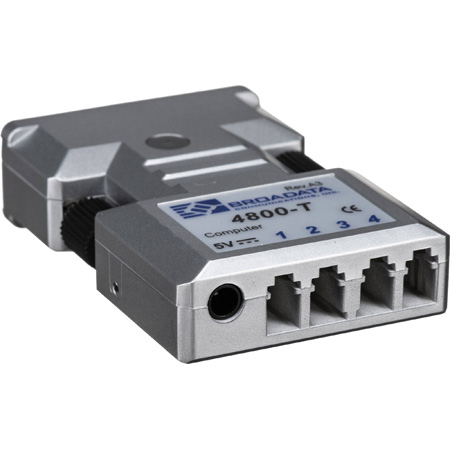

Link Bridge 4800-T-M-LC-WUXGA-1PS DVI Graphics Transmitter ONLY

Item #: BD-4800-T   •   MFG #: BD-4800-T



List Price:$349.97
Our Price:$244.95

free ship


Availability: Direct Ship From Manufacturer
i
Item ships directly from the manufacturer and is subject to manufacturer availability. We will contact you with expected availability. You can also email [email protected], chat or call customer service (800)-522-2025 for expedited delivery options.




    Share!

    California Residents:
    8pt-triangleWARNING:
    Cancer and Reproductive Harm - www.P65Warnings.ca.gov





    Required Accessories

    The 4800/4802 Series is a high performance, yet affordable, Fiber Optic DVI Extension System that is designed to carry one (1) DVI channel, over long distances through four (4) multimode fibers (4800 Series) or through two (2) multimode fiber (4802 Series). This unique fiber optic system lets your digital flat panel display extend up to 500 m away from host by TMDS digital signal transmission.

    No user adjustments are required in the 4800/4802 system due to the use of advanced digital fiber optic transmission technology. This allows for a quick and easy setup, offering trouble-free operation for many years to come. The 4800/4802 system transmits R, G, B, clock signals separately through one individual fiber and can support video resolution up to WUXGA (1920 x 1200).

    APPLICATIONS
    Remote DVI Transport
    Remote Workstation Video/Graphic
    Transmission
    Remote Flat Panel Display
    Digital Signage, Video Wall


    • Features

      • Complies with Class 1 Laser Eye Safety
      • Requires 4 Fibers for R, G, B, ClockTransmission (4800 Series)
      • Requires 2 Fiber for R, G, B, clockTransmission (4802 Series)
      • Operates up to 165 MHz WUXGA,1920 x 1200, 60 Hz or 1080p HDTVup to 500M (1640 feet)
      • Offers self-EDID programming feature detecting from a display and restoring to an EEPROM in the transmitter just by plugging to the display without any physical DDC connection

    • Specifications

      • ELECTRICAL
      • Signal Format - DVI
      • Graphic Resolution - Up to 1920 x 1200, 60 Hz
      • Distance - 500 m
      • DDC Protocol - Self-EDID programming feature
      • Data Rate - up to 1.65 Gbps (per link)
      • Connector - DVI 24-pin plug
      • OPTICAL
      • Fiber Type - Multimode
      • Number of Fibers - 4
      • Connector - LC
      • Recommended Fiber - 50/125um Multimode Glass Fiber, 400 MHz Km (min)
      • PHYSICAL
      • Dimension (H x W x D) - 0.59" x 1.54" x 2.33"
      • Power Level (max.) - +5VDC @ 0.32A
      • Operating Temperature - 0 to +50oC
      • Humidity - 0 to 95% RH, non-condensing
