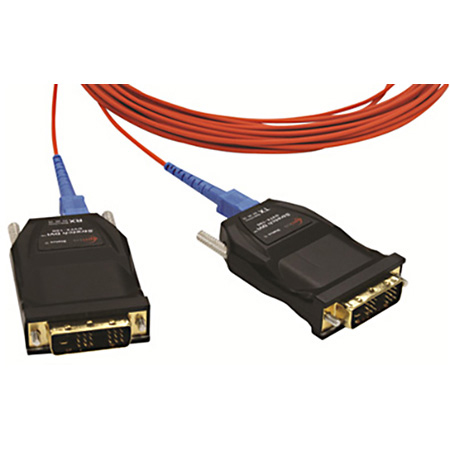

Opticis DVFX-100-TR 1 Fiber (Multi Mode) DVI Extender


  • Product Image Thumbnail 1 of 2
  • Product Image Thumbnail 2 of 2
free ship

Our Price:


Availability: Typically Ships in 3-10 Days
iAvailability Description Popup

    DVFX-100-TR - Overview

    DVFX-100-TR offers easy connection to your existing system with minimal efforts and zero modification, since it is designed compactly enough and compatible with all industry standard connectors. The metallic die-casting enclosure gives reliable installation, excellent EMI shields and heat dissipation in harsh and noisy environments.

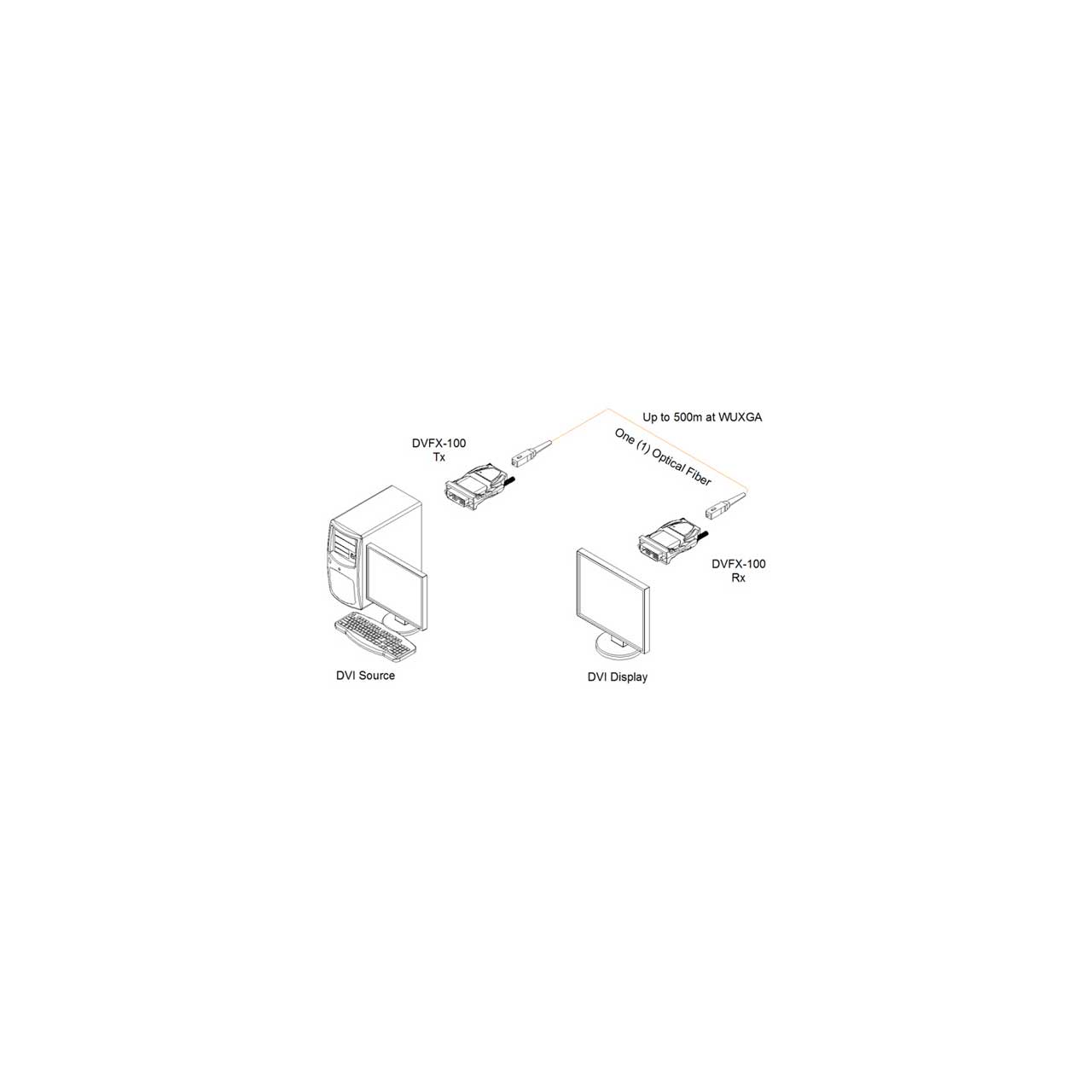

    With Opticis leading-edge fiber optic technology, DVFX-100-TR is capable of driving uncompressed WUXGA (1920x1200) at 60Hz and 2K resolution of DVI signal up to 500m (1640ft) over one(1) SC multi-mode fiber.

    For better installation and flexibility, it features patent pending Self-EDID management, reading and restoring of the display information by simply plugging the transmitter module to the display. It is also certified with IEC60601-1, 60601-1-2 for medical uses and FCC/CE and Class 3 LASER Eye Safety for various applications.

    Please note!Fiber cable is not included!

    • Features:

      • Extremely small and solid aluminium enclosure
      • Easy and simple installation with a single fiber
      • Reads and restores the targeted EDID in the transmitter (Self-EDID)
      • Provides Power, Status (Signal transmission in the transmitter and signal detection in the receiver), LED indicators
      • Auto-power switching
      • Supports up to WUXGA(1920x1200) 60Hz
      • Supports bit rate up to 2.25Gbps, which covers 36 bits color depth of 1080p
      • Uncompressed DVI signal up to 500m (1640ft) over one (1) multi-mode fiber with SC terminated connector
      • Operating temperature: 0 ~ 50°
      • Storage temperature: -30~70°
      • Input power: +5V 1A
      • Certifications: CE / FCC, UL/EN 60601-1, 60601-1-2, Class 1 Laser Eye Safety
    • Item Includes:

      • One (1) Transmitter (Tx) and One (1) Receiver (Rx)
      • AC/DC power adapter: Two (2) units of +5V, 1A
      • User’s Manual
    • Warranty:

      • 1 Year
