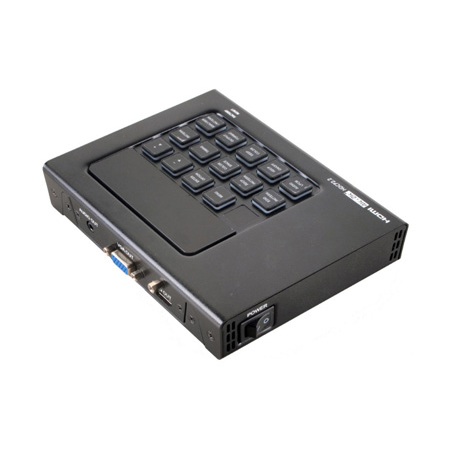

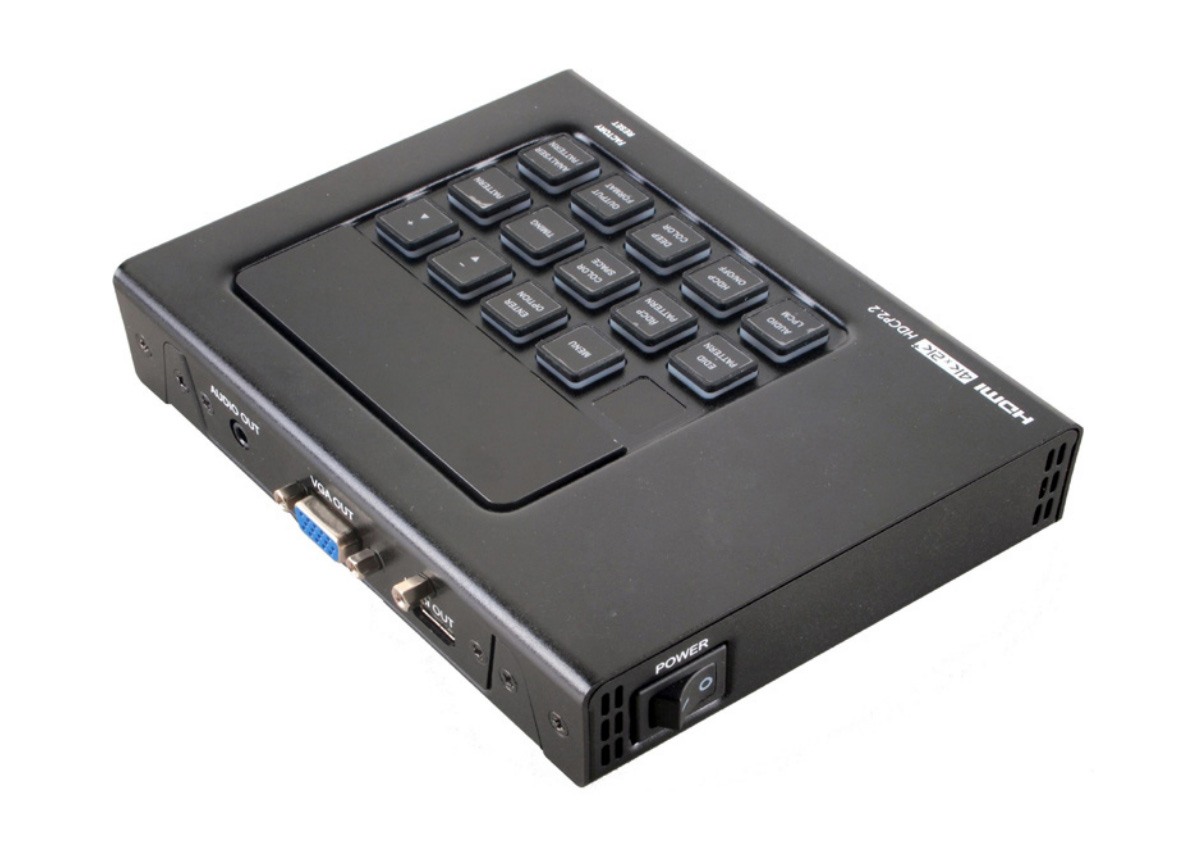

Link Bridge LB-H2-SGA HDMI 2.0 Signal Generator and Analyzer

LB-H2-SGA - Overview

• Features:

  • HDMI 2.0 (up to 4K@60Hz 4:4:4) and HDCP 1.4/2.2 compliant Analysis of source and sink data paths up to 6G HDMI signals
  • Analysis of HDMI data packets
  • Analysis and control of HDCP 1.4 and 2.2
  • Analysis and emulation of EDID data, including SCDC
  • Analysis of input audio signals
  • HDR bypass and analysis support
  • Generate HDMI timings up to 6Gbps (4096x2160@60Hz 4:4:4, 8-bit) Generate HDMI and VGA signal outputs
  • External stereo audio input and output
  • Generation of LPCM sinewave audio on up to 8 channels Front-panel, RS-232, Telnet, and IR Remote controls Detailed OSD for settings and informational displays


• Specifications:

  • Input: One (1) HDMI Input port; One L/R analog audio (3.5mm jack)
  • Output: One (1) HDMI Output port; One (1) VGA Output port, HD-15; One L/R analog audio (3.5mm jack)
  • VGA Output: Resolutions support 350p, 480p, 576p, 720p, 1080i, 1080p, 640x480, 800x600, 1024x768, 1280x1024, 1366x768, 1400x1050, 1440x900, 1600x900 (RB), 1600x1200, 1680x1050, 1920x1200 (RB), 2048x1080p
  • HDMI Output: Resolutions support 350p, 480p, 576p, 720p, 1080i, 1080p, 640x480, 800x600, 1024x768, 1280x1024, 1366x768, 1400x1050, 1440x900, 1600x900 (RB), 1600x1200, 1680x1050, 1920x1200 (RB), 3G4K, 6G4K
  • Control: RS-232, DB-9, LAN, RJ-45, USB, for firmware upgrade

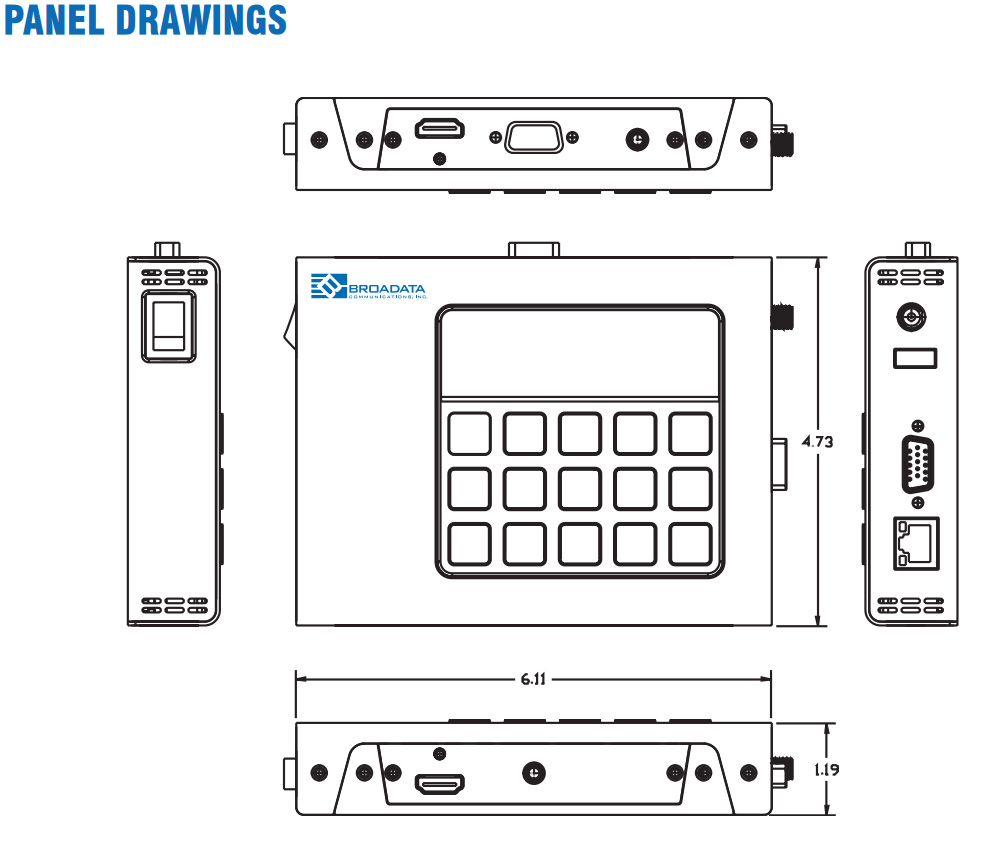

  • Dimension (W x D x H): 4.93" x 6.11" x 1.19"
  • Operating Temperature: 0°C to 40°C
  • Storage Temperature: -20°C to 60°C
  • Power Supply: [email protected]
